RX435A

Delivers 137 dBA Continuous SPL@1m for long-throw broadcasts.
Reaches 942 m and blankets 2.78 km² in a single deployment.
800 W amplifier drives high-pressure output for open terrain and crowds.
A 350 × 535 mm, 18 kg pillar that two handlers can reposition quickly.
Fits fixed masts, rooftops, or moving vehicles for regional coverage.
Holds mission-specific audio in local flash for instant replay.
Radiates to every bearing with no acoustic shadow.
Ties into command networks over TCP/IP for coordinated signaling.
Cleared to MIL-STD-810H (heat, cold, humidity, rain) and IP65 sealed.

Quantity:
Availability:





Inquire Add to Basket

Product Description

FAQ

Application

Download

Product Overview

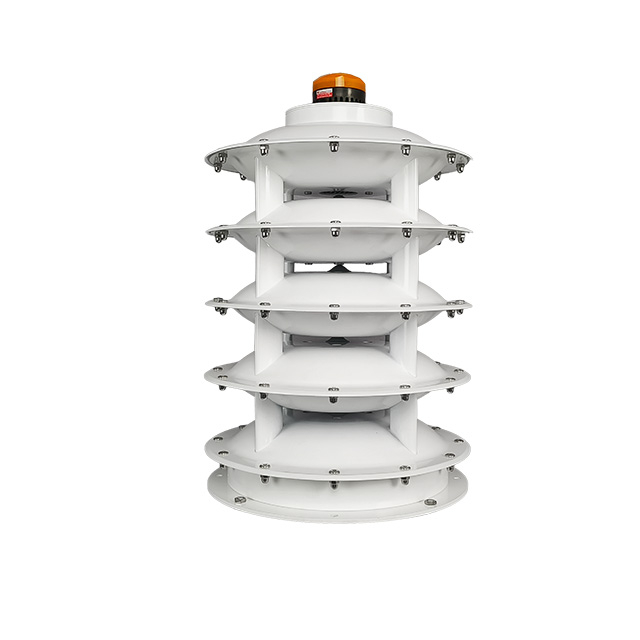

The RX435A is a high-power omnidirectional acoustic broadcast array engineered for large-area emergency and frontier operations. Built on a sealed 350 mm × 535 mm column, it radiates uniform sound through a complete 360° field and sustains a 142 dBA peak output for extended-reach messaging. Its 800 W drive and 18 kg man-portable body support fixed, mast, and vehicle roles, while local flash and a TCP/IP link enable stored-message playback and remote, platform-level dispatch across disaster warning, frontier security, airport avian defense, and wide-area notification.

Description of Characteristics

• High-output 360° radiation

Projects 137 dBA Continuous SPL@1m across a full circle, reaching 942 m with 2.78 km² blanketed and no dead sectors.

• Long-throw field consistency

Keeps voice and tone intelligible from the near field to 30 m and beyond, holding 107 dBA at 30 m for dependable distant signaling.

• Man-portable high-power column

The 350 × 535 mm, 18 kg enclosure carries an 800 W amplifier yet remains liftable by two personnel for rapid field placement.

• Multi-role mounting

Anchors to fixed masts, rooftops, or vehicles, scaling from a single-site siren to a networked regional node.

• Stored-message library

Local flash retains mission audio—tones, voice, and deterrent clips—launched on demand without external players.

• Harsh-environment certification

Verified to MIL-STD-810H for high/low operating and storage temperature, humidity, and rain, sealed to IP65 for all-weather outdoor service.

Table of Key Equipment Parameters

Parameter	Details
Continuous SPL@1m	137 dBA
Continuous SPL@30m	107 dBA
Notification Radius	942 m
Notification Area	2.78 km²
Dimension (D×H)	350 mm × 535 mm
Weight	18 kg
IP Rating	IP65
Continuous SPL@1m	137 dBA

FAQ

Which installation types are supported?

The RX435A installs on fixed masts, poles, and rooftops, and also adapts to vehicle platforms, allowing both stationary and mobile large-area deployment.

What climate conditions can it withstand?

Can the alert audio be customized?

How is it controlled?

What power does it need?

Is OEM/ODM available?

Application

The RX435A mainly serves Critical Infrastructure Security, Mass Notification, Public Safety, and Wildlife Protection.

Common application scenarios:

•Critical Infrastructure Security

Its high-power 360° output anchors frontier and boundary defense, blanketing remote facilities, border outposts, and energy sites with wide early-warning coverage.

• Mass Notification

For disaster warning and large-area emergencies—typhoons, floods, wildfires—it pushes coordinated signals across whole townships and industrial belts from a single node.

• Public Safety

Vehicle- or mast-mounted, it delivers command voice and alarm to crowds and field crews where fixed sirens are absent or insufficient.

• Wildlife Protection

High-intensity acoustic avian defense at airports and reserves reduces bird strikes and wildlife intrusion over a broader footprint than smaller units.
