RX860A

Continuous SPL@1m: 142dBA，Notification Radius: 1255m
Coverage area up to 4.95km², drastically cutting pole layout quantity for large forests.
250Hz–7000Hz frequency band outputs clear voice over open forest plains.
Thickened IP65 shell withstands typhoons and sandstorms for maintenance-free operation.
Three universal audio modes: disaster early warning, public announcement, bird repellent broadcast.
Military impact-resistant shell resists falling mine gravel and strong wind impacts.
TCP/IP cluster network realizes partitioned control of hundreds of equipment units.
61kg balanced weight, cost-effective selection for medium-sized wild open venues.

Quantity:
Availability:





Inquire Add to Basket

Product Description

FAQ

Application

Download

Product Overview

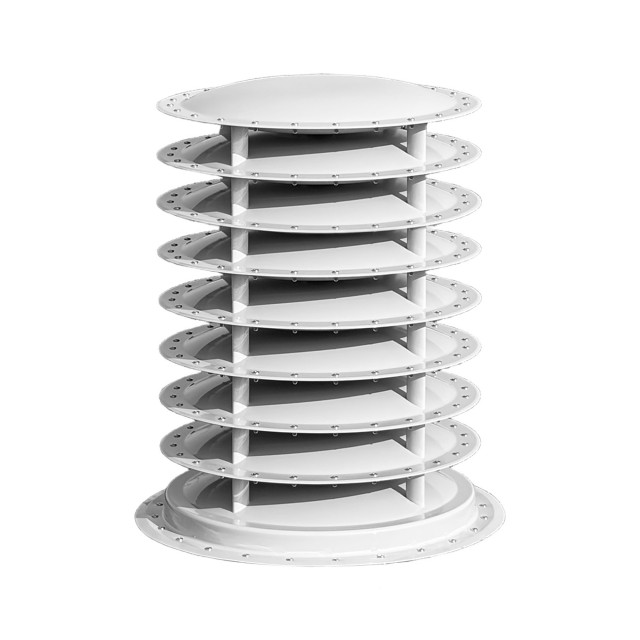

he RX860A serves as a mid-tier full-directional acoustic warning system assembled with eight acoustic speaker units plus one dedicated power cabinet unit. Its effective warning coverage stretches beyond 1.2 kilometers, with a total effective alert zone measuring 4.95 km². This unit fits perfectly for voice broadcasting and emergency early warning deployment inside large industrial zones, woodland territories and airport operational zones. Integrated with TCP/IP network communication ports, it enables cloud-based remote management and satisfies full-scale public emergency notification operational requirements.

Description of Characteristics

• Gap-free 360-degree Acoustic Coverage

It delivers seamless horizontal sound propagation without coverage blind zones. At a measuring distance of 1 meter, the peak sound pressure hits 147 dBA, delivering a practical warning radius of 1,255 meters and a full coverage territory of 4.95 km².

• Diversified Audio Operational Modes

Users can launch real-time voice paging via remote microphones. The system upgrades local audio playback capability, supports recorded file playback, and is compatible with mainstream common audio file formats.

• Superior Intelligible Voice Transmission

Configured with a frequency response spectrum spanning 250 Hz to 7000 Hz, the unit fully matches frequency bands for human speech, wild bird vocalization and conventional audio signals. Thanks to premium sound restoration performance, it works excellently for directional voice hailing, emergency broadcast alerts and targeted bird dispersal broadcasting.

• Versatile Layout and Programmable Management

Fitted with standard TCP/IP communication interfaces, operators can execute remote commands through dedicated control terminals. The hardware can also be embedded into existing security monitoring platforms or command control systems to realize unified long-distance scheduling management.

• Military-standard Environmental Endurance and Operational Stability

The hardware completes strict verification tests following the US MIL-STD-810H military specification, covering extreme high-low temperature cycling, damp heat conditions, sand dust erosion, salt spray corrosion and mold growth resistance. The whole machine reaches an IP65 enclosure protection grade for outdoor harsh deployment.

• Universal Global Power Supply Compatibility

Designed to accept alternating current input between 110V and 260V, the device adapts to regional power grid standards worldwide. It maintains steady continuous operation even within remote wilderness locations or areas suffering from unstable grid voltage fluctuations.

Table of Key Equipment Parameters

Parameter	Details
Peak SPL@1m	147dBA
Continuous SPL@1m	142dBA
Continuous SPL@30m	112dBA
Notification Radius	1255m
Notification Area	4.95km²
Dimension(D*H)	700mm*940mm
Weight	61kg
IP Rating	IP65

FAQ

What installation methods does this product support?

The RX860A supports permanent fixed mounting upon elevated barrier-free positions, including communication towers, utility poles and building rooftop surfaces.

In what environments can this product be used?

Boasting IP65 ingress protection alongside an operational temperature window ranging from -40°C to +50°C and built-in salt spray resistance capability, this unit sustains reliable long-term operation amid harsh settings such as high-latitude zones, high-altitude plateaus, offshore islands, desert terrains and gobi landscapes.

Does it support a dry contact interface?

Built around the TCP/IP communication protocol, the equipment delivers outstanding cross-system linkage and interoperability performance.

Does it support electrical cabinets?

A customized electrical cabinet is supplied as standard factory configuration, supporting durable stable running under prolonged outdoor severe climatic conditions.

What are the control methods for this product?

Based on TCP/IP protocol framework, multiple control pathways are available. Operators can utilize wired control terminals or portable handheld tablets, or embed the hardware into security monitoring and command dispatch platforms to realize collaborative systematic operation.

Does this product support WiFi control?

Wireless WiFi control functionality can be enabled, requiring auxiliary peripheral hardware such as dedicated routing equipment for full deployment.

Does this product support solar panel power?

Solar-powered operation is technically viable. Our technical team can formulate customized solar panel arrays and matched battery pack specifications tailored to individual field installation surroundings.

Does this product support OEM/ODM customization?

Custom OEM and ODM development services are available. Adjustable customized items include displayed control language schemes, exterior casing color tones and engraved equipment nameplate content. Custom development extends to core functional modules: LED warning indicator lamps, one-touch shortcut control buttons, pre-recorded multilingual alert phrase translation packages and personalized operation interface layouts.

Application

The RX860A centers on large-scale public emergency notification missions. Equipped with strong acoustic output performance and expansive early warning coverage capacity, the unit executes broadcast voice notifications, post-disaster emergency alerts and routine public reminder messaging. Typical deployment sites cover typhoon disaster prevention zones, tsunami risk buffer regions, island-wide public address networks, campus broadcast systems and forest fire prevention warning broadcast frameworks.
