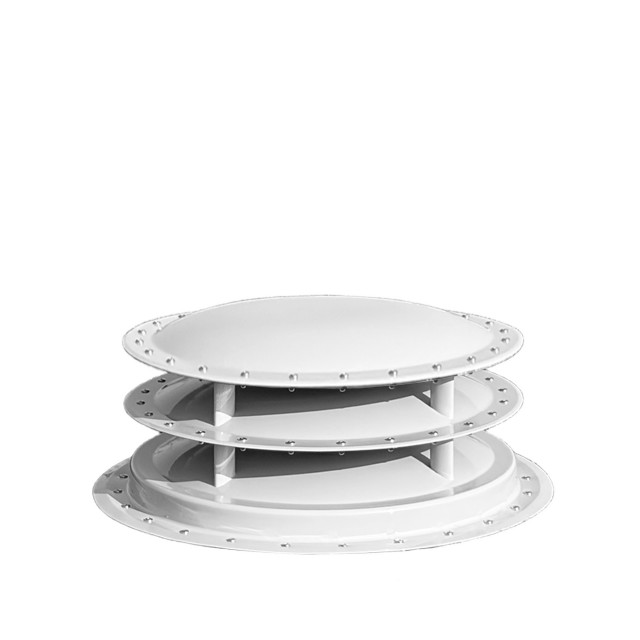

RX260A

Continuous SPL@1m: 131dBA，Notification Radius: 630m
Coverage area reaches 1.25km², matching small villages and PV stations.
Only 25kg lightweight body, mountable on boats and inspection UAVs.
Three universal audio playback modes: emergency alert, public voice broadcast, bird dispersal.
No extra control cabinet; simple wiring for rural quick installation.
360° omnidirectional sound, no audio blind spots among buildings.
TCP/IP networking for remote unified management by township platforms.
MIL-STD-810H certified, IP65 dustproof & waterproof for outdoor use.
Compatible with poles, rooftops and ship brackets for low-cost deployment.

Quantity:
Availability:





Inquire Add to Basket

Product Description

FAQ

Application

Download

Product Overview

The RX260A is a 360° omnidirectional acoustic device featuring multi-mode audio inputs, supporting functions such as broadcasting, bird repelling using sound waves, and public notifications. With a notification coverage area of 1.25 km², it is ideal for installation in small to medium-sized areas. Equipped with a TCP/IP network interface, the device enables remote control and management, meeting requirements for mass notification, public safety applications, and platform integration.

Description of Characteristics

• 360° Comprehensive Coverage

Achieves horizontal 360° sound coverage without dead zones, with a peak sound pressure level of 137 dBA@1m, a notification radius of 630 m, and a Notification Area of 1.25 km², eliminating acoustic blind spots.

• Multi-scenario Audio Adaptation

Supports real-time voice commands via the microphone, built-in audio playback, and recording playback functions.

• High Voice Clarity

The device supports a frequency response ranging from 250Hz to 7000Hz, covering human voices, bird calls, and common audio bands with exceptional sound reproduction quality, making it suitable for various applications such as public address systems, broadcasting, and bird repelling.

• Flexible Deployment and Control Capabilities

Standardly equipped with a TCP/IP communication protocol interface, it supports remote control—either via direct operation from a terminal or integration into existing security platforms or command/d Dispatch systems for centralized management.

• Military-grade Environmental Adaptability and Reliability

The product has passed rigorous tests under the U.S. military's MIL-STD-810H standard, including high/low temperatures, humid heat, sand/dust exposure, and rain exposure, achieving IP65 protection for performance in complex climates and harsh environments.

• Broad Voltage Adaptability

Supports wide-range AC voltages from 110V to 260V, compatible with power systems across global regions and solar panel-powered operation, ensuring continuous stable performance in remote areas or unstable power conditions.

Table of Key Equipment Parameters

Parameter	Details
Peak SPL@1m	137dBA
Continuous SPL@1m	131dBA
Continuous SPL@30m	101dBA
Notification Radius	630m
Notification Area	1.25km²
Dimension(D*H)	700mm*400mm
Weight	25kg
IP Rating	IP65

FAQ

What installation methods does this product support?

The RX260A can be fixedly installed on elevated, unobstructed surfaces such as high towers, utility poles, and rooftops, or mounted on mobile platforms including vehicles, ships, UGVs (Unmanned Ground Vehicles), and USVs (Unmanned Surface Vehicles).

In what environments can this product be used?

The RX260A operates within a temperature range of-40°C to +50°C and features an IP65 protection rating, making it suitable for use in various environments including plains, coastal areas, islands, deserts, ultra-high altitudes, and high latitudes.

Does it support a dry contact interface?

The RX260A supports a dry contact interface, enabling seamless integration with external security and early-warning systems.

Is an electrical cabinet supported?

The RX260A supports electrical cabinets for centralized control and stable operation of emergency alarm systems.

What are the control methods for this product?

The RX260A supports remote control via the TCP/IP protocol, offering multiple operation methods—including wired terminal control and handheld tablets—as well as integration with user security platforms or command and dispatch systems based on communication protocols.

Does this product support OEM/ODM customization?

The RX260A supports OEM/ODM customization services, offering tailored production solutions such as control language adaptation, color customization, and custom device nameplate manufacturing according to client requirements. It also enables customization of core functional modules including LED warning lights, quick-control buttons, fixed-text translations, and user interfaces.

Application

The primary application scenarios for the RX260A include Mass Notification, platform integration, and public safety.

Common application scenarios:

• Mass Notification

The RX260A can deliver broadcast notifications and disaster warnings in scenarios such as fire emergencies, flood disasters, and earthquake disasters.

• Platform Integration

The RX260A supports not only fixed installation but also deployment on mobile platforms such as ship-mounted systems, Unmanned Ground Vehicles (UGVs), and Unmanned Surface Vessels (USVs).
