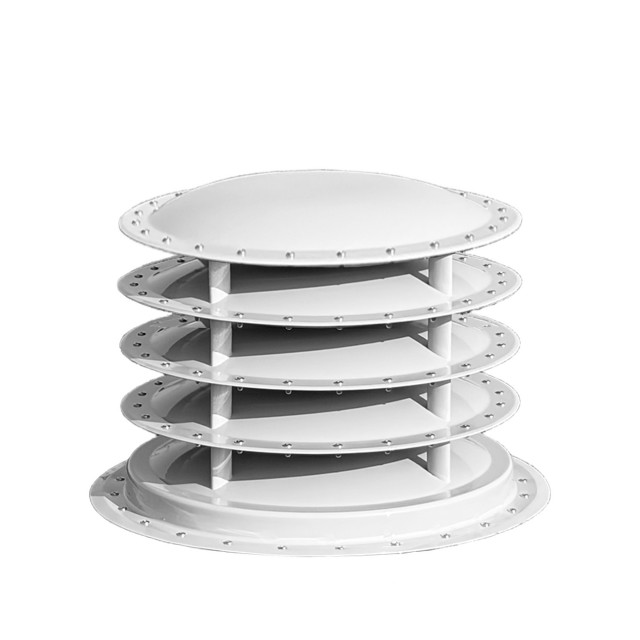

RX460A

Quantity:
Availability:





Inquire Add to Basket

Product Description

FAQ

Application

Download

Product Overview

The RX460A is a 360° omnidirectional acoustic device featuring multi-mode audio input, suitable for various applications such as broadcasting, bird repellent using sound waves, and public notifications. With a notification coverage area of 2.78 km², it is ideal for early warning systems, emergency alerts, and airport bird repellent in industrial parks, photovoltaic power stations, and small islands. Equipped with a TCP/IP network interface, the device supports remote control and management, meeting critical requirements for Critical Infrastructure Security and Mass Notification tasks.

Description of Characteristics

• 360° Comprehensive Coverage

Achieves horizontal 360° sound coverage without dead zones, with a peak sound pressure level of 142 dBA@1m, a notification radius of 942 m, and a Notification Area of 2.78 km², eliminating acoustic blind spots.

• Multi-scenario Audio Adaptation

Supports real-time voice commands via the microphone, built-in audio playback, and recording playback functions.

• High Speech Clarity

The device supports a frequency response ranging from 250Hz to 7000Hz, covering human voices, bird calls, and common audio bands with exceptional sound reproduction quality. It meets diverse application requirements such as public address systems, broadcast alerts, and bird repellent.

• Flexible Deployment and Control Capabilities

Equipped with standard TCP/IP communication interfaces for remote control, it can be operated directly from terminals or integrated into existing security platforms or command systems for remote management.

• Military-grade Environmental Adaptability and Reliability

The product has passed rigorous tests under the U.S. military's MIL-STD-810H standard, including high/low temperatures, humid heat, sand/dust exposure, and rain exposure, achieving IP65 protection for performance in complex climates and harsh environments.

• Broad Voltage Adaptability

Supports wide-range AC voltages from 110V to 260V, compatible with power systems across global regions and solar panel-powered operation, ensuring continuous stable performance in remote areas or unstable power conditions.

Table of Key Equipment Parameters

Parameter	Details
Peak SPL@1m	142dBA
Continuous SPL@1m	137dBA
Continuous SPL@30m	107dBA
Notification Radius	942m
Notification Area	2.78km²
Dimension(D*H)	700mm*580mm
Weight	37kg
IP Rating	IP65

FAQ

What installation methods does this product support?

The RX460A can be fixedly installed on elevated, unobstructed surfaces such as high towers, utility poles, and rooftops.

In what environments can this product be used?

The RX460A operates within a temperature range of-40°C to +50°C and features IP65 protection, making it suitable for use in diverse environments including plains, coastal areas, islands, Gobi deserts, ultra-high altitudes, and high-latitude regions.

Does it support a dry contact interface?

The RX460A supports a dry contact interface, enabling seamless integration with external security and early-warning systems.

Is an electrical cabinet supported?

The RX460A supports electrical cabinets for centralized control and stable operation of emergency alarm systems.

What are the control methods for this product?

The RX460A supports remote control via the TCP/IP protocol, offering multiple operation modes: users can control it directly through wired terminals or handheld pads, or seamlessly integrate the device into their security platform or command and dispatch system according to the communication protocol.

Does this product support OEM/ODM customization?

The RX460A supports OEM/ODM customization services, enabling personalized production tailored to customer requirements—including control languages, exterior colors, and device nameplates. It offers exclusive customization for core functional modules such as LED warning lights, quick-control buttons, fixed-text translations, and control interfaces. Additionally, the system supports specialized enhanced designs for devices deployed on mobile platforms like vehicles, ships, UGVs (Unmanned Ground Vehicles), and USVs (Unmanned Surface Vehicles).

Application

The primary application scenarios for the RX460A include Critical Infrastructure Security and Mass Notification.

Common application scenarios:

• Critical Infrastructure Security

The RX460A delivers enhanced performance, making it ideal for security protection in industrial parks, photovoltaic power stations, and similar facilities.

• Mass Notification

The RX460A enables broadcast notifications, disaster alerts, and fire safety monitoring in scenarios such as fire emergencies, earthquake disasters, island public address systems, and campus public address networks.
