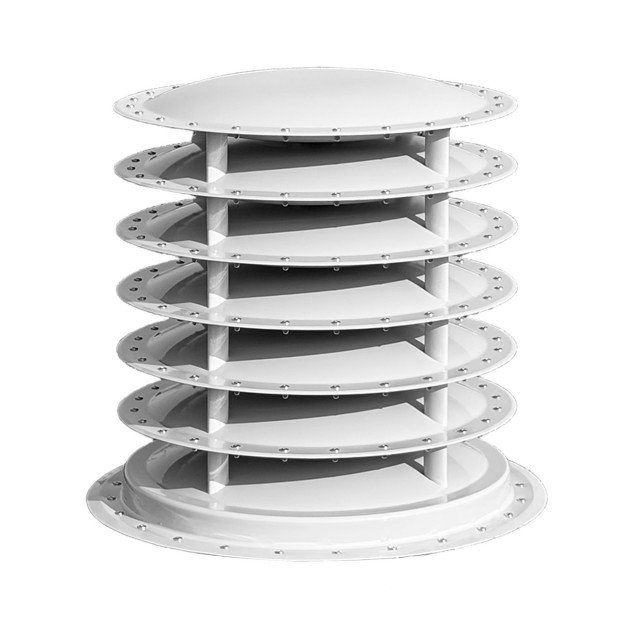

RX660A

Continuous SPL@1m: 140dBA，Notification Radius: 1124m
Single device covers 3.97km² for single mining zones and small border areas.
110V–260V wide voltage, compatible with off-grid solar power supply systems.
Stable operation under -40℃ ~ +50℃ for frigid mines and hot mountain regions.
Multi dry contacts auto-launch broadcast linked with geological & hydrological sensors.
Full-frequency sound unit delivers clear voice amid loud mining mechanical noise.
Integrated IP65 sealed shell avoids damage from mountain rain and flying gravel.
Standard TCP/IP port connects to county-level comprehensive disaster prevention platforms.
Modular short brackets fit mountain observation decks and simple border sentry booths.

Quantity:
Availability:





Inquire Add to Basket

Product Description

FAQ

Application

Download

Product Overview

The RX660A is a high-performance 360° omnidirectional acoustic device featuring multi-mode audio inputs, supporting functions such as broadcasting, bird repelling using sound waves, and public notifications. With a larger Notification Area of 3.97 km², it is ideal for applications in public safety and industrial protection. Equipped with a TCP/IP network interface, the device enables remote control and management, meeting requirements for Critical Infrastructure Security, maritime operations, mass notification systems, and public safety missions.

Description of Characteristics

• 360° Comprehensive Coverage

Achieves horizontal 360° sound coverage without dead zones, with a peak sound pressure level of 145 dBA@1m, a notification radius of 1,124 m, and a Notification Area of 3.97 km²—ensuring extensive coverage without any blind spots.

• Multi-scenario Audio Adaptation

Supports real-time voice commands via the microphone, built-in audio playback, and recording playback functions.

• High Voice Clarity

The device supports a frequency response ranging from 250Hz to 7000Hz, covering human voices, bird calls, and common audio bands with exceptional sound reproduction. It meets diverse application requirements such as public address systems, broadcast alerts, and acoustic bird repellent.

• Flexible Deployment and Control Capabilities

Equipped with standard TCP/IP communication interfaces for remote control, it can be operated directly from terminals or integrated into existing security platforms or command systems for remote management.

• Military-grade Environmental Adaptability and Reliability

The product has passed rigorous tests under the U.S. military's MIL-STD-810H standard, including high/low temperatures, humid heat, sand/dust exposure, and rain exposure, achieving IP65 protection for performance in complex climates and harsh environments.

• Broad Voltage Adaptability

Supports wide-range AC voltages from 110V to 260V, compatible with power systems across global regions and solar panel-powered operation, ensuring continuous stable performance in remote areas or unstable power conditions.

Table of Key Equipment Parameters

Parameter	Details
Peak SPL@1m	145dBA
Continuous SPL@1m	140dBA
Continuous SPL@30m	110dBA
Notification Radius	1124m
Notification Area	3.97km²
Dimension(D*H)	700mm*760mm
Weight	49kg
IP Rating	IP65

FAQ

What installation methods does this product support?

The RX660A can be fixedly installed on elevated, unobstructed surfaces such as high towers, utility poles, and rooftops.

In what environments can this product be used?

The RX660A supports operating temperatures ranging from-40°C to +50°C and features an IP65 protection rating, making it suitable for use in various environments including plains, coastal areas, islands, deserts, ultra-high altitudes, and high latitudes.

Does it support a dry contact interface?

The RX660A supports a dry contact interface, enabling seamless integration with external security and early-warning systems.

Is an electrical cabinet supported?

The RX660A supports electrical cabinets for centralized control and stable operation of emergency alarm systems.

What are the control methods for this product?

The RX660A supports remote control via the TCP/IP protocol, offering multiple operation methods: users can directly operate it through wired terminals or handheld pads, or integrate the device into their security platform or command and dispatch system for coordinated management based on communication protocols.

Does this product support OEM/ODM customization?

The RX660A supports OEM/ODM customization services: It enables personalized production tailored to customer requirements, including control languages, exterior colors, and device nameplates; additionally, it offers exclusive customization for core functional modules such as LED warning lights, quick-control buttons, fixed sentence translations, and control interfaces.

Application

The primary application scenarios for the RX660A include Critical Infrastructure Security, Maritime, Mass Notification, public safety, and Wildlife Protection.

Common application scenarios:

• Critical Infrastructure Security

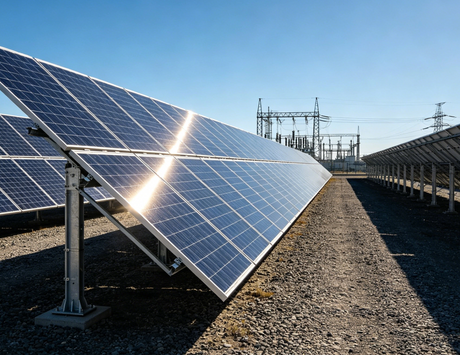

The RX660A boasts powerful performance, making it ideal for security protection in industrial parks, photovoltaic power stations, and similar facilities.

• Maritime

The RX660A has a coverage radius exceeding 1 km and is capable of providing alerts for unauthorized intrusions, boundary control warnings, coastal disaster alerts, and other applications in the offshore security domain.

• Mass Notification

The RX660A offers broader coverage for broadcast and disaster alerts, enabling extensive dissemination of notifications and warnings in scenarios such as flood disasters, earthquake disasters, campus public address systems, and forest public address systems.
