Product Overview

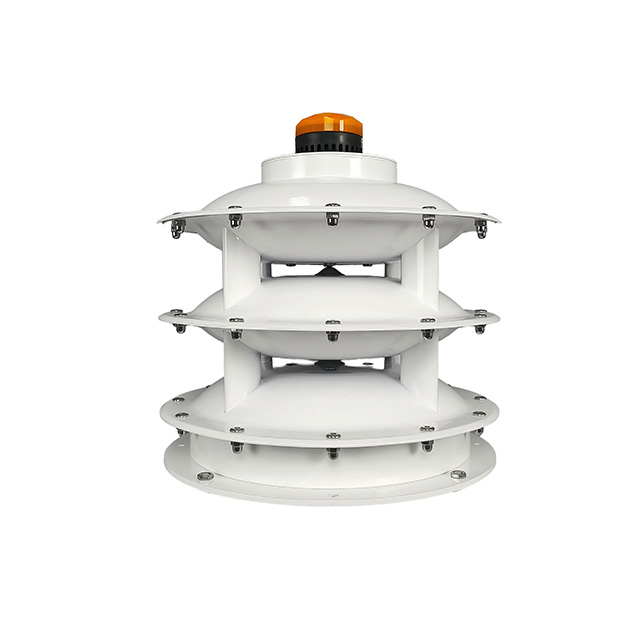

The RX235A is a compact omnidirectional acoustic alarm unit built around a lightweight cylindrical transducer that projects uniform, stable sound in a full 360° circle for reliable long-distance early warning. Its small footprint and 11 kg body support fixed, tower, and vehicle-mounted installation, making it suitable for border security, airport bird control, and mobile response. Onboard memory stores customizable alarm audio, while the TCP/IP interface allows remote operation and integration with centralized security platforms, serving Critical Infrastructure Security, Mass Notification, Public Safety, and Wildlife Protection needs.
Description of Characteristics
• Full-circle coverage
The unit radiates sound evenly in all horizontal directions, reaching 131 dBA Continuous SPL@1m and covering a 630 m radius (1.25 km²) with no silent sectors.
Acoustic energy stays consistent from the near field out to 30 m and beyond, preserving voice intelligibility and alarm clarity across the whole coverage area.
• Compact and portable
The streamlined 350 mm × 350 mm cylinder weighs only 11 kg, so one person can carry and set it up without heavy lifting equipment.
• Multi-site mounting
It mounts on towers, poles, rooftops, or vehicles, switching between stationary perimeter duty and mobile early-warning tasks.
• Stored audio playback
A built-in memory holds user-loaded tones and voice files, triggered on demand for alerts, broadcasts, or deterrent messaging.
• Ruggedized build
Tested to MIL-STD-810H for temperature, humidity, and rain, with an IP65 enclosure for dust- and water-proof outdoor operation.
Table of Key Equipment Parameters
Parameter | Details |
Peak SPL@1m | 137 dBA |
Continuous SPL@1m | 131 dBA |
Continuous SPL@30m | 101 dBA |
Notification Radius | 630 m |
Notification Area | 1.25 km² |
Dimension (D×H) | 350 mm × 350 mm |
Weight | 11 kg |
IP Rating | IP65 |
