Understanding LDAD: How Long Distance Acoustic Devices Work

Imagine a site where the people you most need to reach are 500 meters away, surrounded by engine noise, with no PA system capable of reaching them. That is the problem a Long Distance Acoustic Device (LDAD) was built to solve. This electro-acoustic system concentrates sound into a narrow beam, delivering intelligible voice and warning tones across hundreds of meters up to several kilometers. While ordinary loudspeakers become unintelligible after a few hundred meters, its directional acoustic design preserves clear messages at standoff range by tightly focusing sound, rather than simply boosting loudness.

1. What Is a Long Distance Acoustic Device?

A Long Distance Acoustic Device (LDAD) is a system that converts an electrical signal into a highly directional sound beam and projects it to a distant target so that people far away can hear — and understand — a spoken message. The defining idea is directionality: instead of spreading sound everywhere, the device aims it.

A device earns the LDAD label only when the following conditions are met at once:

• Enough acoustic output — peak levels typically reach 137–150 dB at 1 m on current commercial units, and higher for large fixed arrays. Output is the physical precondition for distance; without it, the beam is swallowed by ambient noise within tens of meters.

• Clear directivity — most LDADs use a narrow beam (commercial units are commonly specified at ±15°), concentrating energy on the target rather than broadcasting in all directions.

• Speech intelligibility — the frequency response covers the vocal band (speech energy runs roughly 100 Hz to 8 kHz), so what arrives at distance is a message you can understand, not just a loud noise.

What the Name LDAD Means

Read the name letter by letter and it describes the technology itself:

• L — Long: it reaches far.

• D — Distance: it covers long ranges.

• A — Acoustic: it produces audible sound with retained message intelligibility.

• D — Device: one integrated unit, not a pile of separate boxes.

Taken together, an LDAD is one device that carries an intelligible message a long distance — the exact gap the opening scenario described.

2. LDAD vs AHD: Two Names, One Device

Two names circulate for this technology, and seeing both on different vendors' sites can make it look like two separate categories. It is one device wearing two labels.

AHD — Acoustic Hailing Device is the older, industry-standard term. "Hailing" is the maritime and crowd-addressing tradition of calling out to a distant person or group by voice. LDAD — Long Distance Acoustic Device is a newer, plainly descriptive name that puts the technology's defining trait first: it delivers intelligible sound over a long distance. Same box, two lenses — function on one side, reach on the other.

You will also meet looser phrases — "directional acoustic device," "acoustic warning system" — and they describe the same capability from yet another angle. None of the names is "more correct"; they simply reveal whether the writer is thinking about what the device does or how far it reaches.

So why does RIBRI lead with LDAD? Because when you are choosing between devices, the question that actually decides whether an installation works is reach and intelligibility — not the word printed on the brochure. Naming the category by the property that matters keeps your comparison on the right axis. The table below lays the two names side by side, so whichever label a supplier uses, you can translate it to the same facts.

3. How Long Distance Acoustic Device Works

The principle is easier to grasp than the hardware suggests. Four steps:

1.Signal generation. A microphone input, a stored audio file, or a warning tone is fed into a power amplifier.

2.Electro-acoustic conversion. The amplified signal drives a transducer array — the core component that turns electrical energy into mechanical vibration and then into sound pressure.

3.Beamforming. Multiple transducer elements fire with controlled phase relationships so that their waves add up along the aim line and cancel out-of-axis, producing a narrow beam. This is the whole trick: the device does not get louder overall, it gets more concentrated.

4.Long-distance projection. The beam travels through air, attenuating along the way, but arrives at the target with sufficient level and an intact vocal band to stay intelligible.

Understanding the mechanism is what makes a spec sheet finally readable — and that is exactly where most buyers go wrong.

4. Reading the Spec Sheet: Five Figures You Must Get Right

A spec sheet only helps if you read it on the same scale the manufacturer used. Vendors are rarely lying when their numbers diverge — they are often simply quoting different things. Five figures cause most of the confusion, and getting them right is the difference between a device that works on your site and one that merely looks good in a brochure.

4.1 Peak SPL

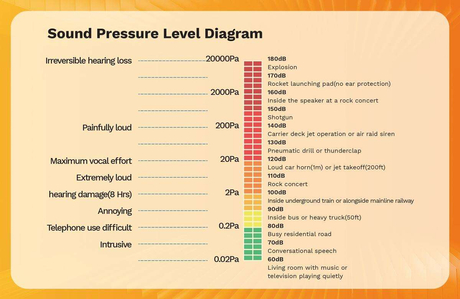

Peak SPL is the instantaneous maximum the transducer can hit, typically on short, high-energy warning tones. It tells you the device's loudest possible burst — useful for a one-second alert, but it says nothing about whether the device can sustain speech output.

4.2 Continuous SPL

Continuous SPL is the level the device can sustain for real voice hailing, minute after minute. The gap between peak and continuous is a design trade-off, not a defect: manufacturers balance thermal load and driver durability against raw output.

4.3 Beamwidth

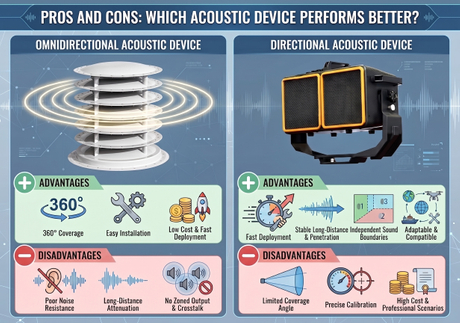

Beamwidth decides where the energy goes. A narrow beam serves a specific target without disturbing neighbors or interfering with radio-channel communications; an omnidirectional pattern serves an entire zone at once. The choice is not "which is better" but "does your scene have a defined aim point?"

4.4 Frequency Response

Frequency response is the band of frequencies the device reproduces. For voice, the part that matters is the vocal band. Speech energy runs from roughly 100 Hz to 8 kHz. This spectrum contains the key details needed to distinguish speech sounds. For long-range directional acoustic equipment, a flat frequency response within this vocal range is far more important than extended low or high-frequency performance.

4.5 Speech Intelligibility

Speech intelligibility is the outcome all the other figures exist to produce — the share of spoken words a listener at distance can actually understand. In tenders and acceptance testing it is measured, not asserted, as the Speech Transmission Index (STI) defined in IEC 60268-16:2011. The scale runs from 0 (information entirely lost) to 1 (perfectly intelligible), with five bands: below 0.30 bad, 0.30–0.45 poor, 0.45–0.60 fair, 0.60–0.75 good, and above 0.75 excellent. ISO 9921 sets a minimum of fair for public-address and alert situations, while good is the target where critical words must be correctly understood.

5. Form Factors: How LDADs Are Deployed

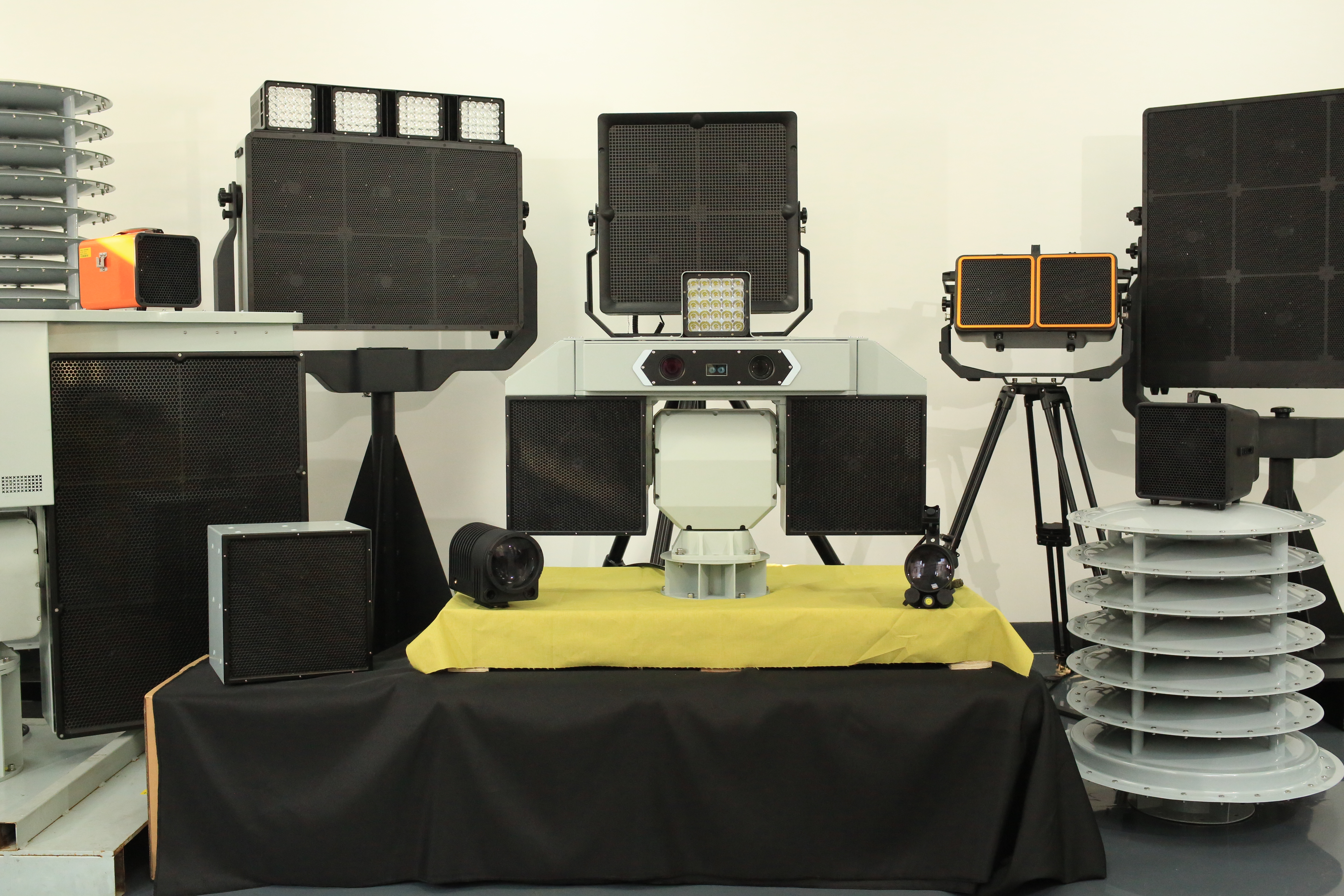

Long-distance acoustic devices span several deployment forms, each answering a different "where does it sit, and who operates it" question. RIBRI's acoustic lineup is organized around these forms:

• Handheld Acoustic Hailing Device — light, battery-powered, one operator carries and deploys it in seconds for mobile instruction and on-the-move warning.

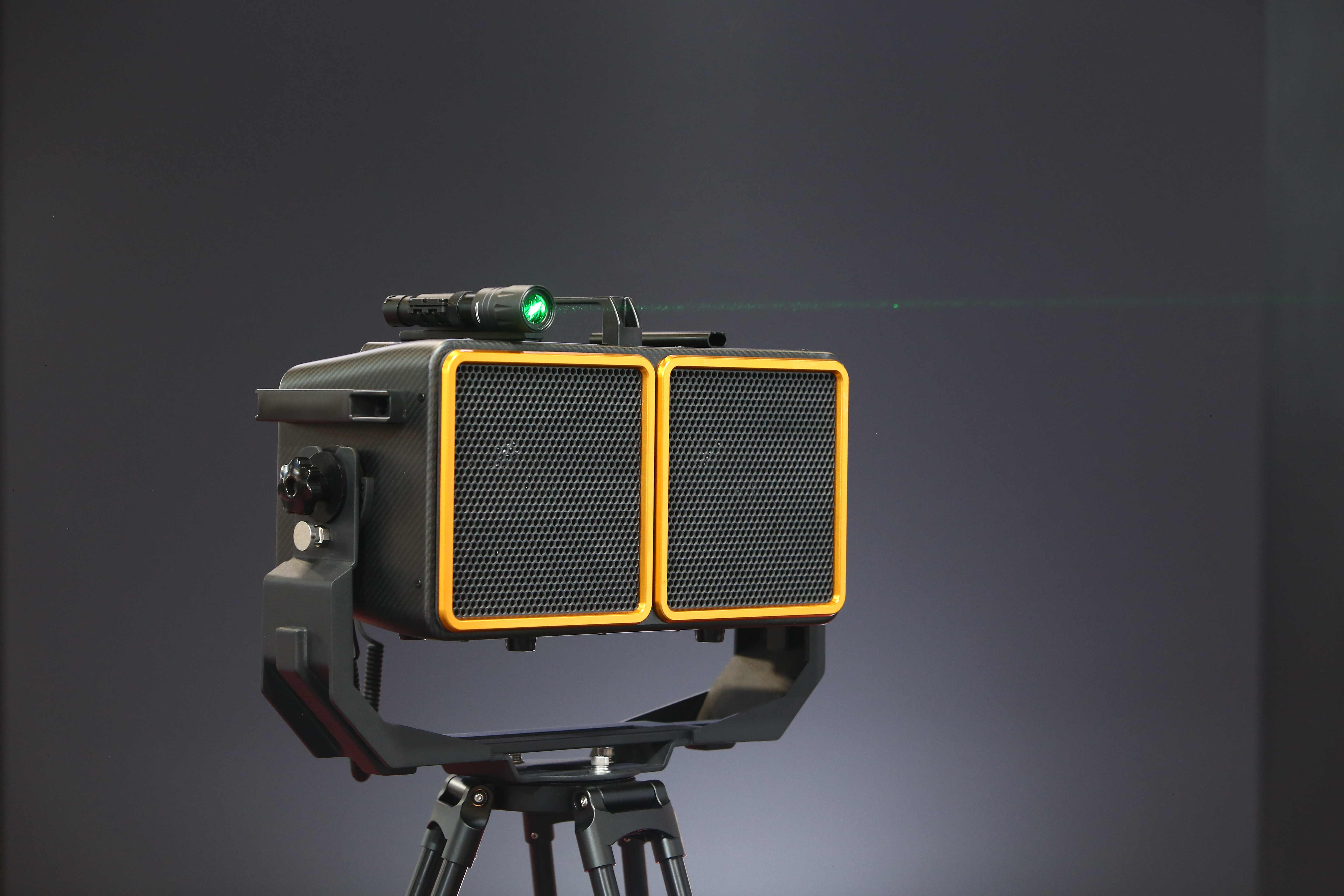

• Portable Directional Acoustic Device — tripod- or vehicle-roof mounted, packable and relocatable; flexible standoff coverage for checkpoints, event perimeters, and remote sites.

• Fixed Directional Acoustic Device — hard-mounted on vehicles, vessels, or masts and powered from the host platform; persistent, all-weather coverage for harbor instruction and shore-to-ship warning.

• Opto-Acoustic Hailing Device — directional acoustics fused with electro-optics, laser ranging, and pan-tilt mechanics: see, verify, then hail, on one unit.

• Opto-Acoustic Shield — a single-operator shield form combining a near-field acoustic dispersal beam with an optical deterrent for close-in protection.

• Drone Speaker — a directional module carried by a UAV, reaching rooftops, crowds, and water surfaces that ground-based units cannot access.

6. Where LDADs Are Used

RIBRI organizes deployment around seven scenario domains. The same acoustic core serves all of them — what changes is the site, the ambient noise level, and the person who needs to hear you:

• Critical Infrastructure Security — command delivery and perimeter warning for sites too large for continuous human guarding.

• Maritime — long-distance intelligible hailing and warning between vessels and from shore to ship.

• Mass Notification — wide-area emergency broadcast and evacuation guidance for entire plants or districts.

• Platform Integration — embedding the acoustic core into vehicles, vessels, drones, and command-and-control systems.

• Public Safety — mobile, intelligible warning that cuts through crowd noise, evacuations, and road incidents.

• Wildlife Protection — non-lethal acoustic dispersal of birds and wildlife from runways and farmland.

• Low-Altitude Security — voice challenge and warning at altitude against drone and low-airspace intrusions.

7. How to Choose the Right LDAD

Most buyers open with the wrong question: "What is the longest-range model you have?" Range is the last number you should fix, not the first. Start from your operational requirements.

Step 1 — Define your operational requirements, not device specifications. Before you look at a single spec, write down what has to happen. Who needs to hear you? How far away are they? What is the background noise — a quiet dock, a running plant, a crowd? Is the aim point fixed or moving? Does one person carry it, or does it mount on existing host hardware? The answer to "where does it sit, and who runs it" narrows the catalog from dozens of models to two or three form factors before you read a single number.

Step 2 — Pick the output tier by intelligibility, not by maximum quoted distance. Your coverage radius and your background noise together set the sound level you need — and you need it at the level where speech stays intelligible, not merely audible. Resist the brochure temptation to buy the model with the largest range figure; an oversized unit is harder to deploy, draws more power, and may spill sound into areas you never intended to address. Match the tier to the actual job-site conditions.

Step 3 — Evaluate every candidate against uniform measurement conditions. Now, and only now, line up the five figures from Section 4 — peak SPL, continuous SPL, beamwidth, frequency response, and the rated working distance — for each shortlisted product, making sure every vendor quotes that distance under identical reference conditions. Figures derived from different measurement setups cannot be ranked together, and this is the step where a seemingly low-cost option usually reveals mismatched measurement criteria.

If that sounds like work, it is — and it is exactly the work we perform with every customer inquiry. Tell us the site, the distance, and the noise conditions, and we will return a spec-backed recommendation rather than an undifferentiated catalog dump. → Request a model recommendation
