In tropical and coastal outdoor environments, IP-rated waterproofing can resist sudden rainwater intrusion and only causes obvious, preventable faults. However, high-temperature and high-humidity damp heat brings far more concealed, persistent and fatal damage to acoustic-optic devices. It causes invisible vapor ingress, internal condensation and electrochemical corrosion, gradually triggering performance degradation, structural aging and permanent device failure. Thus, professional damp heat protection is more critical than basic waterproofing for long-term reliable outdoor operation.
*High IP‑rating prevents liquid water ingress, but it cannot fully block water vapor under long‑term high‑humidity and temperature‑cycling conditions.

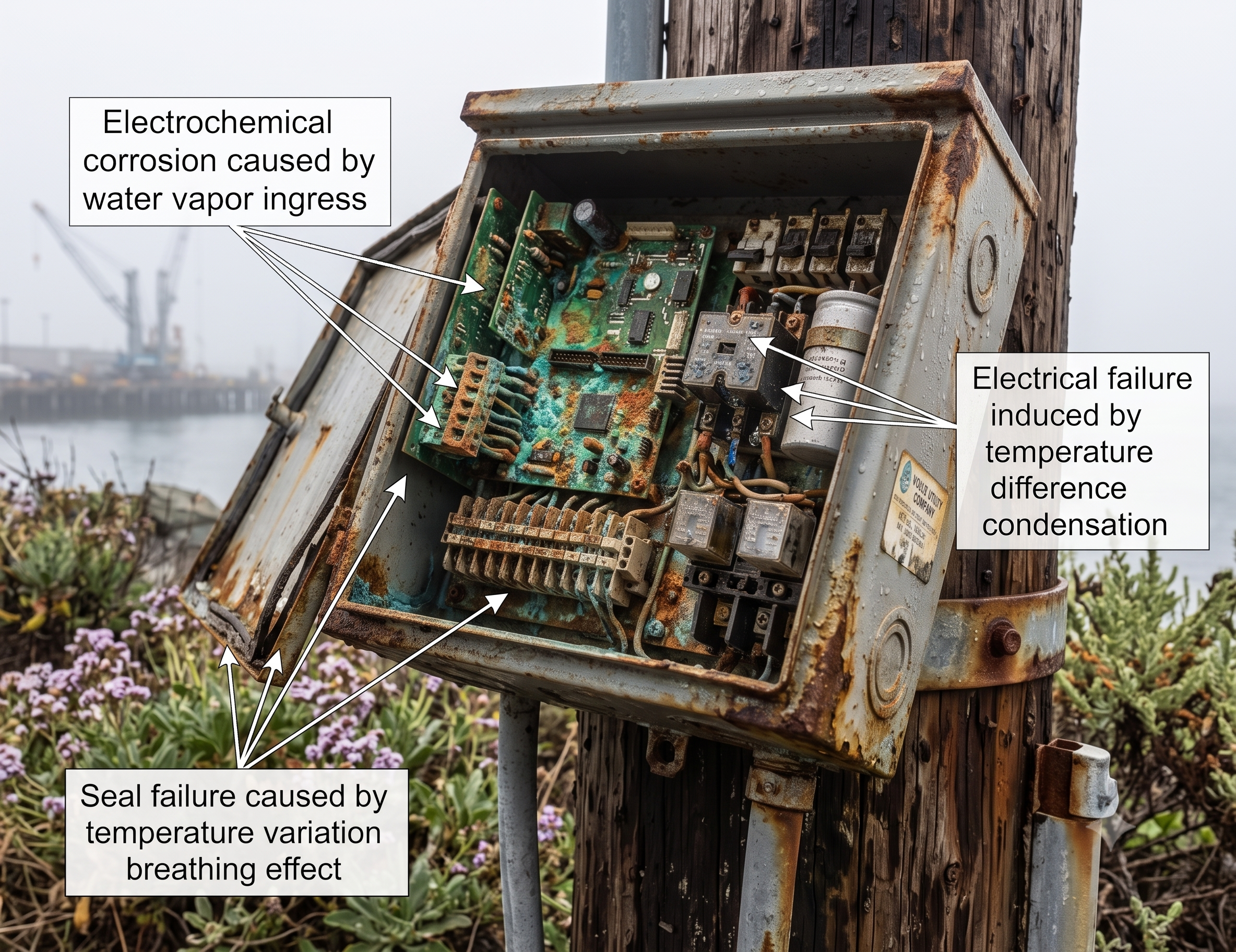

Most outdoor devices are designed with IP waterproofing to resist rain and water splash. However, the combination of high temperature and high humidity creates powerful synergistic damage. This superposition effect far exceeds the protection limit of conventional waterproof structures. Unlike occasional rain erosion with obvious failure symptoms, damp heat causes continuous, invisible damage through three core mechanisms:
1.Electrochemical Corrosion Caused by Water Vapor Ingress: High temperatures significantly activate water molecules, enabling moisture to penetrate structural gaps and invade internal cavities. This continuously erodes metal structures and electronic components, resulting in gradual performance degradation.
2.Electrical Failures Induced by Temperature Difference Condensation: Frequent day-night temperature fluctuations easily form condensed water inside sealed equipment cavities. Water droplets adhering to circuits and precision optical components directly cause electric leakage, signal abnormalities, and short-circuit shutdowns.
3.Seal Failure Caused by Temperature-Variation Breathing Effect: Cyclic temperature and humidity changes lead to repeated thermal expansion and contraction of internal air, creating a "breathing ventilation" effect. Long-term cycles gradually weaken the performance of static seals, allowing external moisture to continuously penetrate cavities and break through basic waterproof protection.

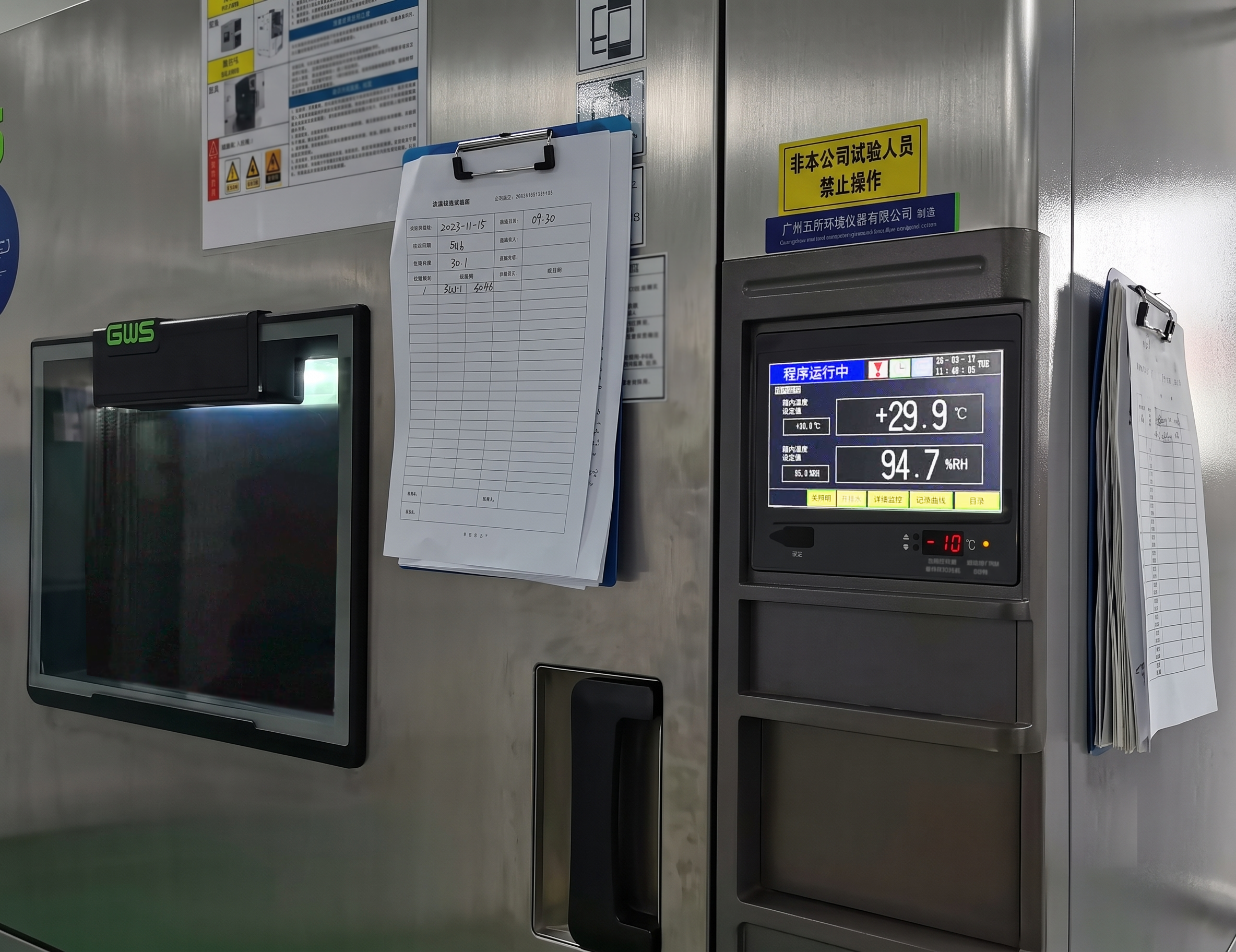

To accurately verify the devices’ damp heat resistance, our product R&D and testing strictly follow international civil and military standards to faithfully reproduce extreme tropical and coastal operating conditions:
• IEC 60068-2-30: Cyclic damp heat test standard
• IEC 60068-2-78: Constant damp heat reliability test standard
• MIL-STD-810H Method 507.6: Military-grade damp heat environmental assessment standard for special devices
Standardized cyclic damp heat tests identify potential defects in device sealing, structure, materials, and circuits in advance, optimizing overall damp resistance and ensuring adaptability to complex working conditions for mass-produced products.
3. Where to Use Each Device?
As precision acoustic-optic integrated devices, high-intensity sound and high-brightness light devices are highly sensitive to temperature and humidity changes. Damp heat conditions bring four core challenges:
1.Decline in Core Functional Stability: High humidity easily causes transducer failure, fogged optical lenses with reduced light transmittance, and accuracy deviation of acoustic detection microphones, directly undermining acoustic-optic output and detection performance.
2.Structural Contradiction Between Sealing and Heat Dissipation: Damp heat reduces air heat dissipation efficiency and increases the operating load of high-heat components such as laser modules. While devices require tight sealing for damp resistance, fully sealed structures aggravate internal heat accumulation, easily causing overheating failures and forming an inherent conflict between damp-proof sealing and heat dissipation.
3.Accelerated Aging of Structures and Seals: Repeated temperature and humidity cycles deform, loosen, and rust device housings, sealing gaskets, and metal connectors, gradually reducing the overall protection level and shortening service life.
4.System-Level Reliability Risks: Damp heat testing is a comprehensive systematic assessment of device structure, circuits, optics, acoustics, heat dissipation, and sealing. Qualified protection of individual components cannot support long-term stable operation in harsh environments.
4. Multi-Layer Damp Heat Protection Design Solutions for Complete Devices
Targeting typical damp heat working condition pain points, we customize systematic protection solutions for all devices to comprehensively enhance damp resistance, condensation resistance, and aging resistance.
1.Cavity Sealing and Damp-Proof Structural Design
Core cavities for electrical components and laser zoom lenses adopt reinforced structural design with strictly controlled processing and assembly precision. Matching weather-resistant sealing gaskets are installed at cavity joints, and high-airtight military connectors are used for external interfaces to stop vapor ingress at the structural source.
2.Damp Protection for Electronic Components
The whole machine adopts wide-temperature humidity-resistant electronic components. All circuit boards are coated with three-proof conformal coating to enhance damp and corrosion resistance. All board cards are installed in sealed electrical boxes to further isolate humid air through integral sealing structures.
3.Moisture‑Resistant Design for Sound‑Generating Units
Sound generating parts are equipped with dustproof and waterproof breathable membranes to ensure normal sound wave transmission while blocking rainwater and moisture. Internal drainage guide grooves and drainage structures are added to sound cavities to prevent failure caused by water immersion.
4.Damp Protection for High-Brightness Optical Modules
High-strength tempered glass is adopted for optical transparent parts, with full-edge sealing treatment using gaskets at the connection between lenses and housings. Hydrophobic coating is applied to inner optical cavity walls to eliminate lens fogging and surface condensation. The module is filled with inert dry gas to maintain a dry internal environment.
5.Airtightness Testing
100% airtightness testing is conducted on all sealed cavities including circuit boards and laser components during production to ensure qualified sealing performance. Outdoor models reach IPX5 or higher protection grade, meeting long-term outdoor damp heat operation requirements.
6.Complete Machine Damp Heat Testing
The overall device damp heat reliability test is implemented in accordance with MIL‑STD‑810H Method 507.6. A 10-cycle alternating damp heat test is completed to evaluate the devices’ resistance to moisture and condensation, and verify operational reliability under damp heat conditions.
Damp heat damage in coastal and tropical areas is hidden and persistent, and ordinary waterproof design cannot meet the strict requirements of special devices. Through a complete damp heat protection system including structural sealing, component-specific protection, full-process quality inspection, and military-grade environmental testing, our high-intensity sound, high-brightness light, and integrated acoustic-optic devices withstand high temperature, high humidity, temperature-variation condensation, and other harsh conditions, realizing all-weather, long-cycle, and highly reliable operation.
If you require tailored acoustic-optic device solutions with professional damp heat protection for your tropical or coastal application scenarios, our team is fully prepared to answer your inquiries and provide technical support. Feel free to contact us.
