Product Overview

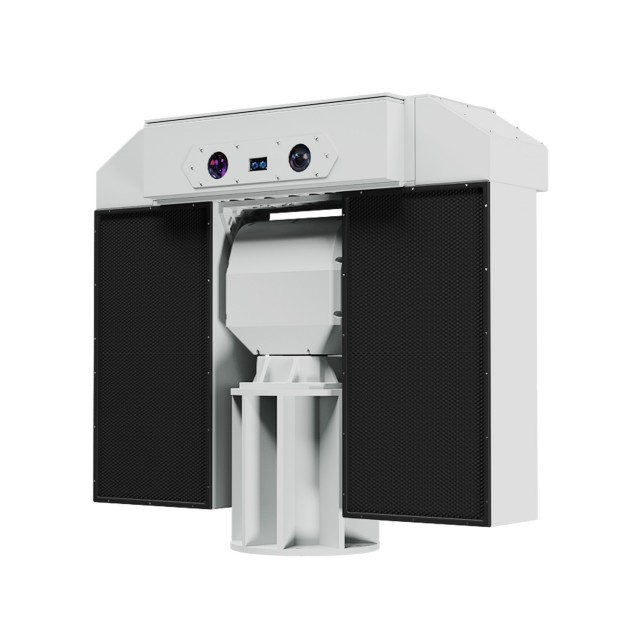

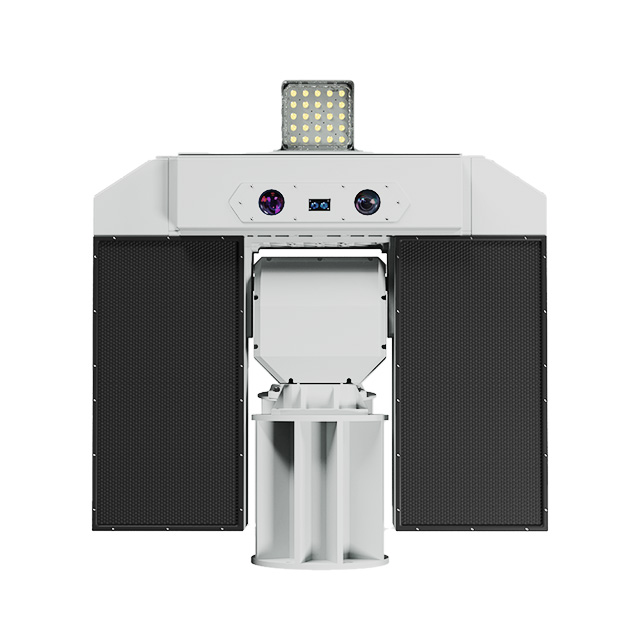

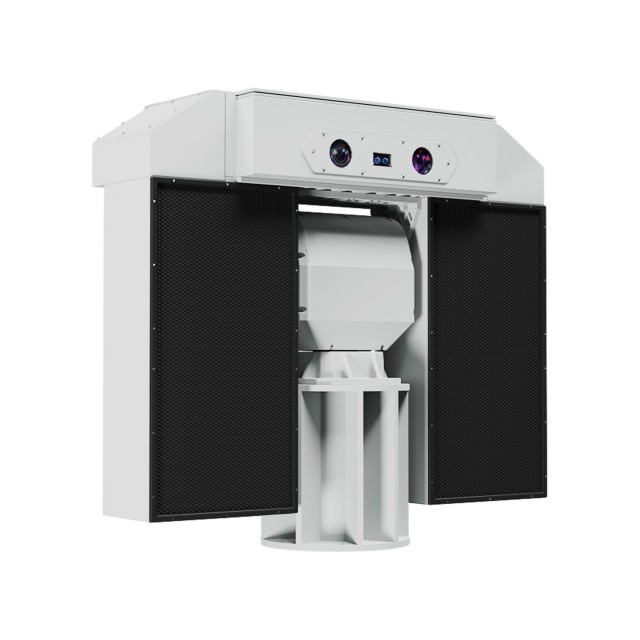

The RH40Y is a high-output integrated LRAD (Long Range Acoustic Device) engineered for the most demanding critical infrastructure and platform integration missions. With an industry-leading 161 dBA peak SPL @1m, a 5W laser/LED searchlight, and a precision servo pan-tilt head, this acoustic hailing device delivers unmatched long-range acoustic hailing and non-lethal deterrence. It is built for extreme environments, providing clear voice hailing and wide-area illumination under harsh weather and complex terrain. Combined with high speech intelligibility over extreme distances, the RH40Y supports mass notification, emergency command, and area surveillance where lesser systems fall short.
Description of Characteristics
• Outstanding High-intensity Sound Performance
The device achieves a peak sound pressure level of 161 dBA@1m, a beam angle of ±15°@2kHz, and a maximum range of 3162 m.
The device integrates a 5W green laser and LED searchlight, offering precise targeted illumination and glare warning capabilities, along with wide-area white light illumination and strobe warning functions.
• High-definition Intelligent Monitoring
Equipped with a 4-megapixel camera featuring 32x optical zoom, it supports real-time recording and video playback, ensuring the integrity of the evidence chain.
• Full-direction Coverage Capability
Equipped with a servo pan-tilt head supporting 360° continuous horizontal rotation and ±45° vertical adjustment, it provides comprehensive protection without any blind spots.
• Military-grade Environmental Adaptability and Reliability
The product has passed rigorous tests under the MIL-STD-810H standard established by the U.S. military, covering high/low temperatures, vibration, and impact—this standard remains the most authoritative benchmark for evaluating equipment environmental performance. With IP65 protection, it is designed to operate effectively in harsh environments such as automotive and naval applications.
• Flexible Deployment and Intelligent Control Capabilities
Supports TCP/IP remote control, is compatible with existing security systems, and enables rapid and convenient deployment.
Table of Key Equipment Parameters
Parameter | Details |
Peak SPL@1m | 161dBA |
Continuous SPL@1m | 151dBA |
Max Range | 3162m |
Acoustic Beam | ±15°@2kHz/-3dB |
Horizontal Rotation Angle | 0° ~ 360° Continuous Rotation |
Vertical Rotation Angle | +45° ~ -45° |
Luminous Intensity（LED） | 1822500cd |
Illumination Distance（LED） | 2700m |
Output Power（Laser） | 5W |
Dimension(W*D*H) | 965mm*396mm*890mm |
Weight | 75kg |
IP Rating | IP65 |
