RC40Z-A

Peak SPL@1m: 160dBA, Max Range: 2818m
±15°@2kHz/-3dB narrow beam for precise directional sound
250Hz–7000Hz bandwidth for clear voice & alarm playback
IP65 rating, MIL-STD-810H certified for dust, rain & temp extremes
TCP/IP link for remote connection with emergency command platforms

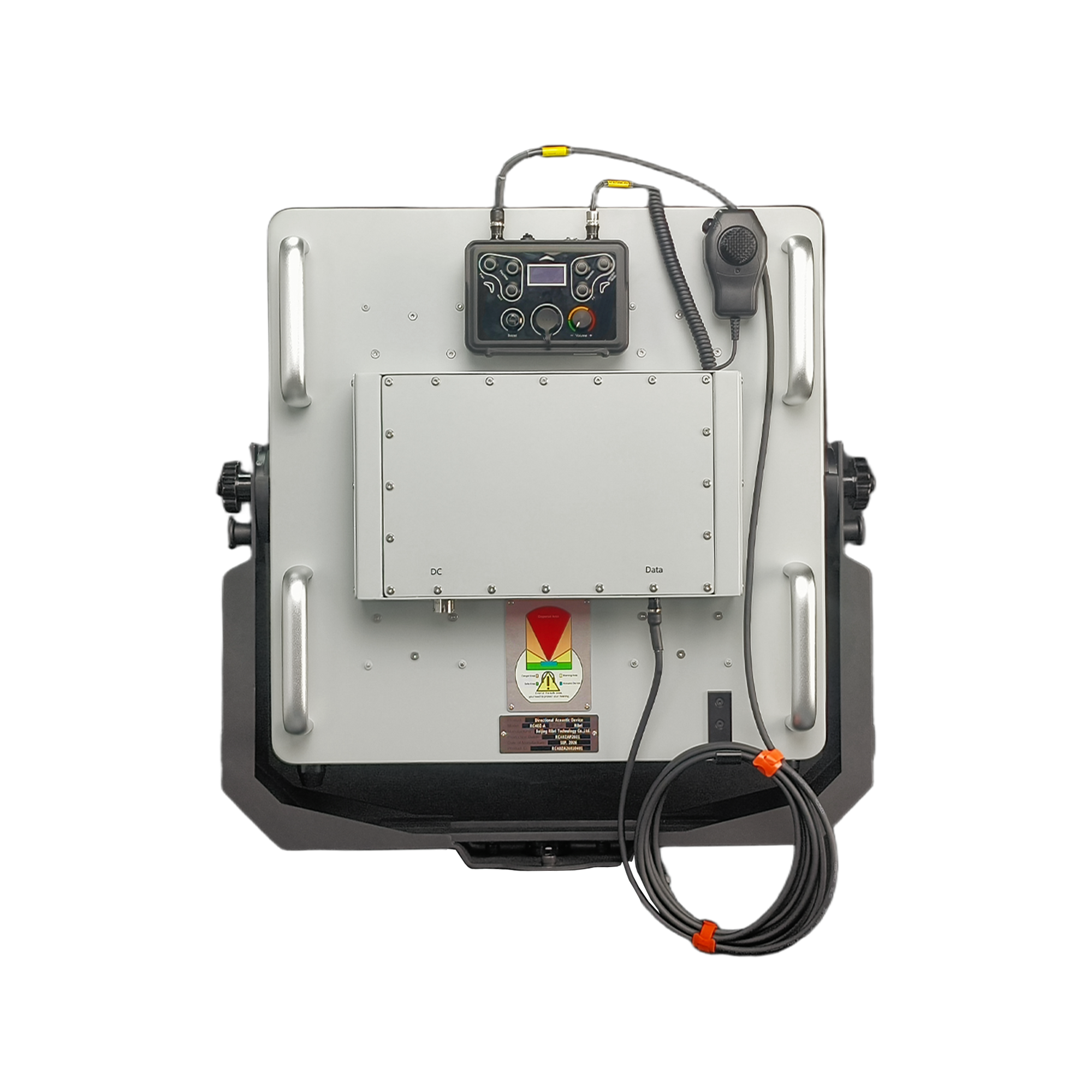

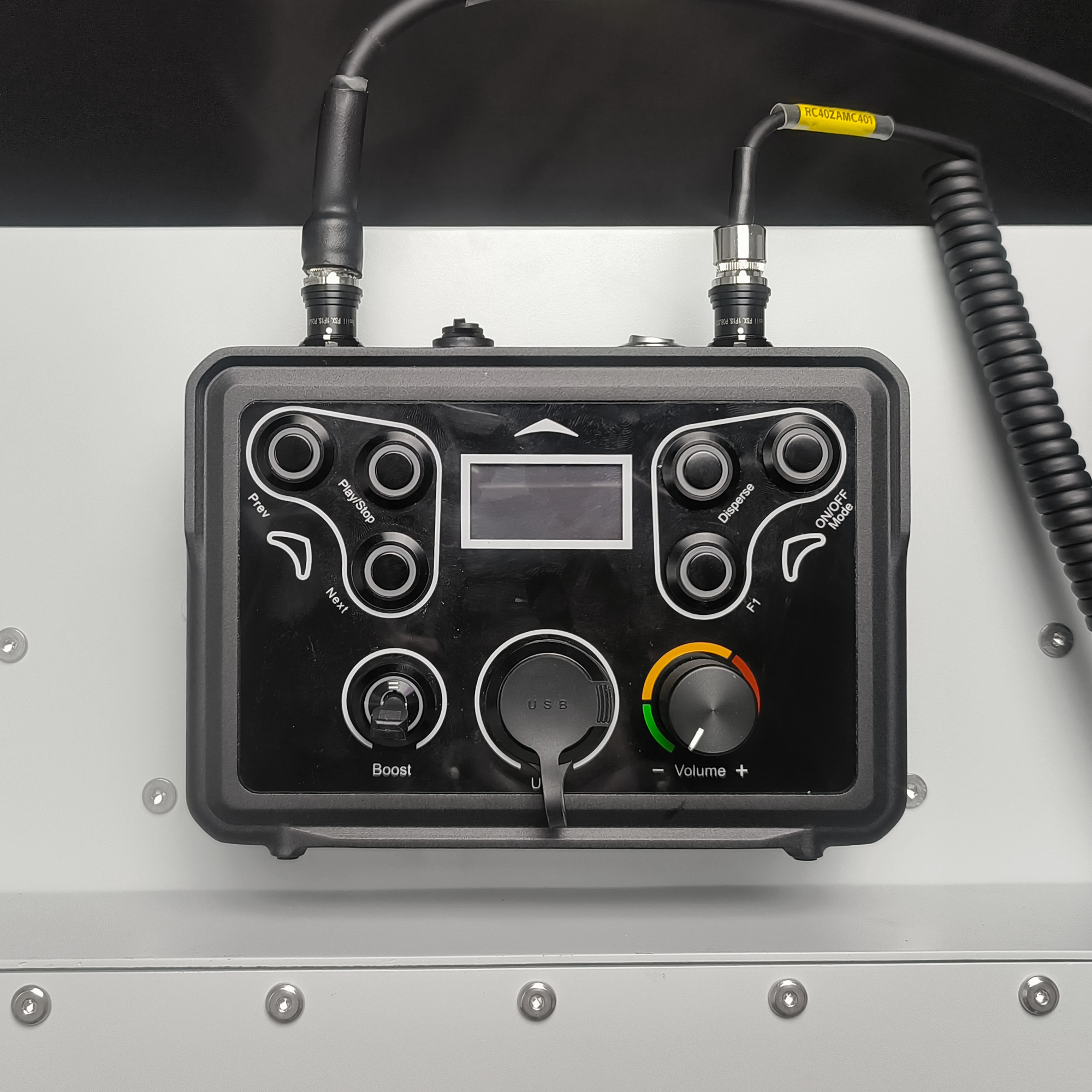

Rear ergonomic controls support gloved field operation

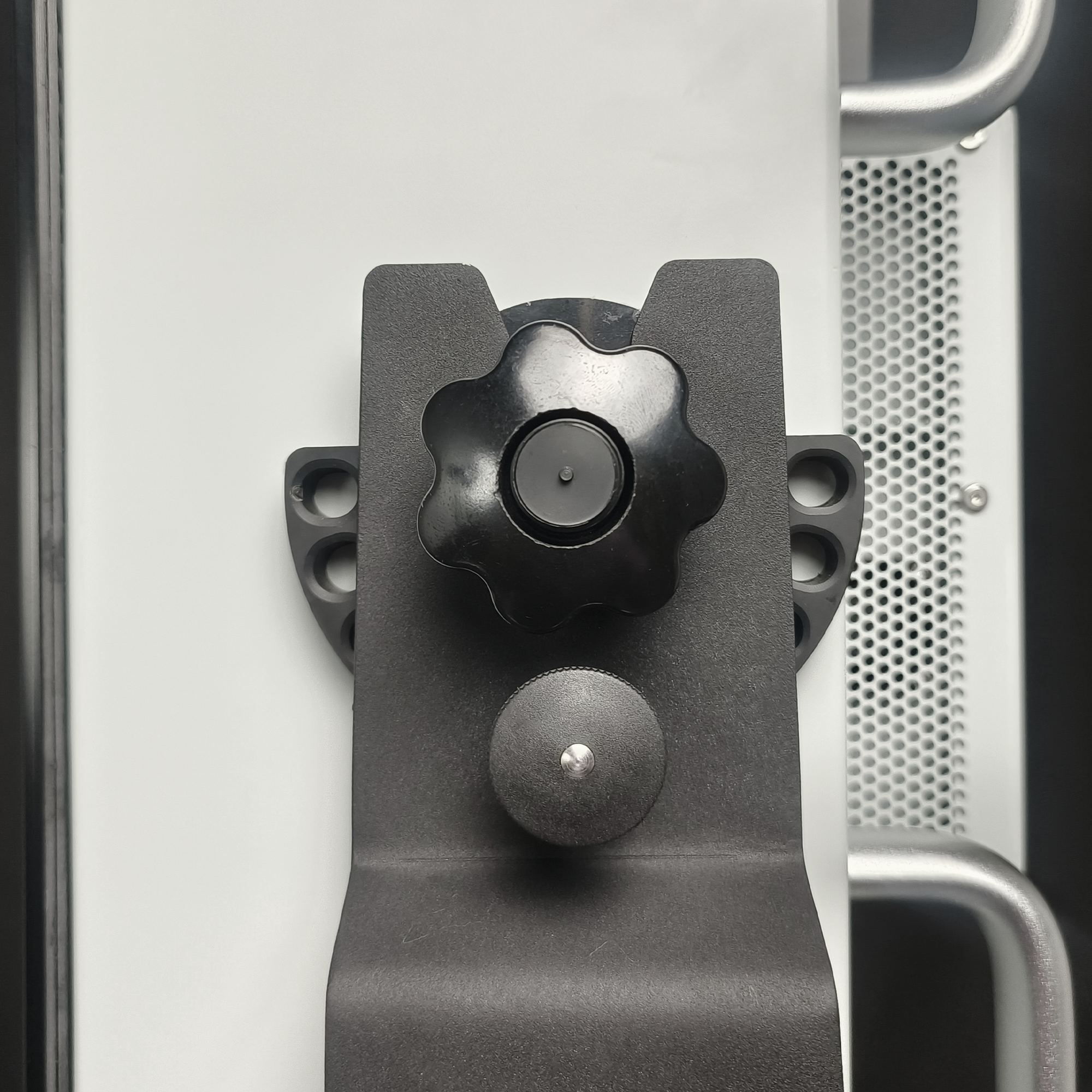

Matching U-bracket: ±180° horizontal, ±90° pitch with locking
Expandable for laser pointers, LEDs, scopes and rangefinders
Optional shockproof waterproof case for full-set storage

Quantity:
Availability:





Inquire Add to Basket

Product Description

FAQ

Application

Download

Product Overview

The RC40Z-A is a high-power aimed acoustic platform engineered for farthest-reach voice, signal, and deter work. Its 31 kg, 708 x 275 x 618 mm body launches a Peak SPL@1m of 160 dB and Continuous SPL@1m of 150 dB from a 15-degree beam, sending long-haul voice 1122 m in service and 2818 m at the limit for the longest aimed reach in the line. An onboard core with 5 GB storage keeps deep mission audio on hand for instant recall, while an operator station steers the unit over TCP/IP via physical or RF links. Drawing 12-32 V DC or 110-260 V AC (240 W rated), it is built vehicle-bodied first with a fixed-post option, serving large perimeter defence, major incident command, broad-area notice, and long-route frontier cover.

Description of Characteristics

• Farthest Reach in the Line

Its 15-degree beam launches a Peak SPL@1m of 160 dB as far as 1122 m in service (2818 m at the limit), the longest aimed reach of the family.

• Installation-Grade Build

The 31 kg, 708 x 275 x 618 mm enclosure houses a high-power acoustic engine with 240 W rated drive for sustained high-intensity emission.

• Station Remote Control

A separate operator station commands the platform over TCP/IP across physical or RF connections, enabling cab or distant operation that keeps reaction personnel off the beam.

• Deep Onboard Audio Library

An onboard core with 5 GB storage retains extensive voice, tone, and deter recordings, launched on demand without external players.

• Flexible Location Powering

The 12-32 V DC input draws from a vehicle system, while 110-260 V AC via adapter serves fixed brackets, supporting long operations in either role.

• Rugged Enclosure

Sealed to IP65 and rated for -40 C to +60 C operation (5%-95% humidity, -50 C to +70 C storage), it endures dust, rain, and temperature extremes in sustained external duty.

Table of Key Equipment Parameters

Parameter	Details
Peak SPL@1m	160dBA
Continuous SPL@1m	150dBA
Max Range	2818m
Acoustic Beam	±15°@2kHz/-3dB
Frequency Response	250Hz～7000Hz
Dimension(WDH)	708mm275mm618mm
Weight	31kg
IP Rating	IP65

FAQ

Application

The RC40Z-A mainly serves large perimeter defence, major incident command, broad-area notice, and long-route frontier cover.

• Common application scenarios

· Large perimeter defence: As a vehicle-bodied primary, it aims voice warning across the widest boundaries and remote locations, covering large areas from one node.

· Major incident command: Reaction personnel lean on its 1122 m reach for long-standoff crowd talk and incident orders where smaller units fall short.

· Broad-area notice: From transit or fixed brackets, it spreads coordinated warning signals and public messages over the broadest working band in the series during major emergencies.

· Long-route frontier cover: Fitted on patrol or reaction vehicles, it sends deter and notice tone to the farthest crossing sectors, maximising reach of long frontier routes.
