RT52T

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Superiority

FAQ

Download

Product Overview

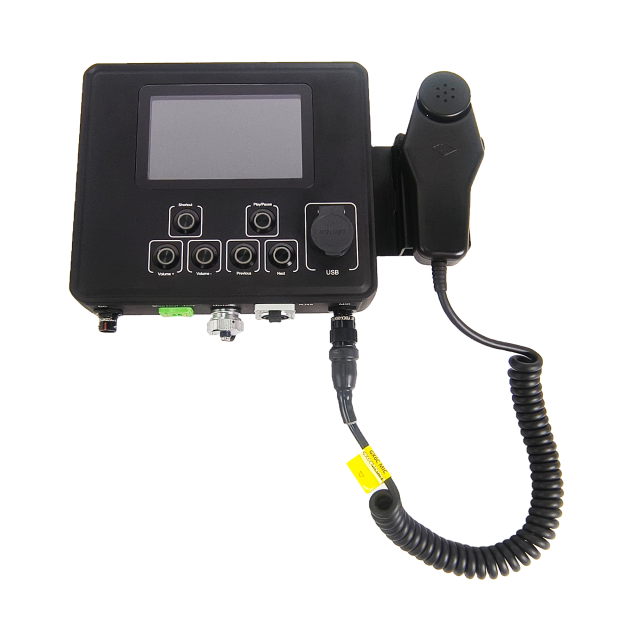

The RT52T is a compact, portable button-controlled controller featuring an aluminum alloy housing and a 5.0-inch display. With dimensions of 208mm × 181mm × 46mm and a weight of just 1.36kg, it operates on 24V DC power. Equipped with physical function buttons, it enables precise directional control of high-volume audio devices, supporting features such as track playback, volume adjustment, alarm sound activation, and one-touch crowd dispersal. Its intuitive button layout ensures easy operation, while its lightweight design facilitates easy installation and handheld deployment. The controller includes USB ports, expansion interfaces, a microphone jack, and upgrade ports; a microphone can be optionally added for voice announcement functionality. Its network interface uses a TCP/IP-based RJ45 connection, ensuring broad compatibility with our company's range of directional, omnidirectional, and handheld acoustic devices that support this protocol, along with OEM/ODM customization services.

Table of Key Equipment Parameters

Parameter	Details
Dimension	208mm181mm46mm
Weight	1.36kg
Display Screen Size	5.0 inches
Control Type	Key
Supply Electricity	24V DC
Material Quality	Aluminum alloy (housing)

Product Superiority

• Compact and Lightweight

The device with a small size and a weight of only 1.36 kg, its sturdy aluminum alloy housing makes it easy to carry and use handheld.

• Simple Operation

Physical buttons with clearly defined functional zones, enabling quick mastery and diverse control methods—even for blind operation.

• Comprehensive Audio Features

Equipped with a dedicated sound dispersal system that meets various needs including alerts, crowd evacuation, and public broadcasting.

• Diverse Interfaces

Features a USB port for connecting USB drives and a microphone port for voice communication. The upgrade interface supports software updates and compatibility with other devices.

• High Integration

The device enables control of high-power audio equipment via a single terminal, eliminating the need for additional controllers.

FAQ

What products is this device compatible with?

This device is compatible with all our high-power acoustic products controlled by the TCP/IP protocol, including portable high-power acoustic devices, omnidirectional acoustic devices, fixed directional high-power acoustic devices, etc.

What is the connection method of this product?

This product supports wired connection and control via data cables.

What formats of USB flash drives does the USB port support?

This product only supports USB flash drives in FAT32 format.

Does this product require an external power supply?

This product is powered via data cables and does not require a separate power supply.

Does this product support upgrades?

Yes. Software and built-in audio files (such as broadcast tones, warning tones, etc.) can be upgraded via the upgrade port.

Does this product support customization?

Yes. OEM/ODM customization is supported.
