RP21C

Peak SPL@1m: 153dBA, Max Range: 1259m
Light 11kg body for single-person handheld use

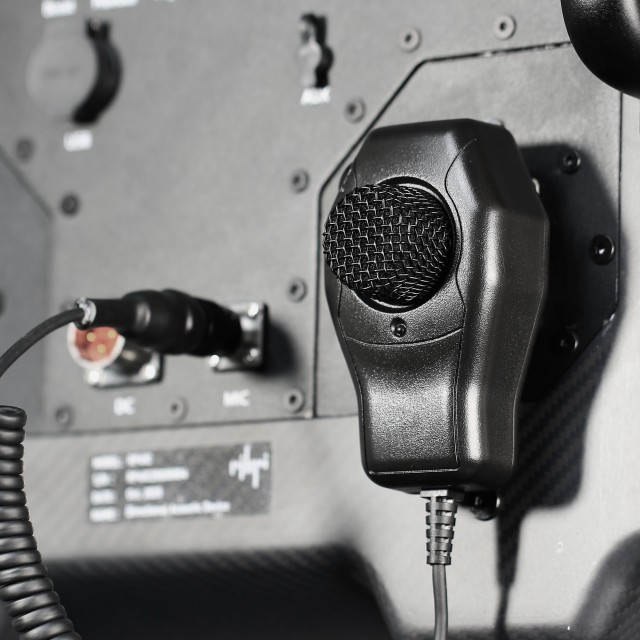

Equipped with MIC, USB and AUX multi-interfaces
Moderate power for short & medium law enforcement tasks
Light frame lowers fatigue during handheld patrols
Repel runway birds to guarantee aviation safety
Broadcast on-site commands for urban patrol police
Send evacuation alerts for small regional emergencies
Directional voice communication for nearshore ship patrols
Broadcast traffic safety alerts for road emergencies

Quantity:
Availability:





Inquire Add to Basket

Product Description

FAQ

Application

Download

Product Overview

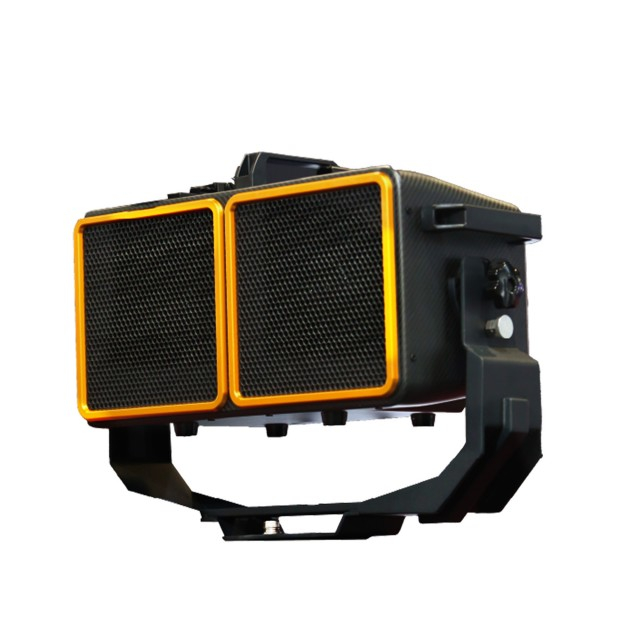

The RP21C is a lightweight, portable LRAD (Long Range Acoustic Device) designed for high-intensity acoustic hailing, voice warning, and public address applications. Leveraging directional acoustic technology, it delivers high speech intelligibility over long distances, making it ideal for airport bird control, law enforcement, and mass notification. Equipped with USB, AUX, and MIC interfaces, this acoustic hailing device ensures stable, reliable performance for professional use.

Description of Characteristics

• Outstanding High-intensity Sound Performance

The device delivers a peak sound pressure level of 153 dBA@1m and a maximum range of 1,259 m, enabling effective long-range sound coverage and powerful sound dispersion.

• Excellent Acoustic Directivity

At a frequency of 2 kHz, the beam angle is only ±15° (-3 dB attenuation), minimizing indiscriminate sound wave diffusion and enabling more precise directional interference/notation.

• Outstanding Broadcasting and Voice Projection Performance

The device supports a frequency response ranging from 250Hz to 7000Hz, covering human voices, alarm sounds, and common audio frequency bands with exceptional sound reproduction quality.

• Portable Design

A perfect balance between performance and size/weight, with dimensions of 485mm × 207mm × 249mm and a weight of 11kg, making it ideal for mobile deployment scenarios such as single-person or vehicle use.

• Comprehensive Functionality and User-friendly Operation

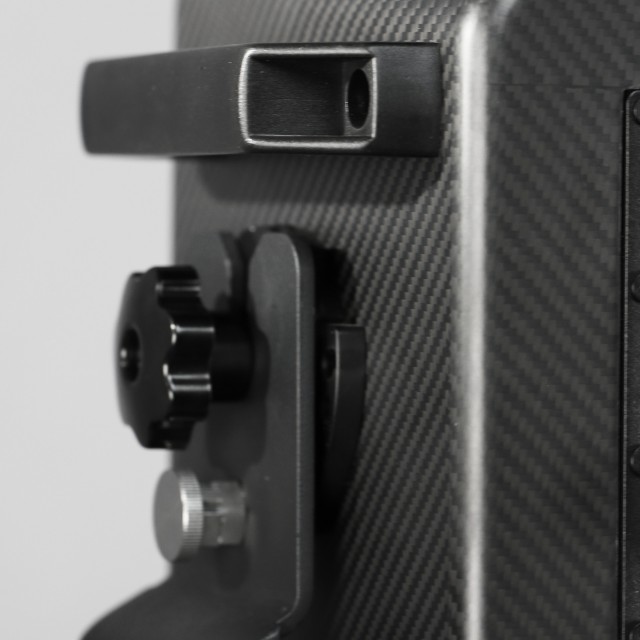

The back features ergonomic control buttons, knobs, and interfaces such as USB and AUX, offering extensive and versatile functionality. All operations can be performed effortlessly via these controls, even when wearing gloves or in extreme weather conditions.

• Military-grade Environmental Adaptability and Reliability

The product has passed rigorous tests under the U.S. military's MIL-STD-810H standard, including high/low temperatures, humid heat, sand/dust exposure, rain immersion, and drop tests, while featuring IP65 protection for stable operation in extreme climates and harsh environments.

Table of Key Equipment Parameters

Parameter	Details
Peak SPL@1m	153dBA
Continuous SPL@1m	143dBA
Max Range	1259m
Acoustic Beam	±15°@2kHz/-3dB
Dimension(WDH)	485mm207mm249mm
Weight	11kg
IP Rating	IP65

FAQ

Is this product suitable for handheld use?

The RP21C supports handheld operation, enabling convenient use in various scenarios.

What fixed installation methods does this product support?

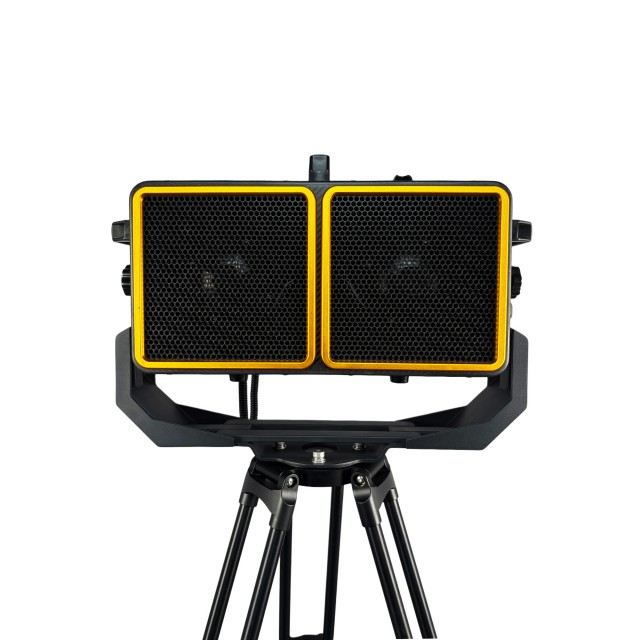

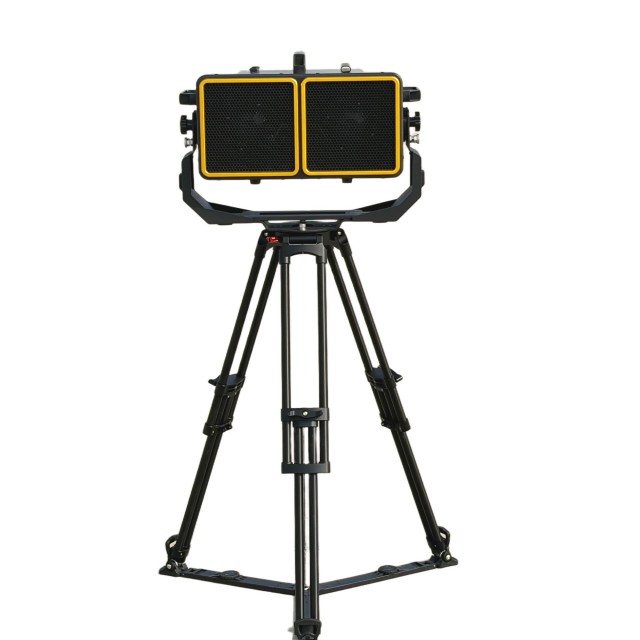

The RP21C, when paired with a U-shaped bracket, can be installed using various methods such as tripods, vehicle-mounted, shipboard, or fixed-position mounting. It can also be directly placed at elevated locations (e.g., steps or vehicle roofs) for use.

Does this product support rotation and pitch?

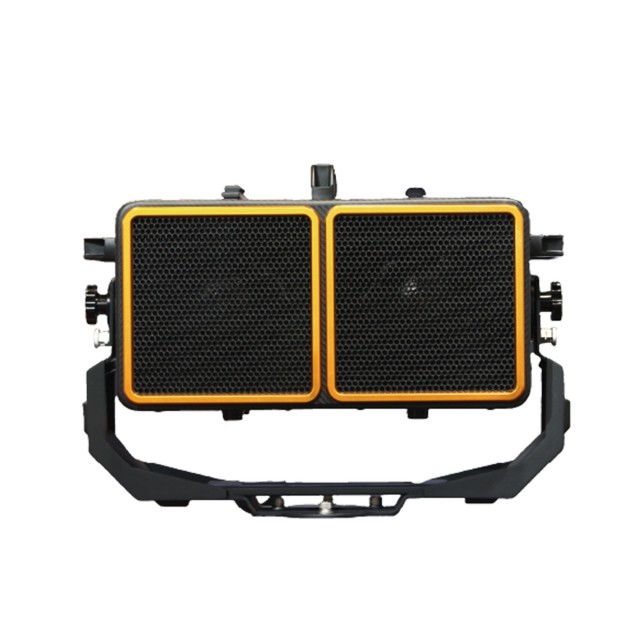

When paired with our U-shaped bracket, the RP21C allows manual horizontal adjustment within ±180° and pitch adjustment within ±90°, with support for manual locking.

How to store this product?

Our optional accessories include a dedicated RP21C portable storage container designed to accommodate the RP21C and its components, featuring vibration-resistant, impact-resistant, and waterproof construction.

Is this product compatible with in-car use?

The RP21C dedicated vehicle-mounted U-shaped bracket is customizable to meet on-board usage requirements.

Does this product support the function of using shortcuts to increase sound pressure level?

The RP21C features a "BOOST" button that allows one-touch increase of sound pressure level.

What control methods does this product support?

The RP21C supports multiple control methods: it can be operated locally via buttons and knobs, or supported in Bluetooth and AUX wireless modes. Through the TCP/IP data interface, users can also connect wired control terminals, PADs, and other accessories to enable flexible remote control from inside the vehicle or the control center.

Does this product support mounting accessories?

The RP21C supports mounting external accessories such as handheld laser illuminators, LED lights, scopes, and rangefinders on its top and both sides.

In what environments can this product be used?

The RP21C operates stably in environments ranging from-40°C to +60°C, featuring an IP65 protection rating that enables it to withstand various harsh weather conditions and complex environments with ease.

Does this product support OEM/ODM customization?

The RP21C supports OEM/ODM customization services, offering tailored production solutions including customizable control interfaces, optional exterior color schemes, and custom device nameplates to meet specific client requirements.

Application

The primary application scenario for RP21C is public safety.

• Typical Application Scenarios

RP21C is mainly designed for public safety scenarios. It is applicable to various locations such as large-scale event gathering sites, mining zones and urban parks, delivering reliable safety protection for different environments.
