RC60Z

Peak SPL@1m: 163dBA, Max Range: 3981m
Powerful sound penetration against airport & border ambient noise
4,800,000 cd spotlight (2700m) for audio & visual dual deterrence
IP65 salt-spray resistant for long-term coastal high-humidity deployment
Universal 110–260V AC power for ports, border posts and airports
TCP/IP multi-terminal remote control integrated with border security systems
Heavy-duty U-bracket fits tripods, patrol cars, ships and shore fixtures
4 selectable LED colors to mark different alert levels
Applicable to border patrol, crowd control, airport & offshore platform security

Quantity:
Availability:





Inquire Add to Basket

Product Description

FAQ

Application

Download

Product Overview

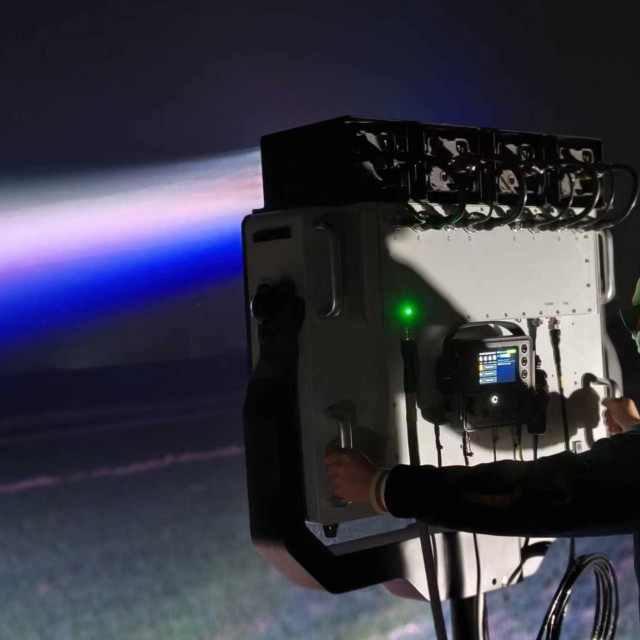

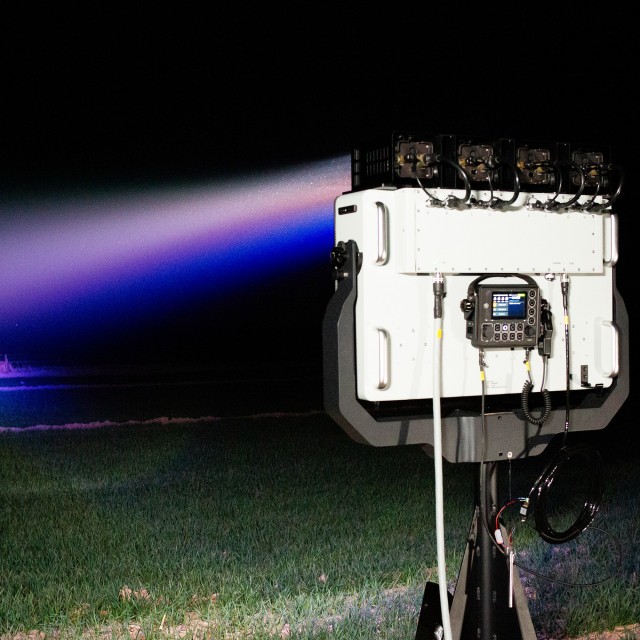

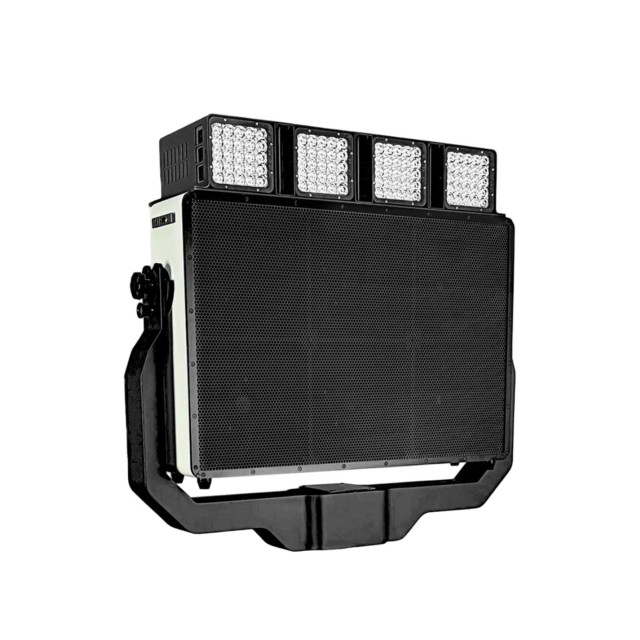

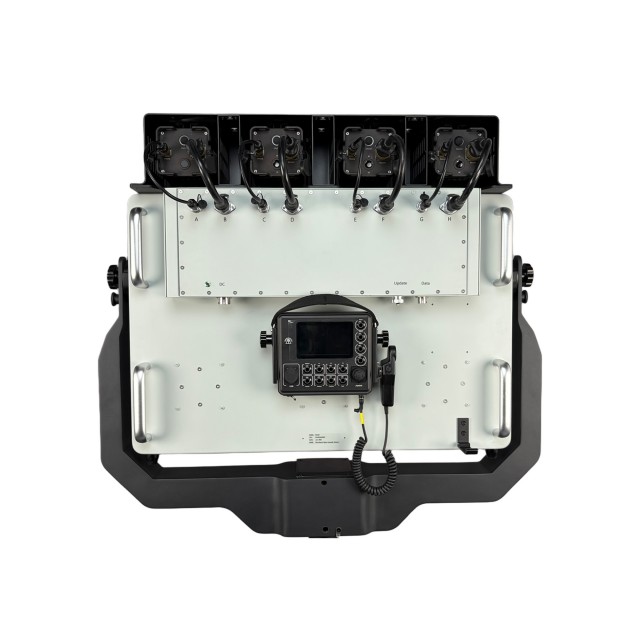

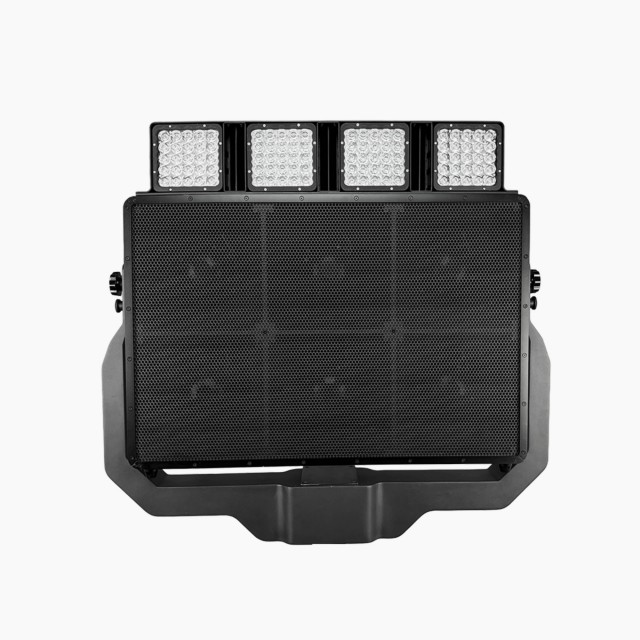

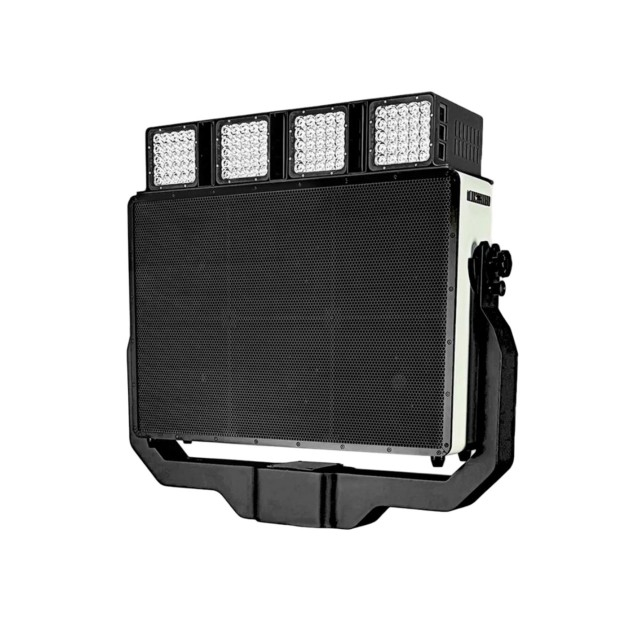

The RC60Z is a high-performance portable Long Range Acoustic Device (LRAD) featuring lightweight design and rapid deployment capabilities. Tailored for mobile security scenarios, it is widely applicable to dynamic border control, mass crowd management, airport emergency security and other variable operation scenarios. Adopting a highly portable structure, the device is lightweight and easy to carry with no complicated assembly required. It supports instant setup and immediate operation, and can be rapidly deployed via tripods, vehicle mounting, ship mounting and other installation methods, greatly improving the efficiency of on-site emergency response.

Description of Characteristics

a） Adopting a lightweight and portable structural design, the device is easy to carry and requires no complicated assembly or commissioning. It supports multiple deployment methods including tripod mounting, vehicle mounting, ship mounting and fixed-position installation. It can be set up rapidly and put into operation immediately, greatly improving the efficiency of emergency mobile disposal and adapting to various temporary and mobile security scenarios.

b） Equipped with outstanding acoustic performance, the device delivers a peak sound pressure level of 163 dBA and a continuous sound pressure level of 153 dBA at 1 meter. With an acoustic beam angle of ±15° at 2 kHz/-3 dB and a maximum effective operating range of 3981 meters, it features wide acoustic coverage and strong penetration for long-distance operation.

c） Built with a high-intensity LED lighting module, the device provides a luminous intensity of up to 4.8 million candelas and an effective illumination distance of 2700 meters, realizing dual functions of long-distance search and rescue lighting and strong light visual deterrence. It supports four optional LED colors for customized adaptation to different operation scenarios and application needs, ensuring excellent scenario compatibility.

d） Adopting the standard TCP/IP communication protocol, the device supports remote terminal control, real-time parameter debugging and equipment status monitoring. It can be seamlessly integrated with various user command scheduling and security management systems to realize integrated and intelligent equipment management, suitable for large-scale and systematic security operation systems.

Table of Key Equipment Parameters

Parameter	Details
Peak SPL@1m	163dBA
Continuous SPL@1m	153dBA
Max Range	3981m
Acoustic Beam	±15°@2kHz/-3dB
Luminous Intensity	4800000cd
Illumination Distance	2700m
Dimension(WDH)	882mm257mm586mm
Weight	33kg
IP Rating	IP65

FAQ

What installation methods does the device support?

Equipped with a U-shaped bracket, the RC60Z is compatible with multiple deployment solutions, including heavy-duty tripod installation, vehicle mounting, ship mounting and fixed-position installation.

Can the device rotate horizontally and adjust pitch angles?

Fitted with the original U-shaped bracket, the device supports manual horizontal rotation within ±180° and pitch adjustment within ±90°, with a manual locking function for angle fixation.

What control methods does the device support?

The device realizes remote control by connecting a control terminal via a TCP/IP data interface, and can be integrated into the user’s command and management platform for remote monitoring and scheduling.

Does this product support OEM/ODM customization?

The RC60Z supports full OEM/ODM customization services. It can be customized in terms of operating language, body appearance color and device nameplate according to customer requirements, and the high-intensity LED lighting modules in various colors are also available for customization.

Application

The RC60Z is mainly applied in two major fields: critical infrastructure security and maritime security, adapting to various high-standard and high-reliability security operation scenarios.

Common application scenarios:

• Critical Infrastructure Security

Featuring powerful acoustic deterrence and high-intensity light suppression, as well as stable performance and flexible deployment, the device meets the requirements of daily security patrol, emergency dispersion and on-site management for mining areas and various key protected zones.

• Maritime

With excellent environmental adaptability and outstanding acoustic and optical deterrent performance, the device can withstand harsh offshore working conditions such as high humidity and high salt spray. It is widely applicable to offshore platform security duty, ship communication, vessel warning and other maritime operation scenarios.
