LPE35D6

Quantity:
Availability:





Inquire Add to Basket

Product Description

FAQ

Application

Download

Product Overview

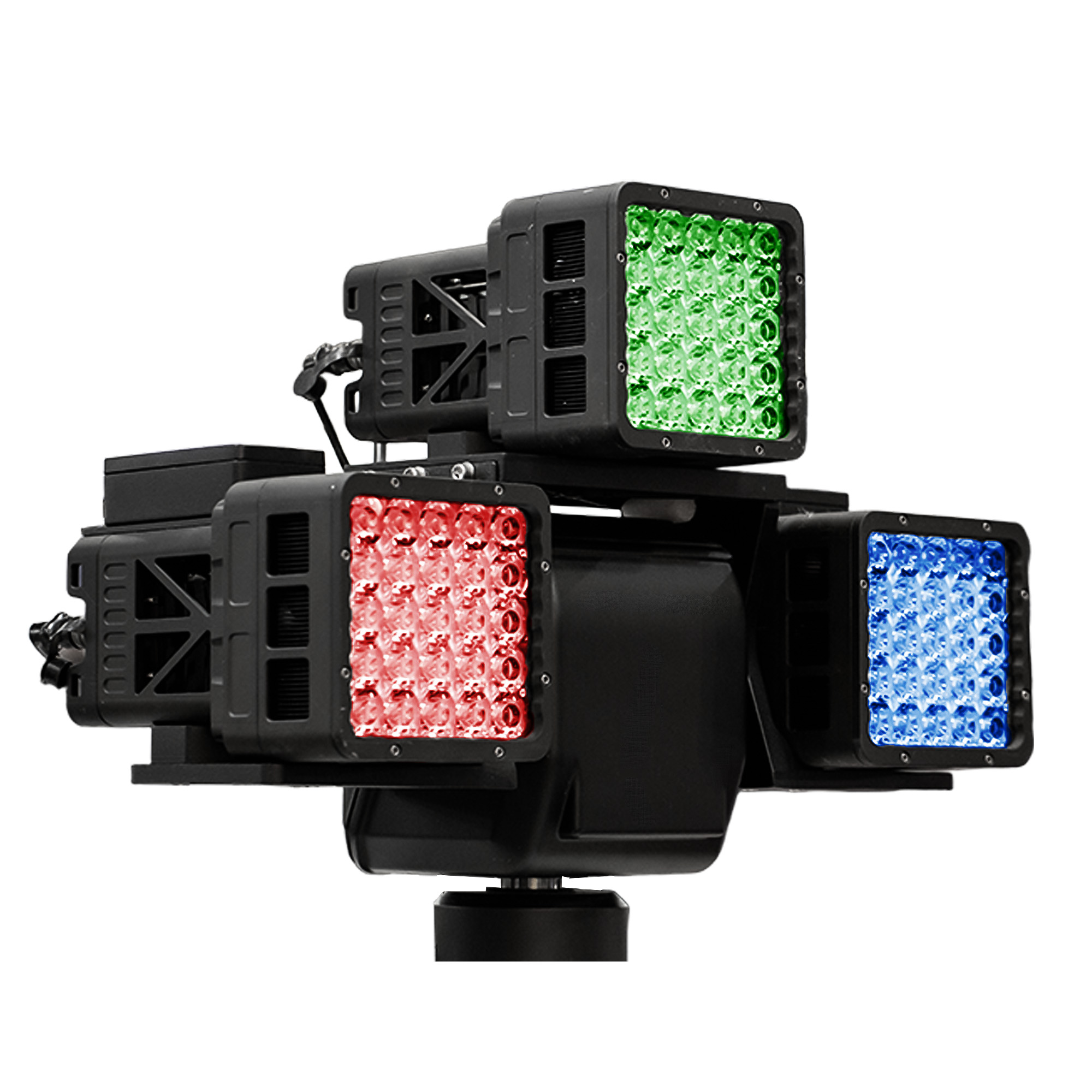

The LPE35D6 is a high-performance lighting and warning device designed for both mobile (e.g., vehicle-mounted) and stationary applications, including automotive and aviation environments. It integrates ultra-high-brightness optical output, multi-mode precision control, remote intelligent operation, and military-grade environmental adaptability, specifically engineered for critical facility protection, emergency rescue operations, tactical illumination, and long-range target identification. The product employs a three-color LED light source with an intensity of 3,000,000 cd and a narrow-angle beam coverage of up to 3,500 m. Featuring an IP66 protection rating and wide-temperature operating range, it operates on 24V DC power ，delivering reliable illumination in complex and harsh environments.

Description of Characteristics

• Ultra-long-range High-brightness Optical Performance

With an optical intensity of 3,000,000 cd and a narrow 6° beam angle, it achieves an ultra-long illumination range of 3,500 m.

• Multiple Flexible Irradiation Modes

Supports full-power high-brightness, multiple low-brightness levels (10%–100%), and specialized strobe modes, with remote control capability to meet diverse requirements such as warning, illumination, search, and deterrence.

• Remote Intelligent Control

The device supports the RS232 communication protocol and can be integrated into vehicle-mounted, shipboard, or other external systems to enable programmed lighting scheduling and centralized management.

• Multi-scenario Deployment Capability

featuring a lightweight design (12 kg) and compact dimensions (255×450×144 mm), supporting vehicle-mounted, shipboard, airborne, and field operation modes for both mobile and fixed applications.

• Military-Grade Environmental Adaptability

Featuring an IP66 protection rating, it has passed rigorous tests under the MIL-STD-810H standard for high/low temperatures, humid conditions, rain exposure, vibration, and impact, ensuring stable operation in extreme climates.

Table of Key Equipment Parameters

Parameter	Details
Luminous Intensity	3000000 cd
Irradiation Angle	6°
Illumination Distance	3500m
Working Mode	Strong light, weak light, flash
Operating Voltage	24V DC
Dimension(LWH)	255mm450mm144mm
Weight	12kg
IP Rating	IP66

FAQ

What control methods does this product support?

The LPE35D6 supports remote control and integrates the RS232 communication protocol for operation on other platforms, such as direct control via the command system or through control terminals.

What working modes does this product support?

The LPE35D6 supports full-power high brightness (100%), multiple low-brightness levels (10%–100%), and special strobe modes.

What mounting methods does this product support?

The LPE35D6 can be mounted on mobile platforms such as vehicles, ships, and aircraft, or installed on unmanned intelligent platforms like UGVs, USVs, and UAVs. It is also suitable for deployment at fixed locations including utility poles and transmission towers.

In what environments can this product be used?

The LPE35D6 operates within a temperature range of-40°C to +50°C and features an IP66 protection rating, ensuring reliable and stable performance in harsh environments.

Does it support replacing LEDs with other colors?

The LPE35D6 comes standard with red, blue, and green LEDs, and supports replacement with LEDs of other colors.

Does this product support OEM/ODM customization?

The LPE35D6 supports OEM/ODM customization services, enabling personalized production of appearance colors, equipment nameplates, logos, and other customizations according to client requirements, as well as functional parameter customization.

Application

The primary application scenarios for LPE35D6 include Critical Infrastructure Security, Maritime, platform integration, and Public Safety.

Common application scenarios:

• Critical Infrastructure Security

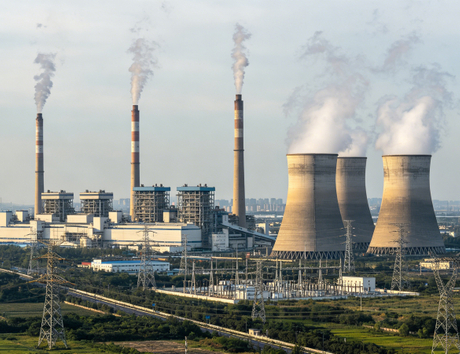

The LPE35D6 features high brightness, multiple color options, and supports constant lighting and strobe modes. With excellent penetration capabilities, it is ideal for boundary warning and illumination applications in power plants/substations, reservoirs/dams, traffic networks, nuclear power plants, and mining areas.

• Maritime

The LPE35D6 supports lighting, strobe effects, and a wide range of colors, making it ideal for applications such as Offshore Platform Security, Maritime Search and Rescue, and Vessel Warning systems.

• Public Safety

The LPE35D6 features high brightness and strobe warning functionality, making it ideal for law enforcement, campus security, and large-scale gatherings.
