LPE25D12

1,562,500 cd luminous intensity, fixed 12° beam angle
Max effective illumination distance of 2,500 meters
10%–100% multi-level adjustable brightness dimming
IP66 rating, fully passed MIL-STD-810H environmental tests
Standard white LED, customizable with infrared LED modules
Supports handheld, vehicle-mounted and airborne multi-platform deployment
Designed for power station and reservoir perimeter security inspection
Ideal lighting equipment for maritime emergency search and rescue missions
Suitable for all-weather night patrol of mining areas and traffic hubs

Quantity:
Availability:





Inquire Add to Basket

Product Description

FAQ

Application

Download

Product Overview

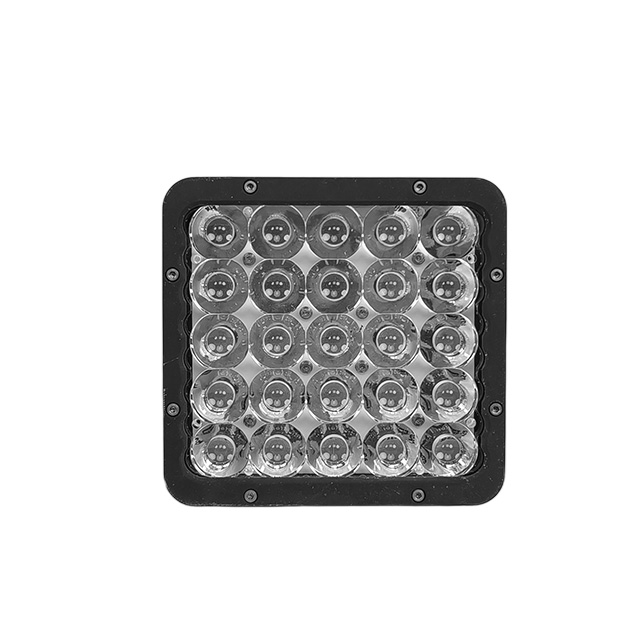

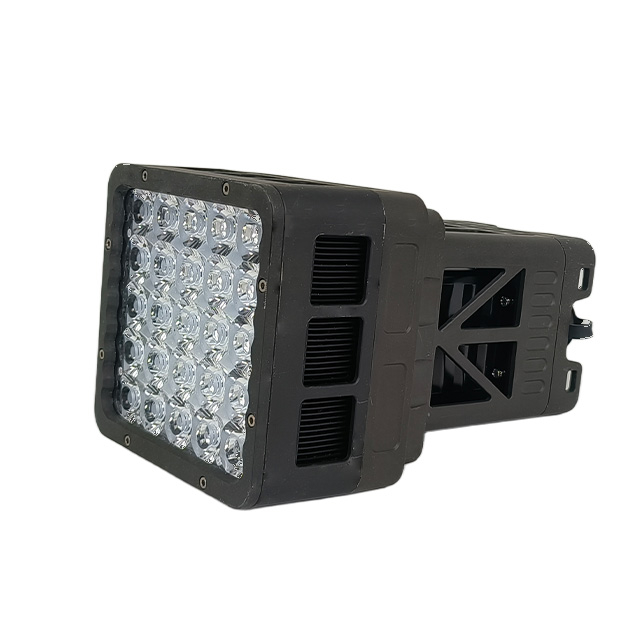

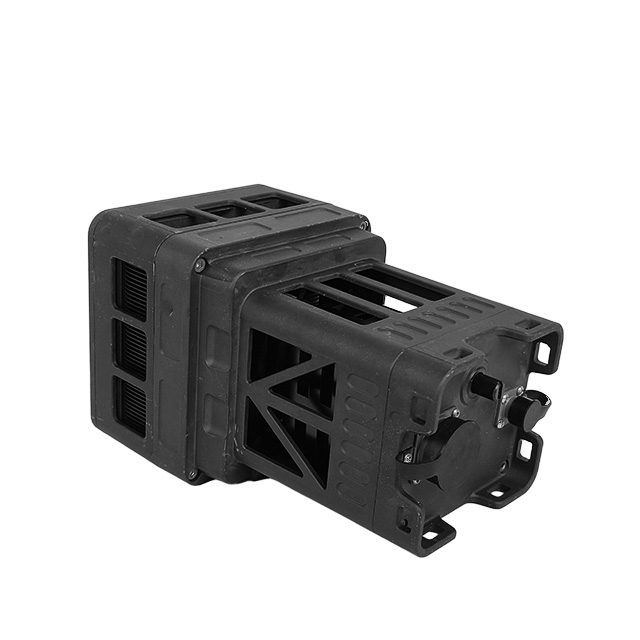

The LPE25D12 is a high-performance lighting device designed for multiple applications—including handheld, vehicle-mounted, and airborne use. It integrates ultra-long-range high-intensity illumination, multi-mode precision control, flexible power solutions, and military-grade environmental adaptability, making it ideal for field work lighting, emergency rescue operations, tactical illumination, and critical facility protection. Powered by white LED technology, the unit delivers an optical power of 1,562,500 cd with a narrow-angle 12° spotlight effective up to 2,500 m. Features include tactical strobe mode, high-brightness output, and multi-level dimming. With IP66 protection and wide-temperature performance, it ensures high reliability and extended battery life in extreme environments.

Description of Characteristics

• Ultra-long-range High-brightness Optical Performance

With a light intensity of 1,562,500 cd and narrow-angle illumination at 12°, it achieves an ultra-long-range coverage distance of 2,500 m.

• Multi-mode Flexible Control

Supports tactical strobe lighting, high-brightness modes, and multi-level dimming from 10% to 100%, with mode switching via computer remote control, pressing the rear cover, or RS232 interface, catering to diverse needs such as warning, search, illumination, and concealment.

• Multi-scenario Deployment Capability

Featuring a lightweight design (3.0 kg) and compact dimensions (255 mm × 148 mm × 142 mm), it supports DC 24V/DC 48V power supplies as well as portable battery packs; suitable for handheld use, vehicle mounting, or airborne integration, catering to both stationary and mobile applications.

• Extensive Expansion Features

supports remote computer control, RS232 interface, and rear press control, offering versatility for various scenarios.

• Military-Grade Environmental Adaptability

With an IP66 protection rating, it has passed MIL-STD-810H tests for high/low temperatures, humid heat, rain exposure, sand/dust, and drop impact, demonstrating rigorous environmental validation and stable operation under extreme climatic conditions.

Table of Key Equipment Parameters

Parameter	Details
Luminous Intensity	1562500 cd
Irradiation Angle	12°
Illumination Distance	2500m
Working Mode	Constant light, flash
Operating Voltage	24V DC/48V DC
Dimension(LWH)	255mm148mm142mm
Weight	3.0kg
IP Rating	IP66

FAQ

What working modes does this product support?

The LPE25D12 supports multi-mode operation, including tactical strobe lighting, high-brightness mode, and multi-level dimming ranging from 10% to 100%.

In what environments can this product be used?

The LPE25D12 operates within a temperature range of-40°C to +50°C and features an IP66 protection rating, ensuring reliable and stable performance in harsh environments.

What mounting methods does this product support?

The LPE25D12 is portable and can be securely mounted on mobile platforms such as vehicles and ships, as well as on aerial platforms like helicopters.

Is this product battery-powered?

The LPE25D12 operates on DC 24V/DC 48V power supply and supports optional battery packs for power delivery.

Does it support infrared functionality?

The LPE25D12 comes standard with a white LED and supports customizable white light plus infrared LED light sources.

Is this product expandable?

The LPE25D12 supports expansion; we provide a fixed bracket that allows quick mounting on all our portable high-volume audio products, audio-visual series products, or other devices.

Can this product be integrated with other products?

The LPE25D12 supports an RS232 interface and can be integrated into other platforms.

Does this product support OEM/ODM customization?

The LPE25D12 supports OEM/ODM customization services, enabling personalized production with customized appearance colors and device nameplates according to client requirements. It allows customization of light irradiation parameters (e.g., irradiation power), button definitions, infrared LED integration, and mounting brackets for other platforms.

Application

The primary application scenarios for LPE25D12 include Critical Infrastructure Security, Maritime operations, and Wildlife Protection.

Common application scenarios:

• Critical Infrastructure Security

The LPE25D12 features high brightness, supports multi-mode operation, and is easy to integrate and install. It is suitable for power plants/substations, industrial parks, reservoirs/dams, traffic networks, mining areas, and other scenarios requiring extensive illumination or searchlight applications.

• Maritime

The LPE25D12 features high brightness, long illumination range, wide illumination angle, and exceptional environmental adaptability, making it ideal for maritime search and rescue operations.

• Wildlife Protection

The LPE25D12 can be deployed in various scenarios such as forests and grasslands, marine ranching areas, and building rooftops. It assists in wildlife search operations and uses its strobe light function to drive away wild animals.
