Product Overview

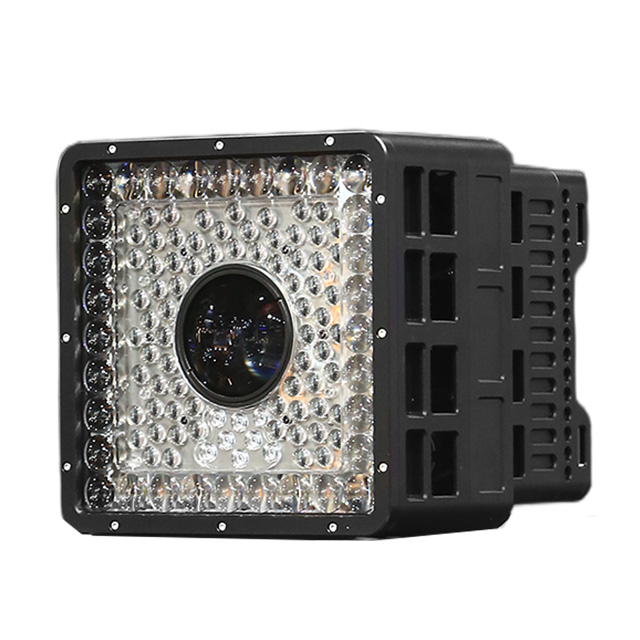

The LPE73Z is an ultra-high-brightness, multi-mode adjustable lighting device that integrates cutting-edge optical performance, precise beam control, military-grade protection, and environmental adaptability. It is specifically designed for critical facility protection, emergency rescue operations, tactical illumination, and long-range target identification. The product employs a white LED light source with a luminous intensity of 12,800,000 cd, an adjustable illumination angle of 8°–16°, and a coverage distance of up to 7,300 m. Featuring an IP67 protection rating and wide operating temperature range, it supports RS232 communication protocol control and integration with devices on mobile or stationary platforms such as vehicles, vessels, and aerial systems, ensuring reliable illumination in complex scenarios and harsh environments.
Description of Characteristics
• Ultra-long-range High-brightness Optical Performance
With a light intensity of up to 12,800,000 cd, the illumination angle can be continuously adjusted between 8° and 16° via zoom control, supporting ultra-long-range illumination at 7,300 m.
Compatible with the RS232 communication protocol, enabling remote operation via integrated platforms, command centers, or control terminals. It is compatible with existing security/commissioning platforms and supports programmable lighting scheduling.
• Long-Life Design
The equipment has a service life of up to 10,000 hours, with low light degradation ensuring cost-effectiveness for long-term operation.
• Structural Reinforcement Design
For integrated applications of mobile and fixed platforms, enhanced structural designs are implemented to meet the stringent vibration and impact requirements of vehicle-mounted and shipboard platforms.
• Military-Grade Environmental Adaptability
Featuring an IP67 protection rating, it has passed rigorous tests under the MIL-STD-810H standard—including high/low temperatures, humid heat, rain exposure, sand/dust, and drop tests—and has been validated for stable operation in extreme climates.
Table of Key Equipment Parameters
Parameter | Details |
Luminous Intensity | 12800000 cd |
Irradiation Angle | 8°~16° |
Illumination Distance | 7300m |
Working Mode | Strong light, weak light |
Operating Voltage | 48V DC |
Dimension(L*W*H) | 289mm*266mm*266mm |
Weight | 13kg |
IP Rating | IP67 |
