LPE27D6

Quantity:
Availability:





Inquire Add to Basket

Product Description

FAQ

Application

Download

Product Overview

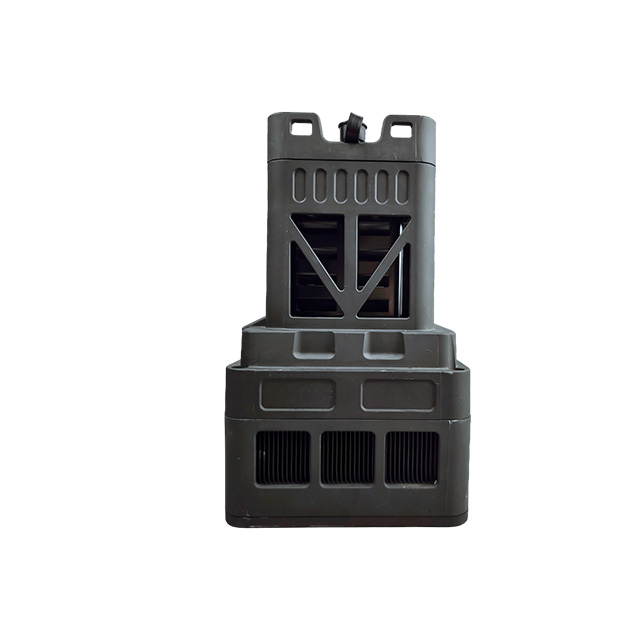

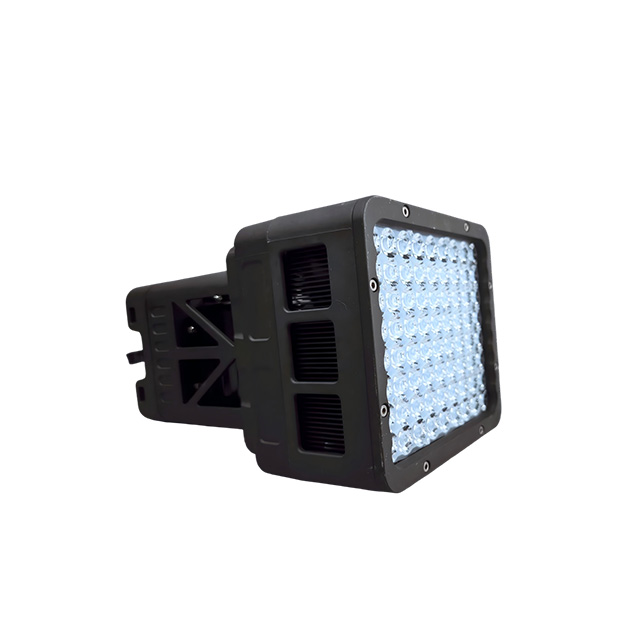

The LPE27D6 is a high-performance lighting device designed for multiple applications—including handheld, vehicle-mounted, and airborne use. It integrates ultra-long-range high-intensity illumination, multi-mode precision control, extended battery life, and military-grade environmental adaptability, specifically engineered for field work lighting, emergency rescue operations, tactical illumination, and critical facility protection. The device employs white LED technology with a luminous intensity of 1,822,500 cd, a 6° illumination angle, and a maximum effective range of 2,700 m. It supports tactical strobe mode, high brightness settings, and multi-level dimming. Featuring an IP66 protection rating and wide operating temperature range, the product maintains high reliability in extreme environments ，ensuring reliable lighting performance in complex scenarios.

Description of Characteristics

• Ultra-long-range High-brightness Optical Performance

With a light intensity of 1,822,500 cd and narrow-angle illumination of 6°, it achieves an ultra-long-range coverage distance of 2,700 m.

• Multi-mode Flexible Control

Supports tactical strobe lighting, high brightness, and multi-level gradient dimming (10%–100%). Switch modes by pressing the rear cover or using the RS232 interface to meet diverse requirements such as warning, search, and concealment.

• Multi-scenario Deployment Capability

Featuring a lightweight design (2.9 kg) and compact dimensions (255 mm × 148 mm × 142 mm), it supports DC 24V power supply and can be deployed in various configurations—including portable handheld use, vehicle-mounted installation, or airborne integration.

• Extensive Expansion Features

Supports remote control, equipped with both an RS232 interface and a rear press control mechanism, suitable for various application scenarios.

• Military-Grade Environmental Adaptability

With an IP66 protection rating, it has passed MIL-STD-810H tests for high/low temperatures, humid heat, rain exposure, and sand/dust exposure, ensuring stable operation under extreme weather conditions.

Table of Key Equipment Parameters

Parameter	Details
Luminous Intensity	1822500 cd
Irradiation Angle	6°
Illumination Distance	2700m
Working Mode	Constant light, flash
Operating Voltage	24V DC
Dimension(LWH)	255mm148mm142mm
Weight	2.9kg
IP Rating	IP66

FAQ

What working modes does this product support?

The LPE27D6 supports multi-mode operation, including tactical strobe lighting, high-brightness mode, and multi-level dimming ranging from 10% to 100%.

In what environments can this product be used?

The LPE27D6 operates within a temperature range of-40°C to +50°C and features an IP66 protection rating, ensuring reliable and stable performance in harsh environments.

What mounting methods does this product support?

The LPE27D6 is portable and can be fixedly installed on mobile platforms such as vehicles and ships, as well as on aerial platforms like helicopters.

Is this product battery-powered?

The LPE27D6 operates on a DC 24V power supply and supports optional battery packs for additional power.

Does it support infrared functionality?

The LPE27D6 comes standard with a white LED and supports customizable combinations of white and infrared LEDs

Is this product expandable?

The LPE27D6 supports expansion; we provide a fixed bracket that allows quick mounting on all our portable high-volume audio products, audio-visual series products, or other devices.

Can this product be integrated with other products?

The LPE27D6 supports an RS232 interface and can be integrated into other platforms.

Does this product support OEM/ODM customization?

The LPE27D6 supports OEM/ODM customization services, enabling personalized production with customized appearance colors and device nameplates according to client requirements. It allows customization of light irradiation parameters (e.g., irradiation power), button definitions, infrared LED integration, and mounting brackets for other platforms.

Application

The primary application scenarios for LPE27D6 include Critical Infrastructure Security, maritime operations, and wildlife protection.

Common application scenarios:

• Critical Infrastructure Security

The LPE27D6 features high brightness, supports multi-mode operation, and is easy to integrate and install. It is ideal for traffic networks and other applications requiring long-distance, large-scale illumination or searchlight scenarios.

• Maritime

The LPE27D6 features high brightness, long illumination range, salt spray resistance, and excellent environmental adaptability, making it ideal for maritime search and rescue operations.
