RX1260A

Continuous SPL@1m: 144dBA，Notification Radius: 1392m
Coverage area reaches 6.09km², designed for unobstructed wide Gobi hazard zones.
Real-time microphone broadcast enables instant remote evacuation guidance during disasters.
High sound pressure guarantees consistent audio reception in valley airflow areas.
Auto cyclic playback of hazard evacuation audio for unattended wild monitoring points.
TCP/IP links urban security platforms to trigger alerts after meteorological alarms.
Anti-aging IP65 shell extends maintenance cycles under extreme sunlight and humidity.

Quantity:
Availability:





Inquire Add to Basket

Product Description

FAQ

Application

Download

Product Overview

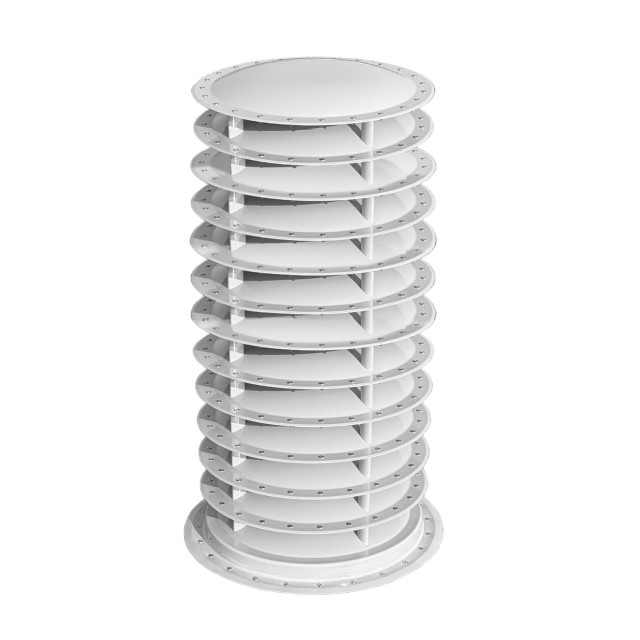

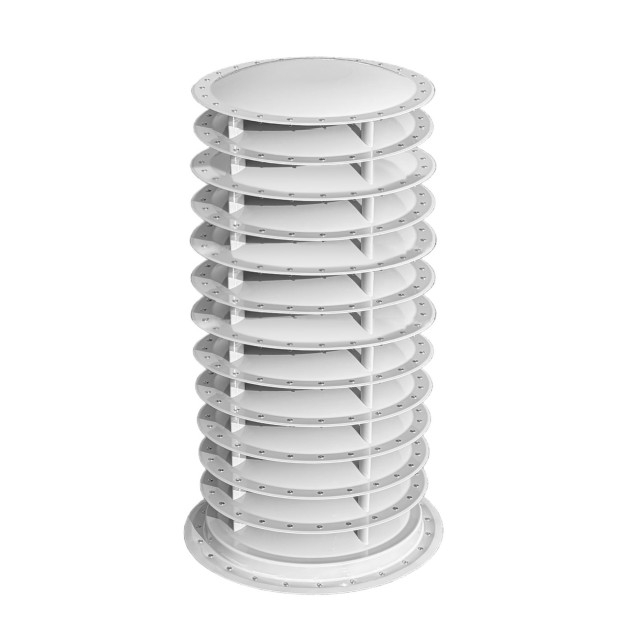

Positioned as a high-output 360-degree omnidirectional acoustic alert hardware, the RX1260A delivers a maximum warning radius of 1,392 meters and governs a total alert coverage region measuring 6.09 km². It undertakes large-range broadcast propagation and urgent alarm notification tasks within strategic key locations including offshore islands, mountain forest regions, natural grassland basins and airport operational restricted zones. A built-in TCP/IP network communication port unlocks remote parameter adjustment and centralized equipment administration, fully matching operational standards for large-scale emergency mass notification deployment.

Description of Characteristics

• Full-area Acoustic Coverage Eliminating Coverage Blind Zones

The hardware projects level 360-degree sound propagation without regional dead angles. Recorded peak sound pressure reaches 150 dBA at a one-meter testing distance, forming an effective warning radius of 1,392 meters across a total service zone of 6.09 km² to realize gap-free wide-area acoustic signal coverage.

• Multi-scene Adaptable Audio Playback Modes

Operators launch instant live voice broadcasting utilizing microphone hardware. The system retains onboard audio file playback and recording storage functionality, additionally supporting media file reading from external portable storage hardware including USB flash drives and TF memory cards with auxiliary card reader accessories.

• Premium Speech Intelligibility and Sound Restoration Effect

Covering a frequency response band from 250 Hz to 7000 Hz, the equipment accurately reproduces human voice tones, wild bird calls and diverse wildlife acoustic signals. It performs excellently for routine site announcements, emergency broadcast alert issuance and concentrated bird flock dispersal broadcasting work.

• Diversified Deployment Layout and Hierarchical Remote Administration

Equipped with standard TCP/IP protocol communication ports, users conduct direct remote command execution through dedicated control terminals. System integration with existing security defense platforms and centralized command frameworks enables unified batch equipment supervision.

• Military Validated Climate Adaptation and Long-term Operational Reliability

The hardware completes rigorous environmental validation tests outlined within the MIL-STD-810H military standard, covering high-low temperature cycling, persistent humid heat environments, sand dust sedimentation and sustained rainfall erosion. Attaining an IP65 protection rating, the unit maintains stable working performance amid all categories of extreme severe weather conditions.

• Wide-range Input Voltage Tolerance Capacity

Supporting alternating current input ranging from 110V to 260V, the matched exclusive power distribution cabinet conforms to global regional power grid specifications. The design safeguards uninterrupted steady equipment operation within isolated remote districts or locations suffering from volatile grid voltage conditions

Table of Key Equipment Parameters

Parameter	Details
Peak SPL@1m	150dBA
Continuous SPL@1m	144dBA
Continuous SPL@30m	114dBA
Notification Radius	1392m
Notification Area	6.09km²
Dimension(D*H)	700mm*1300mm
Weight	85kg
IP Rating	IP65

FAQ

What installation methods does this product support?

The RX1260A supports permanent fixed mounting onto elevated terrain free from sound barriers, including communication towers, utility poles, mountain peak platforms and river dam infrastructure surfaces.

In what environments can this product be used?

Functioning stably within a temperature operational window spanning -40°C to +50°C, alongside IP65 enclosure protection and inherent salt spray corrosion resistance, the hardware delivers consistent operational performance across complex harsh landscapes including plain terrain, coastal bay zones, offshore islands, prairie basins, desert terrain, low-pressure high-altitude zones and high-latitude climate territories.

Does it support a dry contact interface?

Dry contact signal interface function is supported.

Is an electrical cabinet supported?

Equipped with a purpose-built power distribution cabinet, the hardware realizes unified emergency alarm system scheduling and secures sustained stable operational status for long-term emergency warning missions.

What are the control methods for this product?

Remote command control runs over the TCP/IP communication protocol framework. Practical operation options contain wired dedicated control terminals and portable handheld tablets. Users may also integrate equipment into proprietary security monitoring and command scheduling systems via communication protocols to implement synchronized unified management.

Does this product support wireless control?

The factory-standard version does not carry native wireless control capability. Optional upgrade modules including remote video transmission hardware, WiFi network adapters and 4G/5G communication cards can be fitted later to activate wireless long-distance remote control functions.

Does this product support OEM/ODM customization?

Custom OEM and ODM manufacturing services are available. Customizable options cover operational display language versions, outer casing exterior color schemes and engraved equipment identification nameplates. Further customization extends to core functional modules such as LED warning indicator lamps, shortcut one-touch control buttons, pre-translated fixed alert phrase packages and personalized man-machine operation interface layouts.

Application

The RX1260A is architected specifically to serve large-scale emergency mass notification operational workflows. Relying on top-tier acoustic output performance, the equipment executes perimeter intrusion detection alarm triggering, regional broadcast notification distribution, geological disaster emergency alert release and wide-area terrain search coordination tasks inside typhoon prevention warning frameworks, tsunami early warning systems and mountain forest fire prevention broadcast networks.
