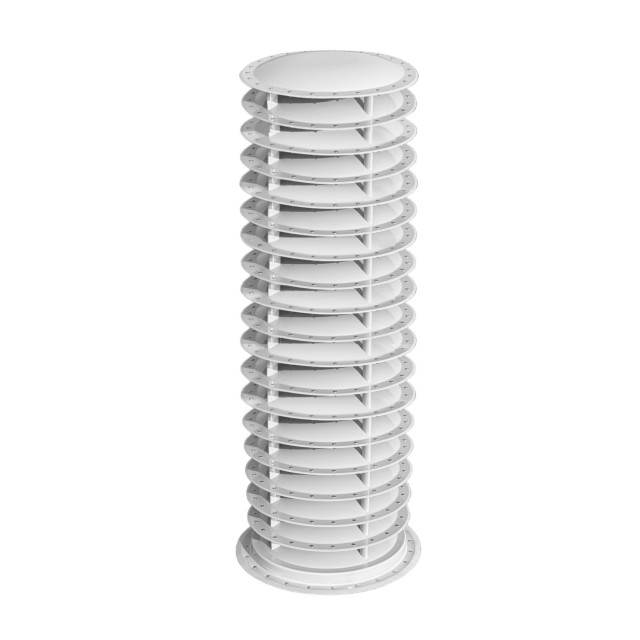

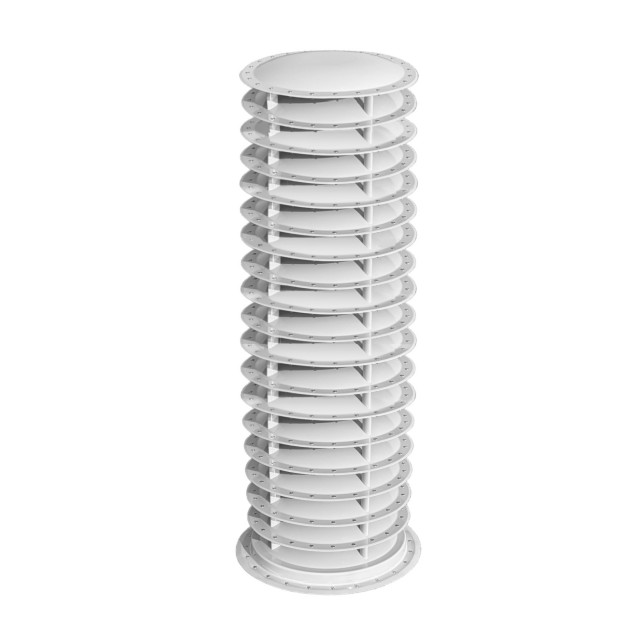

RX1860A

Continuous SPL@1m: 147dBA，Notification Radius: 1609m
Coverage area up to 8.13km², core equipment for county flood and earthquake early warning.
Uniform omnidirectional sound eliminates uneven volume on open plateau terrain.
Full playback modes support border live voice, flood recordings and bird repellent.
Passes complete MIL-STD-810H test, stable operation from -40℃ to +50℃ all year round.
Anti-interference control cabinet avoids equipment shutdown caused by lightning strikes.
Universal brackets fit reservoir towers, border poles and county building rooftops.
Customizable for both civil disaster prevention and military border management projects.

Quantity:
Availability:





Inquire Add to Basket

Product Description

FAQ

Application

Download

Product Overview

Representing the flagship 360-degree full-directional acoustic alert hardware lineup, the RX1860A reaches a maximum practical warning radius of 1,609 meters and covers a total alert service territory of 8.13 km². It carries out large-range broadcast signal transmission and emergency alarm triggering missions across island territories, mountain woodland reserves, natural grassland watersheds and airport restricted operational zones. Built-in remote monitoring and parameter adjustment functionality fully satisfies standardized operational workflows for large-scale mass emergency notification systems.

Description of Characteristics

• Supersized gap-free regional acoustic signal coverage

Delivering level 360-degree sound propagation without geographic dead zones, the hardware hits a peak sound pressure rating of 154 dBA measured at one meter distance. It forms an effective warning radius spanning 1,609 meters across an 8.13 km² service zone to realize complete all-round audible signal coverage.

• Multiformat compatible adaptive audio playback modes

Field operators initiate real-time remote voice live broadcast tasks via microphone hardware. The system recognizes mainstream media formats including MP3 and AAC, carries onboard audio playback and recording storage features, and supports media file reading imported from USB portable flash storage devices.

• High-definition voice quality with authentic acoustic restoration performance

Covering a fixed frequency response band between 250 Hz and 7000 Hz, the hardware accommodates diversified practical operational tasks including site manual announcements, timed scheduled broadcasting, graded emergency alert issuance and on-site crowd directional dispersal guidance work.

• Convenient site deployment workflow and streamlined remote operational management

Integrated with standard TCP/IP protocol communication ports, the equipment supports long-distance remote regulation and permits systematic embedding into existing security defense platforms and centralized command management frameworks to realize coordinated cross-system remote operation scheduling.

• Industry-leading multi-environment adaptive ruggedized performance

The product passes comprehensive MIL-STD-810H military standard verification assessments covering high-low temperature cycling, mechanical vibration fatigue, persistent humid heat, sand dust accumulation and rapid thermal shock testing. Combined with IP65 protection grading and optimized wind-resistant structural design, the hardware adapts reliably to variable climatic types and geographically harsh wilderness deployment conditions.

• Broad-range voltage tolerance plus expandable off-grid power supply schemes

Operated with supporting dedicated power distribution cabinet hardware, the unit accepts 110V to 260V alternating current input scope. Optional solar photovoltaic power supply retrofits are supported, securing uninterrupted stable equipment operation inside remote isolated wilderness districts or regions plagued by chronic grid voltage instability.

Table of Key Equipment Parameters

Parameter	Details
Peak SPL@1m	154dBA
Continuous SPL@1m	147dBA
Continuous SPL@30m	117dBA
Notification Radius	1609m
Notification Area	8.13km²
Dimension(D*H)	700mm*1840mm
Weight	121kg
IP Rating	IP65

FAQ

What installation methods does this product support?

The RX1860A can be permanently mounted on high-altitude barrier-free facilities, including communication towers, utility poles and rooftop platforms with unobstructed sound propagation paths.

In what environments can this product be used?

Working steadily within a temperature range of -40°C to +50°C alongside IP65 protection and anti-salt-spray construction, this flagship acoustic device adapts to high-altitude plateaus, coastal shorelines, remote islands, steppe lands, desert zones and high-latitude frigid climate zones for long-term continuous operation.

Does it support a dry contact interface?

The RX1860A is fitted with a standard dry contact signal port, enabling seamless signal linkage with external early warning systems and perimeter security equipment.

Is an electrical cabinet supported?

A dedicated customized power cabinet comes as standard configuration, delivering centralized power scheduling and safeguarding long-term stable running of the whole emergency warning system.

What are the control methods for this product?

Managed under the TCP/IP communication framework, the unit supports operation via wired control terminals and handheld tablet controllers. Users are also able to integrate the hardware into proprietary security monitoring and command management systems to realize unified collaborative scheduling.

Does this product support 4G or 5G remote control?

Reserved expansion slots allow optional installation of 4G and 5G communication modules, upgrading the equipment to achieve cellular-based long-range wireless remote management.

Does this product support solar panel power?

Off-grid solar power supply schemes are fully compatible. Our technical team can customize matched photovoltaic panels and battery bank configurations according to the geographical lighting conditions of the installation location, sustaining steady operation even within power-deficient remote regions.

Does this product support OEM/ODM customization?

The RX1860A provides comprehensive OEM and ODM tailored services. Adjustable customization items involve operating display languages, exterior shell hues and engraved equipment nameplates. Developers can also upgrade core functional modules such as LED warning indicators, one-touch shortcut buttons, multilingual translation libraries for preset alert phrases, as well as personalized interactive UI layouts.

Application

The RX1860A serves as a flagship device engineered specifically for large-scale mass notification deployments. Boasting top-tier acoustic output performance and the widest signal coverage among the lineup, this unit excels at perimeter intrusion alert triggering, regional broadcast notification distribution, geological disaster graded early warning release, as well as on-site crowd evacuation guidance. It fits perfectly into typhoon prevention frameworks, tsunami precaution systems and full-range forest fire warning broadcast networks.
