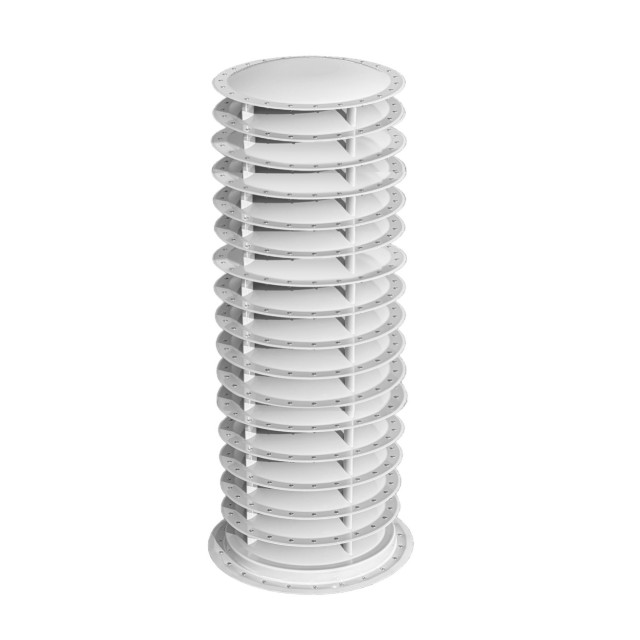

RX1660A

Quantity:
Availability:





Inquire Add to Basket

Product Description

FAQ

Application

Download

Product Overview

As a full 360-degree omnidirectional acoustic warning unit, the RX1660A establishes an effective alert coverage radius reaching 1,536 meters. It undertakes wide-area broadcast delivery and emergency alarm triggering work within core pivotal sites covering islands, woodland areas, grassland watersheds and airport functional zones. Reliable remote monitoring access via TCP/IP networking satisfies comprehensive deployment demands for mass notification programs, emergency contingency response workflows and dedicated alarm system construction projects.

Description of Characteristics

• Zero-blind-spot Full Circular Acoustic Signal Coverage

The unit forms complete uninterrupted horizontal sound distribution across 360 degrees without service dead zones. Testing at one meter distance registers a peak sound pressure level of 152 dBA, forming a total warning service zone of 7.41 km² within the 1,536-meter effective radius to deliver ultra-wide regional signal coverage.

• Multimode Adaptive Audio Operational Functionality

The system facilitates remote microphone real-time voice paging, alongside onboard native audio playback and recording file storage playback operational modes.

• Premium Authentic Voice Signal Restoration Capability

Calibrated with a frequency response spectrum locked between 250 Hz and 7000 Hz, the hardware fully covers frequency bands for human spoken language and wild bird vocalization. It applies professionally to live site voice announcements, emergency broadcast alert issuance and large-area bird flock repulsion operational tasks.

• Highly Flexible Diversified Field Deployment Options

Installation positions cover communication towers, building rooftops and overhead utility poles to support adaptive site layout schemes. Controlled remotely through the TCP/IP communication protocol, the equipment accepts direct terminal operation and supports system-level integration with security monitoring platforms and multi-tier command dispatch frameworks.

• Superior Multi-climate Environmental Resistance Performance

Fully compliant with MIL-STD-810H military standard specifications and certified with an IP65 protection rating, the structure incorporates windproof reinforced mechanical design to withstand variable complex climatic conditions and severe wilderness deployment surroundings.

• Wide-spectrum Global Grid Voltage Adaptation Capability

Matched with a tailor-made power distribution cabinet, the machine accommodates alternating current input ranging between 110V and 260V. The structural design matches power grid specifications adopted globally and maintains uninterrupted steady equipment operation inside remote isolated regions or locations facing chronic grid voltage instability.

Table of Key Equipment Parameters

Parameter	Details
Peak SPL@1m	152dBA
Continuous SPL@1m	146dBA
Continuous SPL@30m	116dBA
Notification Radius	1536m
Notification Area	7.41km²
Dimension(D*H)	700mm*1660mm
Weight	109kg
IP Rating	IP65

FAQ

What installation methods does this product support?

The RX1660A adopts fixed permanent installation onto elevated barrier-free positions including signal communication towers, overhead utility poles and building rooftop platforms.

In what environments can this product be used?

Operating steadily within a temperature bracket ranging from -40°C to +50°C alongside IP65 ingress protection certification, the acoustic hardware adapts to deployment across plain terrain, coastal shoreline regions, offshore island territories, prairie basins, desert zones, ultra-high altitude plateaus and high-latitude cold climate regions.

Does it support a dry contact interface?

The hardware supports smooth signal linkage function through dry contact interface access.

Is an electrical cabinet supported?

A customized exclusive power control cabinet is equipped to deliver centralized system scheduling and guarantee sustained stable operational status for full-time emergency warning alarm systems.

What are the control methods for this product?

Remote regulatory operation runs under the TCP/IP protocol architecture. Available operational pathways include wired dedicated control terminals and portable handheld tablet devices. Equipment can also interface with customer-owned security supervision and command management systems via communication protocols to achieve synchronized collaborative administration.

Does this product support 4G or 5G remote control?

Reserved multi-type expansion interfaces support post-installation fitting of 4G or 5G cellular communication modules to unlock cellular-network-based long-distance remote control functionality.

Does this product support OEM/ODM customization?

Tailored OEM and ODM customized manufacturing solutions are supplied to match individualized project requirements. Adjustable custom parameters cover operational display language versions, outer housing appearance color schemes and printed equipment identification nameplate markings. Custom development work extends to core functional modules: LED warning indicator lamp assemblies, shortcut dedicated control buttons, multilingual translation packages for fixed alert sentences and personalized man-machine interactive interface layout design.

Application

The RX1660A is purpose-built to fulfill systematic mass emergency notification project requirements. Driven by powerful acoustic output performance advantages, the equipment executes perimeter intrusion alarm triggering, large-area broadcast notification distribution and natural disaster graded early warning tasks inside typhoon defense warning frameworks, tsunami risk prevention systems and island-wide integrated public address network projects.
