RH11B

Dual acoustic & laser dual-sensory bird repellent
139dB peak sound with200m long deterrent distance
2MP 25x ultra-low light full-color surveillance
360° horizontal blind-free coverage
IP65 industrial all-weather waterproof & dustproof design
Built-in wiper, defrost and lightning surge protection
Multiple auto cruise, preset and intelligent linkage modes

Quantity:
Availability:





Inquire Add to Basket

Product Description

FAQ

Application

Download

Product Overview

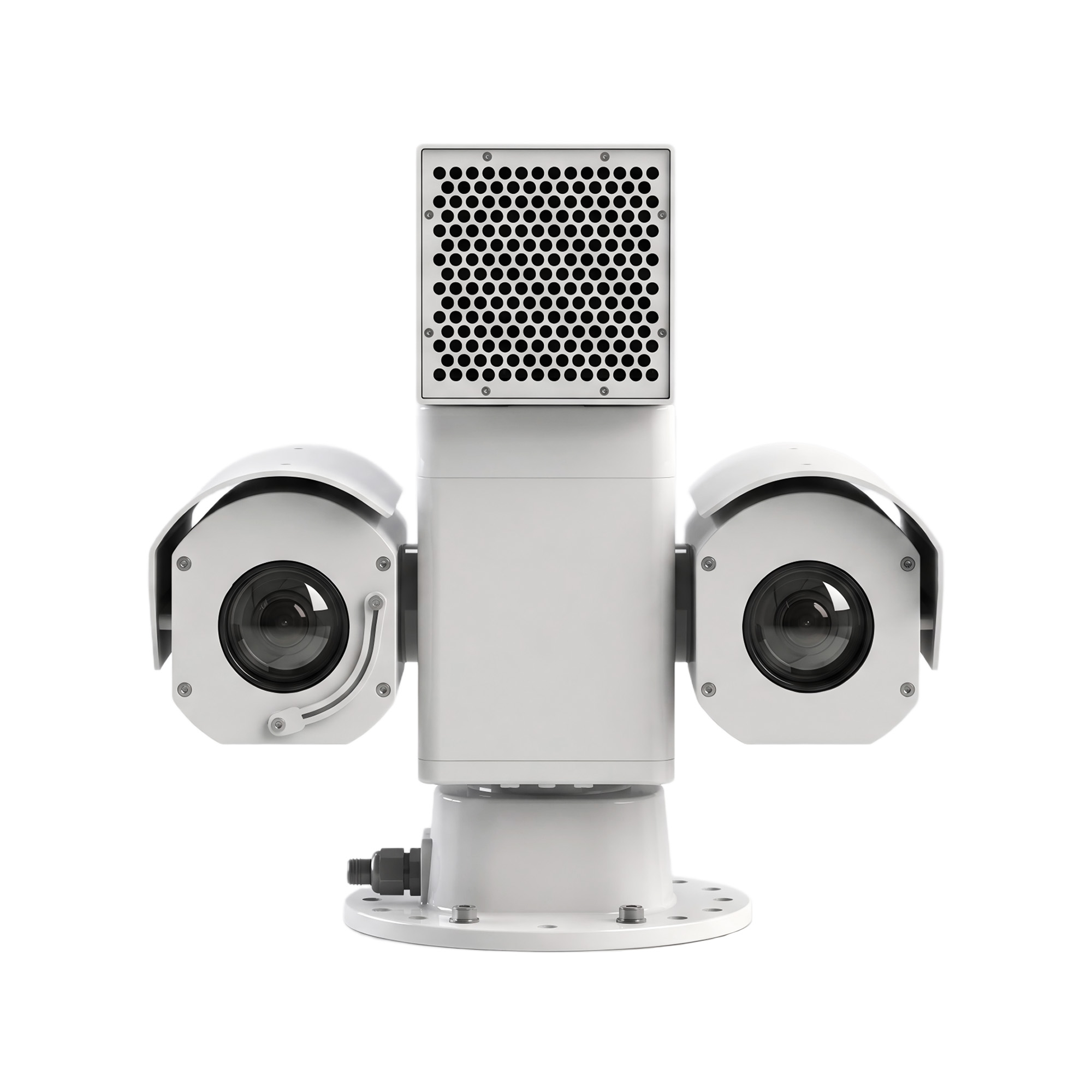

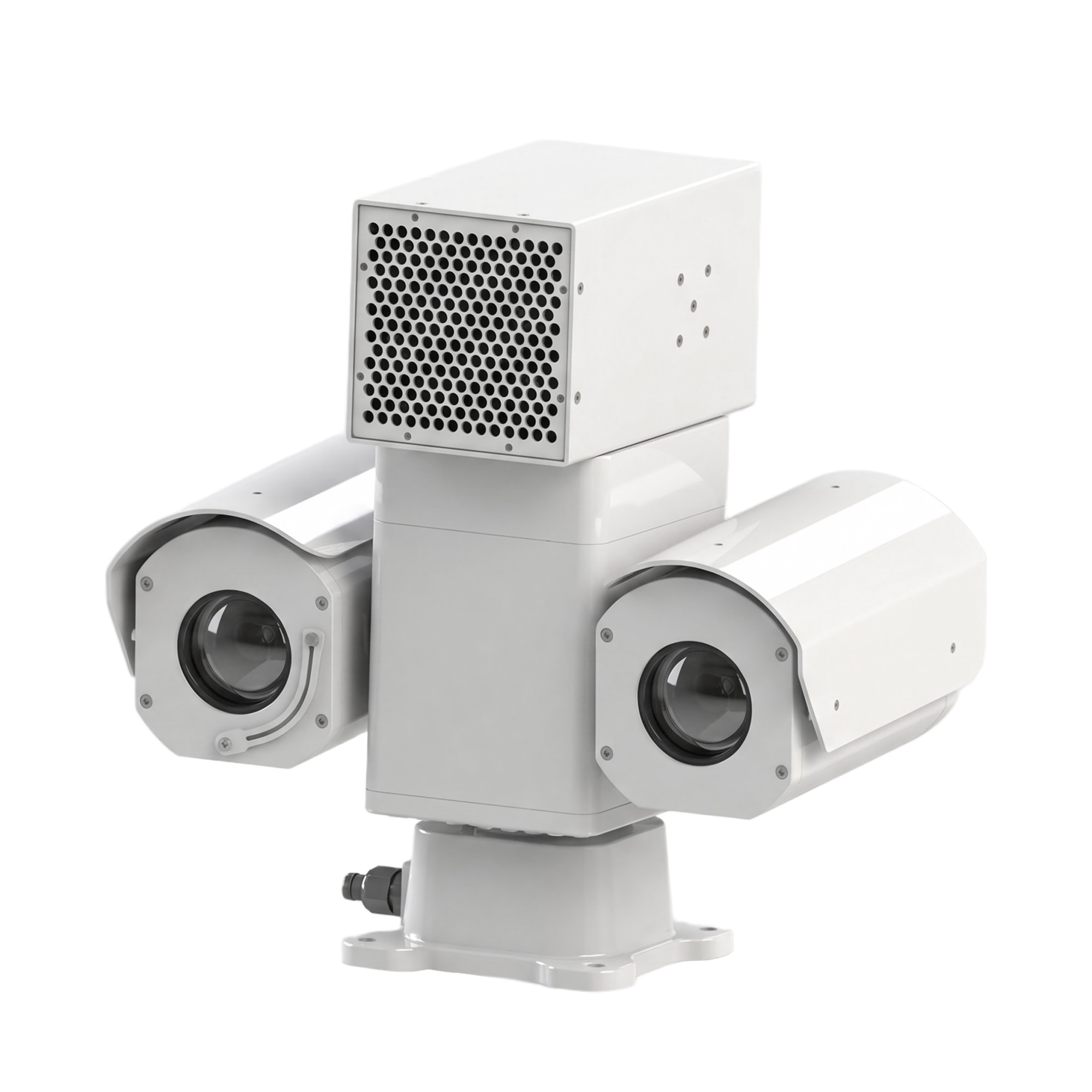

RH11B is an integrated acoustic and laser bird repellent device integrated with a high-decibel acoustic module, 525nm green laser deterrent module, 2MP ultra-low light full-color camera and high-speed servo pan-tilt system. Adopting dual visual and auditory non-lethal deterrence, it supports 24/7 all-weather monitoring, automatic cruise and intelligent alarm linkage. It delivers long-distance identification, laser deterrence and directional acoustic warning in harsh environments. Compatible with standard security platforms, it supports automatic patrol scheduling and video evidence recording to provide a one-stop bird monitoring and repellent solution.

Description of Characteristics

• Dual Acoustic-Laser Deterrence

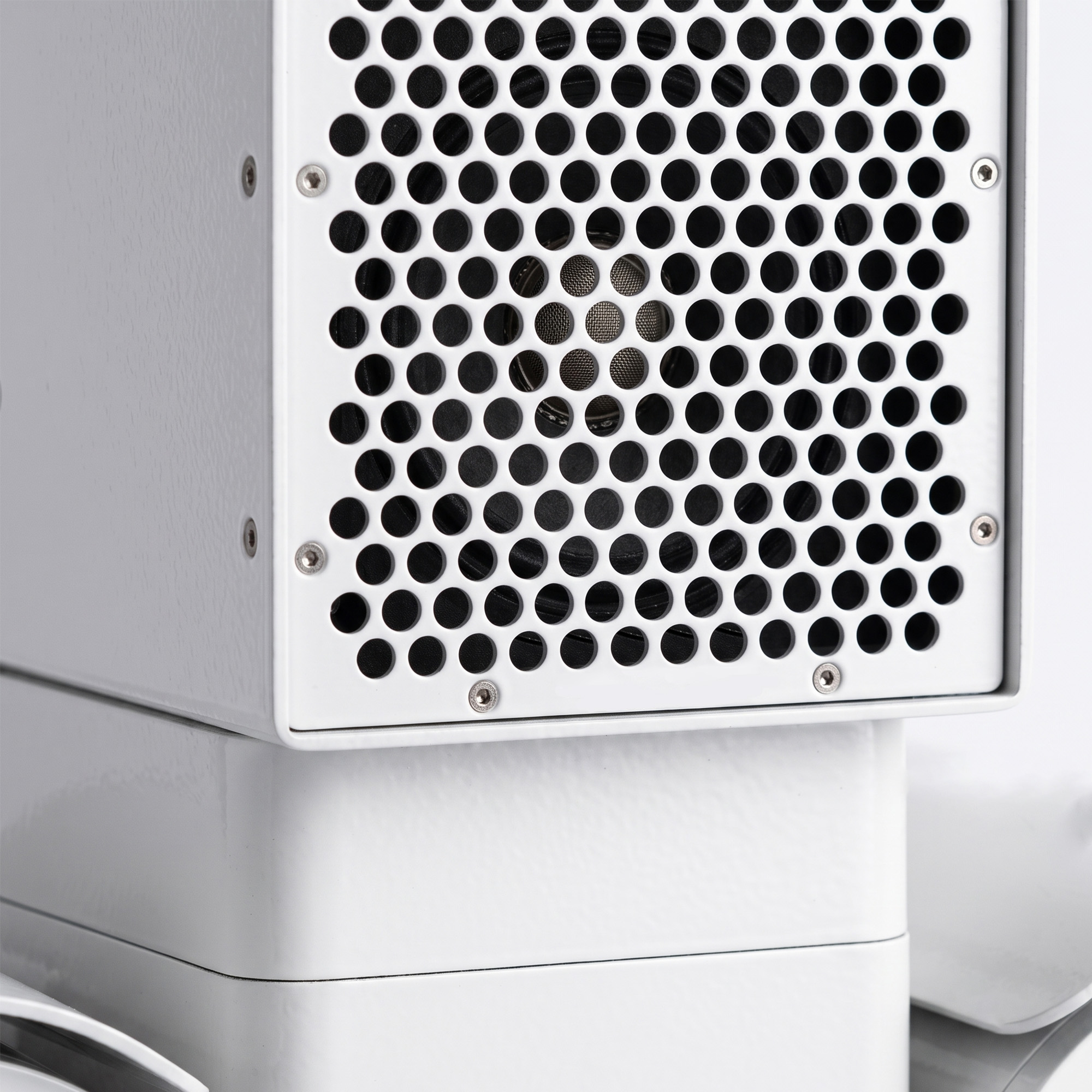

Features 139dB peak SPL acoustic output with 200m long-range directional deterrence and a 200m 525nm green laser. Dual-sensory stimulation prevents bird adaptation for stable and long-term repellent performance.

• 24/7 Full-Color Monitoring

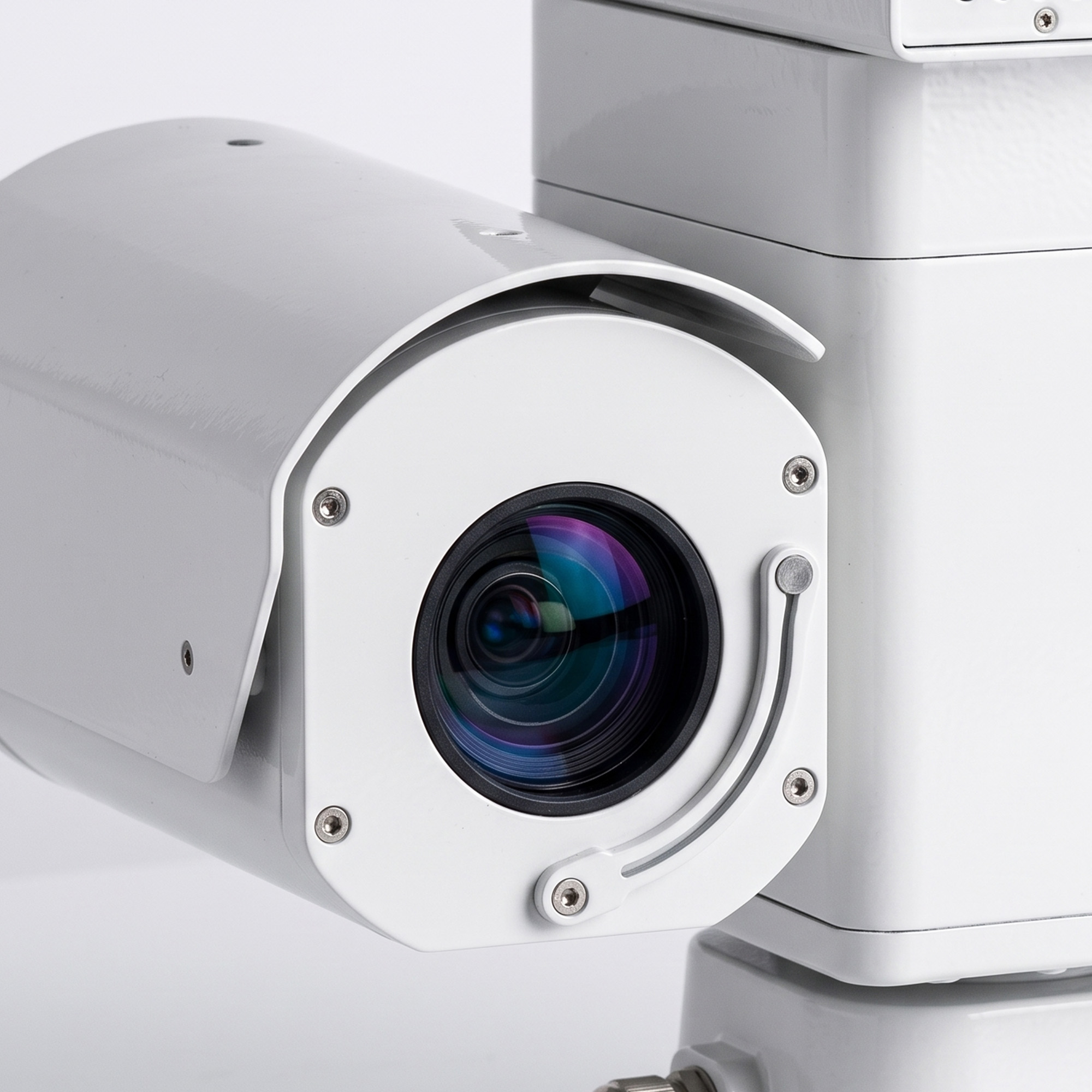

Equipped with a 2MP CMOS camera and 25x optical zoom, AI ultra-low light technology enables clear full-color imaging in zero-light conditions, supporting intelligent target linkage.

• Omnidirectional Blind-Spot-Free Coverage

360° unlimited horizontal rotation and -90°~+90° vertical pitching with fast positioning speed to achieve full airspace and ground coverage.

• Industrial-Grade Durability

IP65 waterproof and dustproof structure with wiper, defrost and surge protection. It operates stably from -40℃ to +60℃, adapting to various harsh outdoor environments.

• Intelligent Automatic Control

Supports 256 presets, multiple cruise tracks and auto homing; laser and acoustic modes can work independently or synchronously for flexible scheduling.

Table of Key Equipment Parameters

Parameter	Details
Peak SPL@1m	139dBA
Continuous SPL@1m	123dBA
Max Range	200m
Acoustic Beam	±15°@2kHz/-3dB
Laser Wavelength	525nm
Output Power	≥1.2W
Irradiation Distance	200m
Horizontal Rotation Angle	0° ~ 360° Continuous Rotation
Vertical Rotation Angle	-90° ~ +90°(Only laser and camera)
Dimension(WDH)	345mm194mm362mm
Weight	10kg
IP Rating	IP65

FAQ

What installation methods does this product support?

The RH11B supports fixed installation only, which can be stably mounted on elevated structures such as poles, towers and utility brackets to achieve long-term fixed-point monitoring and bird repellent operations.

In what environments can this product be used?

With IP65 protection and -40℃~+60℃ wide temperature adaptability, it applies to airports, power facilities, farmland, railways and other complex outdoor scenarios.

Does it support night full-color monitoring?

Yes. The AI ultra-low light full-color sensor supports zero-light full-color imaging, with ICR infrared switching and over 120-meter infrared night vision distance.

What are the control methods for this product?

It supports TCP/IP remote control, desktop and handheld terminal operation, and can be integrated into monitoring centers via GB28181/ONVIF, with local password-protected OSD menu setting.

Does this product support OEM/ODM customization?

The device supports OEM/ODM customization for appearance, labels, acoustic programs, laser parameters and control logic to meet personalized site demands.

Application

The RH11B is widely applied to Industrial Park security, Civil Security prevention and professional Airport Bird Control, covering intelligent monitoring, active deterrence and bird hazard prevention for industrial, public and aviation scenarios.

Common application scenarios:

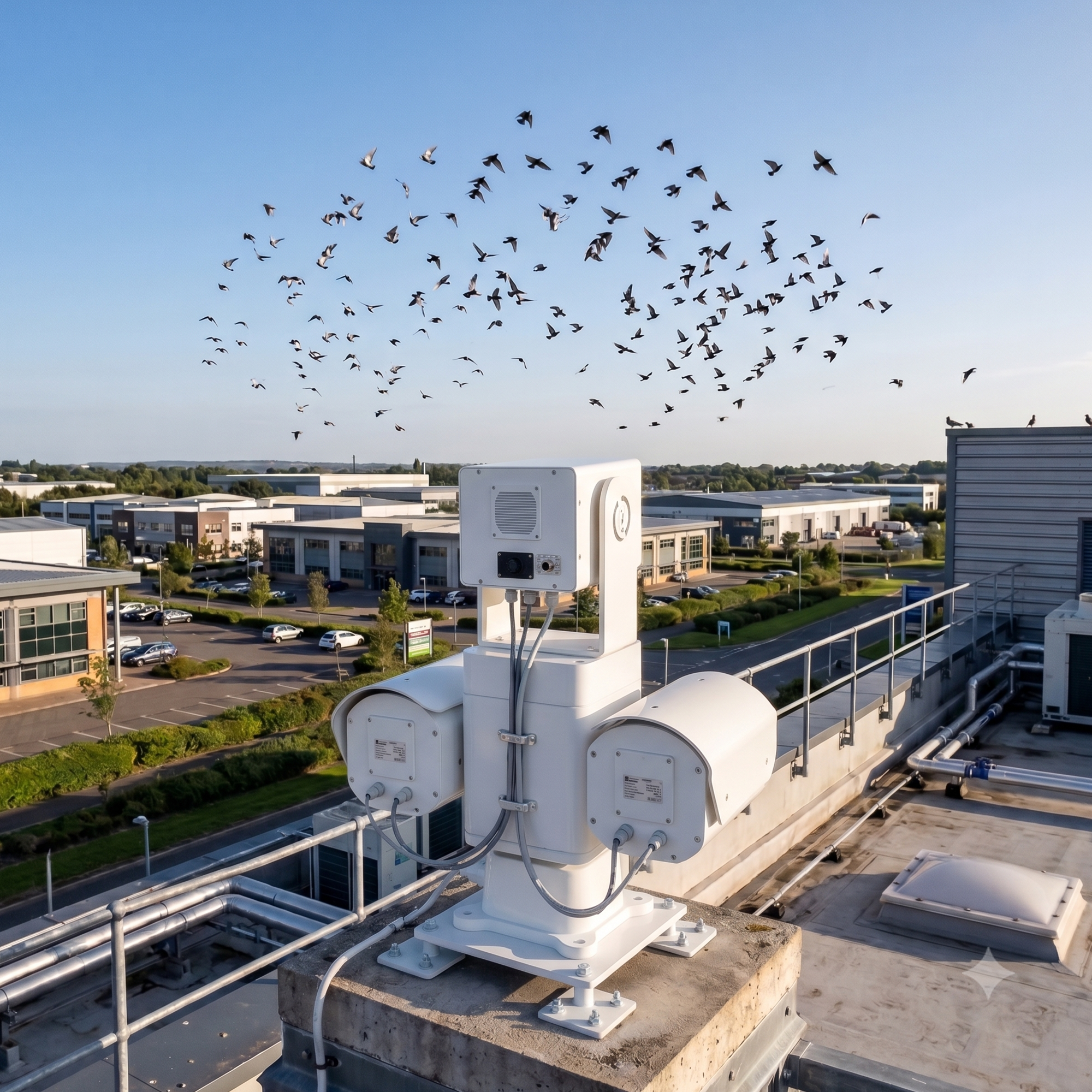

• Industrial Park

It realizes 360° unmanned cruise for factories and logistics parks, repels nesting and gathering birds, avoids equipment failure and environmental pollution caused by bird activities, and supports real-time security monitoring.

• Civil Security

Suitable for public area patrol and emergency deterrence. It integrates HD monitoring, laser warning and directional acoustic reminder to improve intelligent public safety prevention capability.

• Airport Bird Control

Deployed on airport patrol vehicles for full-coverage monitoring of runways and flight areas. The dual acoustic-laser deterrence effectively eliminates bird strike hazards and records bird activity data to guarantee aviation safety.
