RH80Y

Quantity:
Availability:





Inquire Add to Basket

Product Description

FAQ

Application

Download

Product Overview

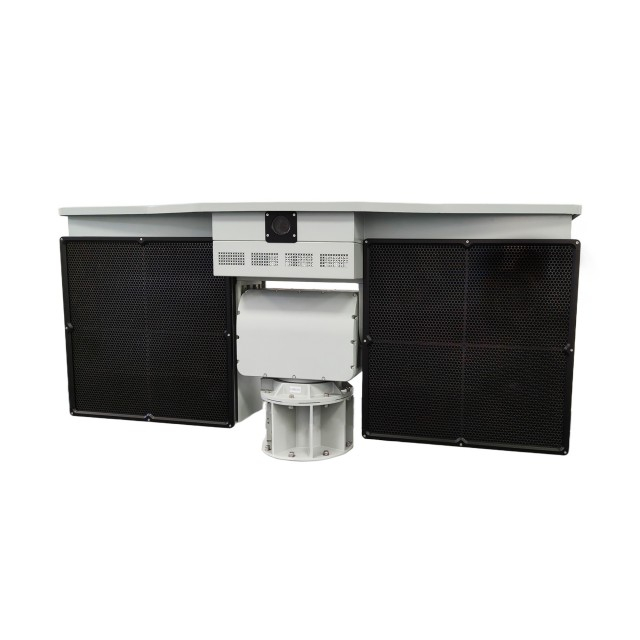

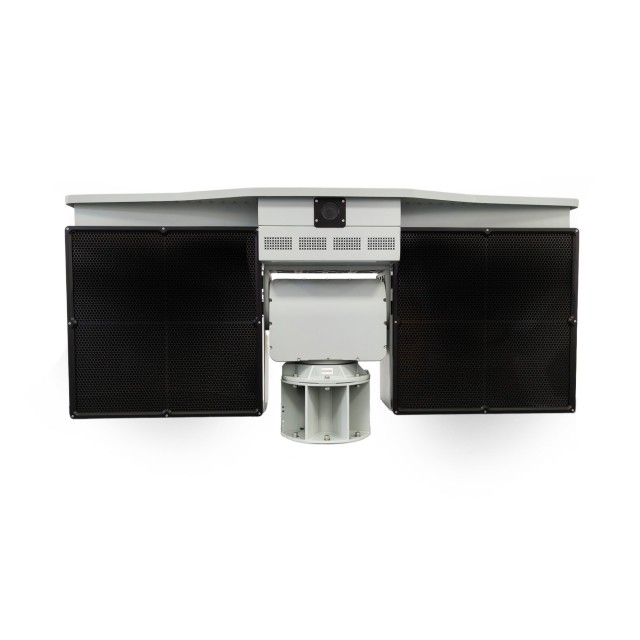

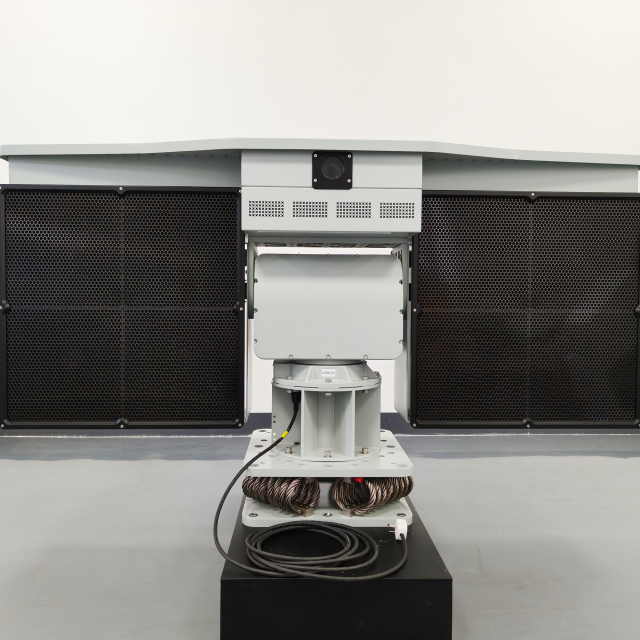

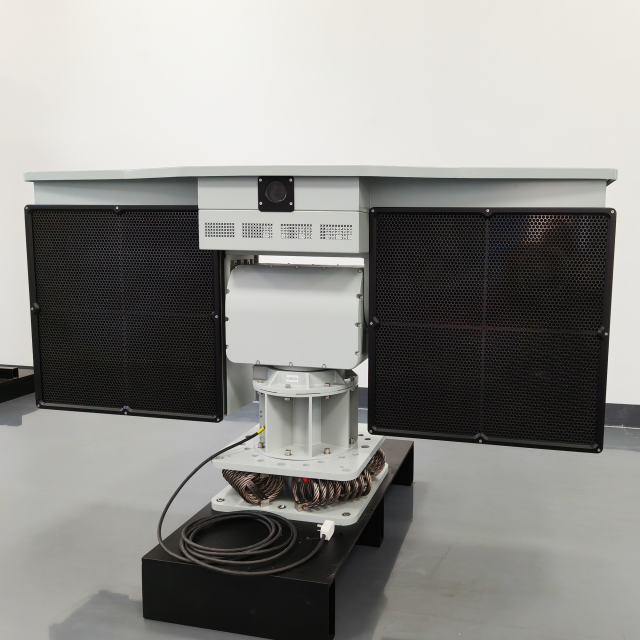

The RH80Y is an integrated acoustic-optic long-range deterrence device. It integrates five core modules, including high-intensity acoustic deterrence, laser dazzling, white-light searchlighting, high-definition video monitoring and an intelligent pan-tilt head. Adaptable to a wide range of complex and harsh working conditions, it supports long-distance clear voice broadcasting and non-lethal flexible deterrence. Featuring outstanding comprehensive performance, the device meets the requirements of crowd broadcasting, emergency command and dispatch, and full-area monitoring, and is widely applied in various security scenarios such as critical infrastructure protection and public safety management.

Description of Characteristics

a） Featuring powerful acoustic output, the device delivers a peak sound pressure level of 168 dBA and a continuous working sound pressure level of 155 dBA at 1 meter, with a maximum effective operating distance of 3,162 meters. It ensures clear long-distance voice broadcasting and strong deterrent effects.

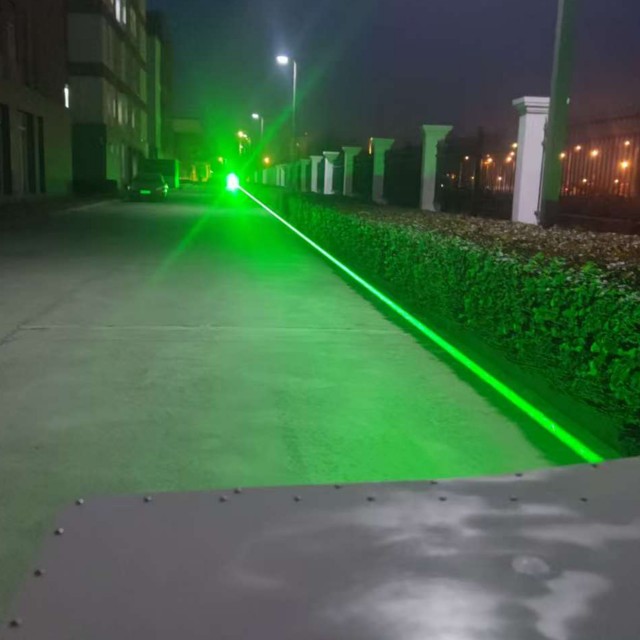

b） Integrated with a 5W green laser and high-power LED searchlight with a luminous intensity of up to 202,500 cd. It supports precision targeted illumination, glare deterrence, wide-area white light supplementation and stroboscopic warning, providing diversified warning methods for multi-scene operation.

c） Equipped with a 4-megapixel high-definition camera and 32x optical zoom capability, the device supports real-time video recording and playback. It fully records the entire operation process and retains complete video evidence to meet security law enforcement and evidence collection requirements.

d） Adopting a high-precision servo intelligent pan-tilt system, it supports 360° continuous horizontal rotation and ±45° vertical tilt adjustment. With flexible angle adjustment and full-range coverage, it realizes all-round blind-free monitoring and voice broadcasting.

e） Supporting TCP/IP remote control protocol, the device is highly compatible with mainstream security management systems. It enables efficient deployment and simple operation, adapting to various fixed and mobile installation platforms.

Table of Key Equipment Parameters

Parameter	Details
Peak SPL@1m	168dBA
Continuous SPL@1m	155dBA
Max Range	5012m
Acoustic Beam	±15°@2kHz/-3dB
Horizontal Rotation Angle	0° ~ 360° Continuous Rotation
Vertical Rotation Angle	+45° ~ -45°
Luminous Intensity（LED）	20250000cd
Illumination Distance（LED）	9000m
Output Power（Laser）	5W
Dimension(WDH)	1734mm481mm846mm
Weight	165kg
IP Rating	IP65

FAQ

What installation methods are supported?

The RH80Y supports diversified installation and deployment methods. It can be mounted on mobile platforms such as vessels, fixedly installed on offshore floating facilities including drilling platforms, and erected on high-altitude structures such as towers, utility poles, building rooftops and mountain tops, featuring flexible deployment and strong environmental adaptability.

Does the device support infrared functions?

The RH80Y adopts a modular expandable design. Both the laser module and infrared camera support independent modular disassembly and replacement. Users can flexibly upgrade and customize infrared functions according to actual operational needs to adapt to diverse security monitoring scenarios.

What control methods are available?

The device supports TCP/IP network remote control with multiple operation modes. It can be controlled locally and remotely via wired terminals or handheld tablets. Meanwhile, it supports docking with existing user communication protocols and can be seamlessly integrated into the dedicated command and control center to realize integrated centralized management.

Is OEM/ODM customization available?

The RH80Y provides professional OEM/ODM personalized customization services. Customizable contents include appearance configurations such as operation interfaces, body colors and nameplates, as well as core functional modules including laser units, LED searchlights, pan-tilt rotation ranges and control programs. All customized adjustments can fully meet differentiated customer application requirements.

Application

Equipped with military-grade environmental adaptability, full-range monitoring capability and powerful acoustic-optic warning performance, the RH80Y is mainly applicable to three professional scenarios: critical infrastructure security, maritime operation protection and border security management, fully adapting to various high-risk and complex security duty operations.

• Critical Infrastructure Security

Featuring excellent environmental adaptability and operational stability, the device is suitable for key infrastructure scenarios such as oil, gas and energy industries. It supports security patrol, remote voice warning, large-area high-brightness illumination and full-process video evidence collection, building a solid safety barrier for critical facilities.

• Maritime Operation Protection

Optimized for harsh marine environments including salt spray, high humidity and wind waves, the device features certified IP65 protection and stable performance. It is widely used in offshore platform security duty, long-distance ship communication, and warning & deterrence of illegal vessels, adapting to all kinds of maritime security missions.

• Border Security Management

Benefiting from powerful acoustic-optic deterrence and long-distance operation capability, the device delivers efficient non-lethal deterrent performance. It can be deployed on a large scale along border lines to conduct routine monitoring, early warning broadcasting, and deterrence of illegal personnel and vessels for standardized border management.
