The press anvil acoustic detector integrates high - precision acoustic acquisition, LORA wireless transmission, and multi - channel signal processing. Developed for industrial press anvil health monitoring, it captures anvil operation acoustic characteristics to identify hidden risks like cracks, wear, and fatigue damage in real time. It solves traditional manual inspection pain points such as low efficiency, high misjudgment rate, and high operational risk in hazardous environments, offering a full - cycle, automated anvil health monitoring solution for industrial scenarios like diamond synthesis and metallurgical forging.
The press anvil acoustic detector is a lightweight, reliable industrial - grade acoustic monitoring device. It consists of an aluminum - alloy main unit, a high - precision microphone, a power cable, etc. Integrating LORA, acoustic acquisition, and network communication modules, it's a dedicated intelligent terminal for press anvil health perception and anomaly warning.
Equipped with a 6 - channel, 96K high - fidelity audio acquisition unit, it captures press anvil operation signals, enabling real - time data collection, storage, and wireless transmission. Through acoustic feature analysis algorithms, it identifies anvil faults like cracks, wear, and loosening, supporting real - time warning, data traceability, and remote monitoring, helping enterprises avoid anvil fractures and production losses.

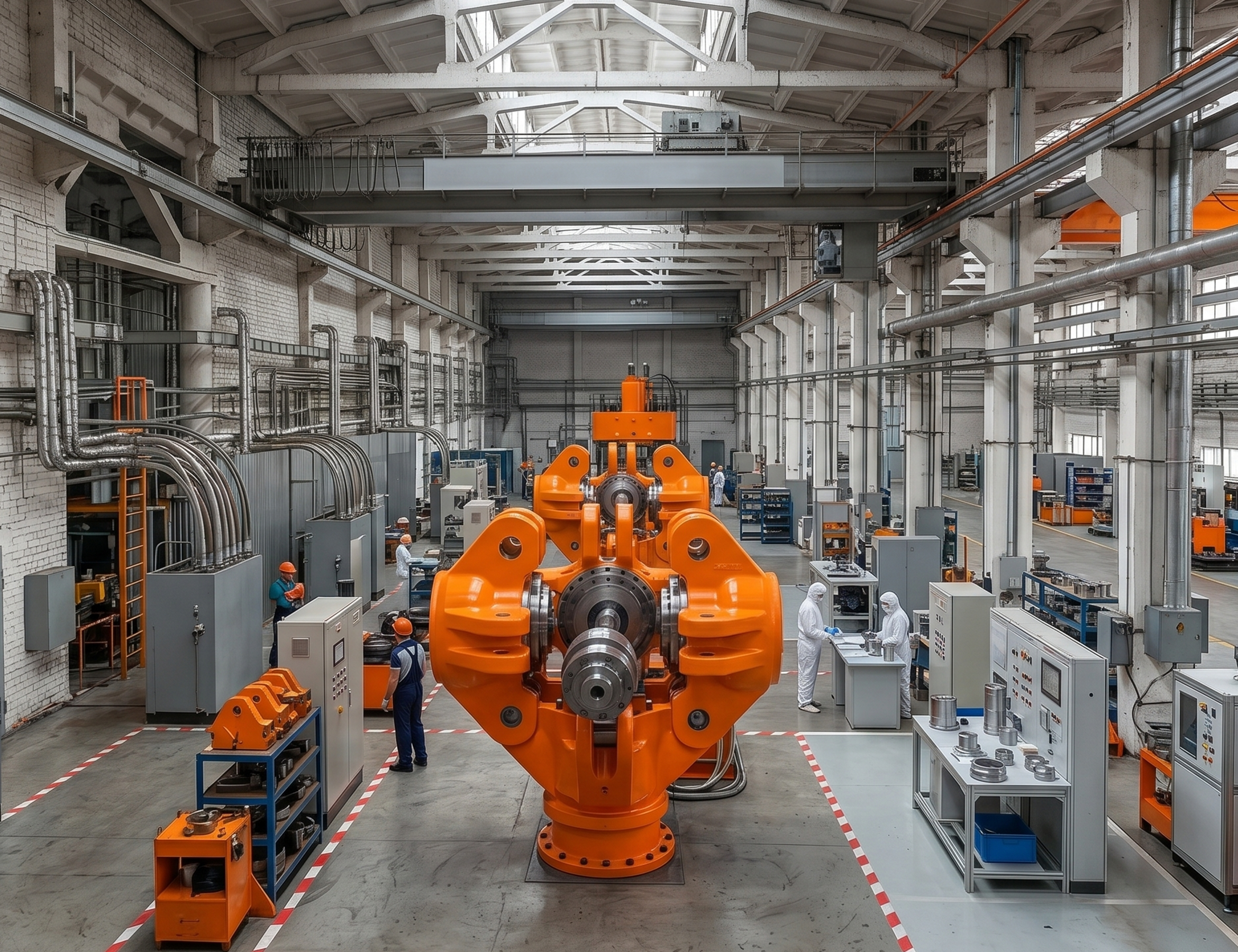

It's widely used in industrial equipment scenarios such as diamond synthesis, metallurgical forging, and heavy hydraulic presses.It offers 24/7 automated health monitoring for industrial press anvils.
Traditional anvil monitoring uses periodic manual inspections, which need close contact with high - speed, high - temperature, high - pressure press equipment. A single inspection is time - consuming and inefficient. Due to manpower limitations, 24 - hour continuous monitoring is impossible, so hidden risks may be missed during critical periods like night shifts and handovers.
Manual inspections rely on visual observation and empirical judgment. Early micro - cracks and hidden wear on anvils are hard to visually identify. Subjective differences in personal experience lead to frequent misjudgments and omissions, causing minor hidden risks to turn into major accidents such as anvil fracture and equipment damage.
Industrial presses operate under high temperature, high pressure and strong vibration. Close manual inspections bring safety hazards like mechanical injury and high - temperature burns. Traditional inspections lack remote monitoring capabilities and can't give timely warnings when faults occur, which may trigger cascading safety accidents and threaten personnel and equipment safety.
Traditional monitoring has no systematic data acquisition and storage capabilities. There is no continuous record of anvil operating status, so it's difficult to trace causes or locate root problems after faults occur. It can't provide data support for equipment maintenance and process optimization, resulting in extensive equipment operation and maintenance management.
The Bottom Line: The market urgently needs an automated, high-precision, highly reliable anvil acoustic monitoring device adapted to harsh working conditions, to replace manual inspections and realize 24/7 accurate monitoring, remote warning and data-driven operation and maintenance.

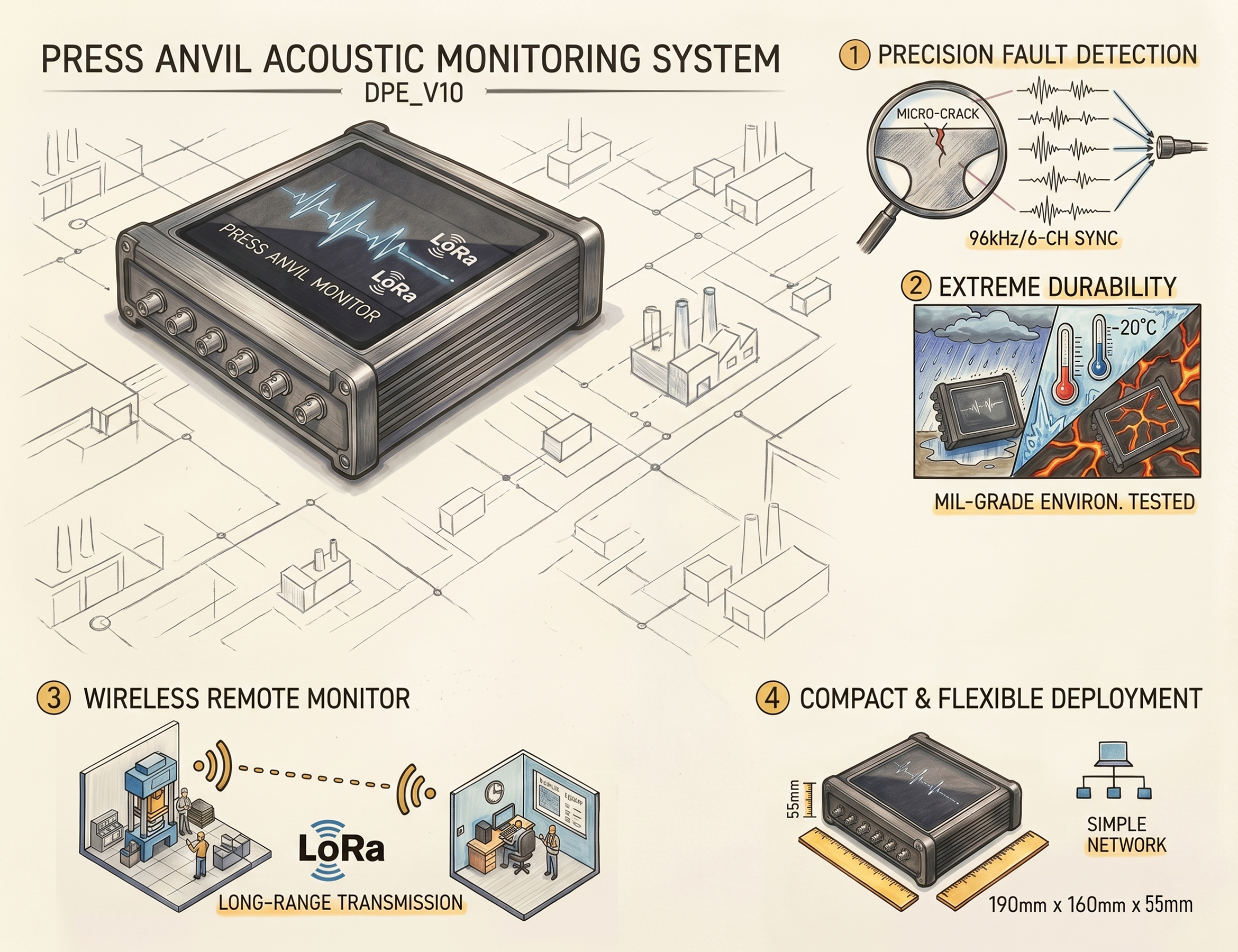

Focused on the core requirements of anvil health monitoring, the press anvil acoustic detector builds a full - link monitoring system of “acquisition – transmission – analysis – warning – traceability”. Based on high - precision acoustic acquisition and integrated with wireless transmission, multi - channel synchronous monitoring, harsh environment adaptation, and convenient operation and maintenance, it comprehensively ensures the safe and stable operation of press anvils.
Equipped with 6 independent audio acquisition channels supporting a 96K ultra-high audio sampling rate, paired with a high-precision microphone, the device accurately captures subtle vibration and acoustic signals during press anvil operation, fully restoring the acoustic characteristics of the anvil’s working state and providing high-precision data support for fault identification.
Function 2: Dual-mode data transmission
Integrated with a LORA wireless transmission module, supporting a maximum 2-kilometer unobstructed data transmission to adapt to long-distance, scattered press layouts. It also supports 10M/100M adaptive Ethernet for high-speed short-distance data transmission. The dual-transmission mode flexibly meets the networking requirements of different industrial sites.
Designed with a wide temperature operating range, supporting normal operation at -40℃ to +60℃ and stable storage at -50℃ to +70℃. It features protection against rain, vibration, shock and drop, with a drop resistance height of up to 1.2 meters, perfectly adapting to harsh industrial environments such as high temperature, high humidity, strong vibration and dust, ensuring stable and reliable device operation.
The main unit is made of aluminum alloy, weighing ≤700g with a thickness ≤55mm, compact and lightweight for easy fixed installation. The device power consumption is ≤10W, supporting DC20V~30V wide-voltage power supply to adapt to industrial site power environments, ensuring low energy consumption and controllable costs during long-term operation.
Mean Time Between Failures (MTBF) ≥2500 hours for stable long-term continuous operation. Mean Time To Repair (MTTR) ≤30 minutes. With standardized interfaces and a modular design, fault diagnosis and maintenance are simplified, reducing operation and maintenance difficulty and downtime.
A 96K ultra-high sampling rate + 6-channel synchronous acquisition enables accurate capture of subtle acoustic characteristics such as early micro-cracks and hidden wear on anvils. Compared with traditional manual inspection, fault identification accuracy is significantly improved, enabling early detection, warning and resolution of hidden risks.
Certified by military-grade environmental tests, the device withstands extreme conditions including high/low temperature, rain, vibration, shock and drop. The durable aluminum-alloy body with an MTBF exceeding 2500 hours ensures stable long-term operation in industrial environments and continuous monitoring reliability.
Long-distance LORA wireless transmission enables real-time remote monitoring of anvil operating status, eliminating the need for close manual inspections and avoiding safety risks in hazardous environments. 24/7 automated monitoring replaces manual duty, significantly reducing labor costs and improving operation and maintenance efficiency.
A compact 190mm×160mm×55mm body weighing ≤700g supports fixed installation and adapts to various press structural layouts. Dual transmission modes and standardized interfaces allow quick integration into industrial site networks, ensuring convenient deployment and strong compatibility.
1-year hardware warranty with free round-trip shipping for repairs within China. A modular design simplifies maintenance with 30-minute quick repairs, reducing downtime losses from equipment failures. A dedicated technical team provides full-process support with rapid response to customer needs, ensuring efficient device operation.
How harsh industrial working conditions can the device adapt to?
Certified by military-grade environmental tests, the device operates normally at -40℃ to +60℃, stably stored at -50℃ to +70℃, and resists rain, strong vibration, shock and drops from up to 1.2 meters. It adapts to all harsh industrial environments such as high temperature, high humidity, dust and strong vibration.
Can the LORA wireless transmission distance meet factory layout requirements?
The LORA module supports 2-kilometer unobstructed data transmission, meeting the monitoring needs of most industrial factories with long-distance, scattered press layouts. Repeaters can be deployed to extend transmission range if obstacles or longer distances are required.
Is installation complex? Do professional technicians need to operate it?
Lightweight and simple in structure with fixed installation and standardized interfaces, the device can be installed and commissioned by ordinary operation and maintenance personnel following the manual, without the need for professional technicians. Deployment is convenient and easy to master.
Is the repair cycle long when the device fails?
A modular design enables ≤30 minutes average repair time for efficient fault diagnosis and maintenance. Repairs are free with round-trip shipping covered within China during the warranty period, ensuring quick resolution of faults and minimizing downtime losses.
Can the device provide early warning of anvil faults?
Using acoustic feature analysis algorithms, the device identifies hidden risks such as early micro-cracks and wear on anvils, transmitting data in real time and triggering warnings to achieve early fault warning and avoid sudden fracture accidents.
The press anvil acoustic detector provides automated, high-precision, highly reliable press anvil health monitoring solutions for industrial scenarios including diamond synthesis, metallurgical forging and heavy hydraulic equipment, supporting industrial enterprises in achieving safe equipment operation and maintenance, cost reduction, efficiency improvement and safe production.
