Product Overview

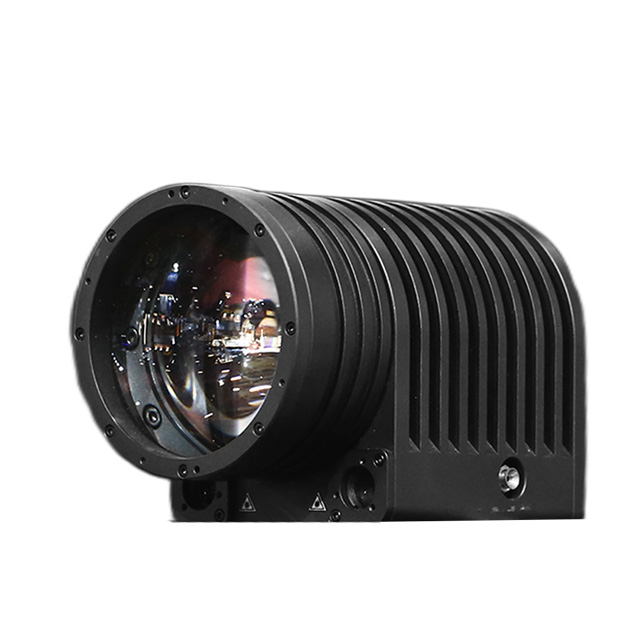

The LPW90Z is a high-performance long-range lighting device utilizing LEP white laser technology, featuring ultra-high brightness optical output, wide beam adjustment range, multi-mode intelligent control, and military-grade environmental adaptability. It is specifically designed for critical facility protection, emergency rescue operations, tactical lighting, and ultra-long-range target identification. With a light intensity of 20,250,000 cd and an illumination range of 9,000 m, the device boasts an IP67 protection rating and a broad operating temperature range. Supporting remote control and RS232 interface functionality, it delivers reliable high-intensity illumination and warning capabilities even in extreme environments.
Description of Characteristics
• Ultra-high Brightness and Long-range Coverage
With a light intensity of 20,250,000 cd and an ultra-long illumination range of 9,000 m—industry-leading specifications—it is ideal for ultra-long-range target recognition applications such as field search and rescue operations and border patrols.
The irradiation angle is continuously adjustable from 1° to 30°, allowing flexible adjustment according to target requirements—a level of flexibility far superior to fixed-angle devices.
• Multi-mode Regulation and Intelligent Control
Supports constant lighting, strobe mode, and multiple adjustable power levels; supports remote control or integration with other platforms via an RS232 interface for operation.
• White Laser Source Advantages
Utilizing LEP white laser technology, it features high optical conversion efficiency and a device lifespan of 10,000 hours, offering outstanding economic performance for long-term operation.
• Compact Power Design

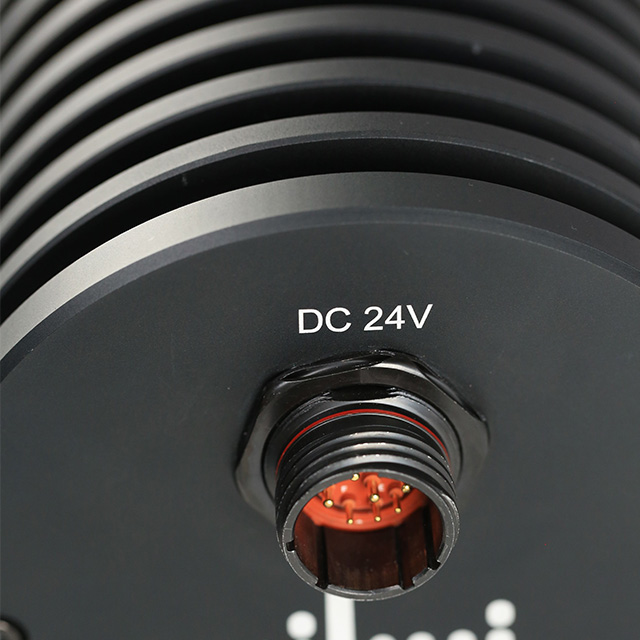

Measuring 120 (D) mm × 226 (L) mm and weighing 5.5 kg, its lightweight design facilitates deployment in vehicles, ships, or aircraft; the 24V DC power supply ensures stable operation and compatibility with integrated equipment for continuous performance.
• Military-Grade Environmental Adaptability
Featuring an IP67 protection rating, it has passed rigorous tests under the MIL-STD-810H standard for high/low temperatures, humid conditions, and rain exposure, ensuring stable operation in extreme climates.
Table of Key Equipment Parameters
Parameter | Details |
Luminous Intensity | 20250000 cd |
Irradiation Angle | 1°~30° |
Illumination Distance | 9000m |
Working Mode | Constant light, flash |
Operating Voltage | 24V DC |
Dimension(D*L) | 120mm*226mm |
Weight | 5.5kg |
IP Rating | IP67 |
