Product Overview

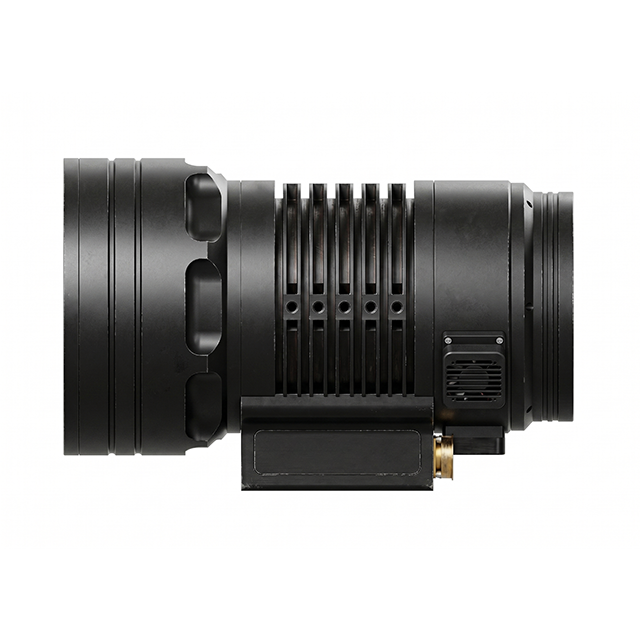

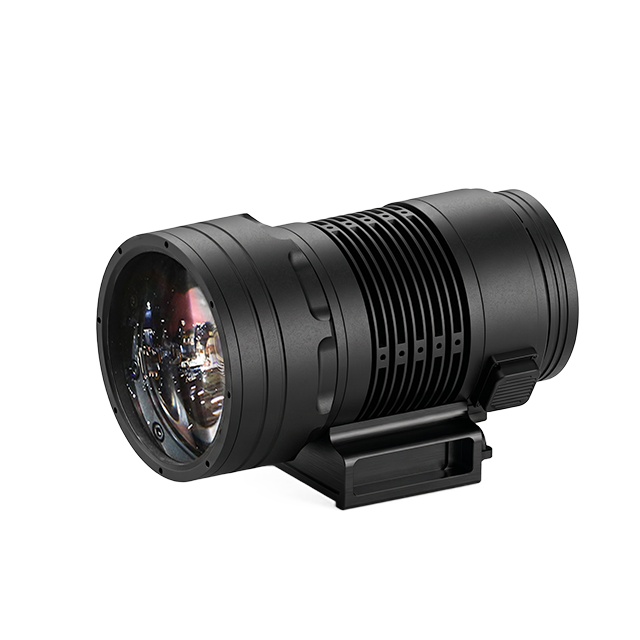

The LPW120Z is a high-performance ultra-long-range high-intensity lighting device utilizing LEP white laser technology, integrating cutting-edge optical performance, wide beam adjustment range, multi-mode intelligent control, and military-grade environmental adaptability. It is specifically designed for critical facility protection, emergency rescue operations, tactical illumination, and ultra-long-range target identification. With an output light intensity of 28,800,000 cd and an illumination range of 12,000 m, the device features IP67 protection rating and a broad operating temperature range. Supporting remote control and RS232 interface operation, it delivers reliable high-intensity illumination and warning capabilities even in extreme environments.
Description of Characteristics
• Ultra-high Brightness and Long-range Coverage
Light intensity reaches 28,800,000 cd, with an ultra-long illumination range of 12,000 m.
The irradiation angle is continuously adjustable from 1.5° to 30°, offering flexibility far superior to fixed-angle devices.
• Multi-mode Regulation and Intelligent Control
Supports permanent illumination, flashing mode, and adjustable power levels across multiple tiers; compatible with remote control or integration via RS232 interface for operation on other platforms.
• White Laser Source Advantages
Utilizing LEP white laser technology, it features high optical conversion efficiency and a device lifespan of 10,000 hours, offering outstanding economic performance for long-term operation.
• Compact Power Design
Measuring 390 (D) mm × 255 (L) mm with a weight of 9 kg, the lightweight body facilitates deployment in vehicles, ships, or aircraft; the 24V DC power supply ensures stable operation and compatibility with integrated equipment for continuous performance.
• Military-Grade Environmental Adaptability
Featuring an IP67 protection rating, it has passed rigorous tests under the MIL-STD-810H standard for high/low temperatures, humid conditions, and rain exposure, ensuring stable operation in extreme climates.
Table of Key Equipment Parameters
Parameter | Details |
Luminous Intensity | 28800000 cd |
Irradiation Angle | 1.5°~30° |
Illumination Distance | 12000m |
Working Mode | Constant light, flash |
Operating Voltage | 24V DC |
Dimension(D*L) | 390mm*255mm |
Weight | 9kg |
IP Rating | IP67 |
