LHW55Z

7,652,000 cd luminous intensity, 5,500 m maximum lighting range
3kg lightweight body, available for handheld and platform mounting
1°–40° wide-range beam adjustment for search and reconnaissance
Multi-level power adjustment, controlled by handle or remote terminal
High energy density light with strong fog penetration at sea
10,000-hour service life to cut long-term maintenance costs
DC 12V–28V wide voltage fit for vehicle and ship power supply
IP67 fully sealed design, stable operation at -35℃~+55℃
Optional green light and infrared modules for function expansion
Equipped with waterproof shockproof case for convenient storage
Suitable for offshore rescue, border patrol and industrial security

Quantity:
Availability:





Inquire Add to Basket

Product Description

FAQ

Application

Download

Product Overview

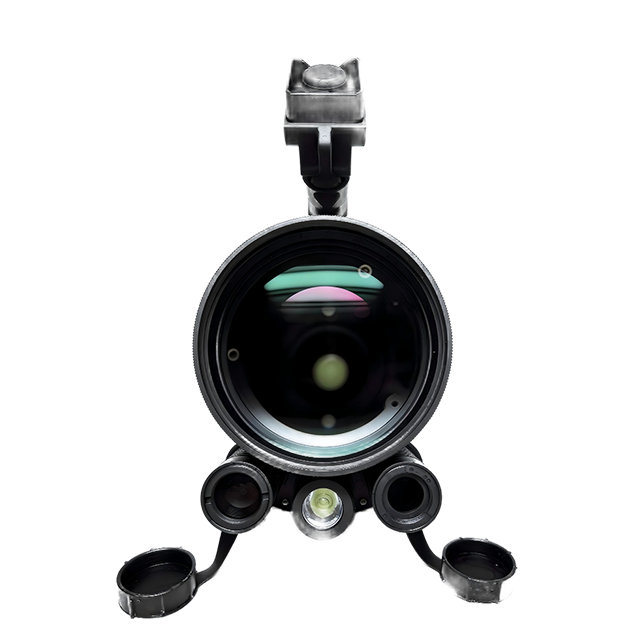

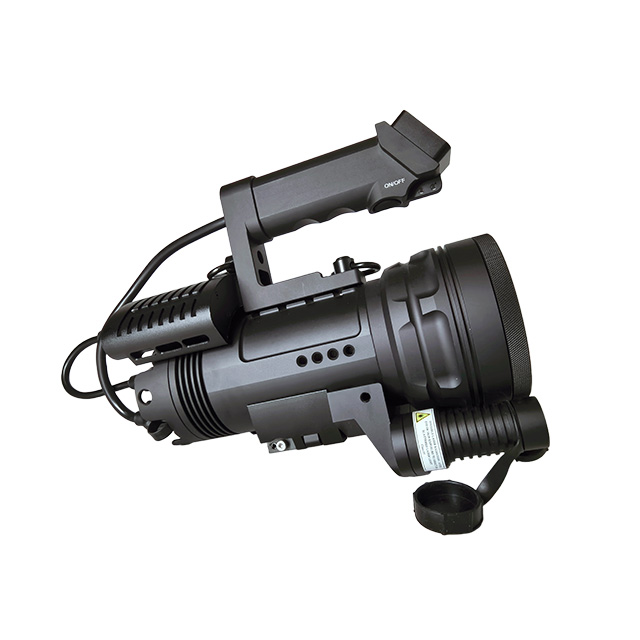

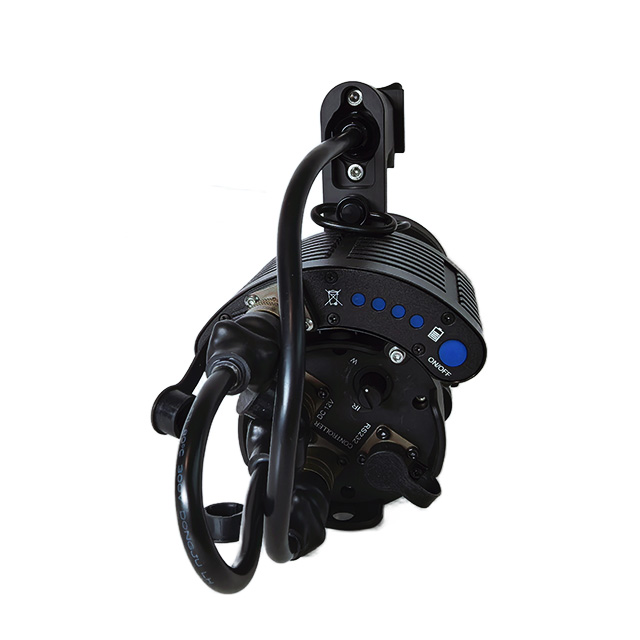

The LHW55Z is a high-performance bright-light device utilizing LEP white laser technology, featuring integrated high-brightness laser optical output, wide-range beam adjustment, multi-mode intelligent control, and military-grade environmental adaptability. It is suitable for applications such as emergency rescue, tactical lighting, and long-distance target warning identification. With a light intensity of 7,652,000 cd and an illumination range of 5,500 m, the device is lightweight and portable. Equipped with IP67 protection rating and a wide operating temperature range, it supports both handheld operation and remote control, meeting reliable bright-light illumination and warning requirements in complex environments.

Description of Characteristics

• Ultra-high Brightness and Long-range Coverage

With a light intensity of 7,652,000 cd and an illumination range of 5,500 m, it is ideal for field search and rescue operations, border patrols, and target deterrence scenarios.

• Highly Precise Beam Adjustment Across a Wide Range

The irradiation angle is continuously adjustable from 1° to 40°, allowing flexible adjustment according to specific requirements.

• Multi-mode Adjustment and Intelligent Control

Supports various modes including strobe lighting, high brightness, and multi-level power adjustment, all controllable via remote control or handheld controller for flexible and efficient operation.

• White Laser Source Advantages

Utilizing LEP white laser technology, it features high optical conversion efficiency and a device lifespan of 10,000 hours, offering outstanding economic performance for long-term operation.

• Compact Power Design

Measuring 275mm × 106mm × 122mm and weighing only 3 kg, its lightweight construction facilitates handheld use or integration into vehicle-mounted and marine platforms; supports a wide voltage range of DC 12V to 28V.

• Military-Grade Environmental Adaptability

Featuring an IP67 protection rating, it has passed rigorous tests under the MIL-STD-810H standard for high/low temperatures, humid conditions, and rain exposure, ensuring stable operation in extreme climates.

Table of Key Equipment Parameters

Parameter	Details
Luminous Intensity	7652000 cd
Irradiation Angle	1°~40°
Illumination Distance	5500m
Working Mode	Constant light, flash
Operating Voltage	12V～28V DC
Dimension(LWH)	275mm106mm122mm
Weight	3.0kg
IP Rating	IP67

FAQ

What control methods does this product support?

The LHW55Z supports handheld controller operation and can be integrated with other platforms for remote control, such as direct operation via command systems or control terminals.

What working modes does this product support?

The LHW55Z supports continuous illumination, strobe mode operation, multi-level power adjustment, and adjustable illumination angle.

What usage modes does this product support?

The LHW55Z can be operated as a standalone product or integrated into other platforms for remote control.

Does this product come with a storage tank?

The LHW55Z comes with a waterproof and shock-resistant carrying case that provides secure storage and protection for the product.

Does this product support other colors?

The LHW55Z can be optionally equipped with a green laser, emitting green light.

Does this product support feature extensions?

The LHW55Z supports infrared function expansion and can also be powered by an external battery.

In what environments can this product be used?

The LHW55Z operates within a temperature range of-35°C to +55°C and features an IP67 protection rating, ensuring reliable and stable performance in harsh environments.

Does this product support OEM/ODM customization?

The LHW55Z supports OEM/ODM customization services, enabling personalized production of appearance colors, device nameplates, logos, and other custom features according to client requirements, along with customizable functional parameters.

Application

The primary application scenarios for LHW55Z include Critical Infrastructure Security, Maritime, Mass Notification, Public Safety, and Wildlife Protection.

Common application scenarios:

• Critical Infrastructure Security

The LHW55Z supports portable and integrated deployment, featuring robust capabilities ideal for security protection in scenarios such as industrial parks.

• Maritime

The LHW55Z features high brightness, adjustable illumination angles, and supports strobe lighting and continuous illumination functions, making it ideal for offshore security and maritime search and rescue applications.

• Public Safety

The LHW55Z boasts robust performance and strong environmental adaptability, remaining unaffected by harsh weather conditions, making it ideal for applications such as fire services.
