LHW11Z

422,500 cd luminous intensity, 1,300 m maximum lighting range
0.19kg ultra-light body, easy single-hand carry and rapid deployment
Constant & strobe dual modes, optional customizable wired remote control
Concentrated light beam, clear long-distance imaging without halos
High photoelectric conversion efficiency for lower power consumption
IP67 dustproof & waterproof, stable operation at -10℃~+60℃
Universal mounting bracket for matching various portable devices
Supports battery replacement and adapter charging for field use
Ideal for infrastructure security, public safety and wildlife monitoring

Quantity:
Availability:





Inquire Add to Basket

Product Description

FAQ

Application

Download

Product Overview

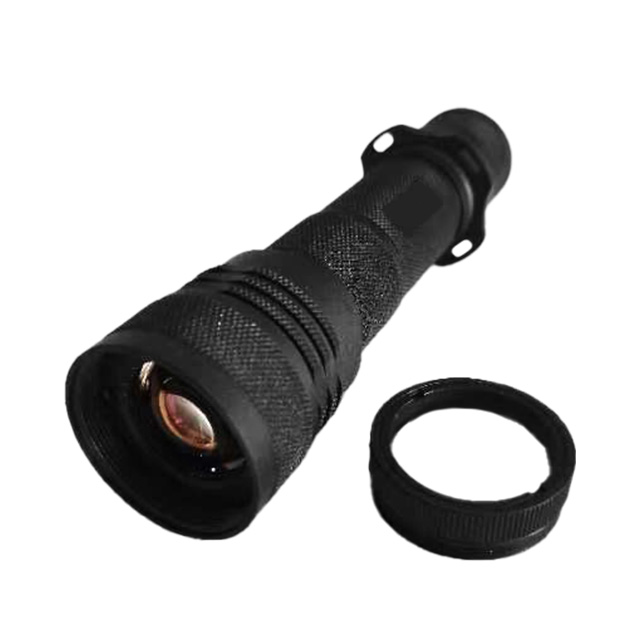

The LHW11Z is an ultra-lightweight, high-performance high-intensity lighting device utilizing LEP white laser technology. With a light intensity of 422,500 cd, dimensions of 40 (D) mm × 157 (L) mm, and a weight of just 0.19 kg, it features an exceptionally compact design with IP67 protection rating, making it ideal for outdoor exploration, emergency rescue operations, tactical lighting, and long-range target identification scenarios.

Description of Characteristics

• The White Laser Delivers Exceptional Optical Performance

It employs an LEP white laser source with a light intensity of 422,500 cd and an adjustable illumination angle ranging from 4° to 29°, enabling ultra-long-range irradiation up to 1,300 m.

• Ultra-lightweight and Portable Design

Measuring just 40 (D) × 157 (L) mm with a weight of only 0.19 kg, its compact body allows one-handed grip, making it ideal for outdoor use and emergency deployment.

• Multi-mode Flexible Control

Supports always-on and strobe modes, with mode switching via the tail cover to meet diverse scenario requirements such as warning, search, and illumination.

• Highly Precise Beam Adjustment Across A Wide Range

The irradiation angle is continuously adjustable from 1° to 40°, allowing flexible adjustment according to specific requirements.

• Long-lasting and High-Efficiency Light Source

The device boasts a lifespan of up to 20,000 hours. LEP white laser technology delivers exceptional light conversion efficiency, ensuring long-term stability and cost-effectiveness.

• Military-Grade Environmental Adaptability

Featuring an IP67 protection rating, it has passed multiple MIL-STD-810H-standard tests for high/low temperatures, humid conditions, rain exposure, and drop impact, demonstrating resistance to dust, heavy rain, and water immersion.

Table of Key Equipment Parameters

Parameter	Details
Luminous Intensity	422500 cd
Irradiation Angle	4°~29°
Illumination Distance	1300m
Working Mode	Constant light, flash
Battery Operating Time	1.25h
Dimension(D*L)	40mm*157mm
Weight	0.19kg
IP Rating	IP67

FAQ

What working modes does this product support?

The LHW11Z supports multi-mode operation, including strobe and high-brightness modes, which can be switched by pressing the tail cover.

In what environments can this product be used?

The LHW11Z operates within a temperature range of-10°C to +60°C and features an IP67 protection rating, enabling stable performance in various harsh environments.

Does this product support battery replacement?

The LHW11Z supports battery replacement, with compatible battery specifications being 21700 or 18650.

Does this product support charging?

The LHW11Z supports charging lithium batteries using a power adapter.

Does this product support remote control?

The LHW11Z supports an optional cable-connected tail cover for remote control, with the control range limited by the cable length, which can be customized.

Does this product support changing the light color?

The LHW11Z requires an optional filter to change the spot color, supporting red and customizable colors.

Is this product expandable?

The LHW11Z features expandable capabilities: it comes with a fixed mount that allows quick attachment to all handheld or portable high-volume audio devices, as well as integration with other equipment.

Does this product support OEM/ODM customization?

The LHW11Z supports OEM/ODM customization services, enabling personalized production with customized appearance colors and device plaques according to client requirements. It also supports customization of light irradiation parameters (e.g., irradiation power) and button definitions, as well as the design of mounting brackets for integration with other platforms.

Application

The primary application scenarios for LHW11Z include Critical Infrastructure Security, Public Safety, and Wildlife Protection.

Common application scenarios:

• Critical Infrastructure Security

The LHW11Z's exceptional portability and high performance make it suitable for various scenarios including power plants/substations, industrial parks, reservoirs/dams, transportation networks, nuclear power plants, and photovoltaic power stations.

• Wildlife Protection

The LHW11Z's high brightness and strobe lighting features make it ideal for searching for or deterring wildlife, suitable for use in urban parks and similar environments.
