LHE08Z

Quantity:
Availability:





Inquire Add to Basket

Product Description

FAQ

Application

Download

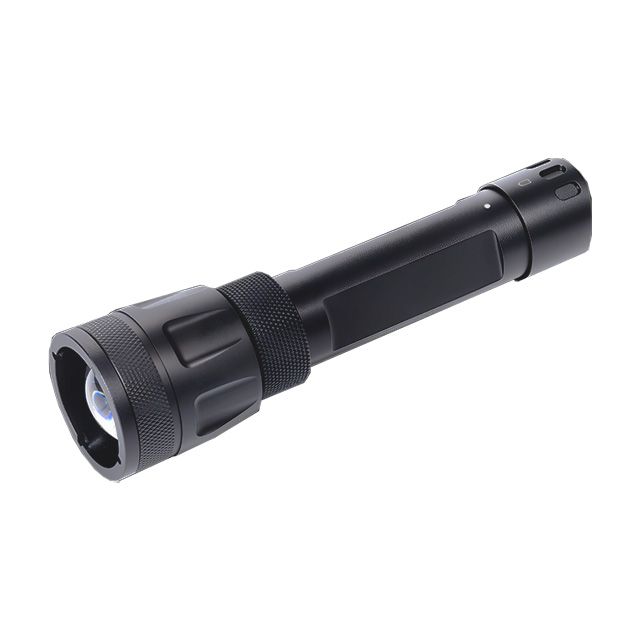

Product Overview

The LHE08Z is a multi-mode handheld lighting device that combines high brightness (up to 160,000 cd), long battery life, compact portability, and military-grade protection. It meets the IP68 rating required for outdoor emergency lighting, delivering the essential features of high brightness, extended runtime, and robust protection needed for wilderness exploration—specifically designed for emergency rescue operations, outdoor activities, and illumination in challenging environments. Powered by an LED source, it offers exceptional brightness, extended illumination range, and multi-mode operation for precise target illumination. With IP68 protection, it performs reliably under extreme weather conditions, fulfilling demands for personal portable lighting, tactical assistance, and professional applications.

Description of Characteristics

• High-brightness Precision Illumination

With a light intensity of 160,000 cd, an adjustable irradiation angle ranging from 2.4° to 24°, and a coverage distance of up to 800 m, it meets the requirements for long-range target recognition and ambient lighting in complex environments.

• Multi-mode Flexible Operation

Supports strobe lighting, high brightness, and dimming from 1% to 50%, suitable for various scenarios such as warnings, searches, and detailed observation.

• Long Battery Life and Compatibility

Equipped with a built-in 18650 lithium battery, it delivers over 2 hours of runtime in maximum power mode and offers a service life of up to 50,000 hours, providing stable and reliable power support for continuous operation.

• Compact and Portable Design

Measuring 40 (D) × 149 (L) mm with a net weight of just 0.22 kg, its lightweight and compact build allows one-handed grip, making it ideal for extended outdoor use or quick access in emergency situations.

• Military-Grade Environmental Adaptability

Operating temperature range of-40°C to +60°C; certified under MIL-STD-810H standards for high/low temperatures, humid heat, sand/dust exposure, and rain exposure; IP68 protection rating ensures performance in complex climates and harsh environments.

Table of Key Equipment Parameters

Parameter	Details
Luminous Intensity	160000 cd
Irradiation Angle	2.4°~24°
Illumination Distance	800m
Working Mode	Constant light, flash
Battery Operating Time	2h(100%Power)/56h(1% Power)
Dimension(D*L)	40mm*149mm
Weight	0.22kg
IP Rating	IP68

FAQ

What working modes does this product support?

The LHE08Z supports multi-mode operation: strobe mode, high brightness (100% brightness), and dimming from 1% to 50%, selected via buttons; it also supports continuous rotation focusing.

In what environments can this product be used?

The LHE08Z supports operating temperatures ranging from-40°C to +60°C and features an IP68 protection rating, enabling its use in harsh environments.

Does this product support battery replacement?

The LHE08Z supports battery replacement and can be powered by either a single 18650 lithium battery or two CR123A batteries. Customers may use batteries of the same specifications and quantity for replacement. It is recommended to select batteries with low-temperature resistance to ensure stable power supply in extreme cold environments.

Is charging supported?

When using a single 18650 lithium battery with LHE08Z, charging via the charger is supported.

Is this product expandable?

The LHE08Z supports expansion; we provide a fixed mount that allows quick attachment to all our handheld and portable high-volume audio products, as well as to other devices.

Does this product support wired control?

The LHE08Z supports an optional cable-connected tail cover, which features wireless remote control for easy mounting and operation on other devices.

Does this product support OEM/ODM customization?

The LHE08Z supports OEM/ODM customization services, offering multi-dimensional customization solutions tailored to client requirements: At the aesthetic level, it enables personalized production of appearance colors and device nameplates; at the functional level, it allows customization of light irradiation parameters (e.g., irradiation power) and button configurations; and at the compatibility level, it provides customizable mounting brackets for integration with other platforms.

Application

The primary application scenarios for LHE08Z include Critical Infrastructure Security, Public Safety, and Wildlife Protection.

Common application scenarios:

• Wildlife Protection

The LHE08Z's high brightness and strobe lighting features make it ideal for searching for or deterring wildlife, suitable for use in urban parks and similar environments.

• Public Safety

The LHE08Z's portability and multi-mode functionality make it ideal for use in law enforcement, campus security, fire services, large-scale gatherings, and other scenarios.

• Critical Infrastructure Security

The LHE08Z's lightweight, portable design and high performance make it ideal for security inspections in scenarios such as power plants/substations, industrial parks, reservoirs/dams, transportation networks, nuclear power plants, and photovoltaic power stations.
