RP10D

Peak SPL@1m: 142 dBA, Notification Range: 500 m
Light weight at 4.8kg for prolonged handheld use
10+ hours continuous broadcast runtime
Compact size: 200mm×276mm×216mm
For urban park & traffic zone wildlife repellent
Focus on disaster alert & fire early warning tasks
Operable directly in matching storage backpack
Operates stably from -40°C to +50°C wide temp range
One-touch broadcast for gloved operation

Quantity:
Availability:





Inquire Add to Basket

Product Description

FAQ

Application

Download

Product Overview

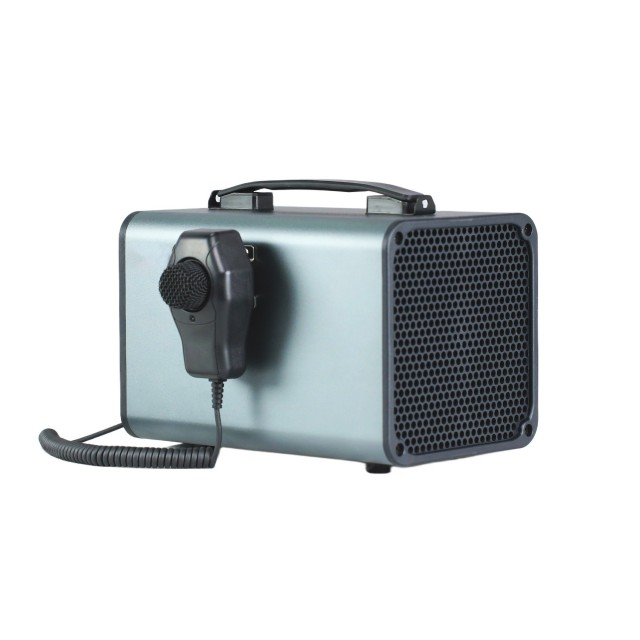

The RP10D is a compact, lightweight handheld LRAD (Long Range Acoustic Device) designed for public address, high-intensity sound dispersal, and emergency alert system integration. It delivers high speech intelligibility even in noisy environments, thanks to its directional acoustic technology. This portable directional loudspeaker runs on a built-in lithium battery with 10+ hours of broadcast time, making it ideal for security patrols, emergency command, outdoor campaigns, and bird repellent applications.

Description of Characteristics

• Outstanding High-intensity Sound Performance

The device achieves a peak sound pressure level of 142 dBA@1m, a beam angle of ±15° at 2 kHz, and a notification range of 500 m, demonstrating exceptional strong sound dispersion and long-range broadcasting capabilities.

• Outstanding Voice Performance

The device supports a frequency response ranging from 250Hz to 7000Hz, covering both human voice and common audio bands with exceptional sound reproduction quality.

• Outstanding Portability and Battery Life

The device features a lightweight design weighing only 4.8 kg, with an integrated lithium battery that supports over 10 hours of continuous broadcasting and voice communication.

• Advanced Features and User-Friendly Operation

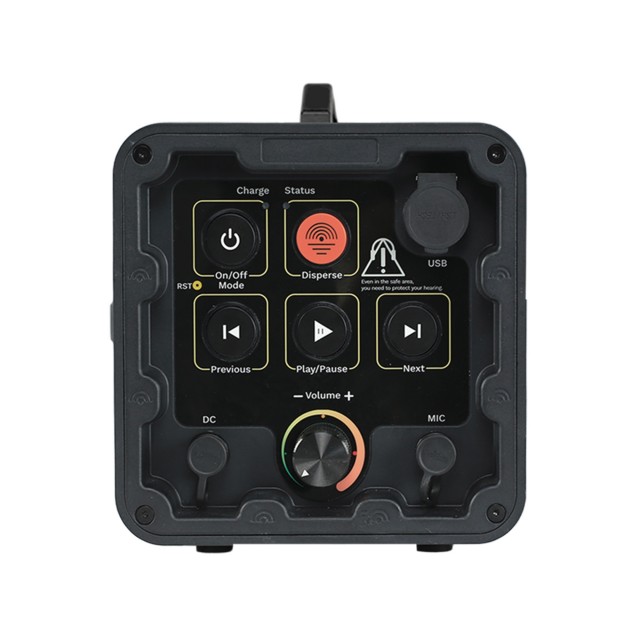

The device supports one-touch ventilation and broadcast functions, equipped with USB ports and Bluetooth mode for comprehensive practicality. Controls are operated via buttons and knobs, ensuring easy operation even when wearing gloves or in extreme weather conditions.

• Military-grade Environmental Adaptability and Reliability

The product has passed rigorous tests under the U.S. military's MIL-STD-810H standard, including high-temperature, low-temperature, and drop tests, while featuring IP65 protection that ensures stable operation even in harsh climates and extreme environments.

Table of Key Equipment Parameters

Parameter	Details
Peak SPL@1m	142dBA
Continuous SPL@1m	128dBA
Notification Range	500m
Acoustic Beam	±15°@2kHz/-3dB
Dimension(WDH)	200mm276mm216mm
Weight	4.8kg
IP Rating	IP65

FAQ

What mobile modes does this product support?

The RP10D supports three carrying methods: handheld, strap-mounted, and backpack-style. The dedicated backpack features a specialized design that not only stores devices and accessories but also allows direct operation without removing the device.

Does this product support tripod use?

The RP10D features a standard tripod mount at its base, allowing it to be used with a tripod.

Is this product compatible with in-car use?

The RP10D features a dedicated magnetic mount that can be securely attached to the vehicle roof using magnetic force.

Does this product support color selection?

The RP10D is available in various colors such as orange, black, and blue, allowing customers to directly select their preferred exterior color.

What control methods does this product support?

The RP10D can be operated directly using buttons and knobs. It also supports Bluetooth connectivity, allowing secure pairing with any Bluetooth-enabled external audio device to play audio content from the device.

In what environments can this product be used?

The RP10D features low-temperature resistant lithium batteries, operating within a temperature range of-40°C to +50°C with an IP65 protection rating, making it robust enough for harsh weather conditions.

Does this product support OEM/ODM customization?

The RP10D supports OEM/ODM customization services, enabling tailored production of control interfaces, exterior colors, and device nameplates according to customer requirements. It also allows integration with external accessories such as handheld laser lights and LED lighting units.

Application

The primary application scenarios for the RP10D include Mass Notification, public safety, and Wildlife Protection.

Common application scenarios:

• Mass Notification

The RP10D can be used for broadcasting, public address systems, and disaster warnings in scenarios such as earthquake disasters.

• Wildlife Protection

The RP10D's portability and extended battery life make it suitable for wildlife conservation in urban parks, traffic ecological protection zones, and similar scenarios.
