Product Overview

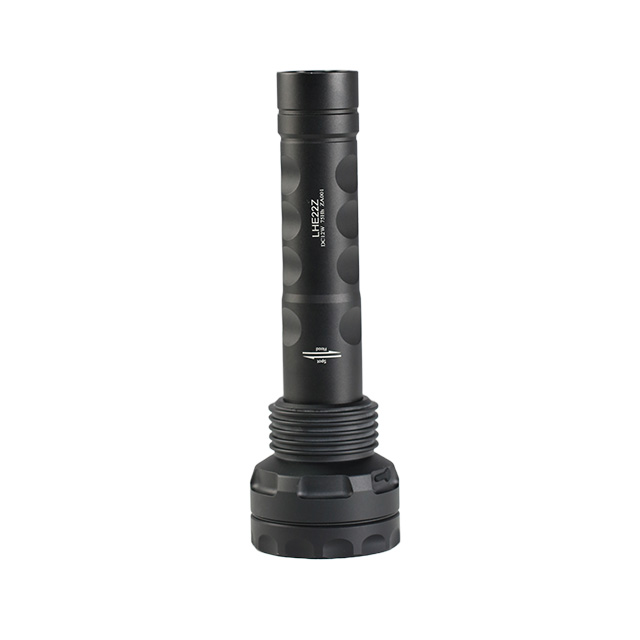

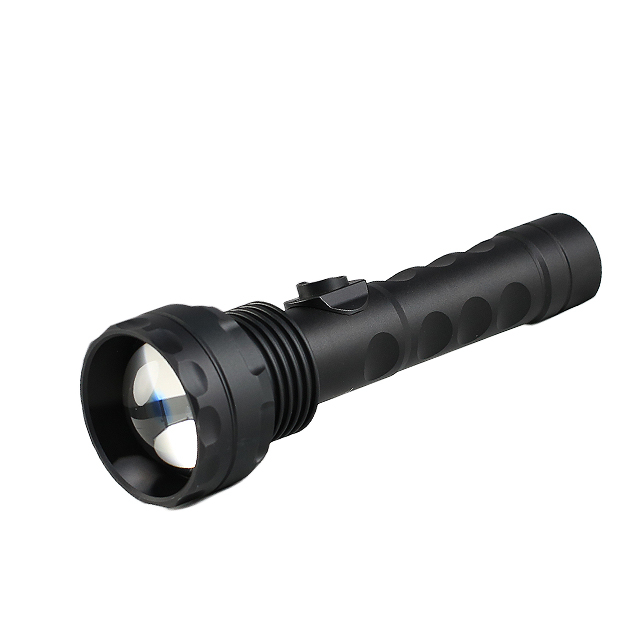

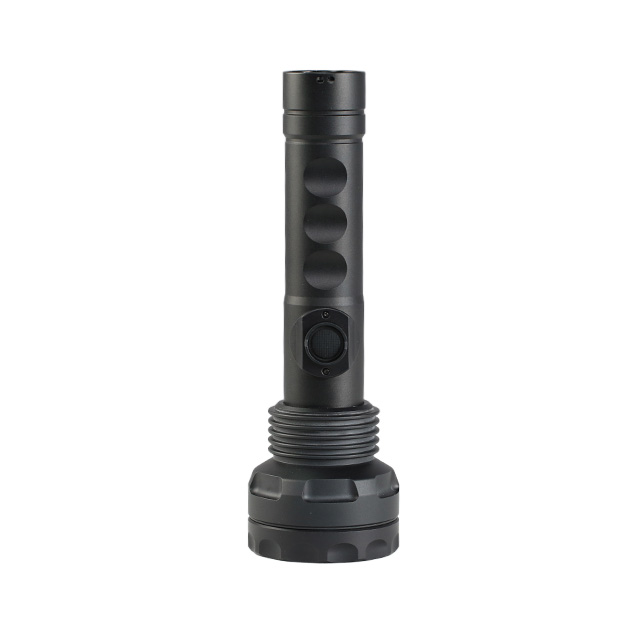

The LHE22Z is an ultra-long-range, high-brightness handheld lighting device that integrates cutting-edge optical performance, multi-mode precision control, extended battery life, and military-grade protection design. Specifically engineered for outdoor exploration, emergency rescue operations, tactical search missions, and various professional scenarios, it employs LED technology with a luminous intensity of 1,212,500 cd and a illumination range of up to 2,200 meters. The device supports strobe mode, high-brightness operation, and multiple gradient dimming levels while offering exceptional portability. With an IP68 protection rating and wide operating temperature range, it ensures high reliability and long battery life even in extreme environments, making it ideal for extensive, complex terrain applications such as long-distance search and rescue, border patrols, and wilderness exploration.
Description of Characteristics
• Ultra-long-range High-brightness Optical Performance
With a light intensity of 1,210,000 cd, an illumination range of 2,200 m, and adjustable illumination angles ranging from 1.4° to 30°, it is ideal for long-distance target recognition and illumination in complex terrains.
Supports stroboscopic lighting, high-brightness modes, and multi-level dimming from 1% to 50%, combined with continuous rotating focus adjustment for precise spot control, enabling smooth transitions between focused and floodlight modes to meet requirements in warning, search, detailed observation, and concealment scenarios.
• Long Battery Life and Efficient Power Supply
Equipped with a 75 Wh lithium battery, providing 6.5 hours of full-power operation; supports fast charging for continuous use in outdoor scenarios without power sources.
• Compact and Portable Design
measuring 87 (D) × 257 (L) mm with a weight of just 0.96 kg, making it easy to carry, store, and deploy quickly.
• Extensive Expansion Features
Supports accessories such as color filters and fixed mounts, allowing you to customize lighting effects and portability according to task requirements for enhanced adaptability across various scenarios.
• Military-Grade Environmental Adaptability
Operating temperature range of-20°C to +70°C; certified under MIL-STD-810H tests for high/low temperatures, humid heat, sand/dust exposure, and rain exposure; IP68 protection rating ensures stable operation in extreme climates.
Table of Key Equipment Parameters
Parameter | Details |
Luminous Intensity | 1210000 cd |
Irradiation Angle | 1.4°~30° |
Illumination Distance | 2200m |
Working Mode | Constant light, flash |
Battery Operating Time | 6.5h(100%Power)/226h(1% Power) |
Dimension(D*L) | 87mm*257mm |
Weight | 0.96kg |
IP Rating | IP68 |
