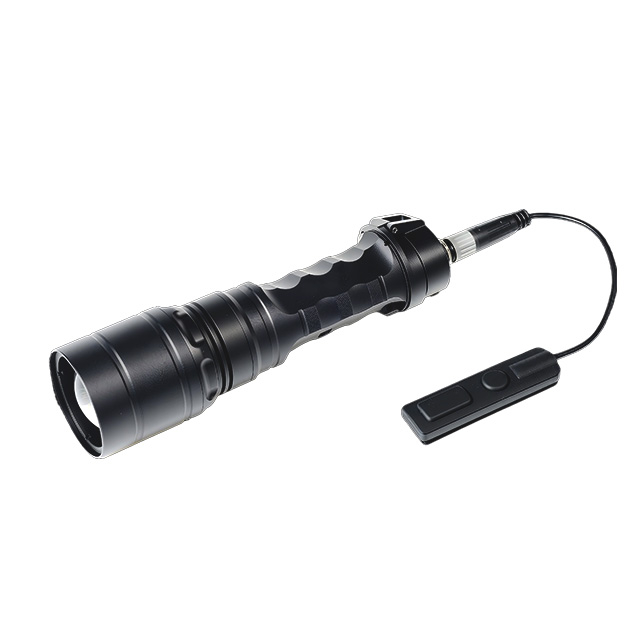

LHE11Z

Quantity:
Availability:





Inquire Add to Basket

Product Description

FAQ

Application

Download

Product Overview

The LHE11Z is a high-performance, multi-mode handheld lighting device that integrates high-brightness optical output, flexible illumination adjustment, long battery life, and military-grade protection. It is specifically designed for outdoor exploration, emergency rescue, tactical support, and professional tasks. Powered by an LED light source with a luminous intensity of 302,500 cd and an illumination range of up to 1,100 m, the device features a compact and lightweight design. With an IP68 protection rating, it delivers reliable illumination in challenging environments, making it ideal for personal portable lighting, tactical assistance, and professional applications.

Description of Characteristics

• Excellence in Optical Performance

With a light intensity of 302,500 cd and an illumination range of up to 1,100 m, the beam angle is continuously adjustable between 3° and 28°, enabling flexible switching between focused high-intensity illumination and wide-area coverage for long-range target recognition and detailed observation.

• Multi-mode Illumination and Control

Supports strobe lighting, high brightness, and dimming from 1% to 50%, combined with continuous rotating focusing for precise spot adjustment, suitable for various scenarios including warning, search, detailed observation, and concealment.

• Long-lasting Battery Life and Flexible Power Supply

Equipped with a 18650 lithium-ion battery, it delivers over 2 hours of runtime in maximum power mode, supports battery replacement and multiple charging methods, ensuring continuous operation in outdoor environments without power sources.

• Compact and Portable Design

measuring 54 (D) mm × 170 (L) mm with a weight of just 0.43 kg, its lightweight body allows one-handed grip for comfortable long-term use.

• Extensive Expansion Features

Supports accessories such as color filters and fixed mounts, allowing you to customize lighting effects and portability according to task requirements for enhanced adaptability across various scenarios.

• Military-Grade Environmental Adaptability

Operating temperature range of-40°C to +60°C; certified under MIL-STD-810H standards for high/low temperatures, humid heat, sand/dust exposure, and rain exposure; IP68 protection rating ensures performance in complex climates and harsh environments.

Table of Key Equipment Parameters

Parameter	Details
Luminous Intensity	302500 cd
Irradiation Angle	3°~28°
Illumination Distance	1100m
Working Mode	Constant light, flash
Battery Operating Time	2h(100%Power)/120h(1% Power)
Dimension(D*L)	54mm*170mm
Weight	0.43kg
IP Rating	IP68

FAQ

What working modes does this product support?

The LHE11Z supports multi-mode operation: including strobe mode, high brightness (100% brightness), and dimming from 1% to 50%, selected via buttons; it also supports continuous rotation focusing.

In what environments can this product be used?

The LHE11Z supports operating temperatures ranging from-40°C to +60°C and features an IP68 protection rating, enabling its use in harsh environments.

Does this product support battery replacement?

The LHE11Z supports battery replacement and uses two 18650 lithium batteries. Users are advised to choose low-temperature resistant batteries to ensure power supply under extreme cold conditions.

Is charging supported?

The LHE11Z supports charging and is powered by two 18650 lithium batteries. It offers optional dual-battery chargers for both mains power and vehicle use.

Does it support changing the lighting color?

For LHE11Z, you need to select filters to change the spot color, with support for red, amber, green, and blue filters.

Is this product expandable?

The LHE11Z supports expansion; we provide a fixed bracket that allows quick mounting on all our handheld and portable high-volume audio products, as well as other devices.

Does this product support wired control?

The LHE11Z's cable-connected tail cover supports wired remote control, facilitating its attachment to other devices for operation.

Does this product support OEM/ODM customization?

LHE11Z supports OEM/ODM customization services, offering personalized appearance customization such as color options and device nameplates according to client requirements; it enables customization of functional parameters including light irradiation specifications (e.g., irradiation power), button configurations, and cable length for the drag-line tail cover; and provides services for adapting fixed mounts compatible with other platforms.

Application

The primary application scenarios of LHE11Z include Critical Infrastructure Security, Public Safety, and Wildlife Protection.

Common application scenarios:

• Wildlife Protection

The LHE11Z's high brightness and strobe lighting features make it ideal for searching for or deterring wildlife, suitable for use in urban parks and similar environments.

• Public Safety

The LHE11Z's portability, high brightness, and multi-mode operation make it ideal for use in law enforcement, campus security, fire services, and large-scale gatherings.

• Critical Infrastructure Security

The LHE11Z's portability and high performance make it suitable for security inspections in various scenarios such as power plants/substations, industrial parks, reservoirs/dams, transportation networks, nuclear power plants, and photovoltaic power stations.
