Imagine holding a loudspeaker device to shout under the scorching desert sun, or operating a vehicle-mounted searchlight along an extremely cold border defense line. Temperature poses severe challenges in natural environments; extreme temperatures test the "health" of high-volume, high-intensity audio and lighting equipment— components may "frostbite" at low temperatures or suffer "heatstroke" at high temperatures, leading to failure to start, performance degradation, or even permanent damage. Therefore, in professional fields, high-and low-temperature testing serves as the first "physical fitness test" for equipment reliability. Well-established standards exist domestically and internationally for handling extreme temperatures, such as the U.S. military standard MIL-STD-810H, NATO standard AEC-TP-300, and China's military standard GJB 150A-2009, which specify testing requirements and procedures. Today, these standards are applied not only in military applications but also extend to industrial and consumer technology sectors.
This article primarily outlines the design requirements for extreme temperatures and the protective measures implemented in our audio-visual product series.
High-temperature testing evaluates the equipment's continuous operational capability, heat dissipation performance, and thermal resistance of internal components under hot environments. This is achieved by simulating prolonged operation of the equipment in deserts, tropical regions, or outdoor settings during summer. Throughout and after the test, the equipment must exhibit no functional abnormalities, such as system crashes, restarts, audio distortion, or reduced light output.

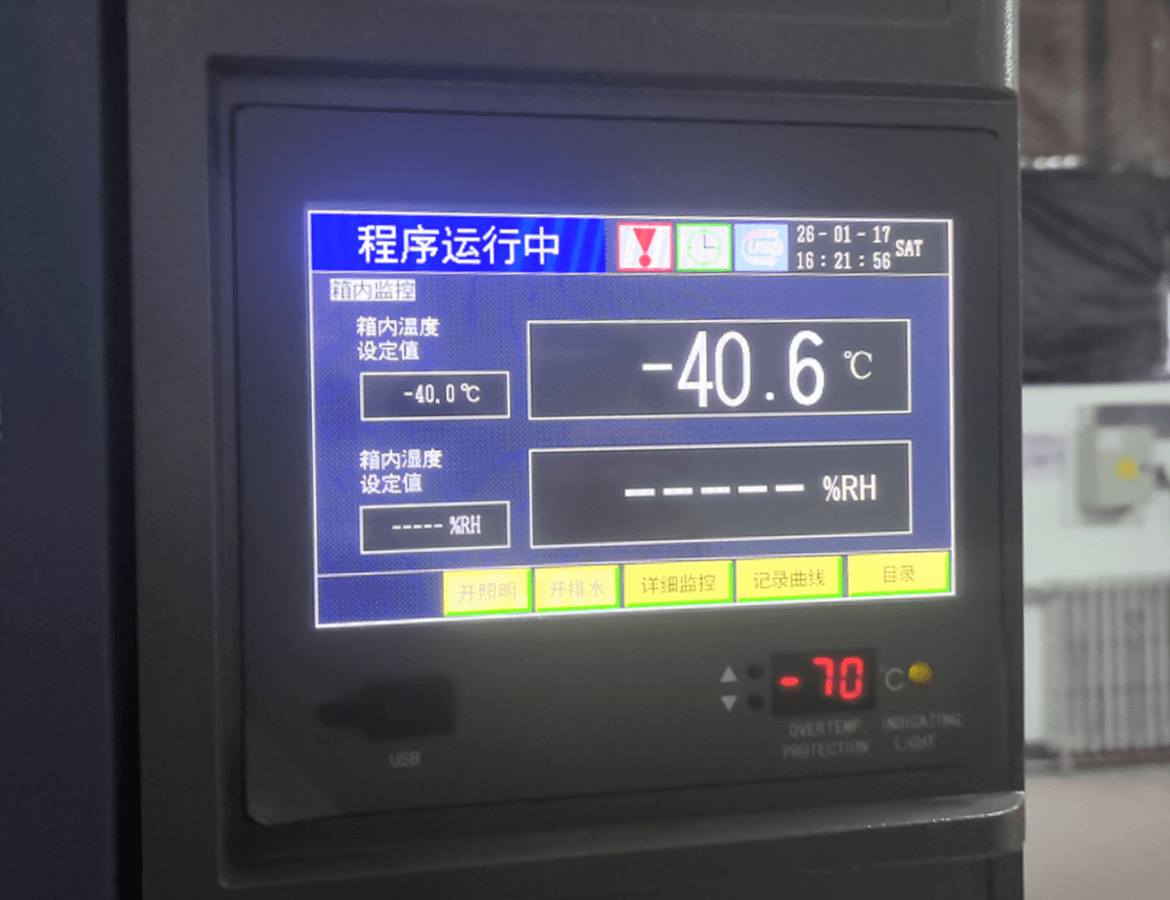

Low-temperature testing primarily evaluates the equipment's startup and operational performance under extreme cold conditions, as well as whether materials become brittle due to low temperatures. By simulating usage scenarios in polar regions, high-altitude areas, or outdoor winter environments, the tests ensure proper equipment startup at low temperatures, responsive screen and touch interface performance, no significant battery degradation, and no structural cracks or damage to the overall structure.
If the high-low temperature test can be likened to a protracted battle, then the temperature shock test is a brief yet intense "lightning war." It simulates abrupt changes in the ambient temperature of the equipment, such as moving the device from a heated vehicle environment to an extreme cold environment for operation.
Temperature shock testing primarily evaluates the mechanical stresses induced by extreme thermal expansion and contraction in equipment. Such stresses are most likely to cause potential issues such as weld cracking, seal failure at interfaces between heterogeneous materials, and loosening of internal components. Following this "ice-and-fire" temperature shock test, the equipment must not only maintain intact appearance and structure but also exhibit minimal changes in critical performance parameters (e.g., acoustic output quality of audio systems or laser lens focusing accuracy).
Through this comprehensive and scientifically rigorous set of high/low-temperature and temperature shock tests, our audio-visual equipment maintains optimal performance regardless of the climatic conditions, ensuring immediate responsiveness to operational demands.
High-power sound and lighting equipment integrates high-power amplifiers and complex control systems. However, components such as laser modules and amplifier chips generate significant heat and are highly sensitive to elevated temperatures, potentially causing performance drift in adjacent circuits. To ensure stable operation of the equipment across a wide temperature range, a systematic thermal management design approach is adopted:
During the R&D and design phase, components and raw materials undergo rigorous screening, with the establishment of a "wide-temperature design standard." Critical components are selected at specifications exceeding rated ratings to ensure performance margin; processors and similar components utilize industrial-grade or military-grade wide-temperature devices. Materials such as enclosures undergo high-low temperature cycling tests to verify physical stability, thermal conductivity, and insulation properties.
Multi-level heat dissipation: For high-heat-generating chips, a combination of "thermal grease/phase-change material + heat sink + housing thermal conductivity" is employed; metal casings facilitate heat dissipation while optimizing thermal conduction pathways and increasing the heat exchange area; an active air-cooling design incorporates built-in cooling fans for laser modules, with airflow channels ensuring effective convective heat exchange; during the design phase, CFD thermal simulation software was utilized to model heat distribution for early optimization.
The integration of hardware and software enables closed-loop temperature management, preventing system failure due to overheating or failure to start at low temperatures. Multi-point temperature monitoring is implemented with sensors deployed at critical locations; a high-temperature protection mechanism reduces output power or limits performance when temperatures reach warning thresholds while dynamically adjusting fan speed; low-temperature startup and heating involve equipping temperature-sensitive components with heating films or insulation layers, ensuring these components are heated before normal operation occurs at low temperatures.
Prior to mass production, high and low temperature cycling tests were conducted to verify welding reliability and functional stability; thermal aging tests were performed by operating under the rated maximum working temperature with full load for specified durations to screen out early failure products and ensure thermal stability.
