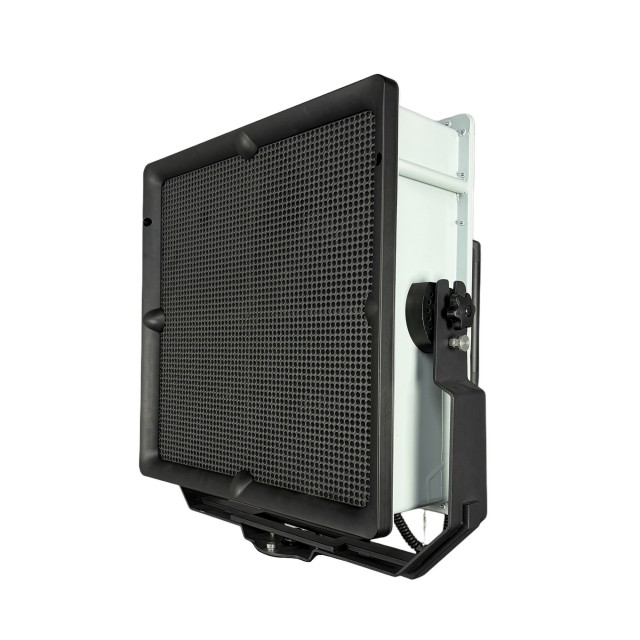

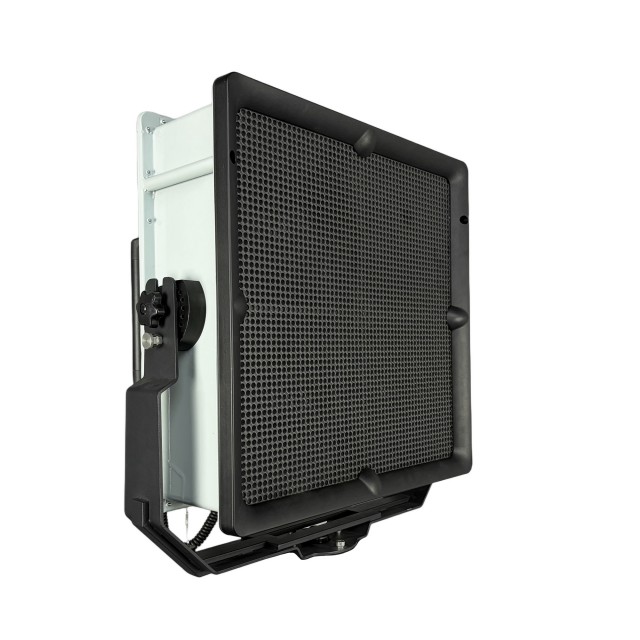

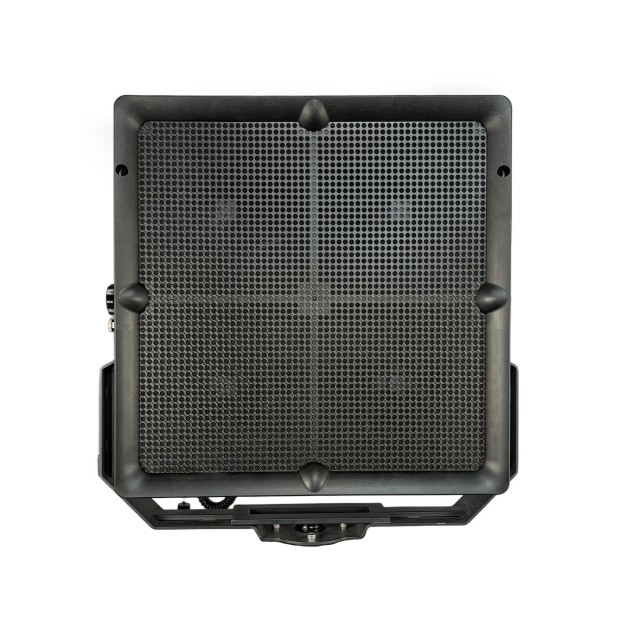

RC40Z

Peak SPL@1m: 160dBA, Max Range: 2818m
±15°@2kHz/-3dB narrow beam for precise directional sound
250Hz–7000Hz bandwidth for clear voice & alarm playback
IP65 rating, MIL-STD-810H certified for dust, rain & temp extremes
TCP/IP link for remote connection with emergency command platforms
Rear ergonomic controls support gloved field operation
Matching U-bracket: ±180° horizontal, ±90° pitch with locking
Expandable for laser pointers, LEDs, scopes and rangefinders
Optional shockproof waterproof case for full-set storage

Quantity:
Availability:





Inquire Add to Basket

Product Description

FAQ

Application

Download

Product Overview

The RC40Z is a high-performance portable LRAD (Long Range Acoustic Device) designed for specialized applications including counterterrorism, disaster relief, law enforcement, and public safety. This acoustic hailing device delivers non-lethal acoustic deterrence, voice hailing, and mass notification for emergency alerts, military drills, sound protection for critical facilities, and disaster response operations. With high speech intelligibility over long distances, the RC40Z ensures clear communication during emergency situations, making it an essential tool for crowd control management and emergency response communication.

Description of Characteristics

• Outstanding High-intensity Sound Performance

The device delivers a peak sound pressure level of 160 dBA@1m, a continuous sound pressure level of 150 dBA@1m, and a maximum range of 2818 m. It ensures effective sound dispersion and ultra-long-range broadcast coverage, guaranteeing robust acoustic penetration and coverage over extended distances.

• Excellent Acoustic Directivity

The sound beam angle is ±15°@2 kHz/-3 dB, ensuring focused sound emission toward the target area.

• Excellent Sound Frequency Response

The frequency range covers 250Hz to 7000Hz, matching audio frequencies such as human voices and alarm sounds. It delivers highly accurate sound reproduction with clear and distinguishable information transmission.

• Wide Voltage Design

Supports operating voltages of 110V to 260V AC, compatible with power standards across different regions.

• Flexible Communication

Utilizes the TCP/IP communication protocol, supporting remote control and integration into user command systems.

• Feature-rich and User-friendly

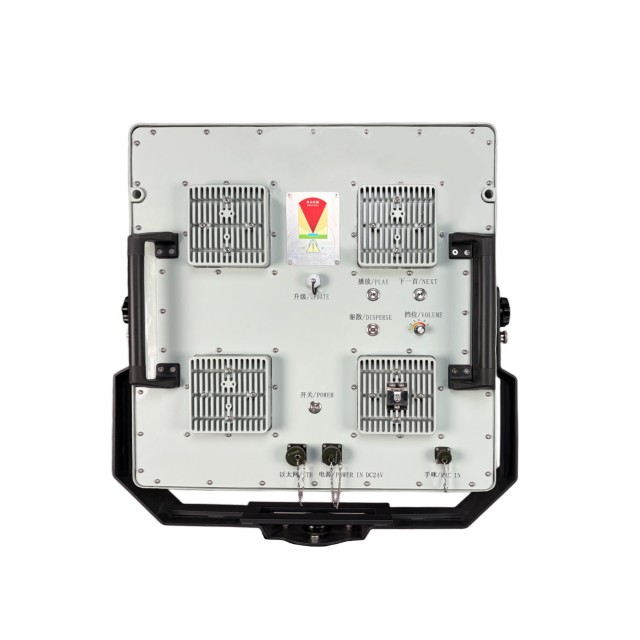

The back panel features ergonomic control buttons, knobs, and USB ports, ensuring comprehensive functionality. Operations via these controls allow convenient device operation even with gloves on or in extreme weather conditions.

• Military-grade Environmental Adaptability and Reliability

The product has passed rigorous tests under the MIL-STD-810H standard established by the U.S. military, including high/low temperatures, humid heat, sand/dust exposure, and rain exposure. With IP65 protection rating, it demonstrates exceptional reliability and stability.

Table of Key Equipment Parameters

Parameter	Details
Peak SPL@1m	160dBA
Continuous SPL@1m	150dBA
Operational Range	1122m
Max Range	2818m
Acoustic Beam	±15°@2kHz/-3dB
Frequency Response	250Hz～7000Hz
Dimension(WDH)	630mm300mm630mm
Weight	26kg
IP Rating	IP65

FAQ

What installation methods does this product support?

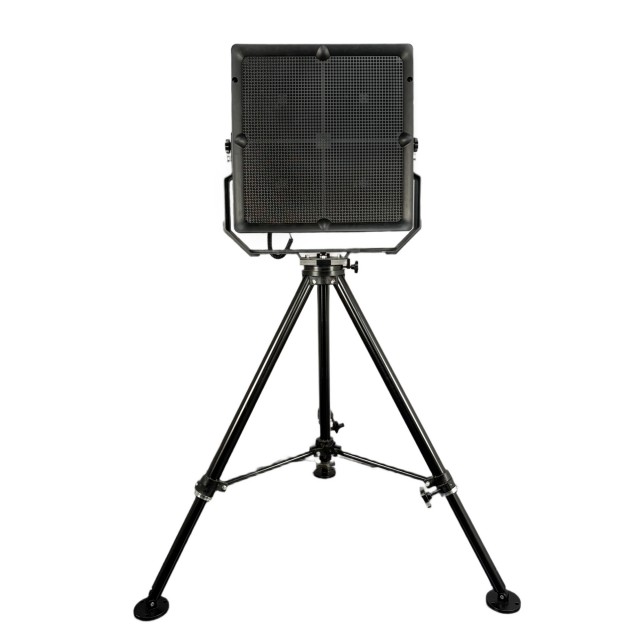

The RC40Z, paired with a U-shaped bracket, supports various installation methods including tripod mounting, vehicle-mounted, ship-mounted, or fixed-point setups. It can also be directly placed on elevated surfaces such as steps or vehicle roofs for use.

Does this product support rotation and pitch?

Paired with the exclusive U-shaped bracket, the RC40Z allows manual horizontal adjustment within ±180° and pitch adjustment within ±90°, with support for manual locking functionality.

How to store this product?

An optional RC40Z-specific portable storage container is available, capable of accommodating the entire RC40Z unit and all accompanying components. This container features vibration resistance, impact resistance, and waterproof protection.

What control methods does this product support?

The RC40Z supports local button and knob controls, and also enables remote operation across various scenarios—including the vehicle interior and control cabin—through the TCP/IP data interface when paired with wired control terminals or PAD accessories.

Does this product support mounting accessories?

The RC40Z supports mounting external accessories such as handheld laser illumination devices, LED lights, scopes, and rangefinders.

In what environments can this product be used?

The RC40Z operates effectively across a wide temperature range of-40°C to +60°C, featuring an IP65 protection rating that ensures reliable performance in various harsh weather conditions.

Does this product support OEM/ODM customization?

The RC40Z supports OEM/ODM customization services, offering multi-dimensional customization options—including control interfaces, exterior colors, and device nameplates—to meet clients' specific requirements.

Application

The RC40Z is primarily deployed in Critical Infrastructure Security and maritime applications.

Common application scenarios:

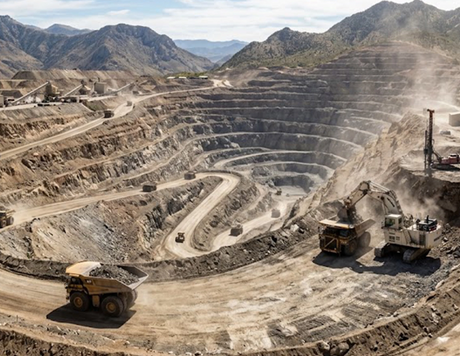

• Critical Infrastructure Security

The RC40Z delivers enhanced performance, making it ideal for security protection in mining areas and similar environments.

• Maritime

The RC40Z demonstrates excellent environmental adaptability, high sound pressure levels, and long-range voice transmission capabilities, making it highly effective in maritime search and rescue operations.
