Today’s civil and public infrastructures — including data centers, chemical plants, logistics hubs, large event venues, hospitals and religious sites — face constant, evolving security threats. Illegal drone intrusions, unknown radio frequency (RF) interference, unauthorized vehicle access and intentional physical damage put these facilities at round-the-clock risk. Most civilian sites operate with tight security budgets and small professional teams, making expensive and complex defense systems impractical. Meanwhile, traditional security measures such as surveillance cameras, manual patrols, active radar and infrared sensors carry obvious drawbacks: they are easy to evade, trigger frequent false alarms, and perform poorly in complex operating environments.
Against these pressing security challenges,passive detection hardware emerges as a superior alternative featuring low costs, full regulatory compliance and covert detection performance. It delivers reliable, easy-to-deploy protection for modern infrastructure through unique technical strengths, diversified sensor devices, multi-sensor fusion architecture and standardized deployment rules.
Traditional security systems carry prominent inherent flaws. Conventional cameras, infrared barriers and active radar can be easily bypassed and struggle to detect drone incursions, acoustic anomalies and complex electromagnetic interference. Round-the-clock manual patrols create heavy labor costs and are vulnerable to human negligence. Traditional alarm systems also lack stable detection performance: they often generate false or missed alerts, fail to precisely locate threats and delay emergency responses on site.
Passive detection devices completely rethink the active detection logic of conventional security tools. Their core trait is that they send out no active signals and only passively collect existing environmental signals, bringing four core advantages:
•High concealment & anti-reconnaissance performance
With zero active signal radiation, passive detection hardware cannot be scanned or locked by reconnaissance devices. They eliminate exposure and interference risks seen in active radar and other active detection equipment, making them perfect for high-security, confidential infrastructure sites.
•Full compliance & low deployment barriers
No active wireless transmission means no mandatory radio certifications such as China SRRC type approval, US FCC ID or EU CE-RED directive compliance. This drastically shortens project rollout cycles and cuts compliance risks.
•Cost-efficient for limited budgets
Deployment and maintenance costs of passive detection devices are far lower than those of active radar and high-end intelligent monitoring systems. They fit tight security budgets for civilian infrastructure and support large-scale networked layout.
•Precise situational awareness
Passive detection hardware captures layered abnormal incidents, accurately pinpoints locations, verifies threat authenticity and analyzes links between different events. They supply security teams with clear, credible early warning data, fixing the long-standing flaw of traditional alarms that offer alerts without traceable details.

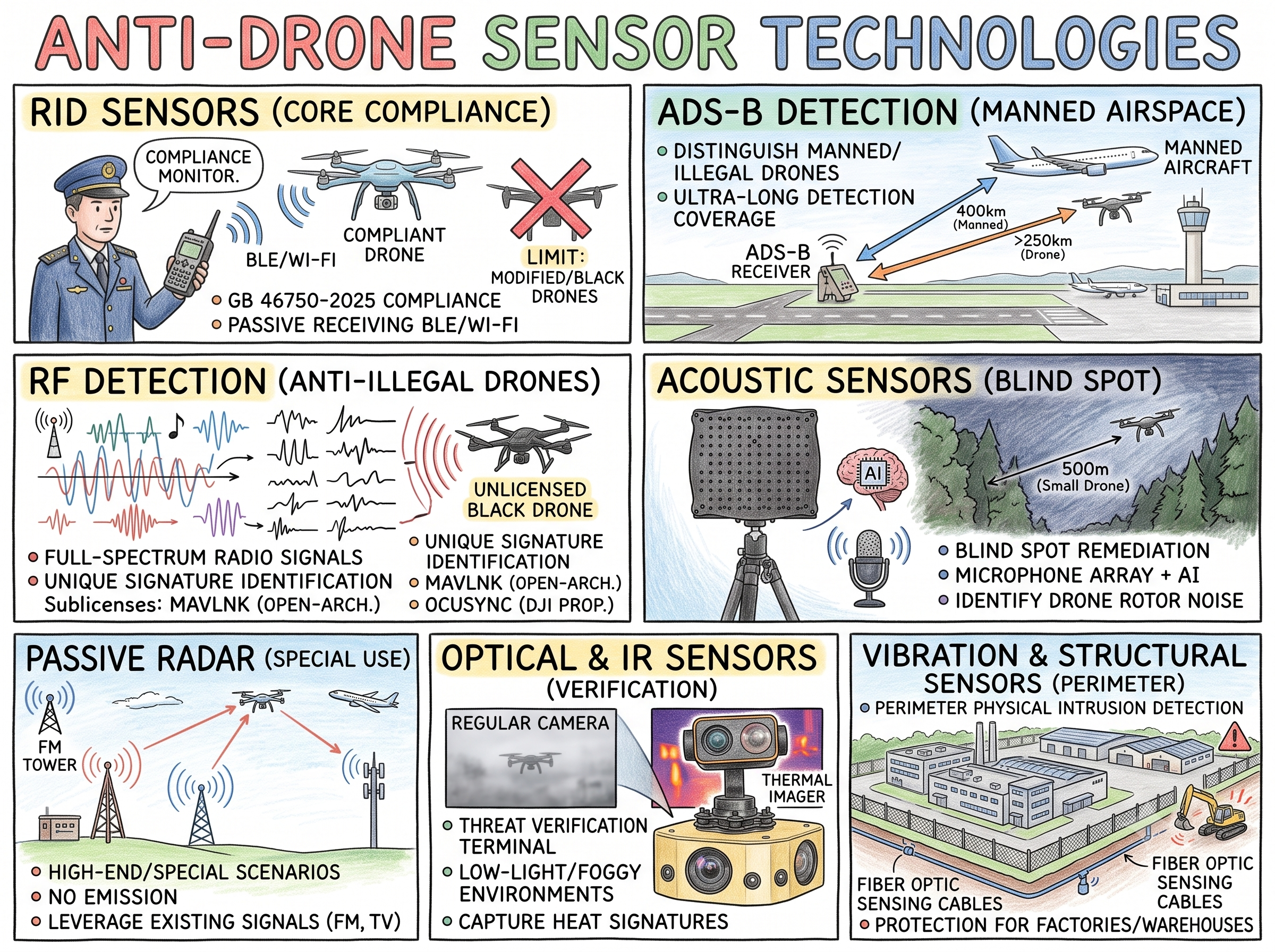

A single sensor model cannot cover all demands of complex civil infrastructure security. Seven mainstream passive detection hardware types with differentiated, complementary functions can target various risks including drone intrusions, RF anomalies and physical sabotage.
2.1 Remote Identification (RID) Receiving Sensors – Core Hardware for Compliant Drone Monitoring
China national standard GB 46750-2025 Specification for Operational Identification of Civil Unmanned Aircraft Systems takes mandatory effect on May 1, 2026. Most commercial and consumer drones must broadcast identity, position, altitude and operator data via Bluetooth and Wi-Fi.
Passive RID receivers decode such information contact-free to track real-time flight data of compliant drones, acting as foundational hardware for routine drone governance. However, this solution has clear limits: it only detects drones with active signal broadcasting. Modified drones and black-flight drones that disable broadcast signals cannot be captured, requiring supplementary detection devices.
2.2 Automatic Dependent Surveillance–Broadcast (ADS-B) Detection Sensors – Distinguish Manned Aircraft from Illegal Drones
ADS-B serves as the universal response system for manned aviation. Passive ADS-B receivers need no special permits and remotely capture real-time aircraft GPS coordinates, altitude, speed and other core flight data.
These sensors deliver ultra-long detection coverage. In interference-free environments, the detection distance reaches 400 kilometers, while drone-dedicated modules cover a radius over 250 kilometers. They work best for facilities near airports and flight routes, efficiently separating manned aircraft from illegal drones to reduce false alerts.
2.3 Radio Frequency (RF) Detection Sensors – Core Tools Against Illegal Drones
For drones that shut down RID broadcast functions, passive RF detection hardware monitors full-spectrum environmental radio signals and identifies hidden drone activities via unique communication protocol signatures, split into two categories:
•MavLink Signal Detection: Fits drones equipped with open-source flight controllers. It identifies open-architecture drone activities purely through RF feature recognition, independent of active signal broadcast.
•OcuSync Signal Detection: Tailored for DJI’s proprietary frequency-hopping video transmission and control links. It accurately detects DJI consumer drones by capturing exclusive frequency-hopping signal features, overcoming evasion via frequency hopping technology.
2.4 Acoustic Sensors – Blind Spot Remediation for Complex Scenarios
Built with microphone arrays and machine learning algorithms, acoustic sensors passively collect abnormal ambient sounds including drone rotor noise, vehicle engine noise, gunshots and abnormal mechanical vibrations. They match acoustic fingerprints to confirm target category, model and flight posture.
Their performance does not rely on drone signal status or line-of-sight conditions, enabling stable operation in dark zones, monitoring dead zones and visually blocked areas. Though the detection range for small drones stays within 500 meters, their low cost enables large-scale networking, making them core hardware to fill security blind spots across wide areas.
2.5 Passive Radar Detection – Protection for High-End Special Scenarios
Unlike traditional active radar, passive radar emits no detection signals. It leverages existing ambient signals (FM radio, digital TV, cellular base station signals) as illumination sources, then analyzes reflected waves to extract target distance, velocity and azimuth data. Restricted by high technical thresholds, this technology is mainly applied in scientific research and high-level special defense fields, with limited large-scale civil deployment.
2.6 Optical and Infrared Sensors – Terminals for Threat Verification
This category includes regular cameras, low-light sensors and thermal imagers, the most basic passive detection hardware. Thermal imagers stand out in low-light, foggy, smoky and other low-visibility environments where visible-light cameras fail. They capture heat signatures from drone motors and equipment to verify alarm validity and filter false positives, serving as the final verification checkpoint of early warning systems.
2.7 Vibration and Structural Sensors – Perimeter Physical Intrusion Detection
Installed underground or around buildings and fences, these sensors passively sense abnormal environmental vibrations to detect illegal excavation, fence damage and heavy vehicle passage. In particular, fiber-optic sensing cables support distributed passive perimeter monitoring covering multiple kilometers, widely adopted for factory campus perimeters, warehousing bases and underground pipeline protection.
3. Multi-Sensor Fusion: From Single Detection to Accurate Closed-Loop Security
Every single type of passive detection hardware has inherent scenario limitations. Multi-sensor fusion technology is the only practical solution to achieve all-around, blind-spot-free security with low false alarm rates, forming a complete closed workflow: Detection – Tracking – Identification – Response.
•Detection & Early Warning
RF, acoustic and vibration sensors run 24/7 full-area monitoring to spot environmental anomalies and trigger instant alerts.
•Trajectory Tracking
Cross-position data from multiple sensors generates real-time target movement trajectories to continuously track intruder dynamics.
•Accurate Identification
RID data verifies compliant drones, RF signatures distinguish drone brands and architectures, and acoustic sensors classify target types, effectively separating normal air traffic from illegal incursions.
•Collaborative Response
Powered by open-source coordination platforms such as Team Awareness Kit (TAK), alarm coordinates and target data synchronize to security terminals in real time. Security staff access precise target information without repeated radio communication, enabling advance situational awareness and rapid on-site disposal.
Improved deployment of passive detection hardware is critical to avoiding idle devices and unsatisfactory security outcomes in most security projects. Four common deployment pitfalls must be avoided before implementation:
•Avoid blind purchasing
Passive detection devices are easily disturbed by terrain, weather and ambient noise. Hardware configurations must match specific protection goals and scenario pain points to prevent mismatched, unused devices.
•Do not overtrust manufacturer demonstration data
Vendor test results are collected under ideal lab environments, which often differ greatly from complex outdoor field conditions. On-site testing and performance verification are mandatory to validate actual device effectiveness.
•Establish complete supporting response workflows
Detection hardware alone cannot deliver practical security value. Standardized disposal procedures including manual review, video retrieval, event archiving and emergency response are essential to convert early warning data into actionable intelligence.
•Avoid over-reliance on single-type equipment
RID receivers alone cannot deliver full-coverage drone management. Combined deployment of RF, acoustic, infrared and other detection devices is required for comprehensive threat detection.
To guarantee the feasibility and compliance of customized security solutions, procurement teams need to confirm five core questions with hardware suppliers:
•What core application scenarios is the hardware designed for? What are the typical failure scenarios of the system?
•What is the system’s false alarm rate? How does the system process ambiguous threat events?
•Does the system support multi-sensor fusion and third-party platform integration? Is cellular network data backhaul supported?
•Does the hardware comply with local spectrum regulation and privacy protection rules? How to mitigate compliance risks caused by regional regulatory differences?
•What are the operation and maintenance costs, network expansion capabilities, and after-sales technical support mechanisms of the equipment?
5. Conclusion: Passive Sensing – The Optimal Solution for Civil Infrastructure Security
As low-altitude airspace management becomes standardized and security compliance requirements tighten, the limitations of traditional active security solutions have become increasingly prominent. Featuring zero signal radiation, high concealment, low operational costs, full regulatory compliance and convenient networking, passive detection technology is highly compatible with the security construction demands of civil and public infrastructures.
It is worth noting that passive detection devices feature strong scenario specificity and are constrained by strict regional regulatory requirements, with no universal hardware solution applicable to all scenarios. Enterprises and infrastructure operation teams should avoid blind procurement and configuration. Instead, they shall build layered early warning systems based on multi-sensor fusion according to actual protection scenarios, budget standards and compliance specifications, so as to realize low-cost, high-precision and fully closed-loop security protection.
