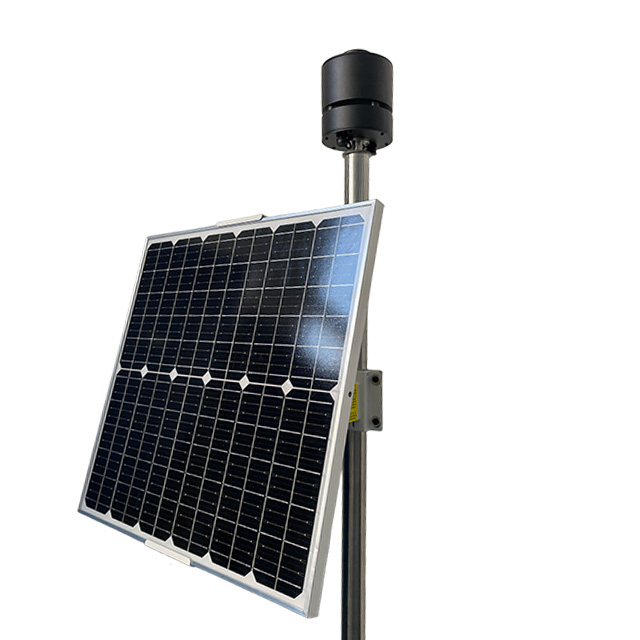

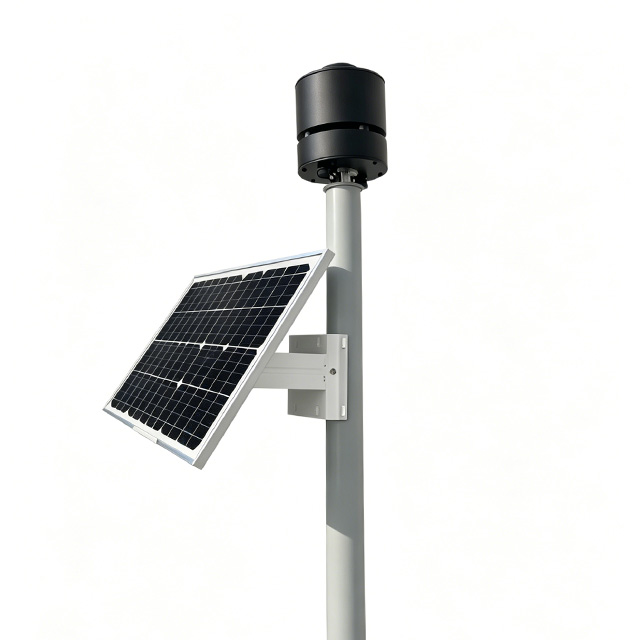

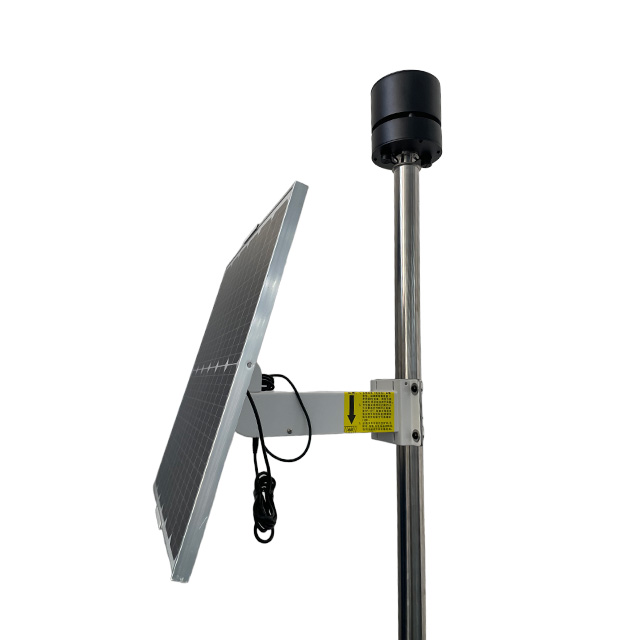

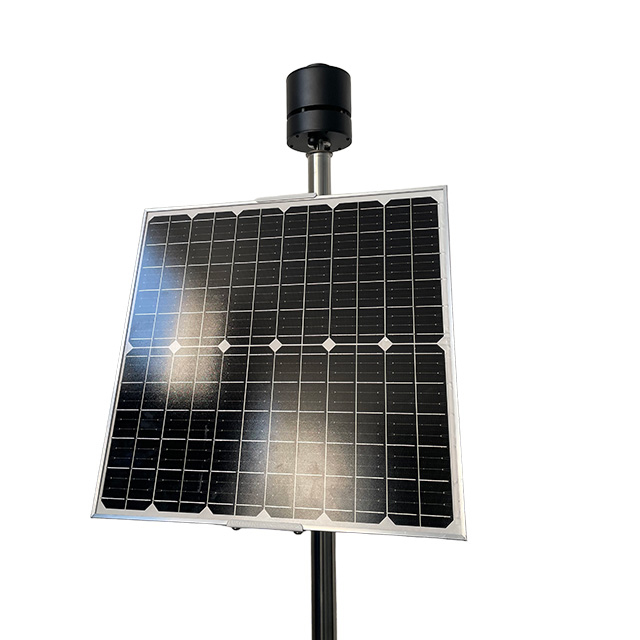

RU08B

Quantity:
Availability:





Inquire Add to Basket

Product Description

FAQ

Application

Download

Product Overview

The RU08B is a professional acoustic bird detection device. Compared with optical, radar or manual methods, acoustic detection offers unique strengths: all-weather, day-night operation unaffected by light, fog, rain or vegetation; non-intrusive sensing without disturbing birds; wide coverage and low blind spots; low power consumption for long-term deployment. Equipped with high-sensitivity MEMS arrays and AI algorithms, it achieves precise localization and accurate species recognition, delivering reliable, continuous bird activity data efficiently.

Description of Characteristics

• All-weather & 24/7 Detection

Unaffected by light, rain, fog or haze; operates reliably day and night.

• Obstruction Resistant & Blind-spot Free

Penetrates vegetation and obstacles, overcoming the vision limits of optical devices.

• Non-intrusive Monitoring

Passively captures bird calls without disturbing natural bird activities or habitats.

• High-precision Acoustic Sensing

High-sensitivity MEMS arrays detect faint bird calls with accurate localization.

• AI-powered Intelligent Recognition

Built-in lightweight AI model identifies 40+ bird species with high accuracy.

• Low Power & Long Endurance

Solar + battery design enables low-power operation for long-term unattended use.

• Flexible Distributed Deployment

Compact size and high ingress protection allow easy installation and maintenance in harsh field environments.

Table of Key Equipment Parameters

Parameter	Details
Number of Microphone Channels	8
Microphone Signal-to-Noise Ratio	> 65 dBA
Dynamic Range	> 105 dBA
Frequency Response	20 Hz ~ 16 kHz
Array Directivity	Circular array, ultra-directional
Target Detection Range	≥ 100 m (effective radius)
Localization Accuracy	≤ ±2° (quiet), ≤ ±5° (noisy)
Bird Species Recognition	≥ 40 species, expandable
Recognition Accuracy	≥ 90% (field)
Dimension(D*H)	113mm*112mm
Weight	1kg
IP Rating	IP68

FAQ

What is acoustic bird detection?

It uses microphone arrays to capture bird vocalizations. With acoustic algorithms and AI, it automatically detects, localizes and identifies birds in a passive, non-contact way.

What are the advantages over optical, radar or manual methods?

Acoustic detection is a passive sensing technology that captures bird sounds without emitting signals or disturbing birds. It works 24/7 in all weather, penetrates fog, rain and vegetation, and operates with low power for long-term unattended use.

Which bird species can it identify?

RU08B recognizes over 40 common species, including songbirds, waterbirds and certain raptors. The bird library can be expanded via firmware updates.

What is the recognition accuracy?

In typical field conditions, recognition accuracy is ≥90%. Localization accuracy is ≤±2° in quiet environments and ≤±5° in noisy settings.

Does environmental noise affect performance?

It features adaptive noise cancellation and built-in noise libraries to filter wind, rain and low-frequency noise, ensuring stable performance in most natural environments.

What is the effective detection range?

The effective acoustic detection radius is ≥100 meters, varying by species, call volume and background noise.

Can it work at night, in rain or fog?

Yes. Acoustic detection does not rely on light and operates reliably in rain, fog and low-visibility conditions.

Does it require on-site staff?

No. With low power consumption and solar support, it enables long-term unattended operation with automatic data collection, identification and transmission.

Can it monitor multiple birds/sound sources at the same time?

Yes. Array-based algorithms separate multiple sound sources for simultaneous localization and identification.

Can the data be used for research and ecological analysis?

Yes. It outputs structured data on species, time, location, quantity and activity frequency, supporting population monitoring, migration analysis and habitat assessment.

Application

The main application scenario of the RU08B is Wildlife Protection.

Common application scenarios:

• Wildlife Protection

Featuring passive detection, non-intrusiveness, all-weather capability and low power consumption, the RU08B is suitable for scenarios such as Airport Bird Control to conduct long-term bird activity monitoring, species identification and data collection.
