Have you ever driven over rough terrain, only to find your phone mount coming loose and loose items rattling violently inside the vehicle? You may then wonder:deterrent devices mounted on patrol vehicles, vessels and helicopters feature far more intricate structures and ultra-high precision components, yet they operate nonstop under brutal mechanical conditions without malfunctioning. If simple phone brackets cannot endure constant jolting, how can these sophisticated acoustic-optical pieces of equipment hold up? The secret lies in systematic engineering designs dedicated to resisting vibration and shock.
Today, we will elaborate on the professional yet approachable topic of vibration and shock reliability.

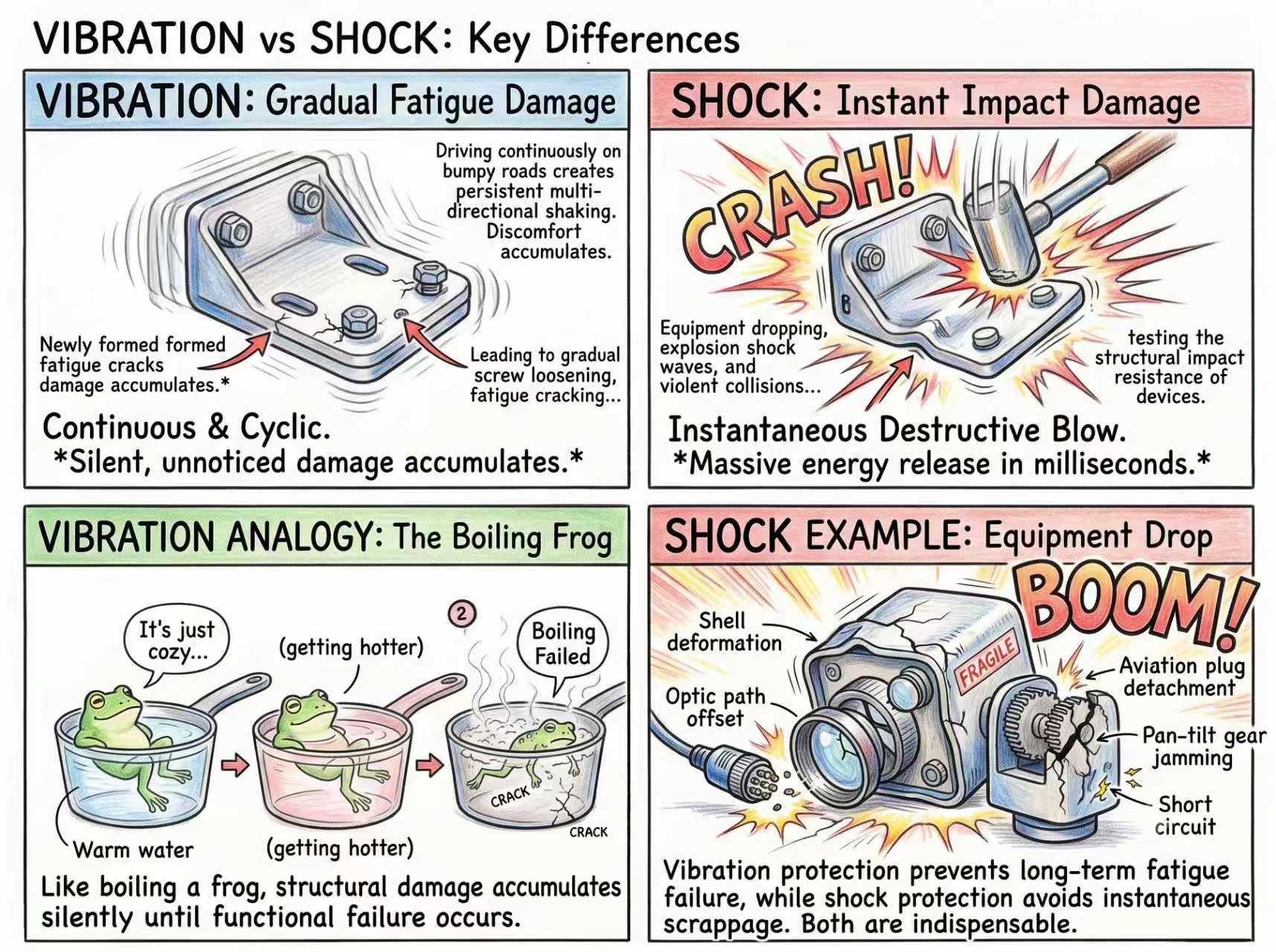

Many people confuse vibration with shock, assuming both are simply shaking. This is a misunderstanding. They are two distinct mechanical stress forms with totally different action modes and damage consequences.
Vibration: Gradual Fatigue Damage
Driving continuously on bumpy roads creates persistent multi-directional shaking. Discomfort accumulates over time rather than appearing instantly.
The same applies to equipment. Vibration does not cause immediate failure but exerts continuous and cyclic mechanical stress. It leads to gradual screw loosening, fatigue cracking of welding spots, subtle displacement of optic lenses, and distorted acoustic output. Similar to boiling a frog in warm water, structural damage accumulates silently until functional failure occurs.
Shock: Instant Impact Damage
If vibration represents gradual wear, shock delivers an instantaneous destructive blow. Equipment dropping, explosion shock waves and violent collisions release massive energy within milliseconds, severely testing the structural impact resistance of devices.
Shock causes direct and visible damage, including shell deformation, optic path offset and short circuit, aviation plug detachment, and pan-tilt gear jamming. In short, vibration protection prevents long-term fatigue failure, while shock protection avoids instantaneous scrappage. Both protection systems are indispensable.
Comparison Dimension | Vibration | Shock |
Action Mode | Continuous and periodic reciprocating motion | Instantaneous and one-time impact |
Damage Characteristic | Chronic cumulative fatigue damage | Acute structural damage |
Typical Scenarios | Vehicle bumping, ship hull swaying | Equipment drop, explosion shock wave |
Protection Focus | Vibration isolation, structural reinforcement, loosening prevention | Buffering, energy absorption, fracture prevention |
Core Conclusion: Vibration protection avoids gradual damage; shock protection prevents instantaneous failure. The two protection systems work independently and complement each other.
We have built a full-link protection system covering structure and circuits with multi-layered defense mechanisms.The superior environmental adaptability of our devices relies on a comprehensive three-dimensional protection design covering all internal and external components.

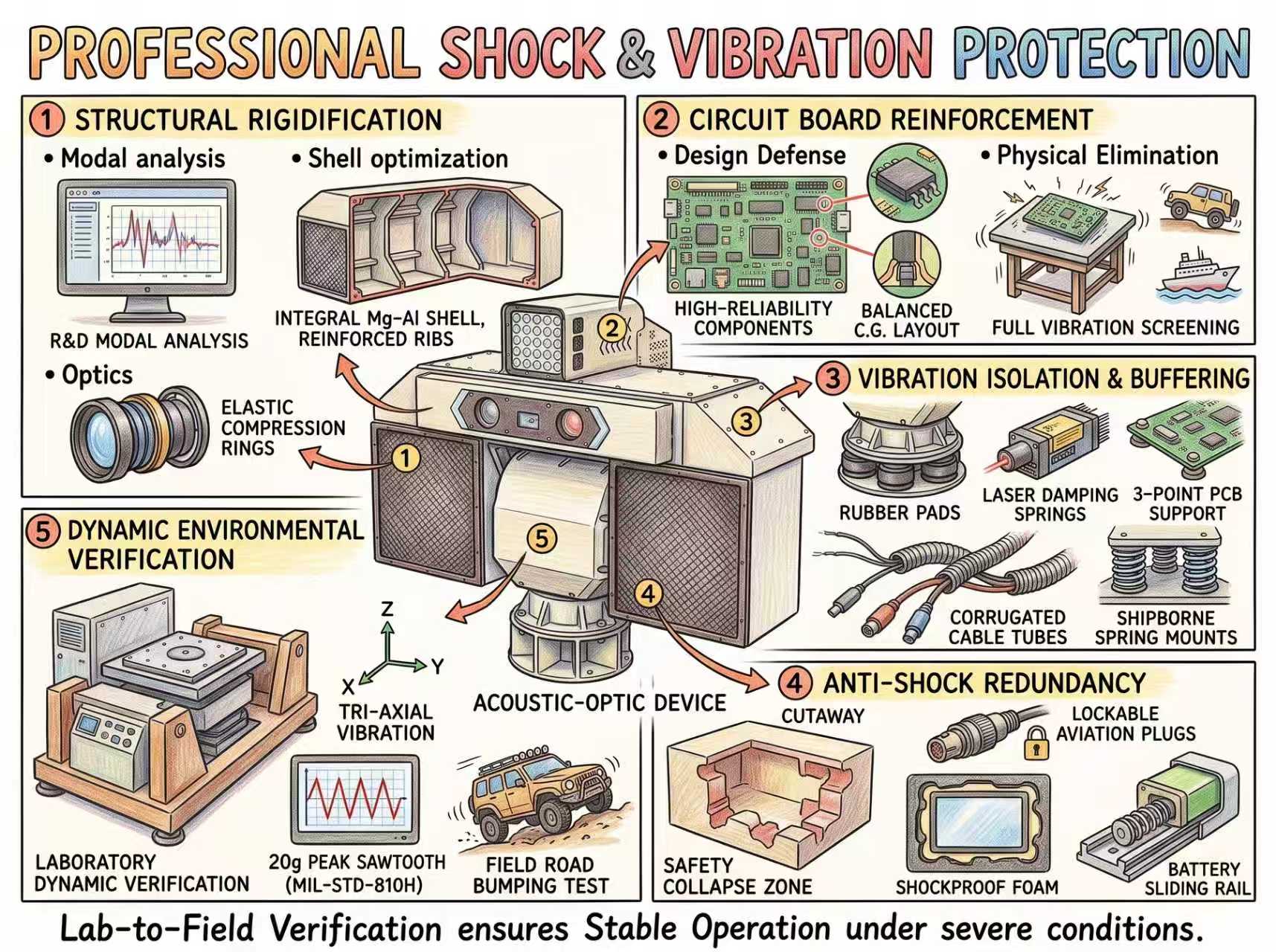

The product protection system consists of five core modules:
(1) Structural Rigidification Design
Modal analysis is implemented during the R&D phase to optimize the equipment’s center of gravity and supporting structure and avoid resonant frequency bands. Key components adopt integral molding technology to reduce connecting points. The shell is made of lightweight and high-strength magnesium-aluminum alloy, with reinforced ribs designed to enhance bending and torsion stiffness. optical components are fixed by elastic compression rings to avoid stress concentration caused by hard contact.
(2) Circuit Board Reinforcement and Vibration Screening
To adapt to harsh operating conditions of full-series acoustic-optic products' circuit boards (main control boards and power amplifier boards), we established a dual anti-vibration system of "design defense + physical elimination".
At the design stage, we select high-temperature resistant, fatigue-resistant high-reliability electronic components, and use high-quality reinforcement components for heavy-mass devices. In layout, optimizing gravity distribution, adding reinforcing ribs and reinforcing key welding spots improve PCB boards' mechanical rigidity, preventing component detachment and pin fracture caused by resonance under continuous high-frequency vibration.
After SMT mounting, all finished circuit boards undergo full vibration screening. A vibration table simulates extreme working conditions of vehicle bumping and ship swaying to eliminate early failure risks including virtual welding and potential mechanical damage.
(3) Multi-stage Vibration Isolation and Buffering System
Rubber shock-absorbing pads are installed on the whole device to isolate external vibration transmission. Precision modules such as lasers have customized damping springs to absorb high-frequency vibration. The PCB board adopts a three-point support and elastic locking structure to prevent plug-in components from loosening. Internal cables are protected by corrugated pipes with reserved flexible margins to avoid tensile fracture, and fixed by glue dispensing to eliminate shaking.
Shipborne devices are equipped with special spring damping mechanisms to buffer alternating wave impacts, attenuate hull-transmitted vibration, reduce the adverse effects of sea condition disturbances on optic paths and acoustic components of shipborne acoustic-optic equipment, and adapt to ship swaying operating conditions.
(4) Anti-shock Redundancy Design
A safety collapse zone is set for core components to absorb impact energy through preset deformable spaces. Connectors adopt lockable aviation plugs to prevent falling off under vibration. Shockproof foam is installed on key interfaces such as display screens, and the battery compartment adopts a sliding rail buffer structure to offset impact force during drops.
(5) Dynamic Environmental Verification System
Before mass production, targeted vibration and shock tests are carried out according to product application scenarios. For vehicle-mounted products, orthogonal triaxial vibration tests and 20g peak sawtooth wave functional shock tests are completed in accordance with the composite wheeled vehicle strength standards of MIL-STD-810H. Random vibration, swept vibration and functional shock tests fully verify the equipment reliability in real service environments.
From laboratory vibration table tests to field practical deployment, this three-dimensional protection system ensures stable operation of acoustic-optic devices under severe vehicle bumping, providing solid and reliable equipment support for various complex tasks.
3. How to Select Qualified Acoustic-Optic Devices by Vibration and Shock Reliability?
The selection of our devices should not only focus on acoustic pressure level and irradiation distance. Environmental reliability is also a key factor determining actual service life and task support capability. Vibration and shock reliability directly affects the stable operation of equipment in vehicle-mounted, shipborne, airborne and other complex working conditions.
Three core indicators are recommended for professional product selection:
1. Standardized Test Specifications
Vibration and shock tests of professional-grade acoustic-optic devices are implemented based on standardized systems, mainly including three categories:
•US Military Standard: MIL-STD-810H, widely applied to overseas military and special equipment
•Chinese Military Standard: GJB 150.16A/18A, the core basis for environmental reliability testing of domestic military and police equipment
•International Standard: IEC 60068 series, applicable to testing and certification of export equipment
During selection, confirm the specific test standards and method numbers adopted by the equipment. Products only marked with "vibration tested" without clear standard specifications usually only meet basic civilian requirements and cannot adapt to long-term field operation.
2. Anti-impact Acceleration Parameter
Anti-impact acceleration is a core indicator measuring the equipment’s instantaneous impact resistance. Devices with no less than 20g impact acceleration are recommended for conventional vehicle scenarios; models with 40g or higher anti-impact grade are preferred for high-risk scenarios such as maritime operations and emergency rescue. Higher values represent stronger anti-shock protection performance.
3. Vibration Isolation Structure and Factory Screening Mechanism
Priority should be given to products equipped with multi-stage vibration isolation and buffering systems, rather than simple single-layer foam shock absorption structures. Meanwhile, factory vibration screening for circuit boards is an essential reliability evaluation criterion. Vibration and shock reliability is the core distinction between civilian acoustic-optic devices and military-grade acoustic-optic deterrent equipment.
Vibration and shock resistance is a pivotal indicator of environmental adaptability for professional acoustic-optic devices, which fundamentally determines equipment stability and service life in harsh operational scenarios such as vehicle bumping, ship swaying, and accidental impact loads. Field equipment failures mainly stem from cumulative fatigue damage induced by continuous vibration and instantaneous structural damage caused by sudden shocks. The coordinated dual protection systems effectively address both mechanical risks, ensuring long-term stable and reliable operation of acoustic-optic devices in complex working environments.
If you require customized acoustic-optic device solutions featuring superior vibration and shock resistance for vehicle-mounted, shipborne, law enforcement, and emergency mission scenarios, our professional team is ready to deliver targeted technical consultation and tailored product support. Feel free to contact us for reliable and optimized equipment solutions.
