This product is a dedicated microphone collection device for unmanned equipment. It accurately captures on-site human voices, filters environmental noise via AI noise reduction algorithms, and transmits clear audio to the background in real time through stable wireless technology. It enables operators to hear on-site sounds with high fidelity and without interference, adapting to complex outdoor and industrial scenarios, and providing reliable audio support for remote control, on-site monitoring and command feedback.

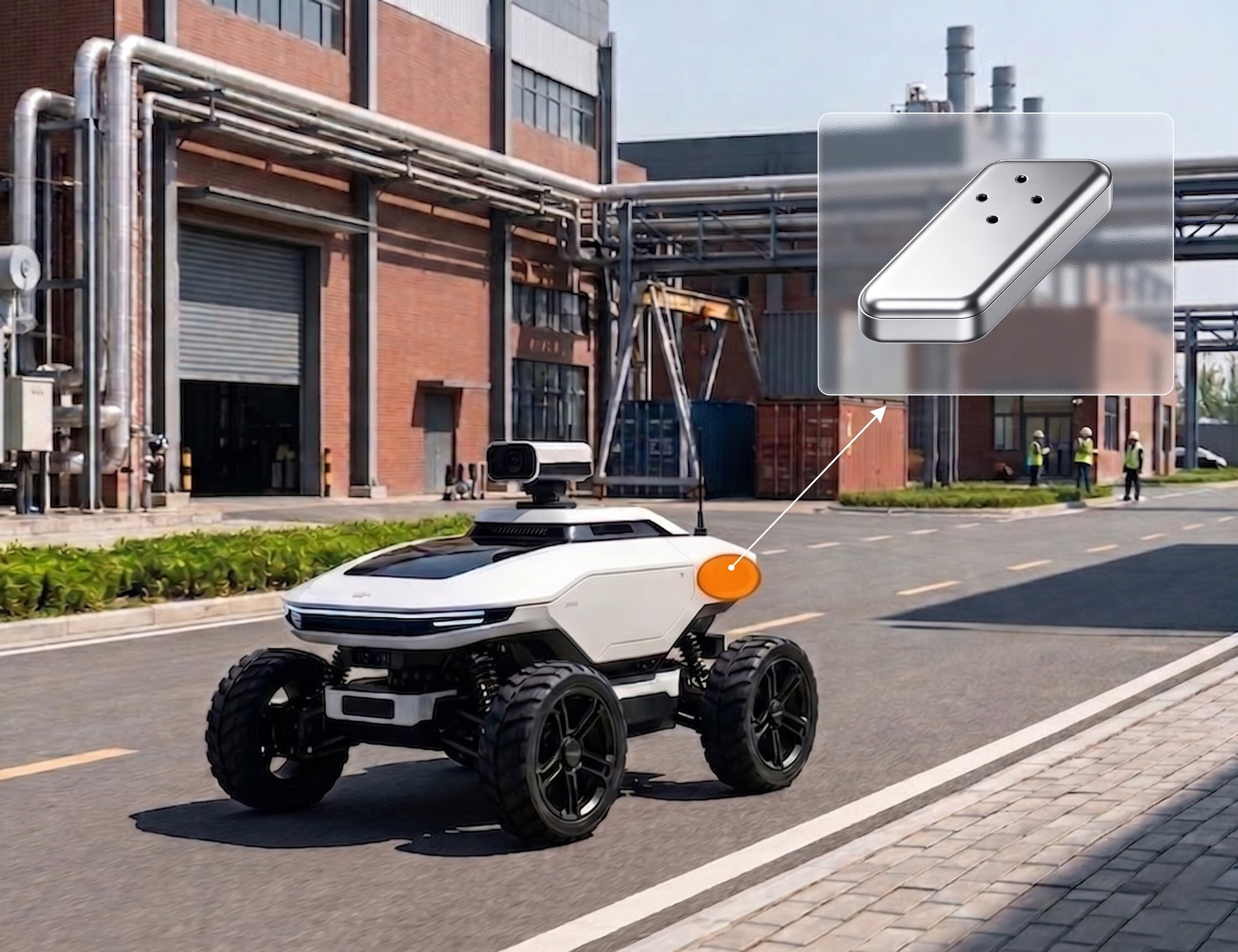

The unmanned platform mounted microphone collection device is a dedicated audio terminal designed for robotic dogs, unmanned inspection vehicles, security robots and other unmanned platforms. It integrates high-sensitivity pickup, AI noise reduction and wireless transmission modules, serving as the core hardware for remote audio interaction.
With 360° omnidirectional pickup, AI noise reduction, low-latency wireless transmission and industrial-grade environmental adaptability, the device accurately captures human voices, filters complex noise and delivers clear audio to the background in real time. It enables interference-free remote monitoring, command feedback and on-site audio traceability.
It is widely used in outdoor inspection, industrial sites, security monitoring, emergency response and extreme environment exploration. Compatible with robotic dogs, unmanned inspection vehicles, security robots, industrial unattended equipment and outdoor robots, it meets audio acquisition and transmission requirements in complex working environments.
Pain Point 1: Poor sound pickup effect and severe environmental interference
Traditional microphones have limited pickup angles and insufficient sensitivity, vulnerable to wind noise, mechanical noise and ambient clutter. Voices become blurred and distorted, and weak signals are lost, failing to meet accurate voice collection needs in field operations.
Pain Point 2: Unstable transmission and high dependence on external conditions
Wired solutions require complex wiring and restrict mobility. Conventional wireless devices support limited networks, have poor anti-interference capability, and suffer from high latency, stuttering and disconnection. They cannot operate reliably in remote Wi-Fi-free areas, making stable real-time audio transmission impossible.
Pain Point 3: Difficult deployment and adaptation affecting equipment performance
Traditional audio devices are bulky and heavy with complicated installation. They increase load and impair mobility such as obstacle crossing and driving. Compatibility is limited, and they cannot adapt to diverse unmanned terminals and background systems.
Pain Point 4: Low environmental tolerance and high maintenance costs
Ordinary devices lack adequate protection against temperature, dust and water, and easily fail in rain, sand and extreme temperatures. They have weak vibration and electromagnetic resistance, leading to low long-term reliability and high maintenance complexity and cost.
The Bottom Line: The market urgently needs a dedicated unmanned audio terminal with high-fidelity noise reduction, low-latency wireless transmission, easy installation and industrial-grade durability for full-scene adaptability.

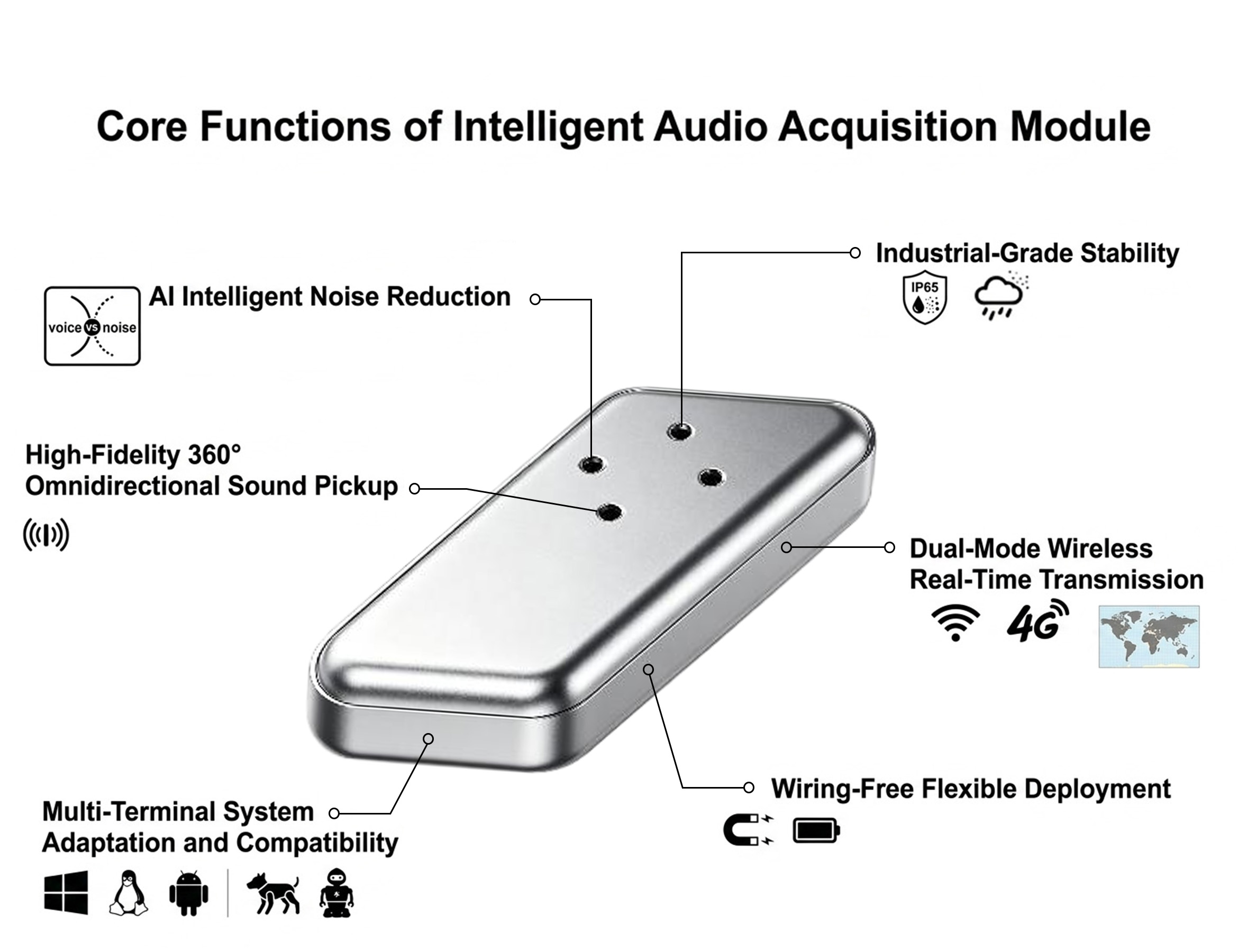

Integrating six core capabilities:sound collection, noise reduction, transmission, adaptation, environmental protection and flexible deployment, the device balances clarity, stability, adaptability and ease of use. It resolves unmanned audio pain points and delivers an all-in-one audio acquisition and transmission solution.
Function 1: AI intelligent noise reduction
Combining AI and physical noise reduction, the adaptive algorithm distinguishes human voice from wind, mechanical and ambient noise in real time. It filters over 80% of environmental noise without distorting speech, outputting pure voice for complex noisy environments.
Function 2: High-fidelity omnidirectional sound pickup
Equipped with a 360° omnidirectional microphone, pickup range is adjustable from 1–20 meters. It optimizes 100Hz–10kHz response, enhances 300Hz–3kHz speech band, and offers –38dB±2dB sensitivity to capture weak voices and restore true on-site sound.
Function 3: Dual-mode wireless real-time transmission
Supports Wi-Fi (802.11 b/g/n) and 4G with automatic switching. Wi-Fi reaches up to 100 meters barrier-free; 4G provides unlimited coverage via cellular networks. Latency ≤100ms, with UDP/TCP and G.711/G.729 coding for real-time, stable and encrypted audio transmission.
Function 4: Multi-terminal system adaptation and compatibility
Compatible with robotic dogs, unmanned inspection vehicles and security robots, it supports magnetic and buckle quick mounting. It works with Windows, Linux and Android, seamlessly integrating with existing platforms for real-time playback, recording and multi-scene audio management.
Function 5: Industrial-grade stable environmental adaptability
IP65 rated for dust, water and splash resistance, it operates reliably in rain, snow and sand. Working temperature: -20℃ to 60℃; storage: -40℃ to 85℃; humidity: 10%–95% non-condensing. It resists vibration and electromagnetic interference from the platform and external sources.
Function 6: Wiring-free flexible and rapid deployment
Mini lightweight design: 30mm×50mm×10mm, ≤50g, with no impact on mobility. Dual power: DC 5V–12V or built-in lithium battery (≥8 hours, fast charge). No wiring required; installation and removal complete in one minute.

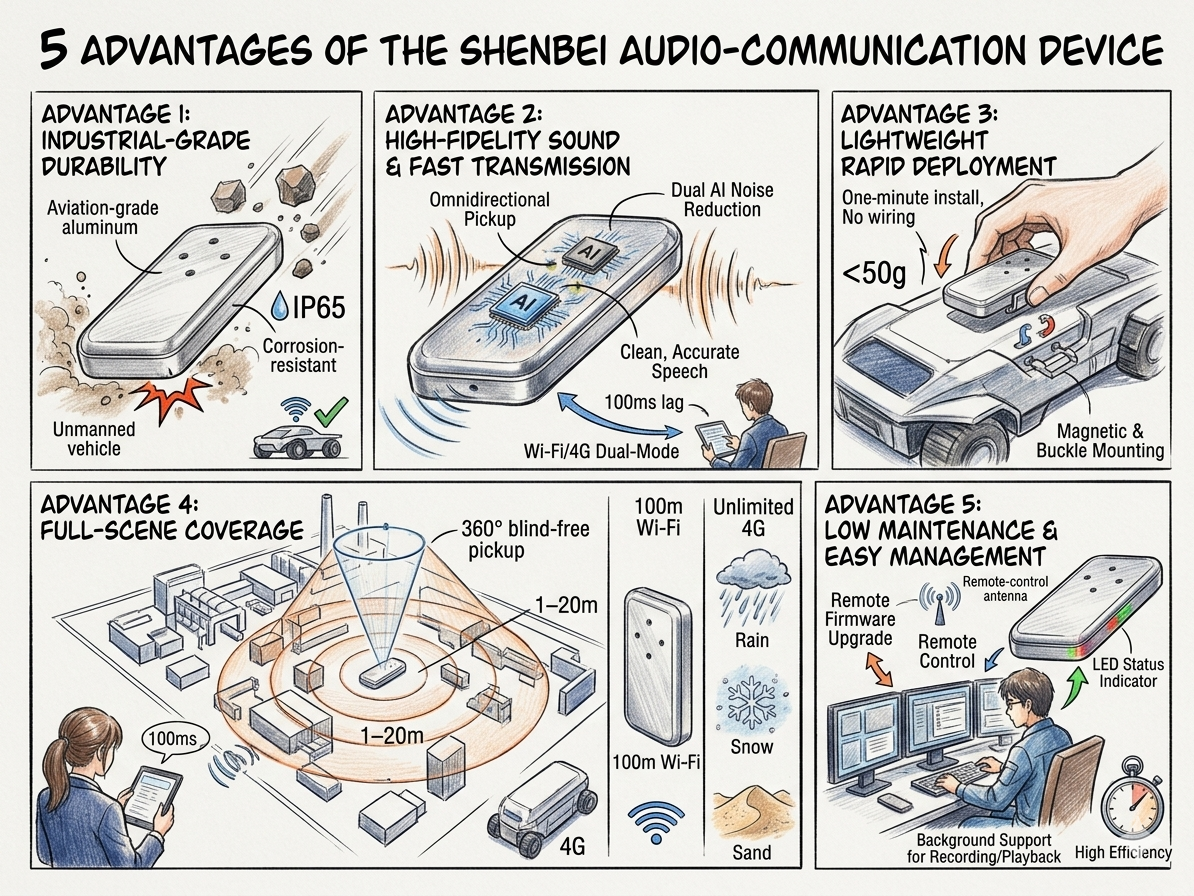

Advantage 1: Industrial-grade durability for long-term reliable operation
Aviation-grade aluminum housing, scratch/corrosion/impact resistant, IP65 rated. MTBF ≥10,000 hours, 24/7 operation. Excellent vibration and EMI resistance adapts to harsh unmanned working conditions and reduces failure risk.
Advantage 2: High-fidelity sound pickup and ultra-fast transmission for premium audio experience
High-sensitivity omnidirectional pickup + dual AI noise reduction: SNR ≥70dB, distortion ≤1%, delivering clean, accurate speech. Wi-Fi/4G dual-mode transmission ≤100ms ensures smooth, stable real-time audio even in remote outdoor areas for precise remote monitoring.
Advantage 3: Lightweight rapid deployment with low cost and full equipment compatibility
≤50g lightweight design adds no load. Magnetic + buckle mounting enables one-minute installation without wiring or modification, fitting all unmanned platforms. Wiring-free setup cuts deployment cost; lightweight reduces energy use for lower total cost of ownership.
Advantage 4: Full-Scene coverage and strong anti-Interference for complex environments
360° blind-free pickup with 1–20m adjustable range covers weak near-field and clear mid-field speech. 100m Wi-Fi and unlimited 4G reach, strong penetration for complex electromagnetic and obstacle-rich environments. Wide-temperature, dustproof and waterproof design suits rain, snow, sand and extreme industrial settings.
Advantage 5: Low maintenance and easy management for efficient whole-process operation
Remote firmware upgrade eliminates disassembly for easy maintenance. LED indicators clearly show normal, fault and low-power status for fast troubleshooting. Multi-system background support for recording and playback enables on-site traceability and review, ensuring low maintenance and high operational efficiency.
Can the device work normally in outdoor scenarios without Wi-Fi?
Yes. It auto-switches between Wi-Fi and 4G. When Wi-Fi is unavailable, it uses 4G for unlimited-range transmission, operating reliably in remote mountains and construction sites to maintain uninterrupted monitoring.
Will vibration generated by unmanned equipment during driving and obstacle crossing affect device operation?
No. Aviation-grade aluminum housing resists vibration and impact. Magnetic + buckle mounting ensures stable attachment. Built-in anti-vibration module suppresses motion vibration during walking, obstacle crossing and climbing, ensuring stable pickup and transmission.
How clear is the collected human voice, and will latency affect remote monitoring?
Very clear. SNR ≥70dB, distortion ≤1%, with AI noise reduction filtering over 80% of ambient noise and capturing weak speech accurately. Latency ≤100ms delivers near-real-time audio without stutter or delay, fully supporting precise remote monitoring and command feedback.
Ribri provides a reliable audio solution for complex unmanned operation scenarios. Featuring the Unmanned Platform Mounted Microphone Collection Device, it delivers high-fidelity voice capture, AI noise reduction and stable wireless transmission, supporting clear remote monitoring and command feedback.
Contact Ribri for a free feasibility assessment and customized project quotation.
