Views: 0 Author: Site Editor Publish Time: 2026-06-17 Origin: Site
Targeting persistent rotor noise, ground sound attenuation and complex outdoor interference, this integrated solution combines precision hardware pickup, intelligent software noise reduction and optimized algorithms. It suppresses rotor noise by over 35dB, restores clear human voices at 500Hz–3kHz, and fits most industrial drones. Ideal for emergency rescue, outdoor search and security patrols, it captures voices 10–50 meters away during hovering or low flight, solving traditional pickup noise and clarity issues.
The drone audio pickup is an integrated audio collection and noise reduction system tailored for drone operations. It adopts precision hardware pickup, intelligent software noise reduction and algorithm optimization, with a four-microphone array main pickup, auxiliary noise pickups and a dedicated DSP unit. It suppresses rotor interference at hardware level and restores human voices via algorithms, ending the “only see, not hear” limitation.
During hovering or low-speed flight, it filters rotor and motor noise while capturing ground voices including distress calls and conversations within 10–50 meters. It supports real-time wireless transmission and local storage, connecting seamlessly to drone video links for synchronized audio and video feedback, ensuring clear, distortion-free sound.
Widely applicable, it aids emergency rescue by capturing faint distress calls in mountains, ruins or water for fast localization. In security patrols, it monitors conversations and abnormal sounds in parks, construction sites and borders. In outdoor search, it extends monitoring range to find missing persons, also supporting law enforcement evidence collection and environmental monitoring.
Pain Point 1: Severe rotor noise masks ground voices
Traditional drones lack dedicated audio design. High-speed rotors generate persistent low-frequency (100–400Hz) and high-frequency (8–12kHz) noise, plus motor electromagnetic harmonics. Ordinary pickups capture only loud rotor noise, drowning out critical ground voices.
Pain Point 2: Low sensitivity and short range fail distant voice capture
Conventional pickups have sensitivity below -38dB, limited to 10 meters, with unfocused frequency response missing the 500Hz–3kHz vocal band. At altitude, sound attenuation is severe, failing to capture faint distant voices.
Pain Point 3: Poor adaptability harms flight stability and endurance
Traditional devices are bulky and over 100g, disrupting drone balance. High power consumption drains battery. Without waterproof, dustproof or shockproof design, they fail easily and interfere with video or flight control.
Pain Point 4: Ineffective passive noise reduction causes distortion
Traditional passive noise reduction delivers less than 20dB suppression with residual noise. It cannot distinguish voices from wind or environment, filtering faint distress calls or retaining interference, resulting in muffled audio.
The Bottom Line: The market needs an integrated solution filtering rotor noise, capturing distant voices, adapting to drones and operating stably outdoors.
Built for high-altitude audio capture in complex scenarios, this system integrates directional pickup, dual-channel noise cancellation, far-field voice enhancement, low-latency transmission and drone-friendly hardware. It provides professional noise filtering, precise voice capture, stable transmission, lightweight integration and intelligent ground management, fully meeting rescue, search and patrol needs.
Function 1: Intelligent audio pickup and noise reduction system
Centered on directional pickup, dual-channel noise reduction and real-time transmission, it includes a four-microphone array, auxiliary pickups, DSP module, wireless unit, power supply and IP65 housing. Optimized hardware-algorithm integration balances noise reduction, clarity, latency and stability.
Function 2: Powerful rotor and motor noise filtering
A dual-pickup design captures raw rotor noise, while the main pickup records mixed audio. MVDR beamforming focuses on voices, adaptive filtering cancels noise, achieving ≥35dB reduction. A lightweight deep learning model eliminates residual noise.
Function 3: Accurate far-field human voice capture (10–50 Meters)
The high-sensitivity array delivers -38dB sensitivity, targeting 500Hz–3kHz and focusing downward. It supports 10–50 meter pickup, with AGC adapting to distance and VAD detecting valid voices, restoring faint distress calls clearly.
Function 4: Low-latency transmission and secure storage
A 2.4G/5.8G wireless module ensures ≤80ms latency for synchronized audio-video. Local storage supports 24-hour recording with AES encryption, enabling real-time monitoring, playback and retrieval.
Function 5: Compact, low-power design for drone compatibility
Weighing ≤50g, it mounts on the underside via shock brackets, avoiding rotor airflow. It uses 5V/12V power with ≤100mA consumption. IP65 housing operates -10°C to 60°C, resisting wind, rain, dust and vibration.
Function 6: Intelligent visual ground station management
The intuitive software offers adjustable noise reduction, remote configuration and sensitivity control. It monitors power and signals with fault alarms, supporting batch processing and export, requiring no technical expertise.

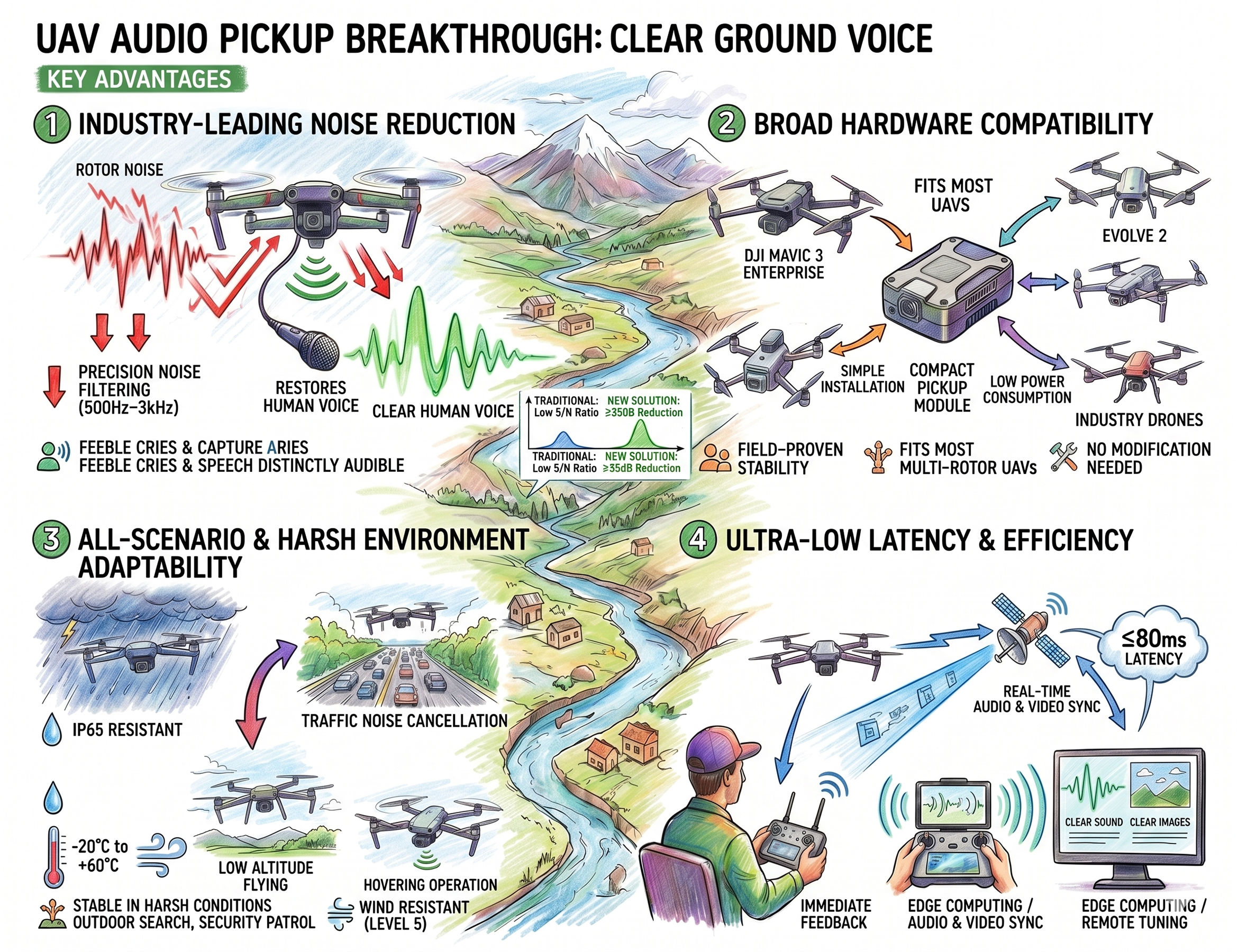

Advantage 1: Industry-leading noise reduction with undistorted voices
Hardware directional pickup plus four-stage algorithm delivers ≥35dB reduction, exceeding standards. Algorithms suppress only interference, preserving 500Hz–3kHz clarity and faint distress calls.
Advantage 2: Mature hardware with multi-model compatibility
Core components are field-proven for reliability. Compact, lightweight and low-power, they fit DJI Mavic 3 Enterprise, Chengzhi and mainstream industrial drones, with simple, non-intrusive installation.
Advantage 3: Full-scenario adaptability for complex outdoor use
IP65 protection, shock absorption and wide-temperature tolerance enable stable operation in 5-level wind, traffic noise and extreme temperatures, supporting hovering and low flight for versatile use.
Advantage 4: Ultra-low latency boosts efficiency
≤80ms latency enables synchronized transmission for real-time monitoring. Lightweight algorithms run on drone edge computing without affecting flight control, with user-friendly remote tuning.
Advantage 5: Cost-effective and scalable
Built on mass-produced hardware and optimized algorithms, it offers controlled costs, short deployment and easy scaling, supporting future upgrades like speech-to-text and voice localization.
Will noise reduction fluctuate with rotor speed changes?
Yes. It auto-switches between Wi-Fi and 4G. When Wi-Fi is unavailable, it uses 4G for unlimited-range transmission, operating reliably in remote mountains and construction sites to maintain uninterrupted monitoring.
Can it work in windy and rainy conditions?
Stable operation is possible in ≤5-level wind, light rain and dust. The IP65 housing and windscreen protect against water/dust and reduce wind noise. Suspend use in ≥6-level wind, heavy rain or thunderstorms.
What is the optimal altitude for pickup?
10–50 meters; best at 30 meters hovering. Below 10 meters, airflow interference increases. Above 50 meters, sound attenuation reduces clarity.
Will it affect flight balance and endurance?
No. At ≤50g, it adds minimal payload and maintains balance. With ≤100mA consumption, impact on endurance is negligible.
Which drones are compatible? Is installation complex?
Compatible with DJI Mavic 3 Enterprise, Chengzhi series and mainstream industrial multi-rotor drones. Installation is simple: mount the main pickup below, auxiliary pickups near motors, connect shielded cables—complete in 10 minutes with no structural changes.
Can it capture multi-person conversations or only distress calls?
Both are captured accurately. Covering 500Hz–3kHz, it records faint distress calls, whispers and multi-party speech. Algorithms distinguish normal speech, distress and arguments for rescue and security scenarios.
Ribri delivers an integrated rotor noise filtering and far-field voice capture solution for emergency rescue, security patrols and outdoor search. Combining mature hardware, intelligent algorithms and reliable performance, it overcomes high-altitude audio bottlenecks, equipping drones with auditory capabilities.
