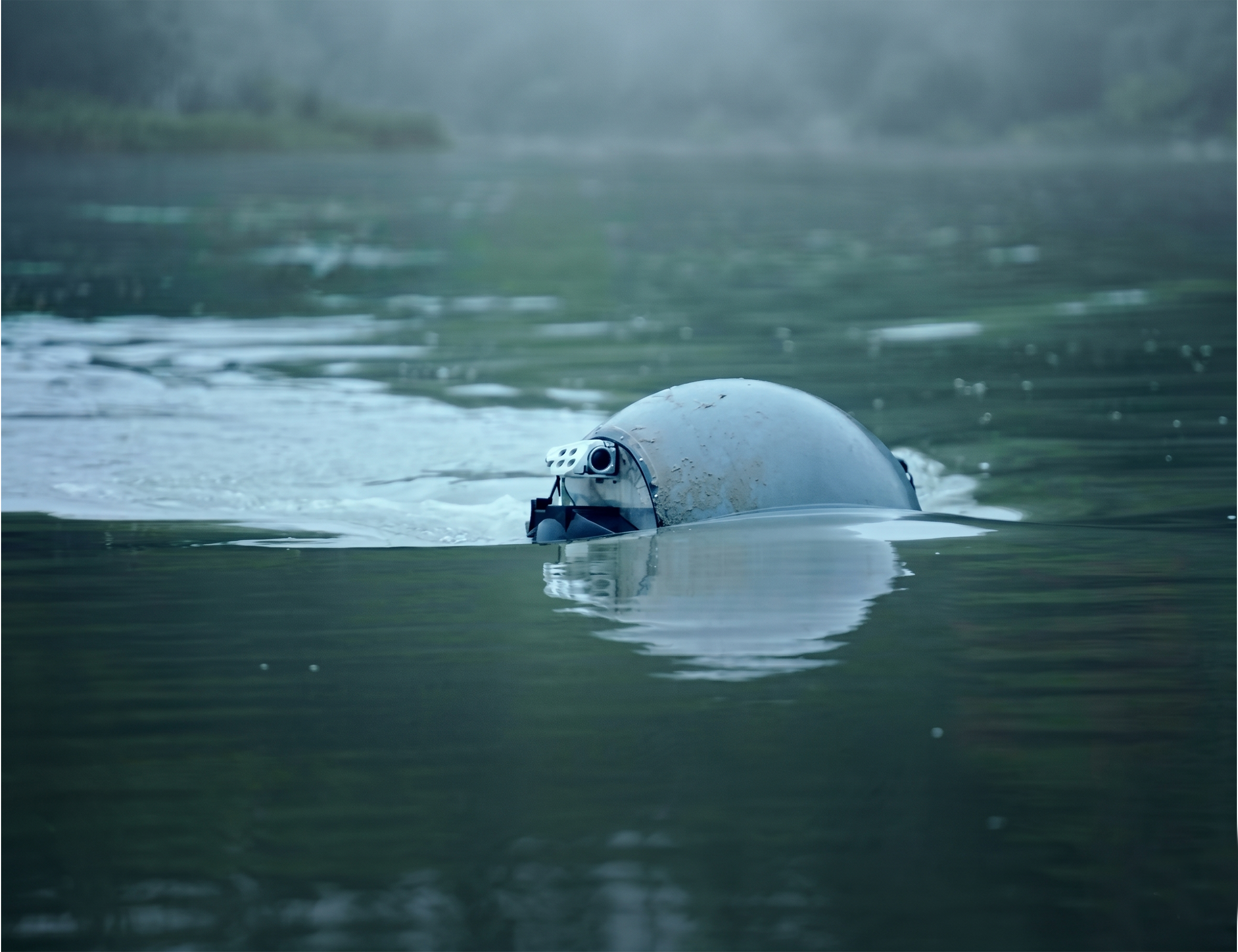

The Underwater Sonar Spherical Robot integrates four core technologies: original spherical pendulum drive, IP68 full waterproof and explosion-proof design, forward-looking sonar dual perception, and L4-level autonomous driving. It effectively addresses pain points in complex underwater scenarios, including poor visibility, high operational risks, short battery life, inaccurate detection, and easy overturning. The robot enables all-weather, unmanned, and intelligent underwater detection and security operations.
The Underwater Sonar Spherical Robot is equipped with a high-performance forward-looking sonar. Adopting the patented motion principle of "spherical structure + pendulum drive", it integrates a bionic compound-eye panoramic perception system, a high-performance forward-looking sonar, and an adaptive motion control system, serving as a dedicated intelligent device designed for high-risk underwater environments.
It offers four core capabilities: amphibious all - terrain mobility, full underwater area detection, autonomous cruise duty, and intelligent early warning response. The robot can autonomously avoid obstacles, accurately identify targets, and transmit data underwater in real - time. It can complete patrol, monitoring, hidden danger inspection, and intrusion warning tasks without human intervention, replacing manual operations in high - risk, polluted, and low - visibility waters.
It is widely applicable to waters around civil aviation airports, ports and docks, underground comprehensive utility tunnels, petrochemical parks, reservoirs and water sources, border waters, and urban rivers. It covers full-dimensional underwater security needs such as anti-terrorism, intrusion prevention, pipeline inspection, facility monitoring, search and rescue, and emergency response.
Pain Point 1: Low underwater visibility, large detection blind spots
Visual systems fail completely in turbid and dark waters. Manual divers and ordinary underwater cameras lack effective detection capabilities, resulting in extensive blind areas where hidden dangers and suspicious targets are difficult to identify in a timely manner.
Pain Point 2: High-risk operating environments, severe risks for manual Labor
Underwater operations are threatened by undercurrents, corrosion, radiation, and flammable/explosive hazards. Manual diving poses high risks of drowning, poisoning, and collision accidents, with low efficiency and inability to conduct long-term, high-frequency patrols.
Pain Point 3: Limitations of traditional equipment, poor environmental adaptability
Manual bird patrol features low efficiency and high labor costs. Human negligence easily creates prevention gaps, leading to bird dung pollution and equipment corrosion losses.
Pain Point 4: Low intelligence, dependence on manual control
Traditional underwater equipment requires real-time manual remote control and high-precision underwater maps, lacking autonomous path planning and obstacle avoidance functions. It responds slowly and struggles to provide timely early warnings and responses to sudden intrusions or hidden dangers.
The Bottom Line: The market urgently needs an amphibious robot with full waterproof and explosion-proof design, long battery life, strong terrain adaptability, autonomous intelligence, and accurate detection capabilities to realize unmanned, normalized, and intelligent underwater security operations.
The Underwater Sonar Spherical Robot features an intelligent system based on forward-looking sonar and bionic compound-eye dual perception. It integrates autonomous mobility, high-precision detection, 24/7 unmanned cruise and emergency response. Overcoming traditional equipment limitations, it enables full-process, unmanned and intelligent underwater patrol, inspection, monitoring and early warning for complex security scenarios.
Function 1: All-Terrain amphibious mobility, seamless land-water operations
Featuring a spherical pendulum drive, IP68 waterproofing, and Ex-d-IIB explosion-proof design, the robot moves seamlessly between land, tidal flats, shallow water, and deep water. It withstands extreme water temperatures from -45°C to 85°C and harsh weather such as heavy rain, snow, lightning, and typhoons, adapting to complex seabed terrains including potholes, cracks, and undercurrents.
Function 2: Forward-looking sonar and visual fusion, accurate full underwater area detection
Equipped with a high-performance forward-looking sonar supporting a maximum depth of 4,000 meters, it transmits data at high speed via Gigabit Ethernet with strong anti-interference. The sonar penetrates turbid and dark waters to accurately detect obstacles, suspicious personnel, intruding devices, and pipeline hidden dangers. Combined with a bionic compound-eye system that maintains stable imaging even during underwater rolling, it achieves dual-perception blind-spot-free coverage.
Function 3: L4-level autonomous cruise, all-weather unmanned duty
Requiring no manual remote control or high-precision underwater maps, the robot independently plans optimal paths, avoids obstacles, and conducts fixed-point patrols using L4-level autonomous driving and adaptive motion control. With a battery life of over 10 hours and a travel range of over 120 kilometers, it supports 24/7 uninterrupted patrols, replacing manual labor for routine security tasks.
Function 4: Intelligent early warning and emergency response, rapid handling of emergencies
Integrating friend-or-foe identification, target tracking, and anomaly alert functions, the robot analyzes detection data in real time. Upon identifying intrusions, leaks, or damages, it immediately transmits high-definition data and triggers remote alerts. It supports remote handling and on-site audio-visual warnings, efficiently responding to underwater anti-terrorism, intrusion prevention, and hidden danger rescue scenarios.

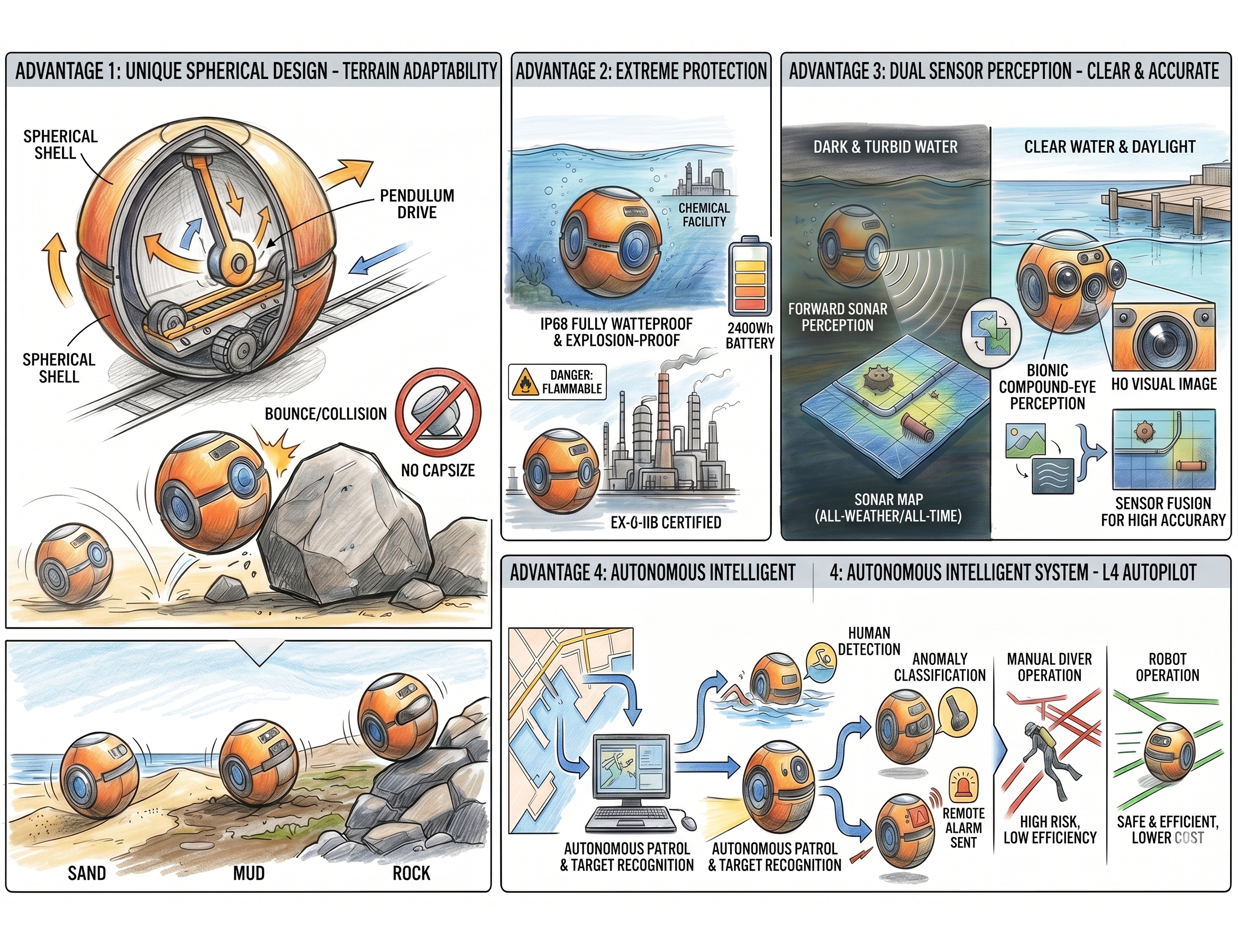

Advantage 1: Original spherical structure, non-overturning, unmatched rerrain adaptability
Unlike traditional wheeled or legged robots, the spherical design eliminates overturning risks, automatically resetting after collisions, rolls, or falls. The pendulum drive delivers 8–9 times higher energy efficiency than legged robots, easily crossing 300mm obstacles and climbing 22° slopes, adapting to all terrains including wild areas, tidal flats, deserts, and seabeds.
Advantage 2: Top-grade protection and long battery life, stable operation in extreme environments
IP68 dustproof and waterproof rating enables long-term underwater submersion. The Ex-d-IIB explosion-proof rating supports operations in flammable and explosive waters such as chemical and oil-gas zones. A 2,400Wh high-capacity battery provides over 10 hours of operation and 120 kilometers of travel, meeting long-term underwater duty requirements far exceeding traditional equipment.
Advantage 3: Dual-perception fusion, accurate "Visibility" in low-visibility waters
The forward-looking sonar overcomes visual limitations, enabling precise detection in turbid and dark waters. The bionic compound-eye system delivers stable imaging, with the dual system complementing each other to solve the pain points of "poor visibility and inaccurate detection" in traditional equipment, achieving full-scenario and full-time accurate underwater detection.
Advantage 4: Fully self-developed intelligent system, unmanned operations reduce risks and costs
Equipped with independently developed L4-level autonomous driving and adaptive control systems, the robot completes patrol, detection, and early warning processes without human intervention. It replaces high-risk manual diving operations, significantly reducing safety accident risks, improving operational efficiency, and cutting labor costs, driving the intelligent upgrade of underwater security.
Advantage 5: Modular design, rapid adaptation to multiple scenarios
Standardized mounting interfaces support quick integration of forward-looking sonar, high-definition cameras, environmental sensors, and emergency devices. The robot flexibly adapts to underwater detection, security patrol, pipeline inspection, search and rescue, and other scenarios, offering multi-purpose functionality and high cost-effectiveness.
What is the maximum operating depth of the Underwater Sonar Spherical Robot?
The robot body with IP68 waterproofing supports long-term operations in shallow to conventional deep waters. The integrated forward-looking sonar works at depths up to 4,000 meters, with customizable solutions for specific depth requirements.
Will detection performance be affected in turbid or completely dark underwater environments?
No. The forward-looking sonar operates independently of water clarity, enabling accurate target detection in turbid and dark waters. The bionic compound-eye system provides high-definition imaging in well-lit conditions, ensuring reliable detection with dual perception.
How long is the underwater battery life of the robot? Can it support long-term patrols?
The robot operates for over 10 hours and travels over 120 kilometers on a single charge, supporting 24/7 uninterrupted patrols and fully meeting long-term security requirements for ports, tunnels, border waters, and other scenarios.
Can the robot navigate complex seabed terrains such as potholes, undercurrents, and rocks?
Yes. The adaptive motion control system automatically adjusts posture to navigate complex terrains easily, with a 300mm obstacle-crossing capability and 22° climbing angle, delivering exceptional mobility.
Does the robot require professional operators? Is it difficult to operate?
No professional operators are needed. The L4-level autonomous driving system enables fully autonomous patrol, obstacle avoidance, and detection. Remote background monitoring is supported, and ordinary security personnel can operate it with minimal training, featuring a low learning curve.
Can the robot operate normally in extreme temperature waters (high or low)?
Yes. With a wide operating temperature range of -45°C to 85°C, the robot operates stably in icy water, deep cold water, and high-temperature industrial wastewater without performance degradation.
