UB-5

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Superiority

FAQ

Download

Product Overview

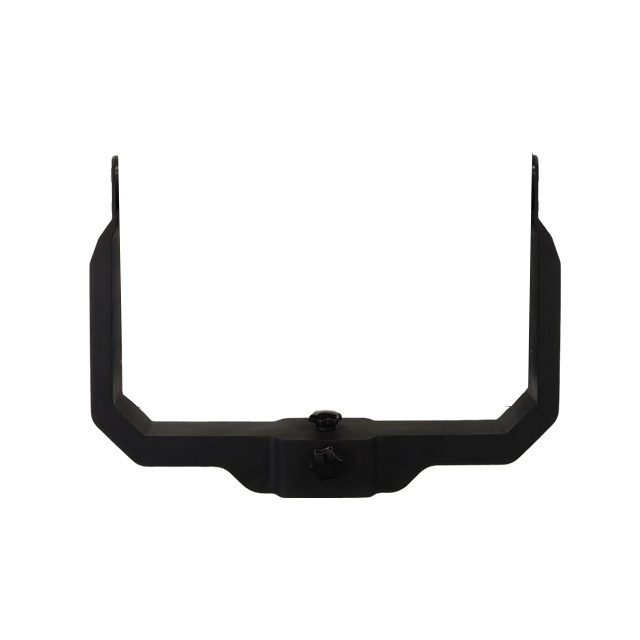

Developed as a customized integrated heavy-load U-shaped mounting frame, the UB-5 is dedicated to RC90Z high-power directional loudspeaker systems. The entire unit is cast with solid 304 stainless steel, and reinforcing ribs are added on both U-side walls and the base plate to upgrade overall load-bearing performance. A combined assembly of an indexing pin and molded locking handle delivers ±90° vertical tilt and ±180° horizontal full-range angle adjustment. Dual positioning holes and double-layer flange fixing points are pre-set on the base, enabling attachment to fixed ground bases, vehicle bodies and ship decks to adapt to diversified deployment scenarios. Merging heavy load capacity, multi-dimensional angle tuning, universal installation adaptability and long-term outdoor weather resistance, this bracket acts as a highly dependable dedicated installation solution for RC90Z heavy-duty loudspeaker equipment.

Table of Key Equipment Parameters

Parameter	Details
Material	304 stainless steel
Dimensions	1020.4mm739mm151.8mm
Weight	25.9kg

Product Superiority

• Reinforced Stainless Steel Frame Resists Overload And Vibration

All structural parts are made of thickened 304 stainless steel, with extra reinforcing ribs on U side panels and base to boost frame rigidity. The design suppresses operational resonance efficiently, maintaining intact structural performance without bending or vibration under long-duration high-load broadcasting tasks suitable for high-vibration sound-emitting hardware.

• Dual-Axis Adjustable System Enables Fast Position Locking

Equipped with an indexing pin and molded locking handle set, the bracket supports bidirectional ±90° vertical and ±180° horizontal angle adjustment with instant locking function, allowing flexible angle setup for different field working demands.

• Dual-Model Cross Compatibility Saves Replacement Costs

Originally engineered for RC90Z heavy-duty loudspeakers, the frame also matches RC60Z equipment perfectly. Operators can switch target loudspeakers without fully dismounting the bracket body, greatly shortening on-site equipment replacement time.

• Dual-Flange Base Realizes Multi-Carrier Universal Mounting

Pre-drilled pin positioning holes and double-layer flange slots are integrated on the base plate, compatible with fixed ground foundations, vehicle-mounted carriers and offshore ship deck installation to expand applicable project coverage.

• Simplified Assembly Structure Reduces Field Installation Time

Positioning pin holes and flange mounting grooves are reserved on the base, supporting fixed ground installation, vehicle mounting and marine deployment schemes to satisfy diversified field construction requirements.

• 304 Stainless Steel Frame Provides Full Weather Protection

The all-stainless steel construction brings outstanding impact resistance and salt-spray anti-corrosion performance. The bracket maintains stable operation for long periods under open-air and offshore working environments, reducing abrasion of supporting components and follow-up maintenance expenses.

FAQ

Which loudspeaker devices match this heavy-duty bracket?

This U-shaped mounting frame is custom-designed for RC90Z loudspeakers and retains compatibility with RC60Z hardware for flexible model switching.

What material forms the full frame of this bracket?

The whole product structure is manufactured with 304 stainless steel material

Does this bracket support adjustable locked rotation functions?

When matched with RC90Z loudspeaker units, vertical tilt angles can be freely adjusted and locked within ±90°. Fitting with a rotary tripod base enables ±180° or full 360° locked horizontal rotation.

Can the bracket be fixed on vehicle and ship mobile platforms?

The U-shaped frame allows permanent installation on mobile carriers such as cars and vessels, and can be matched with multiple standard tripods.

Is fixed installation on static elevated structures available?

This U-shaped support frame can be installed on fixed elevated facilities including signal towers, utility poles and building rooftops, and can also be fixed onto tripods for stable placement.
