UB-3

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Superiority

FAQ

Download

Product Overview

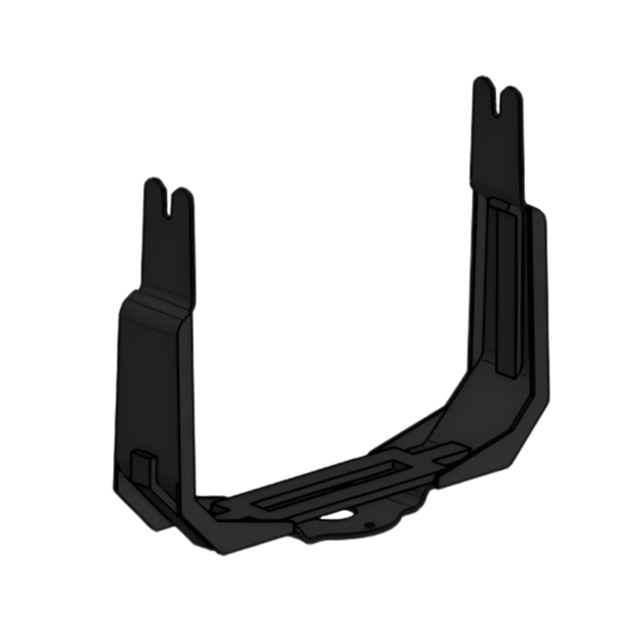

Constructed as a tactical U-shaped installation frame, the UB-3 is purpose-built to fit RP40Z high-performance monitoring equipment. Its whole frame undergoes precision CNC machining with 304 stainless steel material, reaching a total weight of 9.6 kg. The symmetric U-frame layout allows target equipment to rotate ±90° vertically and ±180° horizontally, with an indexing pin and hand screw realizing quick angle adjustment and rigid self-locking. An integrated mounting flange on the base enables connection to tripods, special operation vehicles and ship decks. The bracket delivers stable hardware support for RP40Z units under harsh working conditions including security surveillance, offshore patrol missions, emergency rescue and field investigation tasks.

Table of Key Equipment Parameters

Parameter	Details
Material	304 stainless steel
Dimensions	438mm566.3mm150mm
Weight	9.6kg

Product Superiority

• Robust 304 Stainless Steel Body With Anti-Rust Performance

Every component of the UB-3 receives precision machining with 304 stainless steel, combining high structural strength and remarkable rust resistance. It maintains steady working performance under long-term exposure to humid and high-salinity marine environments.

• Dual-Axis Quick Lock Mechanism For Multi-Dimensional Tuning

The integrated indexing pin and hand bolt support independent adjustment of ±90° pitching angle and ±180° horizontal azimuth. Operators can release locks, adjust angles and re-fasten without extra auxiliary tools on site.

• Optimized Mounting Lugs Prevent Equipment Resonance

Elevated fixing ears are designed to match RP40Z’s installation interfaces precisely. The tight positioning eliminates idle vibration and avoids resonance or equipment displacement during continuous running.

• Wide-Range Mounting Adaptability

Pre-reserved flange holes on the base fit multiple installation carriers such as tripods, fixed platforms and mobile vehicles, enabling fast field deployment in diversified working scenarios.

• One-Piece Forming Structure Reduces Daily Maintenance

Adopting integrated cutting, bending and welding processes with high-strength stainless steel sheets, the bracket owns neat appearance and natural corrosion resistance, requiring almost no routine maintenance throughout its service lifespan.

FAQ

Which equipment is this bracket developed for?

This U-shaped mounting frame is specially customized to match RP40Z monitoring devices only.

What material makes up the whole bracket frame?

The entire product is manufactured with 304 stainless steel material.

Can vertical tilt adjustment be realized with locking function?

Matched with RP40Z equipment, users can adjust and lock vertical tilt angles within ±90°.

How to achieve horizontal rotation positioning?

Horizontal rotating functions rely on matched rotary base accessories. When installed on standard tripods, the system can reach ±180° or complete 360° locked horizontal rotation.

Can the bracket be mounted on mobile vehicles or vessels?

This U-shaped frame allows fixed installation on mobile carriers including vehicles and ships, and can cooperate with different types of tripods.

Does the manufacturer accept personalized customized orders?

We provide full OEM and ODM customized production solutions for differentiated project requirements.
