UB-2

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Superiority

FAQ

Download

Product Overview

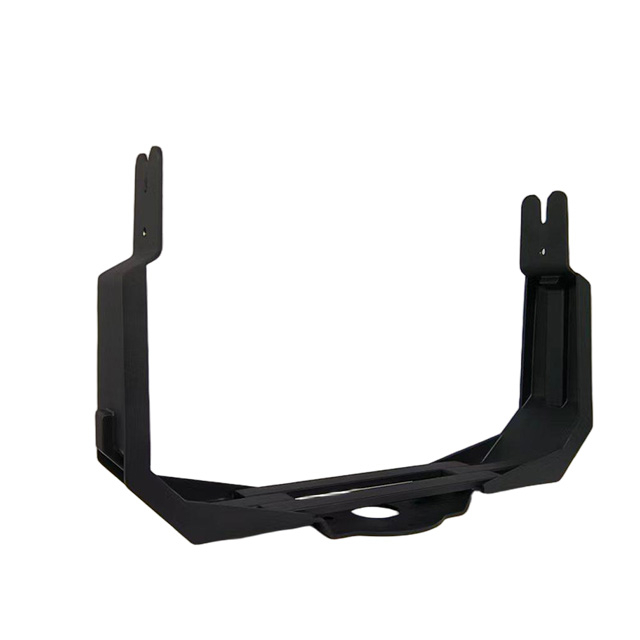

Engineered exclusively for RP41C hardware and backward compatible with RP21C devices, the UB-2 serves as an angle-adjustable U-shaped mounting frame. Its symmetric U-shaped framework is forged from premium 304 stainless steel to deliver outstanding rigidity and vibration suppression performance. Fitted with an indexing pin and hand-tightening bolt assembly, this mount supports locked angular positioning at ±90 degrees vertical tilt and ±180 degrees horizontal rotation. A fixed flange base is integrated onto the bottom frame to facilitate secure attachment to tripods, car bodies, marine vessels and stationary ground mounts. Integrating sturdy structural support, multi-dimensional angle tuning and cross-device compatibility, this bracket forms an all-in-one installation solution dedicated to professional field equipment deployment.

Table of Key Equipment Parameters

Parameter	Details
Material	304 stainless steel
Dimensions	376mm592.3mm150mm
Weight	9.2kg

Product Superiority

• High Load-Bearing 304 Stainless Steel Build

The entire supporting framework adopts 304 stainless steel as raw material, bringing superior tensile strength and anti-corrosion properties. Even with a lightweight total mass of only 9.2 kg, the bracket maintains powerful load capacity for matched surveillance equipment.

• Custom Contour Matching for Flawless Assembly

Tailored to match the outer outline of RP41C units, the internal U cavity perfectly fits the equipment shell, eliminating assembly gaps and stabilizing equipment operation during long-term field work.

• Broad Cross-Model Compatibility

The frame structure fits both RP41C and RP21C hardware seamlessly. Users can swap or upgrade target devices without dismounting or replacing the whole bracket set, cutting field maintenance workload.

• High Stiffness Structure Against Vibration & Deformation

Symmetric U-type reinforced ribs boost overall structural stiffness. The design offsets external vibration impacts effectively, preventing metal fatigue and permanent structural distortion under continuous long-duration operation.

• Multi-Scenario Mounting via Flange Base

Slotted adjustment holes and standard fixing holes are pre-set on the bottom flange. Operators can install the bracket on tripods, mobile vehicles, ship decks or fixed ground stations to satisfy deployment demands of security monitoring, emergency response and campus safety management projects.

FAQ

Which hardware devices can match this bracket?

This mounting frame is custom-developed for RP41C units and can work compatibly with RP21C equipment.

What raw material is adopted for this bracket?

304 stainless steel is used for full-frame manufacturing.

Does the bracket support angular rotation locking?

When paired with RP41C equipment, vertical tilt can be adjusted and locked within ±90°. If matched with a rotatable tripod base, users can achieve ±180° or full 360° horizontal rotation with lock positioning.

Is a dedicated carrying case provided as standard?

Protective storage and transit cases are supplied as optional accessories, which can perfectly hold the UB-2 bracket together with RP41C devices.

Can this bracket be fitted on mobile carrier platforms?

The U-shaped frame can be firmly mounted onto vehicle and ship mobile carriers, and also supports collocation with various standard tripods.

Is customized manufacturing service available?

Customized OEM and ODM development services are supported for personalized project demands.
