Protect train operations and wildlife with AI vision recognition, directional acoustic deterrence up to 145 dB, and TCMS integration, achieving up to 95 percent reduction in railway animal collisions.

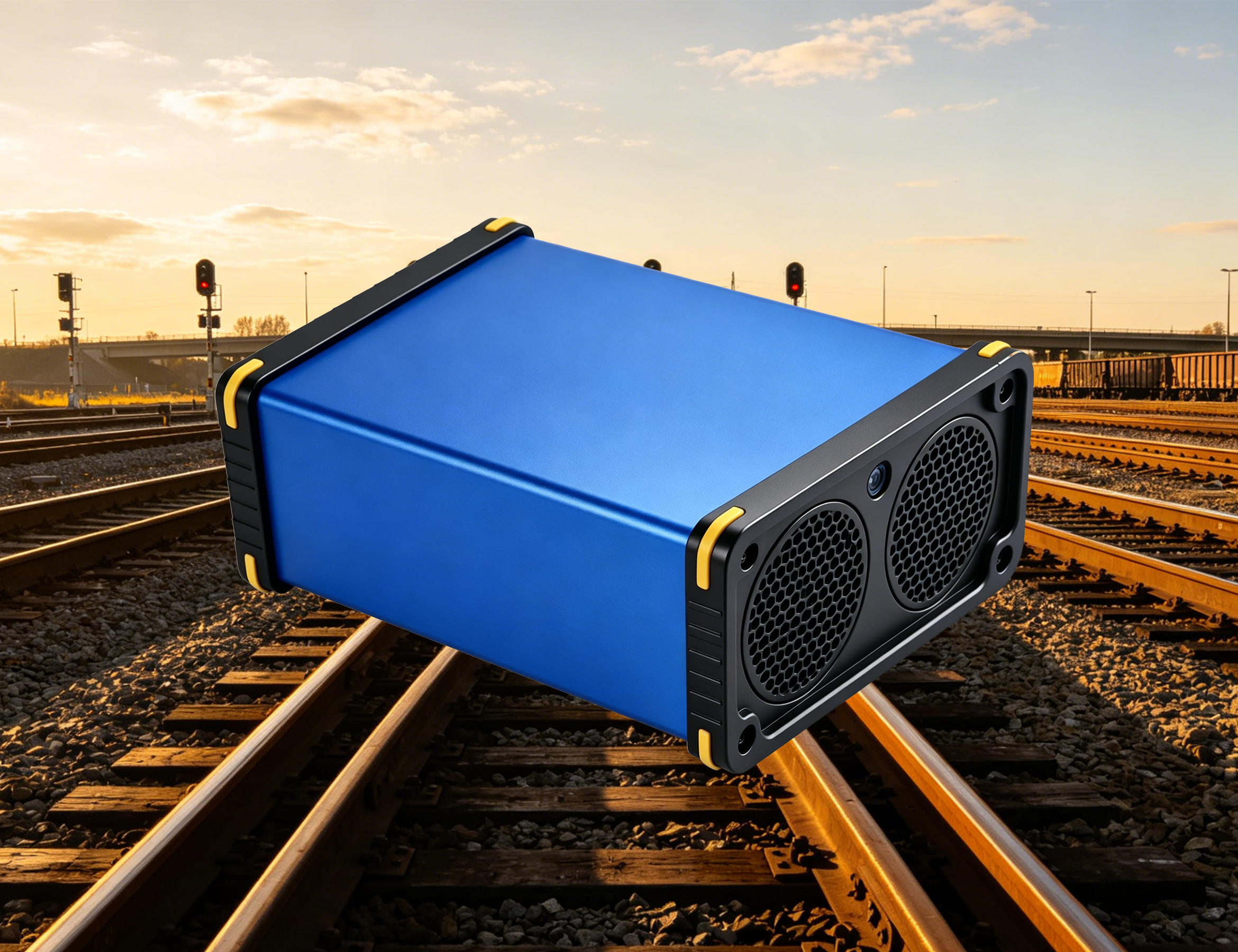

TrackSonic 1000 is a train-mounted intelligent animal collision warning and active deterrent system developed specifically for railway wildlife intrusion risks. It effectively compensates for the limitations of traditional manual observation and passive protection methods, reducing safety accidents and operational delays caused by sudden animal track entry.
The system integrates three core modules: high-precision AI vision recognition, 145dB high-power directional acoustic deterrence, and railway-grade vehicle communication control. It supports accurate animal identification, crossing behavior prediction, tiered risk warning, and harmless active deterrence, while enabling full data recording and post-event playback. The solution perfectly balances railway operational safety, line efficiency, and ecological protection.
Applicable to conventional railways, forest railways, and pastoral railway sections, the system delivers stable 24/7 operation under complex conditions including low light, rain, fog, sandstorms, and extreme temperature changes.
Pain Point 1: Heavy reliance on unreliable manual observation
Traditional railway safety depends entirely on drivers’ visual inspection. Night darkness, rainy and foggy weather, long-distance high-speed operation, and driver fatigue severely limit detection capability. Small and medium-sized wildlife on tracks are often missed, leading to sudden collision hazards.
Pain Point 2: Severe operational impact from track intrusion collisions
Wildlife intrusion often triggers emergency braking or direct collisions. These incidents cause train damage, wildlife death, and widespread cascading delays, severely disrupting railway scheduling and operational efficiency.
Pain Point 3: Ecological imbalance and poor deterrent effect
Traditional physical fences fail to cover full railway lines and block natural wildlife migration routes, causing ecological fragmentation. Conventional train horns produce diffused noise with poor targeting, failing to effectively drive animals away and resulting in continuous roadkill incidents.
Pain Point 4: Lack of data support for risk optimization
Existing railway protection methods lack systematic recording of wildlife intrusion events, driver responses, and environmental data. Without effective data statistics and risk analysis, line hazard assessment and algorithm iteration cannot be realized.
The Bottom Line: Railway operations require an intelligent, data-driven collision avoidance system that supports active identification, tiered warning, precise deterrence, full data recording, and stable adaptation to extreme railway operating environments.
TrackSonic 1000 integrates AI visual recognition, behavioral prediction, tiered warning, directional acoustic deterrence, data playback, and TCMS linkage into one professional railway-grade system.

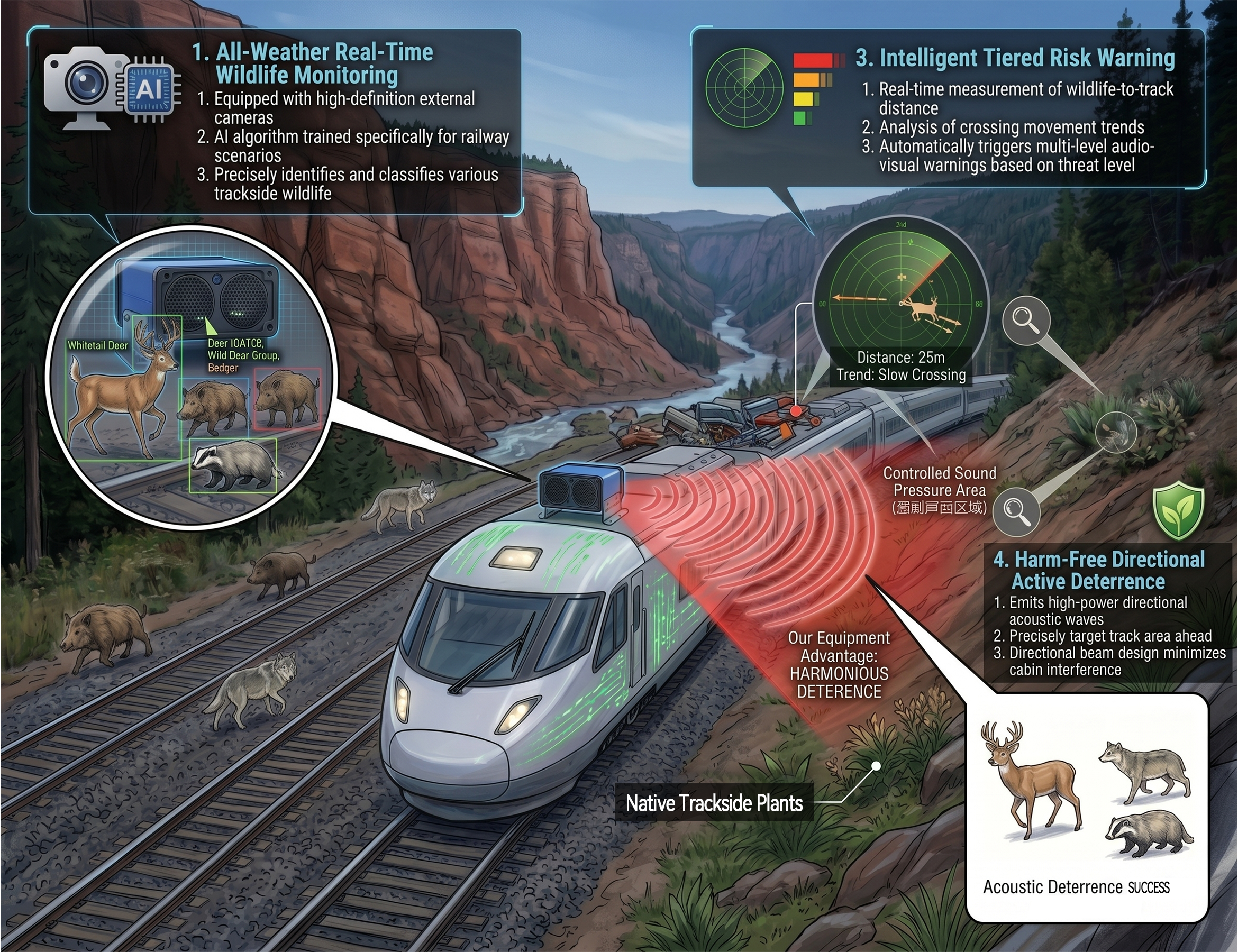

Function 1: All-weather real-time wildlife monitoring
High-definition front-end cameras and embedded railway-trained AI algorithms accurately identify and classify various roadside wildlife. With low-light enhancement and anti-interference capabilities, the system ensures stable recognition in dark, foggy, dusty, and rainy conditions.
Function 2: Intelligent tiered risk warning
The system calculates real-time distances between wildlife and tracks, as well as crossing movement trends. It automatically triggers multi-level visual and audible warnings based on threat severity, providing drivers with graded risk reminders and sufficient response time.
Function 3: Harmless directional active deterrence
High-power directional sound waves target animals on the track ahead, effectively guiding them away from railway lines. The directional beam design eliminates in-cabin noise interference, ensures no physical harm to wildlife, and achieves eco-friendly active protection.
Function 4: Full data recording and playback
The system automatically records key information including warning timestamp, target species, target distance, and driver operation data. All data can be uploaded and stored for post-event analysis, line risk heat map generation, and continuous AI algorithm optimization.
Function 5: Deep TCMS system integration
Reserved RS485 and CAN bus interfaces support seamless connection with the Train Control Management System. It realizes real-time transmission of threat warnings and equipment status, and supports collaborative linkage with train braking and auxiliary safety systems.
Advantage 1: Railway-scene optimized AI recognition
What It Means for You: AI models trained on massive railway environment datasets deliver high-accuracy wildlife identification and movement prediction. It eliminates misjudgment and response lag caused by manual observation, greatly improving proactive safety capability.
Advantage 2: Eco-friendly and efficient deterrence mechanism
What It Means for You: Targeted directional acoustic technology drives wildlife away from tracks without injury. It replaces inefficient traditional honking and destructive fence isolation, perfectly balancing railway operational safety and ecological protection.
Advantage 3: Extreme environmental adaptability
What It Means for You: Featuring IP67 dustproof, waterproof, and corrosion-resistant ratings, together with wide-voltage compatibility and anti-vibration structure, the system stably adapts to intense vibration, temperature extremes, and harsh outdoor railway operating conditions.
Advantage 4: High compatibility and easy deployment
What It Means for You: Compact lightweight structure and dedicated anti-vibration mounting brackets enable convenient installation. Standard industrial interfaces ensure seamless integration with existing train control systems without major vehicle modifications.
Advantage 5: Integrated safety, efficiency and cost benefits
What It Means for You: Precise intelligent deterrence effectively reduces animal collision accidents and operational delays. Low maintenance consumption and long-term stable performance bring comprehensive improvements in railway safety, operational efficiency, and overall operational costs.
Parameter | Detail |
Peak SPL | 145dB@1m |
Detection range | Up to 100 meters |
Protection rating | IP67 dustproof, waterproof and corrosion-resistant |
Communication interface | RS485 and CAN bus, supporting full TCMS integration |
What types of animals does TrackSonic 1000 work on?
The system provides reliable identification and deterrence for common railway wildlife such as deer, wild boar, elk, moose, sheep, and stray dogs. The AI model can be further optimized and trained for region-specific species to adapt to local railway ecological environments.
Does 145-decibel high-power sound affect passengers and crew inside the train?
No. The system adopts advanced directional beam focusing technology. Sound energy is accurately concentrated on the track detection area ahead. The internal cabin sound pressure remains far below safety thresholds, causing no noise disturbance or discomfort to drivers and passengers.
Can the system work stably in tunnels and severe weather?
Yes. The AI vision module supports low-light enhancement, ensuring stable recognition in tunnels and dark nights. It operates normally in rain, fog, sandstorms, and other harsh weather. The IP67 high-grade protection structure guarantees all-weather reliable operation.
What is the service life of the TrackSonic 1000 system?
Built with railway-grade anti-vibration reinforced structure and industrial core components, the system features strong resistance to vibration, corrosion and extreme temperatures. With daily standard maintenance, it delivers a stable service life of 5 years.
