A high-precision intelligent laser searchlight equipped with professional anti-shake PTZ stabilization technology, designed for dynamic vehicle-mounted and vessel-mounted scenarios to deliver continuous, high-precision target locking illumination under severe vibration and swaying conditions.
Stable Beam is an industrial-grade smart anti-shake laser searchlight featuring integrated gyroscope stabilization and intelligent PTZ dynamic compensation. Developed for moving vehicle patrol and maritime vessel navigation environments, it effectively solves the common industry problem of unstable beam offset and target loss caused by continuous vibration, shaking and wave swaying.
The system maintains precise target-locked laser illumination under complex dynamic conditions, supporting long-range night monitoring, safety warning and accurate target guidance. It perfectly balances superior long-distance optical performance and reliable dynamic anti-shake stability for mobile operation scenarios.
This professional laser lighting solution is widely applicable for vehicle night patrol, marine vessel navigation, offshore nighttime monitoring, waterway safety alert and dynamic emergency rescue lighting missions.
Pain Point 1: Severe beam deviation in dynamic vibrating environments
Traditional fixed searchlights cannot adapt to moving vehicle bumps and vessel wave swaying. Unstable vibration causes frequent laser beam deviation and target loss, resulting in failed real-time monitoring and missing critical emergency illumination opportunities.
Pain Point 2: Slow and inefficient manual angle adjustment
Conventional lighting devices rely entirely on manual angle correction. Manual operation cannot respond rapidly to high-frequency and large-amplitude dynamic shaking, leading to low accuracy, delayed response and heavy operational workload.
Pain Point 3: Insufficient environmental protection and poor durability
Ordinary searchlights lack professional waterproof, dustproof and salt-spray resistant capability. Harsh outdoor conditions including rain, snow and marine corrosion accelerate equipment aging, increase illumination deviation risks and shorten service life.
The Bottom Line: Mobile vehicle and maritime dynamic operation scenarios require intelligent anti-shake, fast-response and high-protection laser searchlight systems for stable all-weather illumination.
Stable Beam integrates high-power laser illumination, intelligent gyroscope anti-shake stabilization, dynamic PTZ compensation, remote system control and multi-scenario adaptive performance into a professional dynamic laser searchlight solution.
Function 1: Dual-mode high-power laser illumination
Supports steady constant light and emergency flashing light dual working modes. The RS232 reserved interface enables remote control of power switch, brightness adjustment and mode switching, realizing seamless integration with vehicle and vessel central control systems.
Function 2: High-precision intelligent anti-shake dynamic stabilization
Built-in three-axis gyroscope and high-sensitivity accelerometer collect real-time pitch, roll and yaw attitude data. Adopting professional PID algorithm dynamic compensation technology, the PTZ motor executes real-time reverse angle adjustment to offset vibration interference, controlling overall laser beam deviation within ±1 degree.
Function 3: Full-data remote operation and intelligent maintenance
Supports real-time remote data feedback of PTZ rotation angle, equipment temperature, power status and working parameters. Operators can remotely adjust anti-shake sensitivity and response thresholds, realizing fast fault diagnosis, status monitoring and unmanned maintenance management.
Function 4: Multi-scenario dynamic environment adaptation
Optimized for vehicle patrol, maritime navigation, waterway safety monitoring and emergency rescue guidance. The system maintains continuous illumination stability and precise target locking accuracy in complex vibrating and swaying dynamic environments.

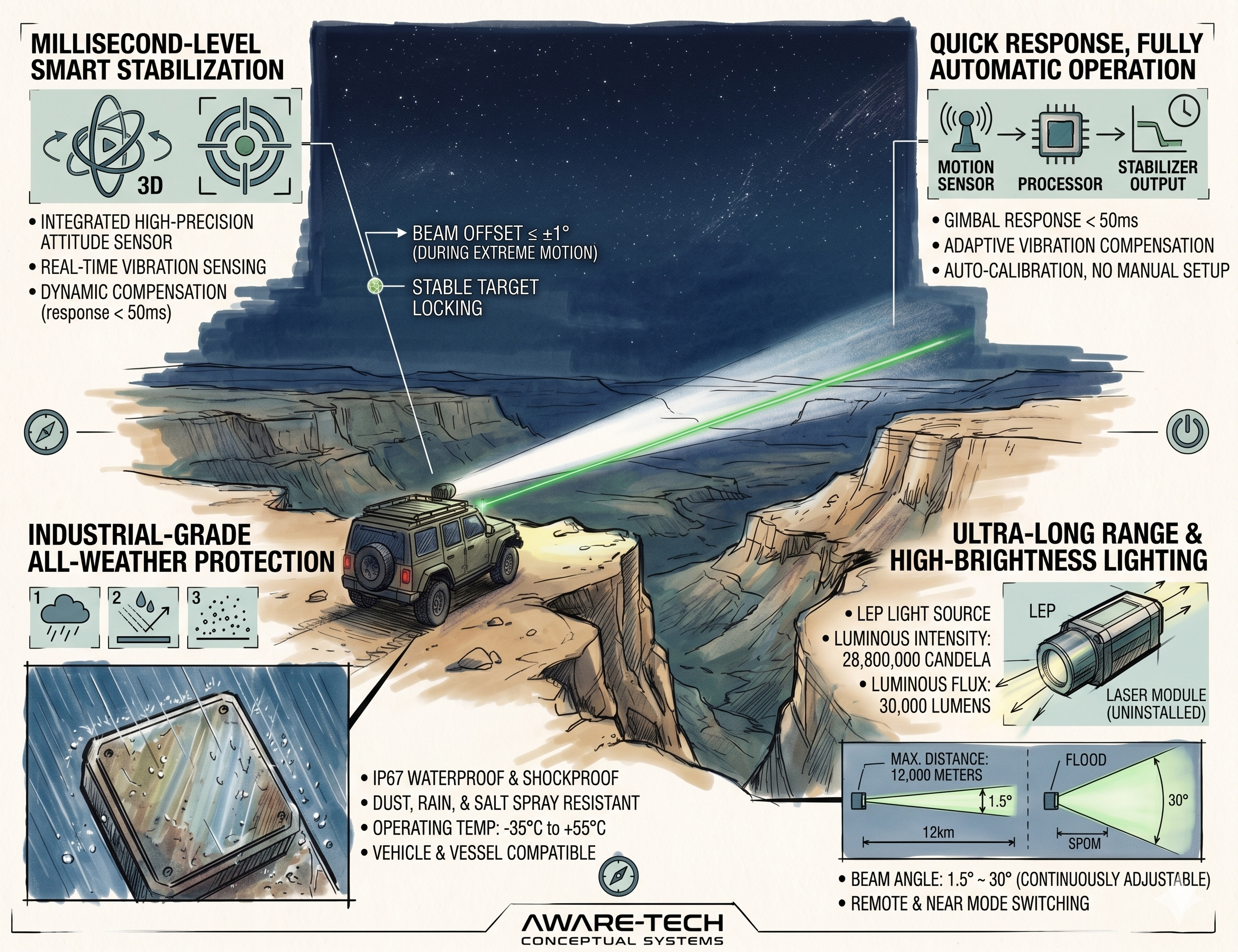

What It Means for You: Equipped with high-precision MEMS attitude sensing modules, the system instantly identifies three-axis vibration and sway amplitude. Real-time reverse dynamic compensation ensures laser beams stay locked on targets. Even under severe dynamic shaking, beam deviation is stably controlled within ±1 degree for uninterrupted accurate illumination.
Advantage 2: Industrial-grade all-weather environmental adaptability
What It Means for You: IP67 full waterproof and shockproof structure features excellent dustproof, rainproof and salt-spray corrosion resistance. The wide temperature working range of -35°C to 55°C ensures stable operation in harsh vehicle-mounted and marine outdoor environments all year round.
Advantage 3: Ultra-long-range high-intensity laser lighting capability
What It Means for You: Premium LEP light source delivers 28,800,000 candela luminous intensity, 30,000 lumens luminous flux and a maximum illumination distance of 12,000 meters. The 1.5°–30° adjustable beam angle and dual-mode switching meet long-distance monitoring and short-range panoramic lighting demands.
Advantage 4: Ultra-fast automatic response and zero-manual intervention
What It Means for You: The PTZ servo motor response speed is within 50 milliseconds. The system automatically matches optimal anti-shake compensation strategies according to vehicle and vessel motion characteristics, eliminating frequent manual adjustment and greatly improving dynamic lighting operation efficiency.
Parameter | Detail |
Luminous Intensity | 28,800,000 cd |
Maximum Illumination Distance | Up to 12,000 meters |
Anti-shake Stabilization Accuracy | Dynamic beam deviation within ±1 degree |
Protection Level & Operating Temperature | IP67 waterproof & dustproof, -35°C ~ 55°C wide-temperature stable operation |
Can the anti-shake searchlight maintain stable aiming under severe vibration and swaying?
Yes. The Stable Beam laser searchlight adopts high-precision MEMS attitude sensors and PID dynamic compensation algorithm. It detects triaxial shaking data in milliseconds and drives PTZ reverse adjustment. Even under extreme dynamic swaying, the beam deviation is controlled within ±1 degree to maintain stable target locking illumination.
Can the equipment operate stably in harsh outdoor and marine weather?
Yes. Featuring IP67 industrial-grade protection, the shock-resistant and waterproof structure resists rain, snow, dust and salt spray corrosion. The wide-temperature adaptive design ensures reliable operation in high-temperature, low-temperature and harsh marine environments.
Is seamless system integration available for vehicle and vessel equipment?
Yes. The standard RS232 interface supports remote control of switch, brightness and working modes for seamless connection with vehicle and vessel central control systems. It also provides real-time equipment status data feedback for intelligent unified management.
How fast is the dynamic anti-shake response speed?
The PTZ servo response speed is within 50 milliseconds. The system automatically adapts to different vehicle and vessel shaking frequencies without manual calibration, ensuring continuous and stable long-range illumination in all dynamic scenarios.
Ribri provides high-stability, IP67 waterproof, long-range intelligent anti-shake laser searchlight solutions for vehicle patrol, maritime vessel navigation, night operation monitoring and emergency rescue scenarios.
Contact Ribri for a free feasibility assessment and customized project quotation.
