X70-PAD


Availability:

Product Description

Product Superiority

FAQ

Download

Product Overview

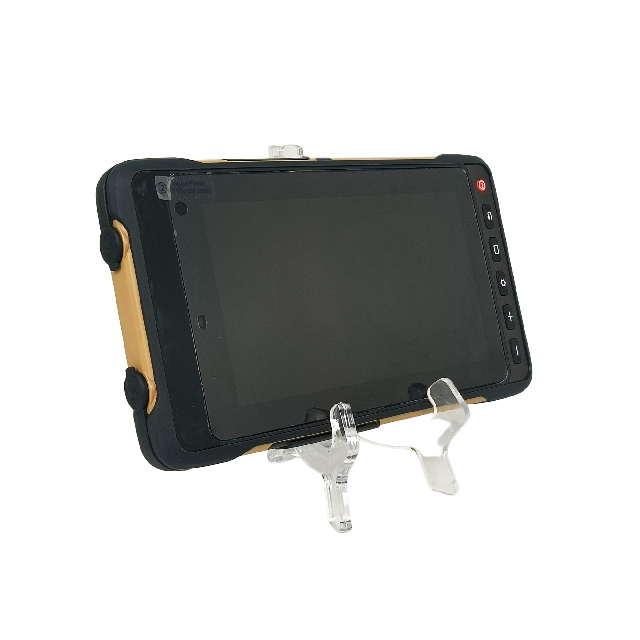

The X70-PAD is a reinforced control tablet featuring a 7.0-inch 2600-nit full-view HD display with a resolution of 1920×1080. It supports full tempered ten-point capacitive touch, constructed from dual-color ABS+PC injection-molded plastic integrated with an aviation-grade titanium alloy frame. Measuring 230mm × 131mm × 25mm and weighing 880g, it houses a 10,000mAh high-capacity battery, boasts IP67 dust and water resistance, MIL-STD-810G drop protection, and IK05 impact-resistant screen performance. Capable of operating across wide temperature ranges and with vibration resistance, the tablet integrates multiple interfaces, multi-system positioning, and dual-band WiFi, making it a highly reliable, protective, and scalable industrial-grade audio-visual mobile control terminal. Versatile for our company's high-light, high-sound, and integrated audio-visual equipment, it functions as both a portable wired control terminal and a wireless terminal when paired with front-end devices or wireless routers. Additionally, it supports OEM/ODM customization to accommodate various audio-visual product types.

Table of Key Equipment Parameters

Parameter	Details
Display Screen	7-inch 10-touch capacitive touchscreen with 1920×1080 resolution, high brightness and wide color gamut of 2600 nit
WI-FI	Dual-band WiFi (2.4 GHz/5 GHz)
Physical Button	Power button; Volume +/-buttons; Settings button, Back button, HOME button
Memorizer	64GB, supports up to 256GB Micro SD cards
Dimension	230mm131mm25 mm
Weight	880 grams
Cell	10000mAh
Levels of Protection	IP67
Running Temperature	-20°C to 50°C
Storage Temperature	-40°C to 70°C
Relative Humidity	5% to 95%

Product Superiority

• Professional Reinforcement Protection

IP67 dust and water resistance, military-grade drop protection, IK05 impact-resistant screen, and vibration tolerance, ensuring durability and reliability in harsh outdoor environments.

• High-brightness Outdoor Display

A 2600 nit ultra-high-brightness full-view industrial screen, ideal for outdoor operations.

• Comprehensive and Highly Expandable Interfaces

magnetic charging, Type-C, M12 aviation connector, and SMA antenna port, supporting connectivity with microphones, networks, and peripherals for seamless integration with various compatible devices.

• Lightweight, Portable, and Long-Lasting

Weighing only 880g with a slim design; equipped with a 10,000mAh high-capacity battery for extended battery life, ideal for prolonged field use.

• Exemplary Environmental Adaptability

Operates effectively across a wide temperature range of-20°C to 50°C, and stores at temperatures from-40°C to 70°C; maintains normal performance even in high-altitude and high-humidity environments.

• Excellent User Experience

Physical function buttons combined with high-definition touch controls for simple operation; multi-language compatibility ensures broad applicability.

FAQ

What products is this device compatible with?

This device is compatible with our omnidirectional acoustic devices, directional acoustic devices (fixed and portable), and integrated audio-visual equipment. Some devices require a wireless router, 4G/5G module, or video transmission module for remote control.

What is the connection method of this product?

This product supports both wireless and wired connection.

Does this product support storage expansion?

Yes. This product has a built-in 64GB memory and supports up to 256GB Micro SD (T-FLASH) cards.

Does this product require an external power supply?

This product is equipped with a built-in 10000mAh lithium battery and a charger. It is compatible with common USB Type-C chargers.

Does this product support upgrades?

Yes. Software and built-in audio files (such as broadcast tones, warning tones, etc.) can be upgraded via the upgrade port

Does this product support customization?

Yes, OEM/ODM customization is supported.
