Modern Acoustic Hailing Device systems utilize advanced transducer arrays and parabolic phase alignment to project highly directional sound over distances exceeding 2,000 meters while preserving voice intelligibility and minimizing lateral acoustic spillover.
Section | Summary |
Next-Gen Transducer Efficiency | High-flux neodymium magnetic structures optimize electrical-to-acoustic power conversion while cutting device weight. |
Precision Acoustic Directivity | Phase-aligned horn geometries restrict sound spread to ±15 degrees, keeping noise focused on targets. |
Airport Bird Control Applications | High-SPL directional tones disperse avian threats along active runways without disorienting air traffic controllers. |
Border Control and Perimeter Security | Long-range voice transmission enables multi-language warnings and non-lethal deterrence across rugged border terrain. |
System Selection and Comparison | Detailed overview matching tactical deployment weight, SPL output, and power requirements to mission goals. |
Modern Acoustic Hailing Device technology relies on high-density magnetics and planar phase plugs to maximize sound output while minimizing power consumption and operator weight.
In field operations, traditional voice hailing systems waste up to ninety percent of input electrical energy as heat. This heat causes voice coil distortion and thermal power compression over prolonged broadcasts. Modern Directional Acoustic Device designs address this inefficiency through high-flux neodymium magnet structures coupled with custom aluminum heatsinks. By dissipating thermal build-up directly through the physical housing, these transducers sustain consistent sound pressure levels during continuous operation.
Broadcasting human speech over long distances requires high acoustic pressure within the critical frequency band of 250 Hz to 7000 Hz. By tailoring the acoustic response curve specifically to human vocal frequencies, engineers eliminate energy waste in sub-bass ranges that do not contribute to clarity. This targeted approach ensures that emergency warnings, live voice commands, and pre-recorded deterrence tones remain crisp and understandable across distances over 2,000 meters.
Frontline operators cannot be burdened by heavy hardware during fast-response deployments. Modern units combine high-strength polycarbonate housings with aircraft-grade aluminum mounting structures, allowing compact systems to weigh under 5 kg while delivering 142 dBA output. Integrated lithium-ion battery modules eliminate external power cables, supplying continuous broadcasting power for up to 10 hours on a single charge.
Key electroacoustic parameter enhancements include:
Magnet Material: Transitioned from legacy heavy ferrite to N52-grade high-flux neodymium magnet assemblies.
Electroacoustic Efficiency: Increased from traditional 5–10% conversion ratios up to 25–35% in modern arrays.
Frequency Band Focus: Narrowed from wide 100–12,000 Hz spectrums to vocal-optimized 250–7,000 Hz response curves.
Thermal Management: Upgraded from passive coil cooling to direct chassis heatsinks.
Power Architecture: Evolved from external heavy generators to onboard lithium battery modules.
For ultra-compact operations where rapid manual deployment is critical, tactical teams utilize the Handheld Acoustic Hailing Device, which integrates battery power and high voice clarity into a lightweight chassis.

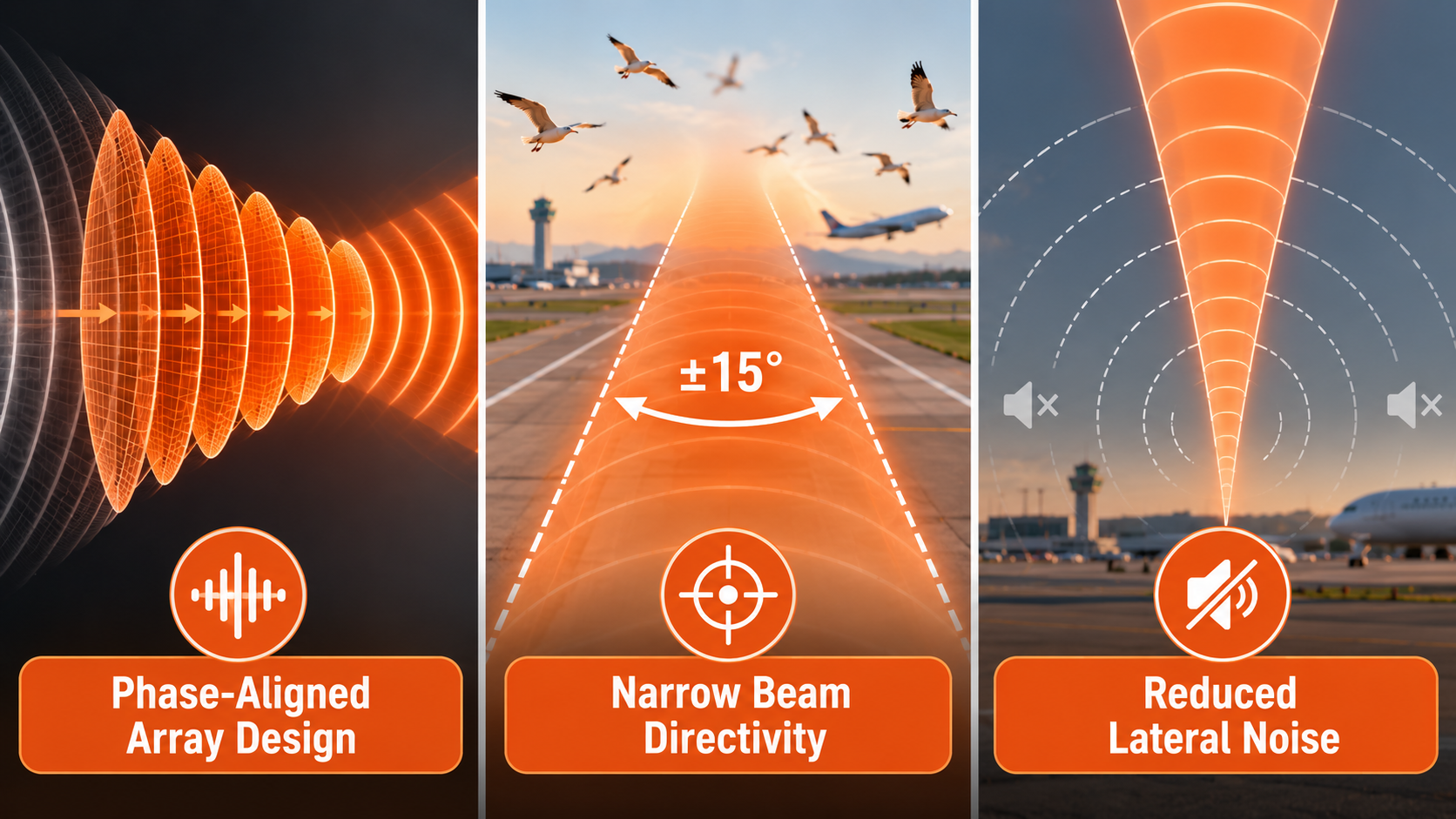

Acoustic Hailing Device engineering concentrates sound energy into tight directional beams, ensuring maximum sound pressure on target while suppressing lateral noise.
A central challenge in long-range acoustic communication is spatial sound dispersion. Standard public address horns allow sound waves to spill sideways and backward, exposing operators to hearing damage and reducing forward throw range. Modern Directional Acoustic Device arrays use phase-aligned horn geometries that act like optical lenses for sound waves. By shaping the wavefront into a narrow ±15-degree beam at 2 kHz, sound energy remains concentrated over immense distances.
Controlling rearward acoustic energy is essential for operator health and safety. Advanced phase-cancellation ports built into the chassis create destructive interference behind the device horn. This reduces rear acoustic exposure by more than 30 dBA relative to the main forward beam, allowing security personnel to operate the system comfortably without specialized hearing protection during standard voice broadcasts.
Beyond clear voice communication, effective acoustic hailing relies on non-lethal warning signals. Advanced digital signal processing (DSP) engines generate rapid frequency-swept tones that penetrate vehicle cabins, heavy machinery noise, and protective earwear. These modulated sound waves create an irresistible urge for targets to retreat or comply without causing permanent physiological harm.
Key directional performance metrics include:
Narrow Beam Angles: Achieves a tight ±15° dispersion angle at 2 kHz compared to standard PA horns scattering across 90°–120°.
Rear Noise Cancellation: Exceeds -30 dBA rearward acoustic suppression through destructive interference ports.
High Speech Intelligibility: Maintains a Speech Transmission Index (STI) above 0.9 at 500 meters.
Extreme Peak Output: Generates focused sound pressure levels ranging from 142 dBA up to 158 dBA at 1 meter.
Operating Principle (Beam Alignment): The parabolic horn layout forces sound waves exiting each transducer driver into a synchronized in-phase wavefront. Out-of-phase sound waves directed sideways or backward cancel each other out, locking acoustic energy inside a tight central corridor. |
Deploying a Directional Acoustic Device along runway corridors effectively disperses birds without interfering with nearby air traffic operations.
Avian wildlife strikes pose severe safety risks during aircraft takeoff and landing phases. Standard omnidirectional sirens scatter sound in all directions, alarming nearby residential zones and disorienting air traffic control personnel. Conversely, a highly focused Acoustic Hailing Device allows airfield safety teams to sweep acoustic deterrent tones directly along active runways, clear flight paths, and airport perimeter wetlands without spilling noise into surrounding areas.
Modern airport bird control extends beyond simple loud noise. Integrated digital playback modules allow operations staff to broadcast high-fidelity bioacoustic recordings, such as natural predator calls and species-specific distress vocalizations. Because the acoustic beam preserves signal fidelity across distances exceeding 1,000 meters, target bird flocks perceive authentic danger and clear the airfield immediately.
Airfield bird control requires high operational mobility. Modern acoustic hailing hardware features heavy-duty U-bracket mounts designed for quick installation on patrol trucks, follow-me vehicles, or fixed perimeter posts. Operators can aim the device from inside the vehicle cab using remote joystick controllers or pre-programmed automated pan-tilt assemblies.
Operational comparisons show significant clear advantages:
Coverage Control: Focused sector sweeping (±15°) versus diffuse 360-degree noise scatter.
Effective Runway Distance: Projects clear distress signals past 2,000 meters compared to conventional sirens failing under 300 meters.
Control Tower Impact: Zero acoustic disturbance to flight controllers and nearby residential neighborhoods.
Signal Adaptability: Dynamic DSP bioacoustics and distress tones replace monotone mechanical sirens.
For medium-to-long-range airfield patrol requirements where balance between weight and maximum acoustic reach is essential, facility commanders rely on the mid-sized Portable Directional Acoustic Device.
Directional Acoustic Device installations provide non-contact deterrence and clear voice instructions across extended border lines and maritime boundaries.
Border management requires clear long-distance communication to prevent illegal crossings and de-escalate security situations. A high-intensity Acoustic Hailing Device allows border agents to broadcast clear multilingual instructions over valleys, river crossings, and border fences. By delivering intelligible voice instructions up to 2,239 meters away, security teams establish safe separation zones and resolve threats without resorting to physical force.
Tactical commanders require flexible options when responding to approaching crowds or perimeter intruders. Modern acoustic systems provide stepped intervention levels:
Low-SPL informational voice announcements over long distances.
High-intensity vocal commands issued to specific targets.
High-SPL directional warning tones that compel rapid dispersal.
Modern border defense networks combine fixed posts with mobile security assets. Compact Directional Acoustic Device hardware can be integrated with mobile robotic dogs, surveillance vehicles, and heavy-lift UAVs. These unmanned platforms carry acoustic payloads into remote border zones, extending security coverage without putting human operators in harm's way.
Primary defense deployment profiles include:
Border River Crossings: 500 to 1,000-meter range operating at 135–145 dBA for live multilingual voice warnings.
Perimeter Fence Defense: 1,000 to 2,200-meter range operating at 148–158 dBA using high-intensity deterrence tones.
Tactical Crowd Dispersal: 100 to 400-meter range operating at 120–135 dBA for direct verbal instructions.
Remote Drone Patrols: 200 to 800-meter range operating at 130–140 dBA for automated alert broadcasts.
For ultra-long-distance border defense and wide-area security operations requiring maximum sound output, agencies utilize the high-power Long-Distance Acoustic Hailing Device, capable of projecting clear voice and deterrence signals up to 2,239 meters.
Selecting the right Acoustic Hailing Device (AHD) architecture depends heavily on operational mobility, effective acoustic range, and environmental constraints. Modern system designs typically fall into two core categories: ultra-portable/handheld units for rapid response, and medium-to-long-range directional platforms for tactical or stationary deployment.
Ultra-Portable & Handheld Systems: Designed for maximum mobility, these lightweight acoustic hailing devices enable field operators, security personnel, and tactical teams to deploy immediate acoustic warnings on foot. They prioritize single-operator ergonomics, battery efficiency, and swift deployment without compromising vocal clarity or directional focus.
Tactical Portable Directional AHDs: Serving as a bridge between handheld agility and heavy-duty long-range systems, portable directional AHDs provide significantly higher Sound Pressure Levels (SPL) and extended transmission distances while remaining compact enough for single-person transit or rapid vehicle/tripod mounting.

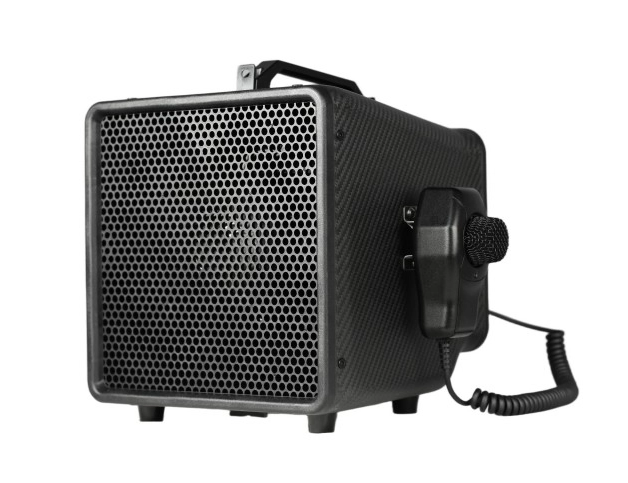

A prime example of this design balance is the RP21C Portable Directional Acoustic Device. Designed specifically for tactical field operations, emergency response, and perimeter defense, the RP21C delivers high-output acoustic projection and exceptional speech intelligibility in a highly compact, mobile form factor. By eliminating unnecessary bulk while optimizing acoustic transducer efficiency, it offers operators a versatile hailing solution that is easy to transport, set up, and operate under high-stress field conditions.
Advancements in transducer magnetics, phase-aligned horn design, and ruggedized power systems have transformed the modern Acoustic Hailing Device. Modern electroacoustic systems replace diffuse, ineffective public address horns with targeted acoustic energy beamforming. Whether securing airport runways against bird strikes, enforcing border security across difficult terrain, or issuing crowd control instructions, modern Directional Acoustic Device solutions give security commanders precise, non-lethal communication tools. By focusing sound energy exclusively on target areas, operators ensure clear voice transmission over long distances while protecting surrounding personnel and bystanders.
