Product Overview

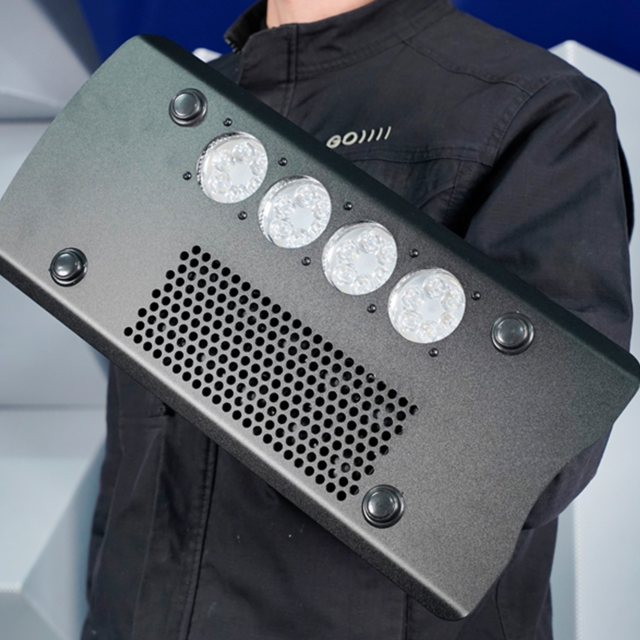

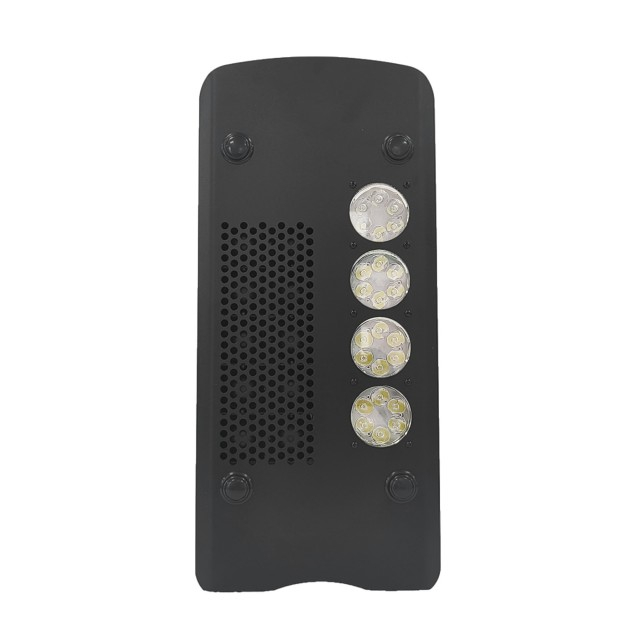

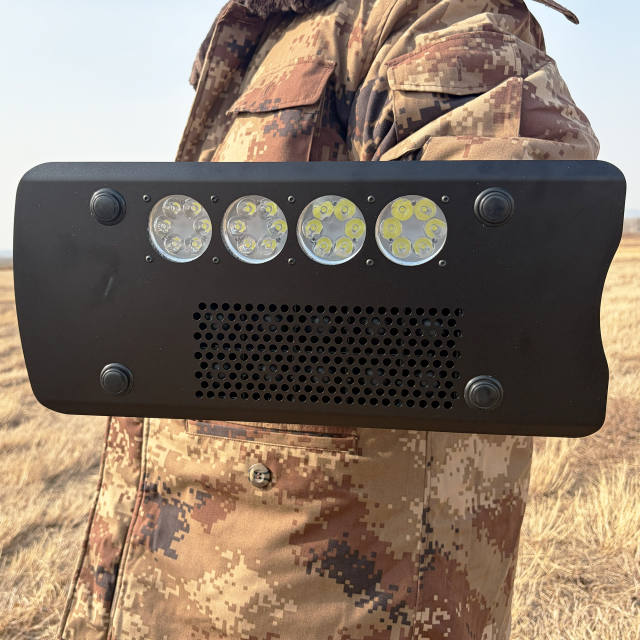

The RS103 is an ultra‑lightweight, compact arm shield integrated with high‑intensity sound and LED lighting modules. It is specifically designed for rapid deployment in close‑range defense, underground security, and evacuation operations. This acoustic crowd control device uses a dual non‑lethal approach: targeted acoustic deterrence and high‑brightness LED strobe lighting. Its lightweight, portable design makes it an ideal protective solution for critical personnel security, frontline law enforcement, and small‑scale event security.
Description of Characteristics
• Dual Deterrence Efficacy

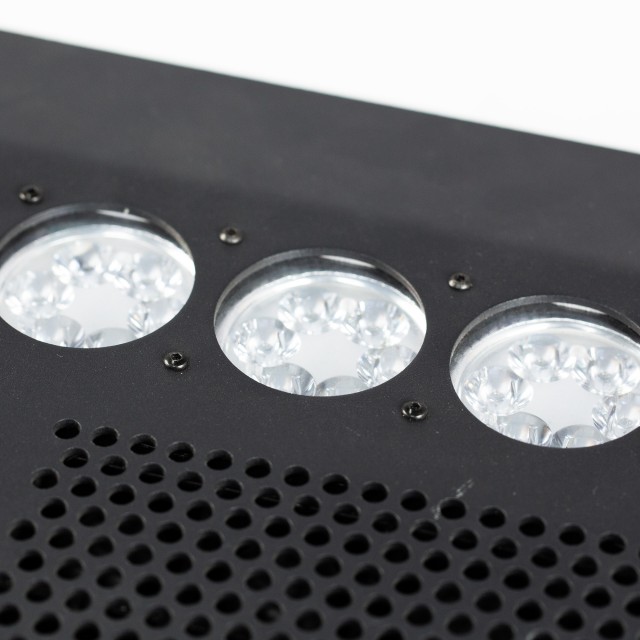

Combining directional acoustic equipment (peak sound pressure level @1 m: 133 dBA, beam angle ±15°/-3 dB) with high-brightness LED stroboscopic lights (light intensity: 280–25 cd), this system leverages the synergy between sound and light to achieve multisensory synchronized control, significantly enhancing deterrence effectiveness.
The ultra-lightweight and compact shield structure (200mm*100mm*445mm) weighs only 1.9kg, making it an ideal choice for security and rapid law enforcement applications; equipped with a built-in lithium battery that provides over one hour of continuous operation.
• Convenient Operation

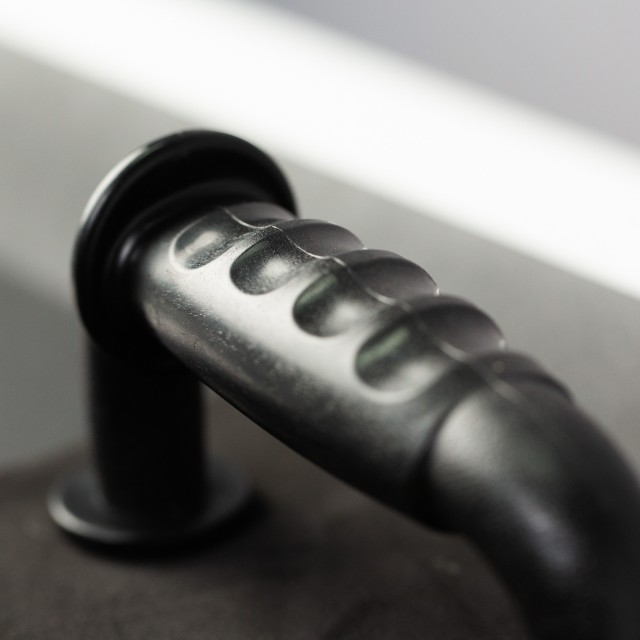

The device features an ergonomic grip design with buttons positioned within the thumb's reach, allowing quick activation and deactivation of audio and visual functions.
• Military-grade Environmental Adaptability and Reliability
Certified under MIL-STD-810H standards (including extreme temperatures, humidity, rain exposure, and vibration), it features IP65 protection rating, enabling operation in all types of harsh weather and adverse environments.
Table of Key Equipment Parameters
Parameter | Details |
Peak SPL@1m | 133dBA |
Continuous SPL@1m | 126dBA |
Dispersal Range | 14m |
Acoustic Beam | ±15°/-3dB |
Luminous Intensity | 28025cd |
Irradiation Angle | 15° |
Dimension(W*D*H) | 200mm*100mm*445mm |
Weight | 1.9kg |
IP Rating | IP65 |
