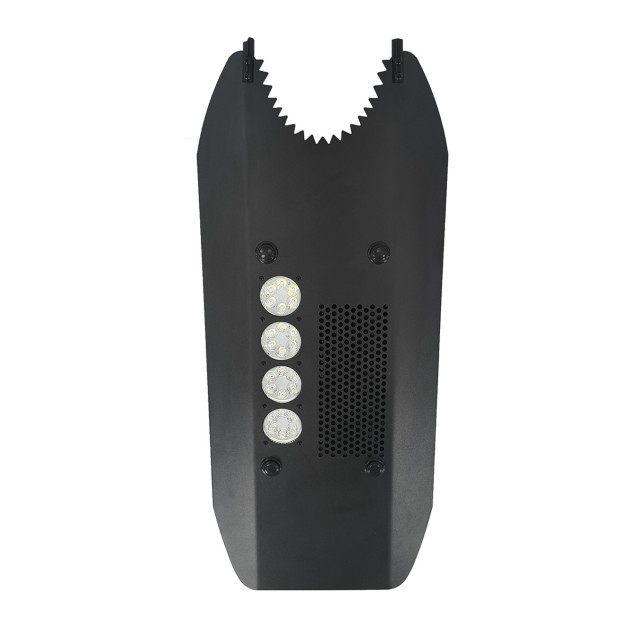

RS102

Standard-size integrated arm shield, 2.7kg for daily patrol balance
Dual audio-light deterrence with 28025cd high-bright strobe lights
133dBA peak sound, 14m crowd dispersal coverage
Built-in battery supports over 1 hour continuous full-power work
MIL-STD-810H & IP65 certified for all extreme weather
Thumb-operated ergonomic grip for fast function switching
Multi-scenario use: maritime, public security, urban wildlife control

Quantity:
Availability:





Inquire Add to Basket

Product Description

FAQ

Application

Download

Product Overview

The RS102 is a compact arm shield integrated with high‑intensity sound and LED lighting modules, designed for riot control, law enforcement operations, and border control. This acoustic crowd control device provides an efficient non‑lethal solution for crowd management. Its lightweight, portable design integrates two non‑lethal methods: targeted acoustic deterrence and high‑brightness LED strobe lighting. The RS102 serves as an ideal protective tool for frontline law enforcement, border patrols, and security operations at small gatherings.

Description of Characteristics

• Dual Deterrence Efficacy

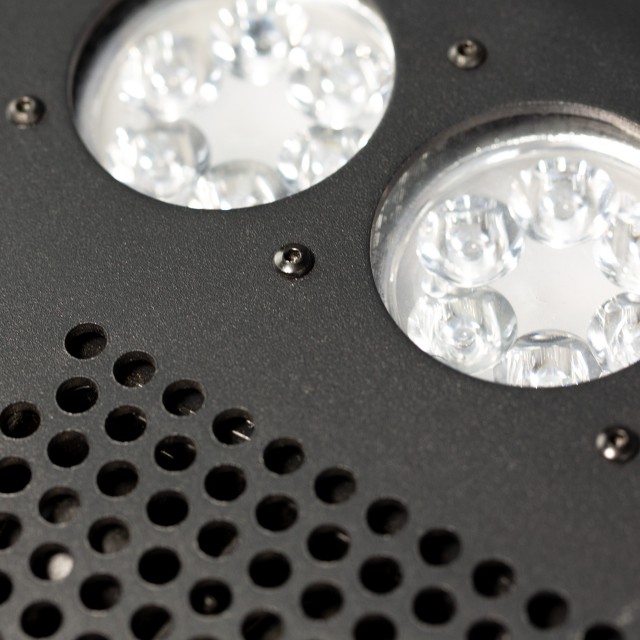

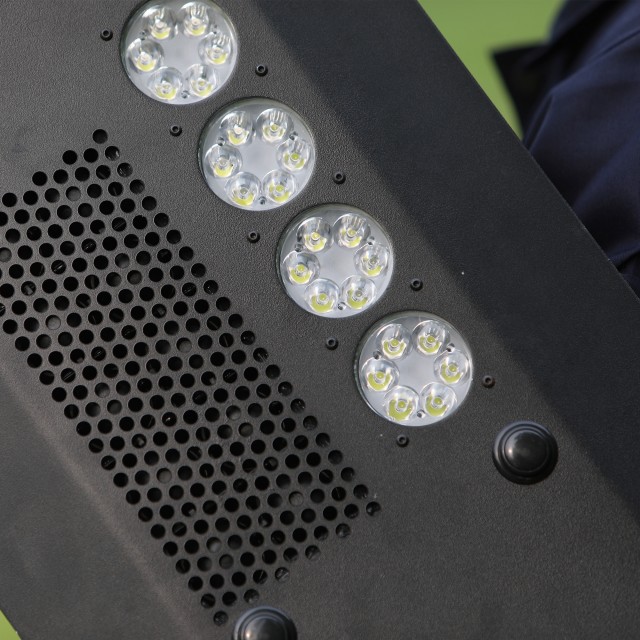

Integrated directional acoustic devices (Peak SPL@1m 133 dBA, beam angle ±15°/-3 dB) combined with high-brightness LED stroboscopic lights (light intensity 280–25 cd), achieving multi-sensory control through acoustic-optical synergy to enhance deterrence effectiveness.

• Outstanding Portability and Battery Life

The compact shield structure (300mm*112mm*714mm) and lightweight design (2.7kg) make it an ideal choice for rapid law enforcement applications; equipped with a built-in lithium battery, it provides continuous operation for over 1 hour.

• Convenient Operation

The device features an ergonomic grip design with buttons positioned within the thumb's reach, enabling quick activation of audio and visual functions.

• Military-grade Environmental Adaptability and Reliability

Certified under MIL-STD-810H standards (including extreme temperatures, humidity, rain exposure, and vibration), it features IP65 protection rating, enabling operation in all types of harsh weather and adverse environments.

Table of Key Equipment Parameters

Parameter	Details
Peak SPL@1m	133dBA
Continuous SPL@1m	126dBA
Dispersal Range	14m
Acoustic Beam	±15°/-3dB
Luminous Intensity	28025cd
Irradiation Angle	15°
Dimension(WDH)	300mm112mm714mm
Weight	2.7kg
IP Rating	IP65

FAQ

What usage modes does this product support?

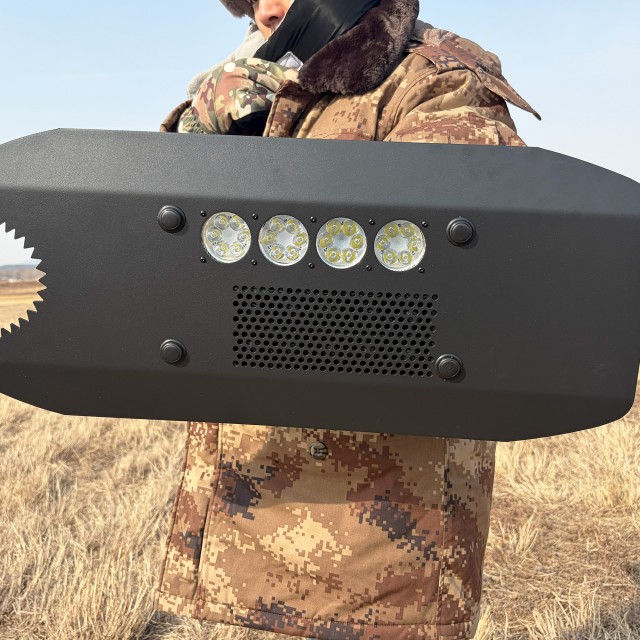

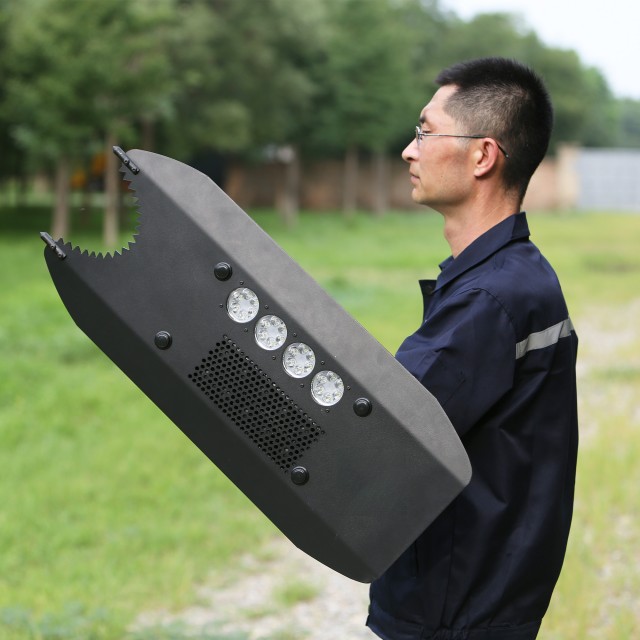

The RS102 supports handheld use and can also be directly attached to the arm without hindering quick movements, making it ideal for law enforcement officers requiring prolonged handheld operations.

What control methods does this product support?

The RS102 grip features an integrated power-on/off button on one side, allowing users to independently activate or deactivate the high-volume sound and high-intensity lighting functions.

Do the product's intense light and loud sound operate simultaneously?

The RS102 can independently activate intense light or sound, or operate with coordinated audio and visual effects.

In what environments can this product be used?

The RS102 employs low-temperature resistant lithium batteries, operating within a temperature range of-40°C to +60°C with an IP65 protection rating, making it immune to harsh weather conditions.

Does this product support OEM/ODM customization?

The RS102 supports OEM/ODM customization services, offering tailored production solutions—including control languages, exterior colors, logos, and device nameplates—as well as customized sound and lighting configurations to precisely meet the diverse requirements of various law enforcement agencies.

Application

The RS102 is primarily used in the fields of maritime operations, public safety, and wildlife protection.

Common application scenarios

• Maritime

The RS102 boasts excellent portability and environmental adaptability, making it ideal for offshore security applications.

• Public Safety

The RS102 is a non-lethal, portable acoustic-optical arm shield featuring synchronized sound and light emissions, suitable for use in law enforcement, defense, and military applications.

• Wildlife Protection

The RS102 features synchronized audio-visual capabilities, enabling rapid containment and deterrence of wildlife. It is ideal for protection in urban parks and traffic ecological conservation scenarios.
