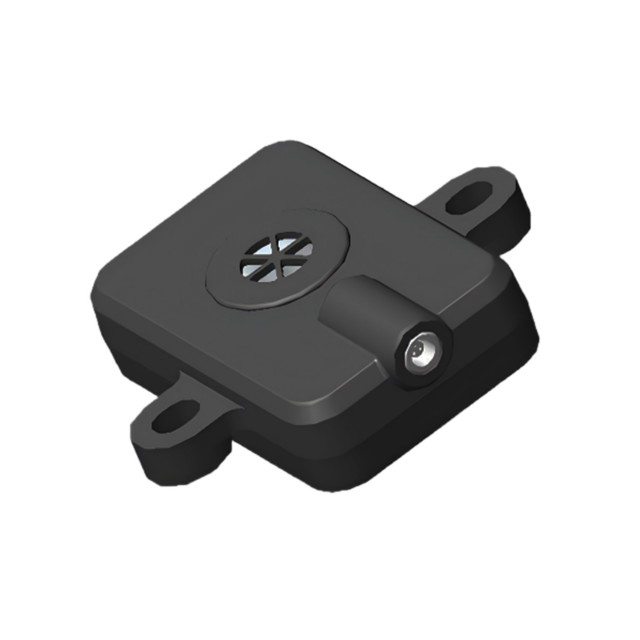

RD160

Quantity:
Availability:





Inquire Add to Basket

Product Description

FAQ

Application

Download

Product Overview

The RD160 is a hydrogen sensor developed for hydrogen monitoring applications. Utilizing Surface Acoustic Wave (SAW) sensing technology, it detects hydrogen without generating hazardous emissions during operation. As a hydrogen sensor, the RD160 features rapid response, high sensitivity, compact size, and low power consumption. Its core advantages include precise detection, stable signal transmission, and excellent environmental adaptability. By integrating advanced sensing technology with a robust structural design, it provides reliable hydrogen concentration detection solutions for industrial safety scenarios such as petrochemical plants, nuclear reactors, and power generation facilities, as well as for environmental monitoring applications. This ensures that hydrogen concentrations remain below the minimum combustible threshold, effectively mitigating explosion risks.

Description of Characteristics

• Precision Hydrogen Concentration Detection

Capable of accurate measurement of hydrogen concentrations ranging from 0 to 40 vol.%, meeting the requirements for precise monitoring in various scenarios.

• Efficient PWM Signal Interaction

Supports various PWM output signal types and integrates with host computer real-time data acquisition capabilities, ensuring rapid and stable transmission of detection data to the backend system, thereby providing a solid foundation for data application.

• Surface Acoustic Wave Sensing Technology

Utilizing Surface Acoustic Wave sensing technology, it offers high detection sensitivity, strong interference resistance, and generates no hazardous substances, ensuring safety and reliability.

• Lightweight and Compact Design

The device measures 62mm × 49.5mm × 21mm, with the data collector weighing only 160g. Its compact size facilitates installation in confined spaces or complex layouts.

• Military-grade Environmental Durability

Operating temperatures range from-35°C to +85°C. The product has passed rigorous testing under MIL-STD-810H standards for high/low temperatures, humid heat, and rain exposure, ensuring stable performance even in extreme conditions.

Table of Key Equipment Parameters

Parameter	Details
Target Gas	Hydrogen (H₂)
Detection Range	0-40 vol.%
Operating Voltage	DC 12V（9～16V）
Output Signal Type	PWM
Sensing Technology	Surface Acoustic Wave

FAQ

Can this product be used independently?

RD160 can be used independently.

What types of output signals does this product support?

The RD160 supports PWM output signal types and is compatible with host computer real-time data acquisition functions.

Is this product safe and reliable?

The RD160 employs Surface Acoustic Wave technology, which generates no static electricity or sparks during operation and does not produce temperatures exceeding the auto-ignition point of hydrogen, ensuring safety and reliability.

In what environments can this product be used?

The RD160 supports operating temperatures ranging from-35°C to +85°C, ensuring reliable and stable performance under extreme conditions.

Does this product support OEM/ODM customization?

The RD160 supports OEM/ODM customization services, enabling personalized production with customized appearance colors, structures, cable lengths, and other specifications according to client requirements. It also supports customization of hydrogen concentration detection ranges and enables tailored development for other gas detection applications.

Application

The primary application scenarios of RD160 include Critical Infrastructure Security, Maritime, Mass Notification, Platform Integration, and Public Safety.

Common application scenarios:

• Critical Infrastructure Security

The RD160 can be used for hydrogen detection, identifying hydrogen leaks and monitoring hydrogen concentrations in natural gas systems, making it suitable for applications in Oil & Gas and Industrial Park environments.

• Platform Integration

The RD160 can be integrated with other platforms to detect hydrogen concentrations in hazardous environments, making it suitable for deployment on Patrol Robots, Robot Dogs, Unmanned Ground Vehicles (UGVs), Unmanned Surface Vehicles (USVs), and Unmanned Aerial Vehicles (UAVs).
