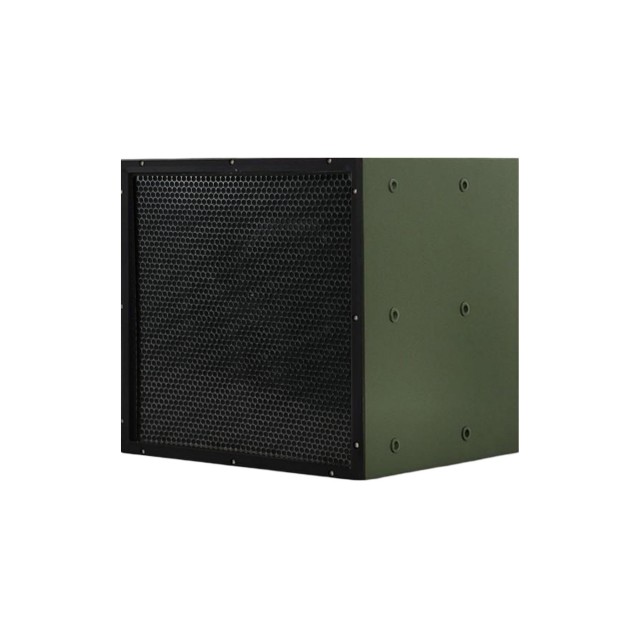

RC10Z

Peak SPL@1m: 149dBA, Max Range: 891m
-40℃~+60℃ temperature range for coastal border all-year operation
Core design targets border patrol and crowd noise-penetrating warning
Cascading network realizes centralized management of border sound devices
Built-in vibration resistance for direct UGV/USV equipment integration
Passes MIL-STD-810H salt spray & impact durability tests
Simple OEM modification for small-to-medium security engineering projects

Quantity:
Availability:





Inquire Add to Basket

Product Description

FAQ

Application

Download

Product Overview

The RC10Z is a high-performance fixed long-range acoustic device (LRAD) tailored for border control, perimeter security and crowd management scenarios. Adopting precision directional sound emission technology, it can effectively cut through ambient noise to deliver high-definition voice broadcasting and non-lethal acoustic deterrence. Featuring outstanding long-distance speech intelligibility, the device enables efficient sound coverage and accurate information transmission in target areas. It is widely applicable to various security scenarios including emergency notification, platform integration, emergency communication and law enforcement voice announcement.

Description of Characteristics

a） Featuring excellent acoustic performance and clear broadcasting effect, the device delivers a sound beam angle of ±15°@2kHz/-3dB and a frequency response range of 250Hz to 7000Hz, fully covering human voice and conventional audio bands. With high directivity, superior sound reproduction and low transmission loss, it achieves a maximum effective operating range of 891 meters, meeting the requirements of long-distance high-definition voice broadcasting and acoustic deterrence.

b） Equipped with standard TCP/IP network interface, upgrade interface and multi-functional expansion interface, the device supports remote network control and real-time audio operation functions, meeting the intelligent and networked integration demands of regional security protection systems.

c） Adopting a standardized and modular structure design, the device supports multiple installation methods and delivers full-dimensional performance equivalent to high-end long-range acoustic equipment, effectively reducing large-scale project deployment costs. Its compact and neat structure enables easy installation, disassembly, inspection and maintenance, greatly lowering subsequent operation and maintenance expenses.

d） With military-grade protection and outstanding environmental adaptability, the device features an IP65 dustproof and waterproof rating. It has passed rigorous environmental tests including high and low temperature, vibration, impact, salt spray and humid heat, ensuring stable continuous operation under harsh conditions such as extreme temperatures, high humidity, high salinity, rainstorms and sandstorms with superior reliability.

Table of Key Equipment Parameters

Parameter	Details
Peak SPL@1m	149dBA
Continuous SPL@1m	140dBA
Max Range	891m
Acoustic Beam	±15°@2kHz/-3dB
Dimension(WDH)	298mm279mm298mm
Weight	7.3kg
IP Rating	IP65

FAQ

What mounting methods does the product support?

The RC10Z supports fixed high-position installation and mobile carrier mounting. It can be installed on high-altitude infrastructures such as transmission towers, utility poles and building rooftops, and is also compatible with various mobile platforms including vehicles, ships and unmanned systems for flexible deployment.

What control methods does the product support?

The device realizes remote network control based on TCP/IP protocol. It can be operated independently through a dedicated control terminal, and can also be seamlessly integrated with the user's existing command system to achieve integrated centralized management of multiple devices.

What working environments is the product applicable to?

The device operates stably in a temperature range of -40℃ to +60℃ and features an IP65 dustproof and waterproof rating. It can work continuously and reliably in extreme harsh climates and complex industrial environments with high humidity, heavy salt spray, rainstorms and sandstorms.

Application

The RC10Z is widely deployed in critical infrastructure security, mass public notification, and unmanned platform integration scenarios.

Common application scenarios:

• Mass Notification

Benefiting from IP65 high protection grade, ultra-high sound pressure level and excellent frequency response performance, the device supports large-scale voice broadcasting systems for campus public address, traffic road broadcasting and other public notification scenarios.

• Critical Infrastructure Security

Featuring high performance, high reliability and cost-effective advantages, the RC10Z provides reliable security protection for core facilities such as traffic networks and other key infrastructure.

• Platform Integration

With outstanding vibration and impact resistance, remote control capability and multi-device cascading function, the RC10Z is highly adaptable for integration with various unmanned platforms, including unmanned ground vehicles (UGVs) and unmanned surface vehicles (USVs).
